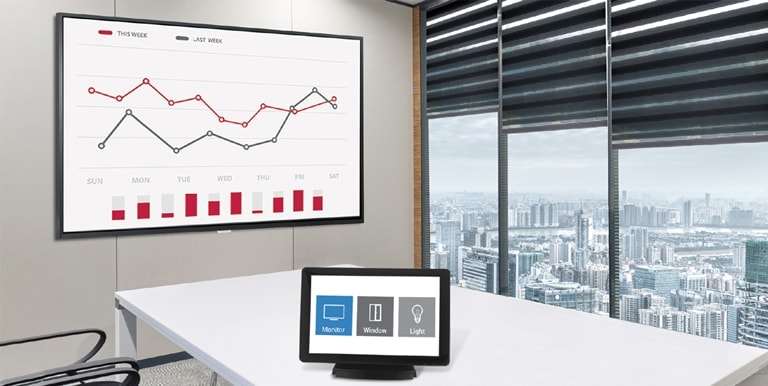

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
*Images may differ from the actual product.
A number of tasks can be done at the same time with the intuitive GUI.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
*Actual images (TV display) available may differ from the example images shown.
* Images are illustrated to enhance feature understanding.
In a clothing store, a user is using the app to produce promotional content to display on the UH5J-H installed on the store’s wall.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
YES
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
Input : HDMI, DP / Output : HDMI
Bezel Color
Black
Bezel Width
T/R/L: 9.9mm, B: 14.4mm
Weight (Head)
19.0Kg
Weight (Head+Stand)
19.6Kg
Packed Weight
24.2Kg
Monitor Dimensions (W x H x D)
1234.4 x 720.9 x 39.9mm (with LG Logo)
Monitor Dimension with Stand (W x H x D)
1234.4 x 770.7 x 290.0mm
Carton Dimensions (W x H x D)
1360.0 x 835.0 x 175.0mm
Handle
NO
VESA Standard Mount Interface
300 x 300 mm
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
110W
Max.
150W
BTU (British Thermal Unit)
376 BTU/Hr(Typ.), 512 BTU/Hr(Max.)
Smart Energy Saving (70%)
77W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(NewErP) / YES
ePEAT(US only)
NO
OPS Type compatible
YES (Piggyback)
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
YES (Not available for EU/CIS)
Mobile CMS
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
Max. 30 degree
IP Rating
IP5X
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
