The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
*All images in this web page are for illustrative purposes only and may differ from the actual product.
One:Quick Share dongle shown is not included with the product.
This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
^ LG One:Quick Share needs to be purchased separately.
LG LAEC015 Easy Installation
*Fixing screws or installing wall mount / accessories is needed additionally.
LG LAEC015 Dedicated Installation Accessories
*Optional (Available for Purchase Separately).

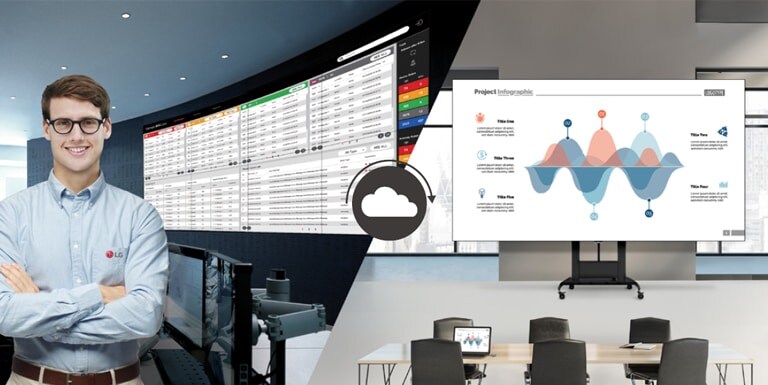

*The availability of LG ConnectedCare differs by region.
Connected Care service requires separate purchase
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.56
Screen Resolution
1,920 × 1,080
Module Dimensions (W x H, mm)
250 × 281.25
No. of Modules per Cabinet (WxH)
12 × 6 (Total 72)
Screen Dimensions (W × H × D, mm)
3,004.6 × 1,692.1 × 36.5 (Thickest 70)
Screen Surface Area (m²)
5.06
Screen Weight (kg)
129
Physical Pixel Density (pixels/m² )
409,600
Flatness of Cabinet (mm)
±0.2
Cabinet Material
Aluminum
Service Access
Front
Brightness
500 nit
Colour Temperature
3,200 - 9,300
Visual Viewing Angle (H × V)
160 x 160
Brightness Uniformity
98%
Colour Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000
Processing Depth (bit)
16
Key Features
DPM, HDMI CEC, Auto Brightness, PIP/2PBP, On/Off Scheduling, Play via URL, Content Manager, SuperSign CMS , CestronConnected, HDR10/HDR10 Pro, SoftAP, ScreenShare(Miracast), Office Meeting Mode, One:Quick Share, LG ConnectedCare ,Height Adjustable Floor Stand (Sold separately).
Power Consumption (W/Screen, Max.)
2,000
Power Consumption (W/Screen, Avg.)
800
Power Consumption(W/m²) Max
395
Power Consumption (BTU/h/Screen, Max.)
6,824
Power Consumption (BTU/h/Screen, Avg.)
2,730
Power Consumption (BTU/h/m², Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
≥2,880
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature
0°C to +40°C
Operating Humidity
<90%RH (without condensation)
Speaker
Built-in (9W + 9W)
Certification
CE, FCC, ETL, CB
Environment
RoHS, REACH
Controller
Embedded LG WebOS Controller
Connectivity
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, SPDIF
Download product manuals and latest software for your product.
Find helpful how-to videos for your product.
Check your product warranty information here.
Discover accessories for your product.
Registering your product will help you get faster support.
Find manual, troubleshoot and warranty of your LG product.
Track your order and check order FAQ.
Repair request service conveniently online.
To access more technical documentation and resources, please visit the LG B2B partner portal.
