The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* One:Quick Share dongle shown is not included with the product.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.
This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.
This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable.
* Fixing screws or installing wall mount / accessories is needed additionally.
The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall.
*Optional Motorised Stand available for Purchase Separately.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control

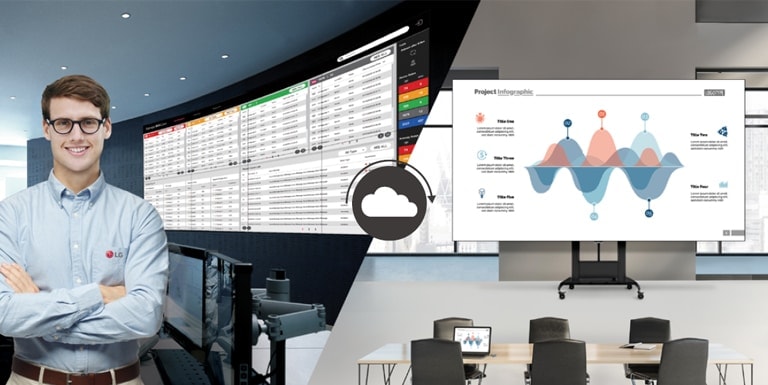

*LG ConnectedCare' needs to purchase separately.
Model name
LAEC015-GN2
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.56
Module Dimensions(WxH,mm)
250x281.25
Physical Pixel Density (pixels/㎡)
409,600
Flatness of Cabinet (mm)
±0.2
Cabinet material
Aluminum
Service access
Front
No. of Modules per Screen (WxH)
12x6 (Total 72)
Screen Resolution (WxH)
1,920x1,080
Screen Dimensions (W x H x D, mm, including bezel)
3,004x1,692x36.5 (Thickest 70)
Screen Surface Area (㎡)
5.06
Weight of the screen
132
Max Brightness (After Calibration, nit)
500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
0.98
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
3,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Color Temperature
3,200~9,300
Power Consumption (W/㎡, Max.)
336
Heat Dissipation (BTU/h/㎡, Max.)
1,146
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,960
Power Consumption (W/Screen, Max.)
1,700
Power Consumption (W/Screen, Avg.)
680
Heat Dissipation (BTU/h/Screen, Max.)
5,800
Heat Dissipation (BTU/h/Screen, Avg.)
2,321
Operating Temperature(℃)
0℃ to +40℃
Operating Humidity
10~90%RH
IP rating Front
IP30
IP rating Rear
IP20
LED Lifetime (Half brightness)
100,000
Certification
CE,FCC,ETL,CB,CE-RED
Environment
RoHS, REACH
Controller
Embedded(webOS)
Speaker
Built-in(9W+9W)
I/O Port
HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out
