All Spec
PRODUCT INFORMATION
-
Pixel Configuration
-
SMD, 4 Pixels in 1 PKG
-
Pixel Pitch (mm)
-
1.25
-
No. of Modules per Cabinet (W × H)
-
2 × 3
-
Cabinet Resolution (W × H)
-
480 × 270
-
Cabinet Dimensions (W × H × D, mm)
-
600 × 337.5 × 44.9
-
Brightness
-
600 nit (Typ.), 1,200 nit (Peak)
-
Contrast Ratio
-
5,000 : 1 (Typ.), 9,000 : 1 (Peak)
OPTICAL PARAMETER
-
Brightness
-
600nit (Typ.) 1,200nit (Peak)
-
Color Temperature (Default/Adjustable)
-
6,500K / 2,800~10,000K
* Adjustable via LED Assistant on PC>
-
Visual Viewing Angle (Horizontal)
-
170
-
Visual Viewing Angle (Vertical)
-
170
-
Brightness Uniformity
-
98%
-
Color Uniformity
-
±0.015Cx,Cy
-
Contrast Ratio
-
Peak. 8,000:1 Typ. 4,000:1
-
Processing Depth (bit)
-
20
-
HDR Compatibility
-
HDR10, HDR10 Pro
* LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping
ELECTRICAL PARAMETER
-
Power Consumption (W/cabinet, Max.)
-
112
-
Power Consumption (W/cabinet, Avg.)
-
67
-
Power Consumption (W/m², Max.)
-
555
-
Power Consumption (BTU/h/cabinet, Max.)
-
383
-
Power Consumption (BTU/h/cabinet, Avg.)
-
230
-
Power Consumption (BTU/h/m², Max.)
-
1,894
-
Power Supply (V)
-
100 to 240
-
Frame Rate (Hz)
-
50 / 60
-
Refresh Rate (Hz)
-
3,840

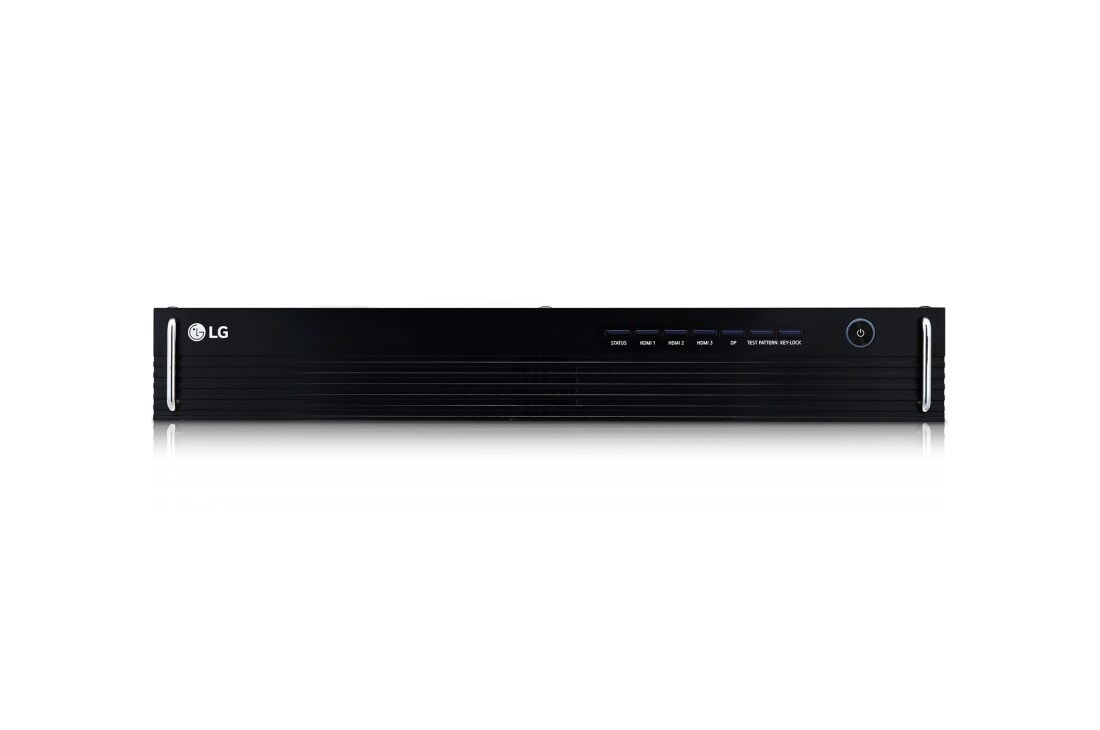

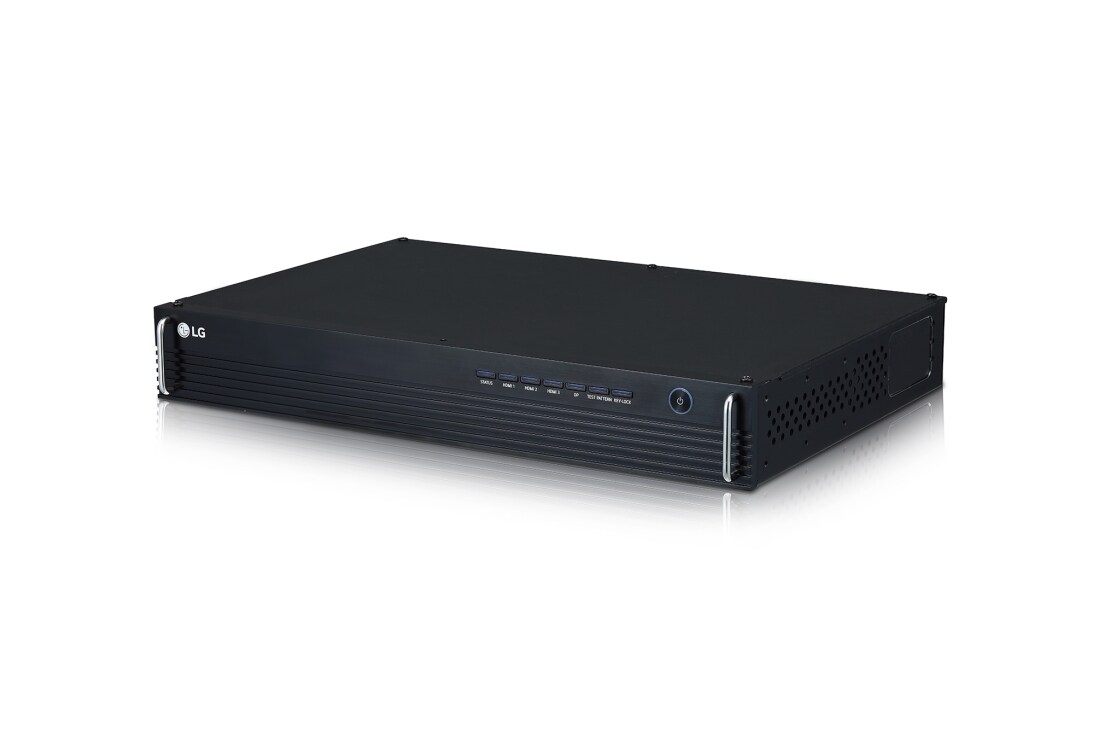

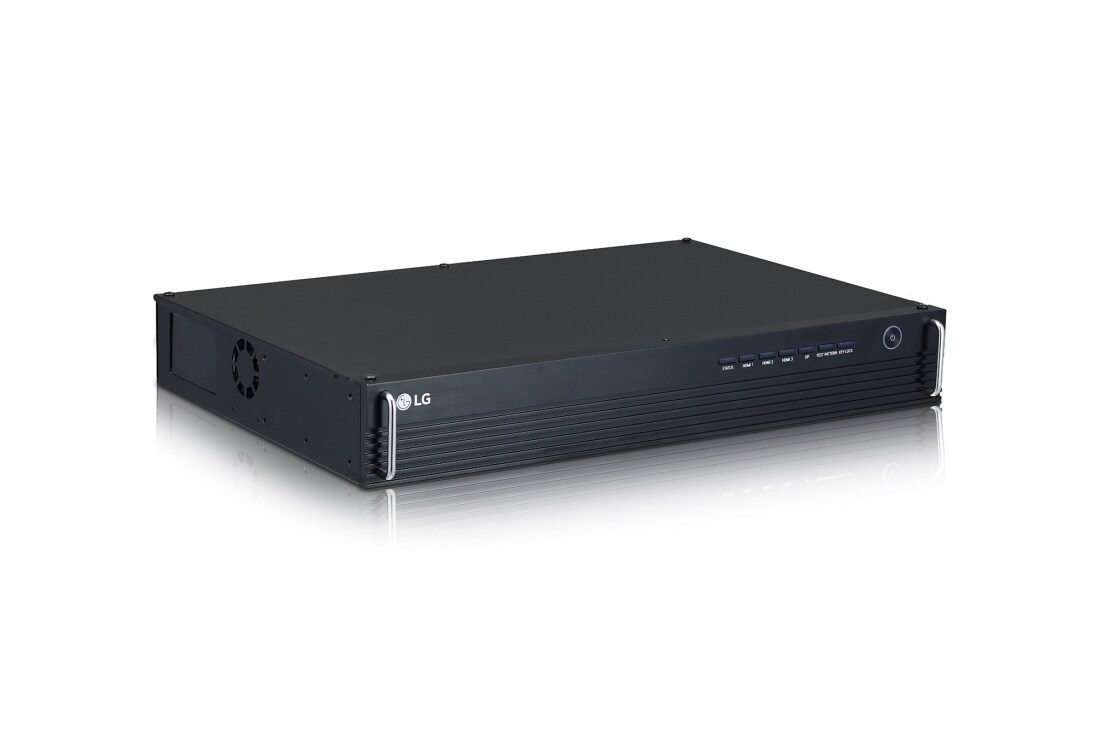

CONTROLLER
-
Controller
-
CSAA-012X
OPERATION CONDITIONS
-
Lifetime (Hours to Half Brightness)
-
100,000
-
Operating Temperature (°C)
-
0°C to 40°C
-
Operating Humidity
-
10-80% RH
-
IP rating Front / Rear
-
IP20 / IP20
