LG Ultra Slim LED Signage
Ultra Slim Depth
90° Corner Design Available
Pitch Name
P1.5625
Pixel Configuration
3 in 1 SMD
Pixel Pitch
1.563
Module Resolution(WxH)
192x108
Module Dimensions(WxH,mm)
300 x 168.75mm
Weight per Module(Kg)
0.34
No. of Modules per Unit Case(WxH)
2x2
Unit Case Resolution(WxH)
384x216
Unit Case Dimensions(WxHxD, mm)
600 x 337.5
Unit Case Surface Area(m²)
0.203
Weight per Unit Case(kg/unit)
5.2
Weight per Square Meter(Kg/m²)
25.7
Physical Pixel Density(Pixels/m²)
409,600
Unit Case material
Die Casing Aluminum Alloy

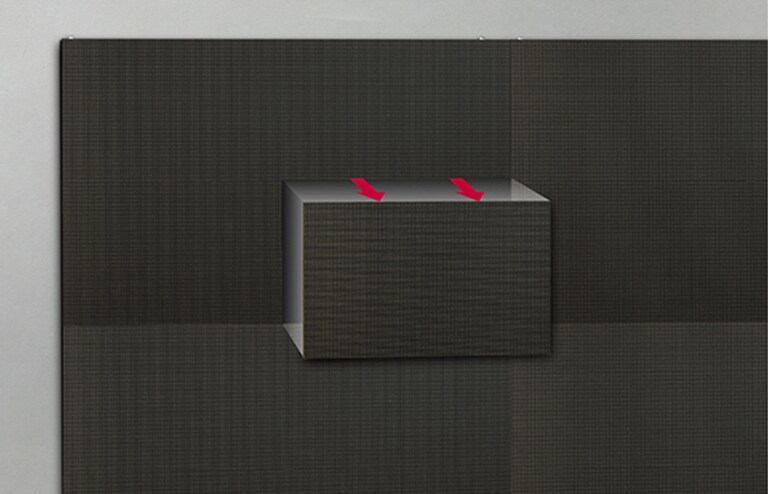

Service Access
Front
Power Consumption(W/Unit, Max)
150
Power Consumption(W/Unit, Avg)
50
Power Consumption(W/m²)
740
Power Supply(V)
100 to 240
Frame Rate(Hz)
50/60
Refresh Rate(Hz)
3,840
Min. Brightness(After Calibration)
800 cd/m²
Colour Temperature
3,200 - 9,300
Visual Viewing Angle(Horizontal)
160
Visual View Angel(Vertical)
160
Brightness Uniformity
97%
Colour Uniformity
±0.003CxCy
Contrast Ratio
5,000
Processing Depth(bit)
14
Life time (Half Brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP Rating Front
IP30
IP Rating Rear
IP30
Certification
CE,FCC,ETL
Environment
RoHS
Input
HDMI, DisplayPort, USB
Output
16 x RJ45, RS-232C In/Out (4 pin phone-jack)
Control
RJ45
Power
AC-100-240V-50/60HZ
