GSCA Versatile Series
Fast Installation

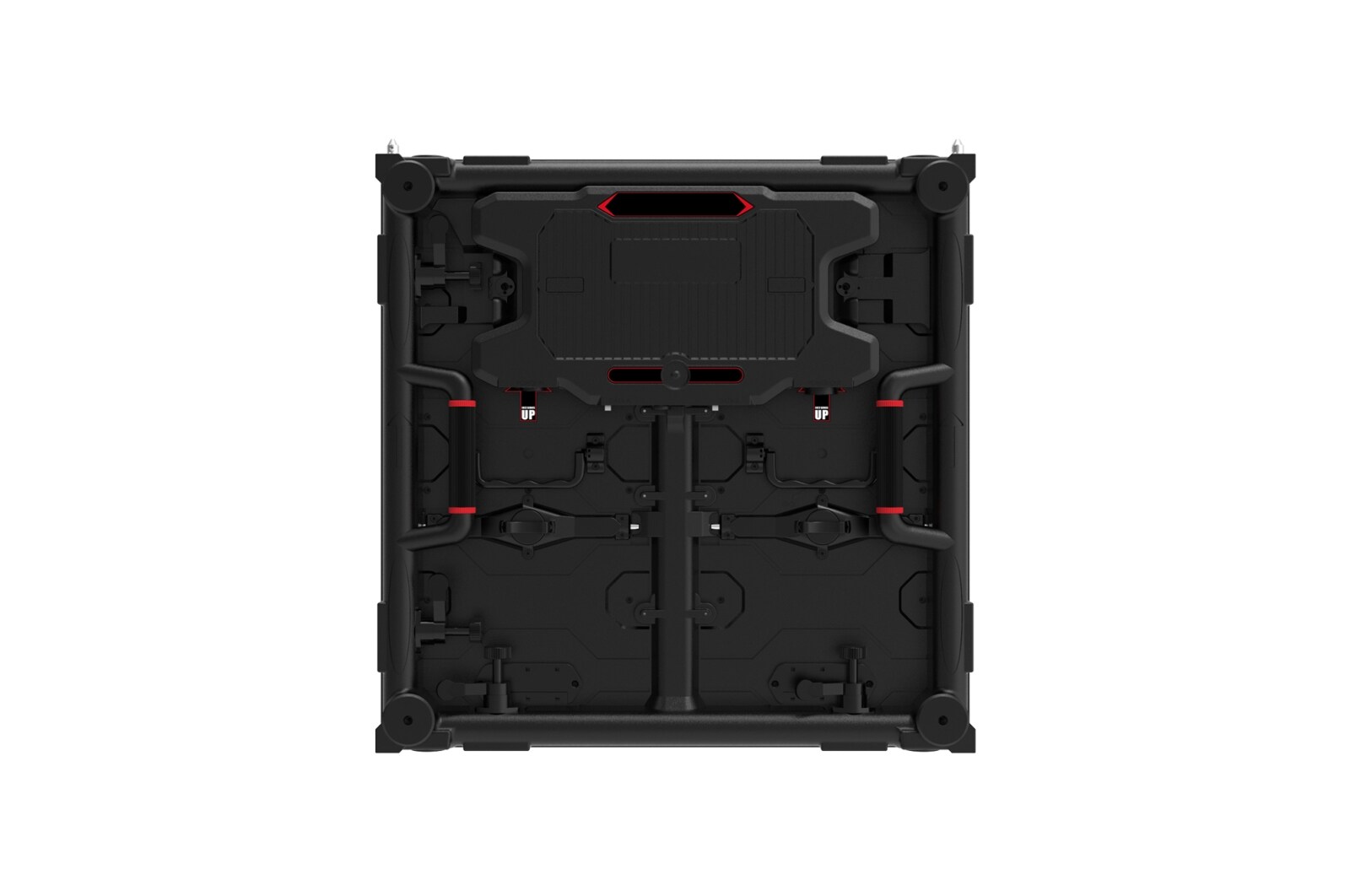

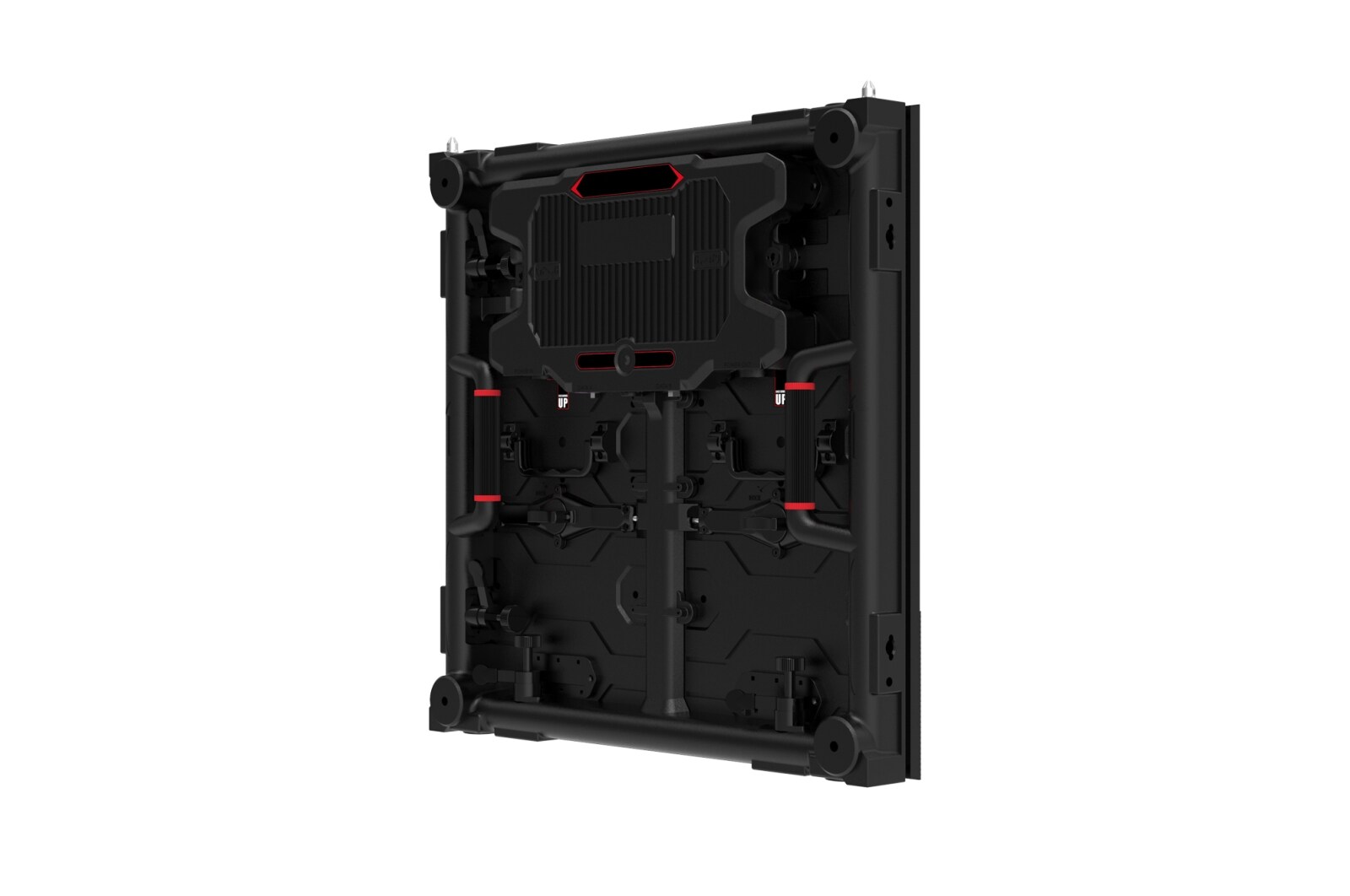

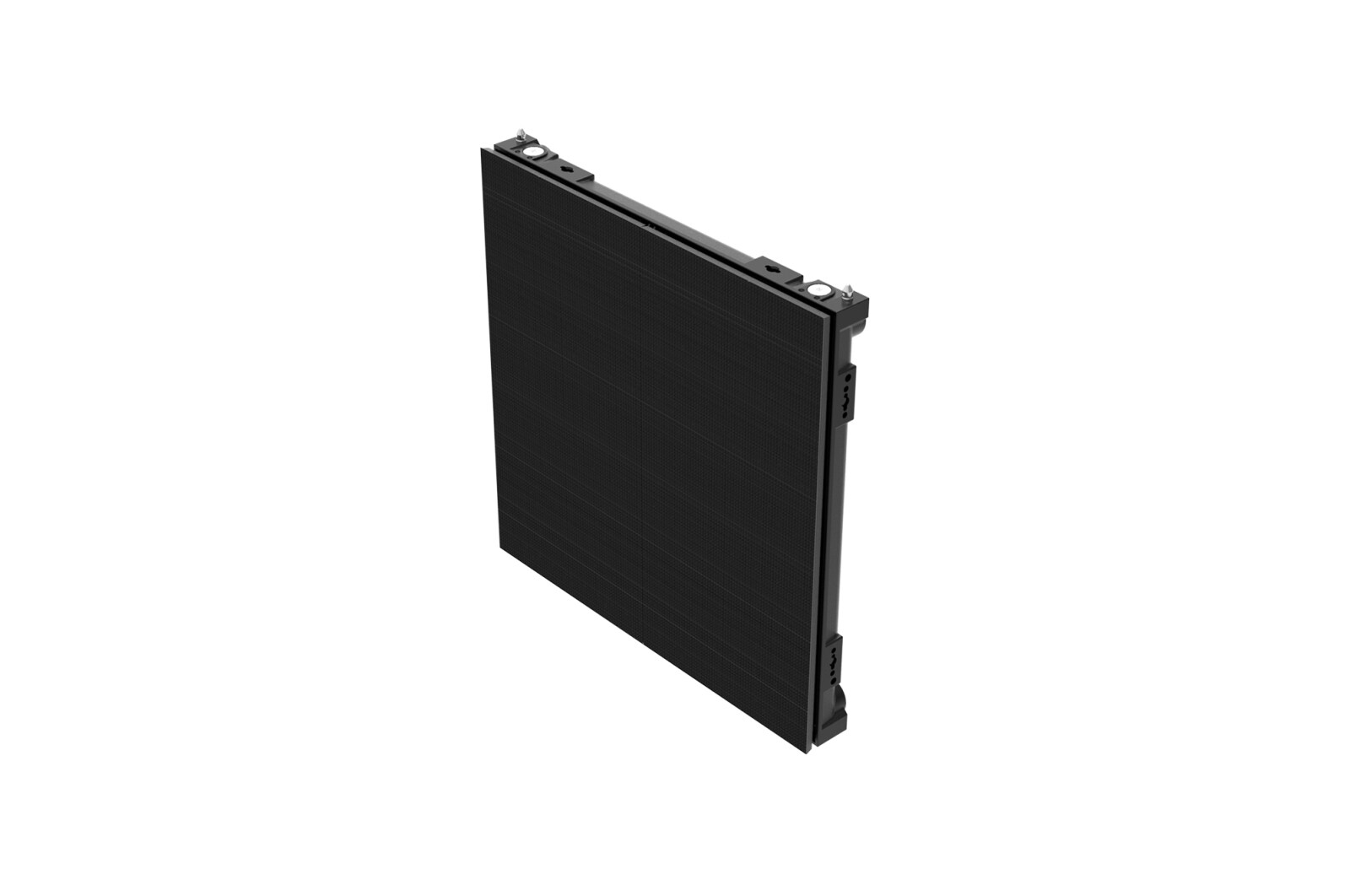

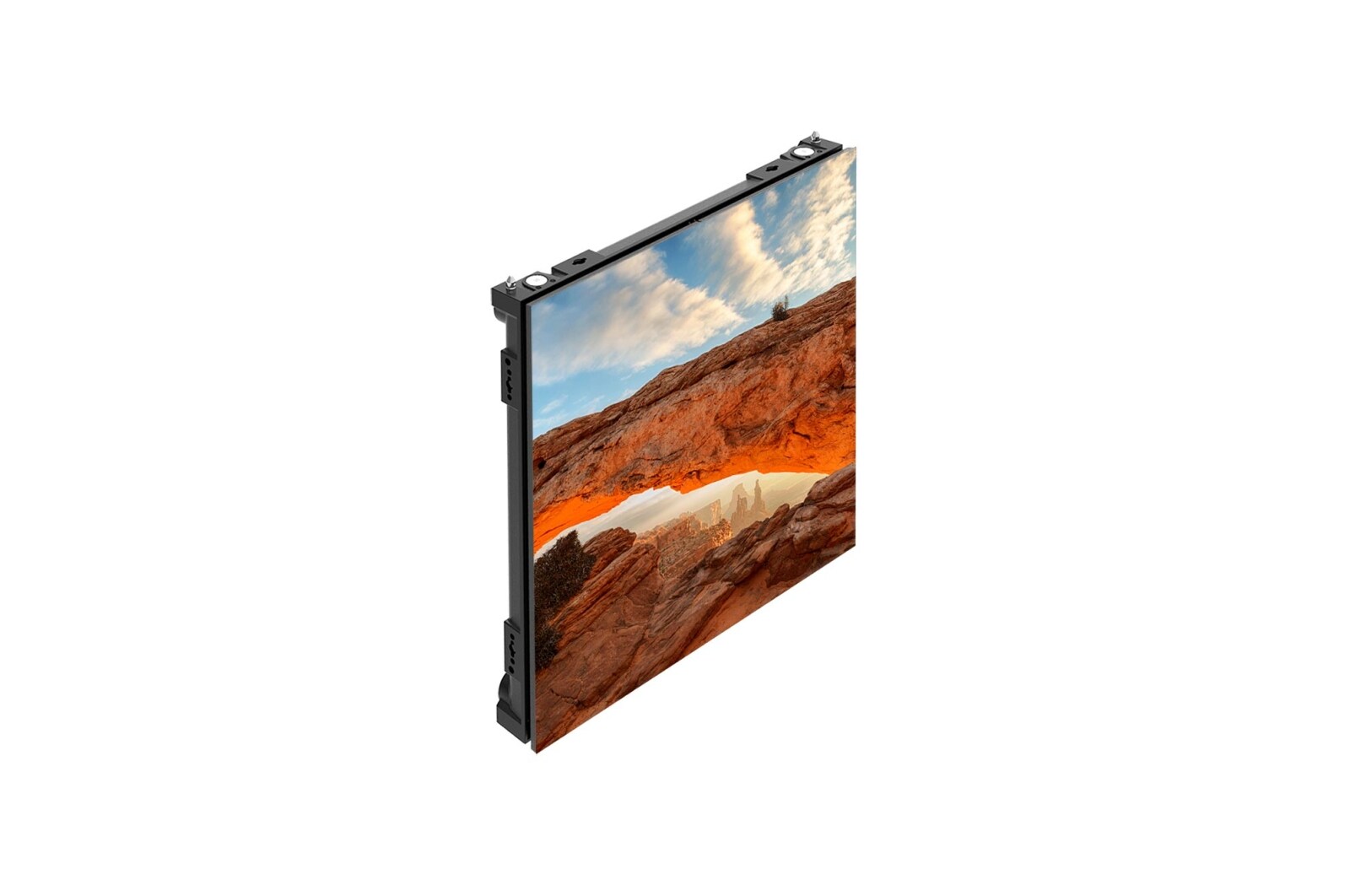

Two Cabinet Options
IP Rated Weatherproof
Model name
GSCA039-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
3.91
Module Resolution (WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module (kg)
1.4
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
128x256

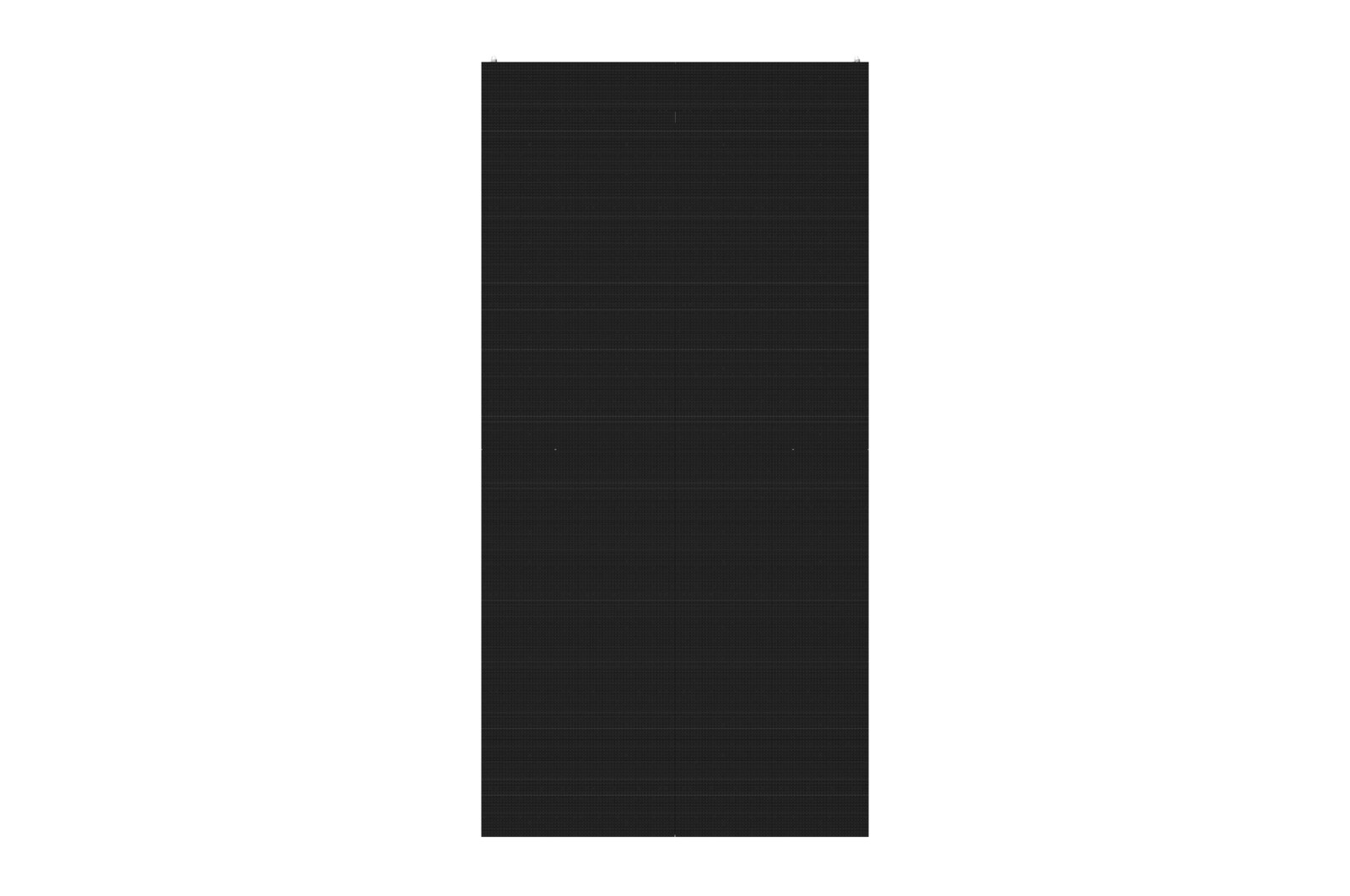

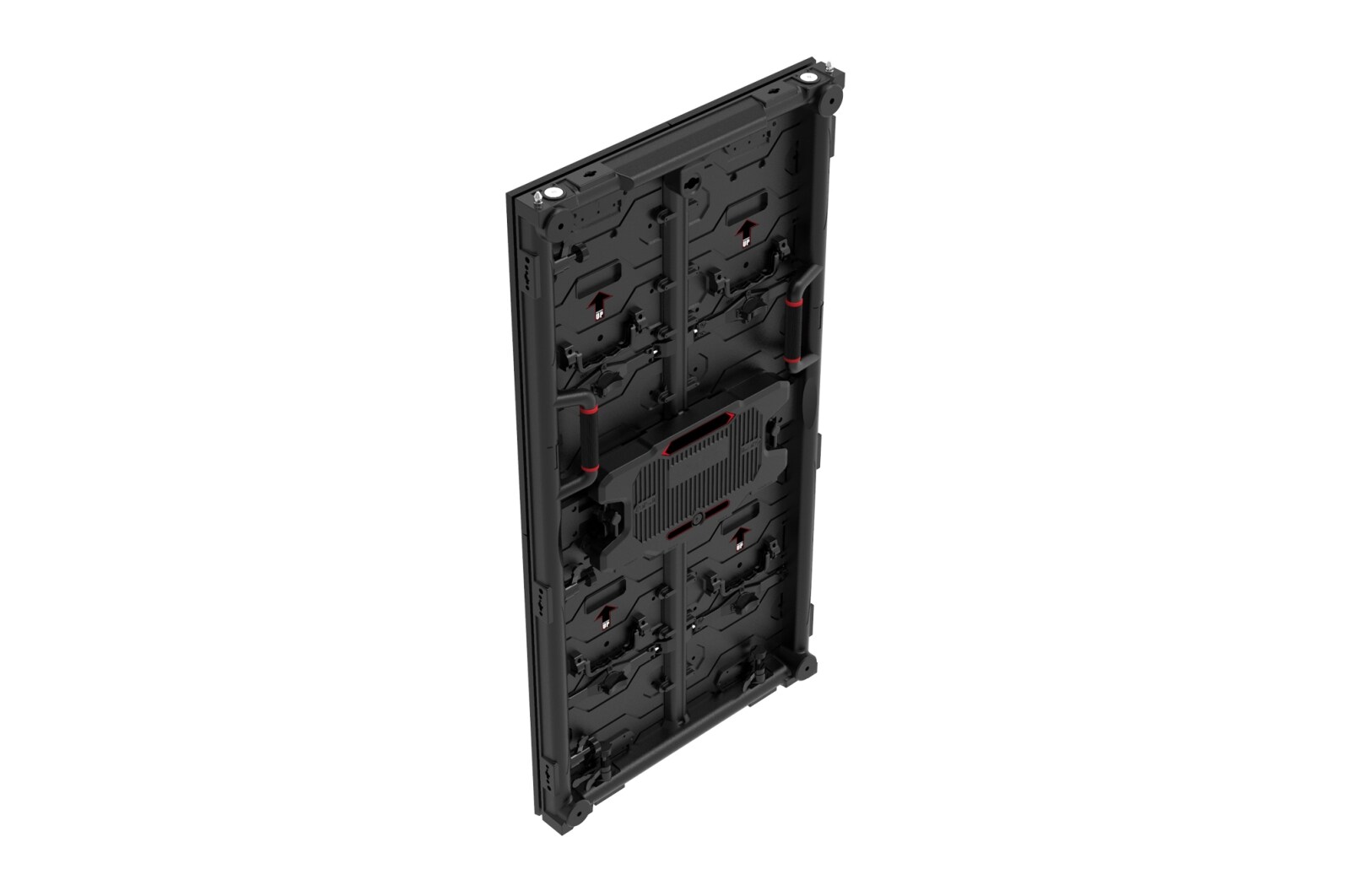

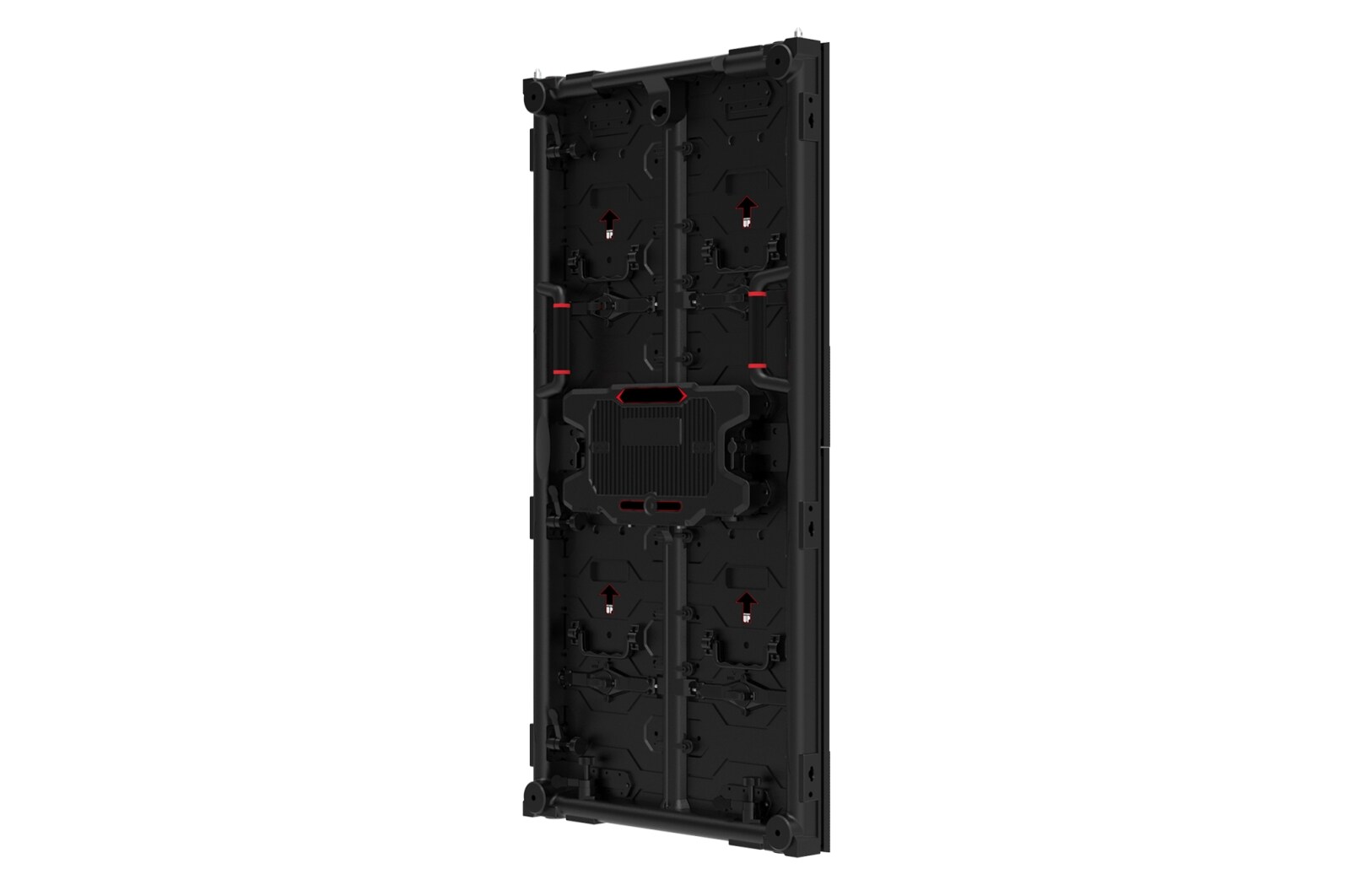

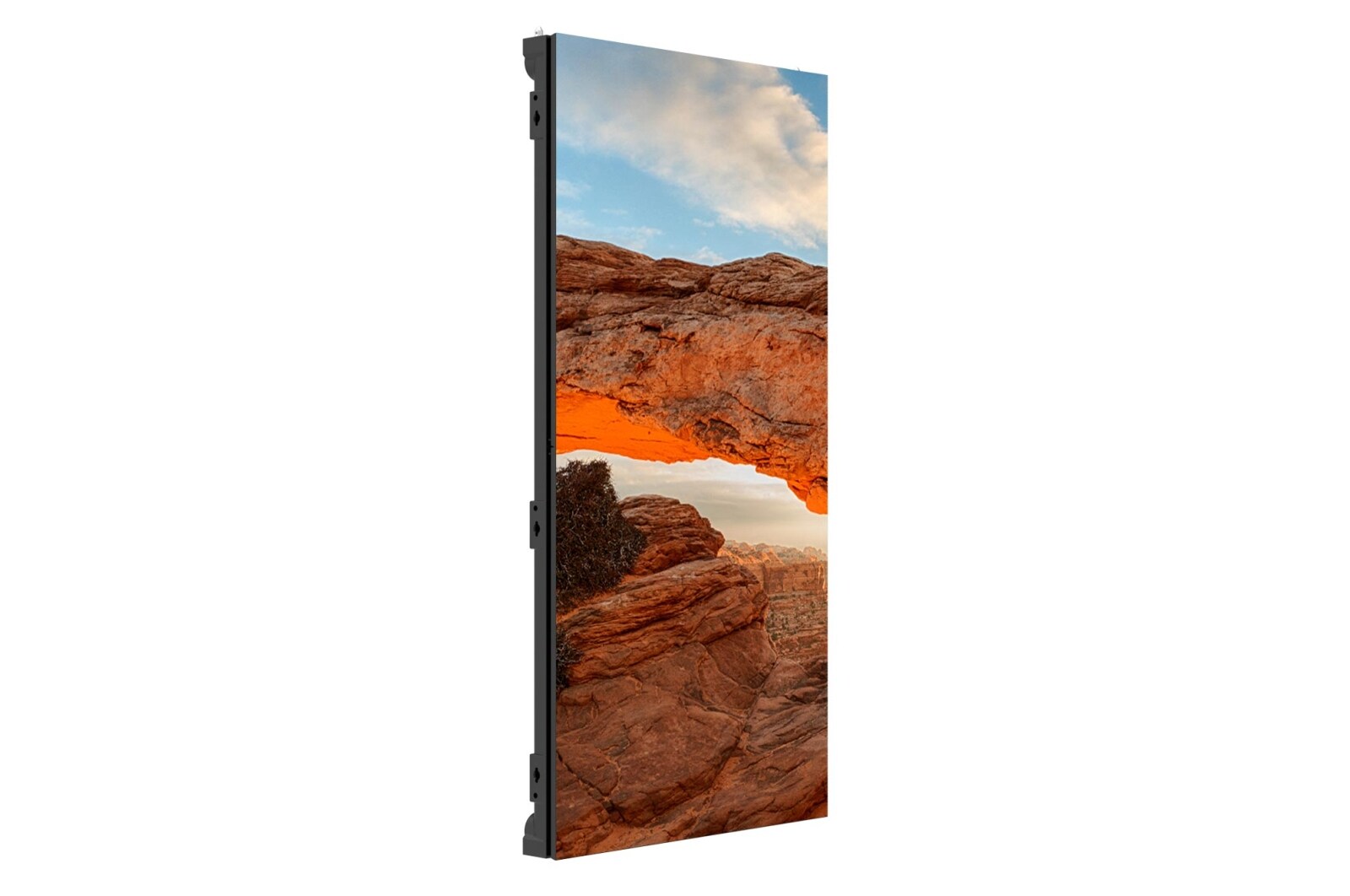

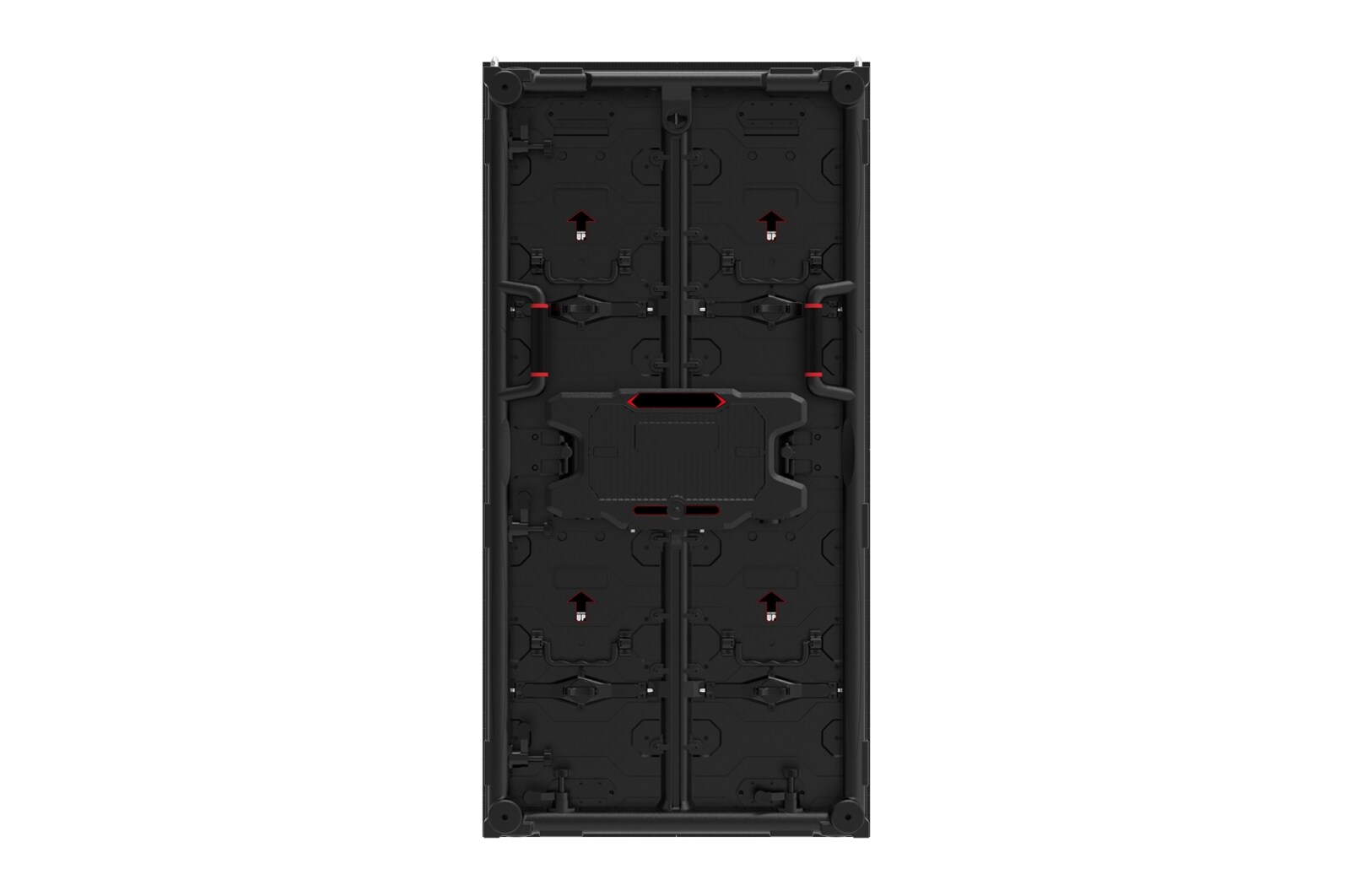

Cabinet Dimensions (W x H x D, mm)
500x1,000x66.05
Cabinet Surface Area (㎡)
0.5
Weight per Cabinet (kg/unit)
12.5
Weight per Square Meter (kg/㎡)
25
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.3
Cabinet material
Die-casting Magnesium

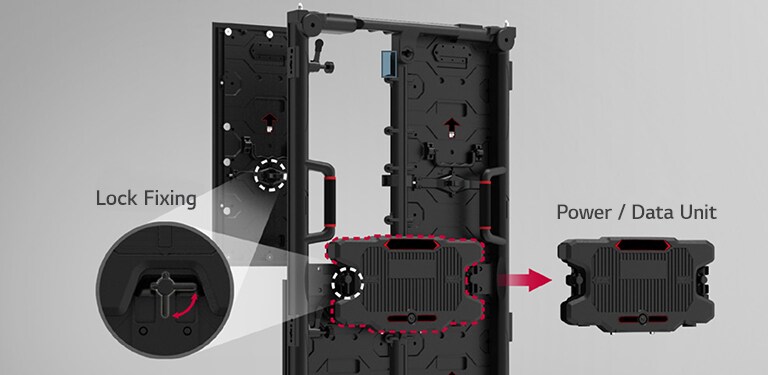

Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
5,000
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
155
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
6,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/㎡, Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-30℃ to +45℃
Operating Humidity
10~99%RH
IP rating Front
IP65
IP rating Rear
IP65
LED Lifetime (Half brightness)
100,000
Certification
CE, ETL, FCC, KC Class A
Environment
RoHS, REACH
Controller
CVCA
90 degree corner cut
O
