Ultra Light Series
Ultra Light Series
GSCD Ultra Light Series

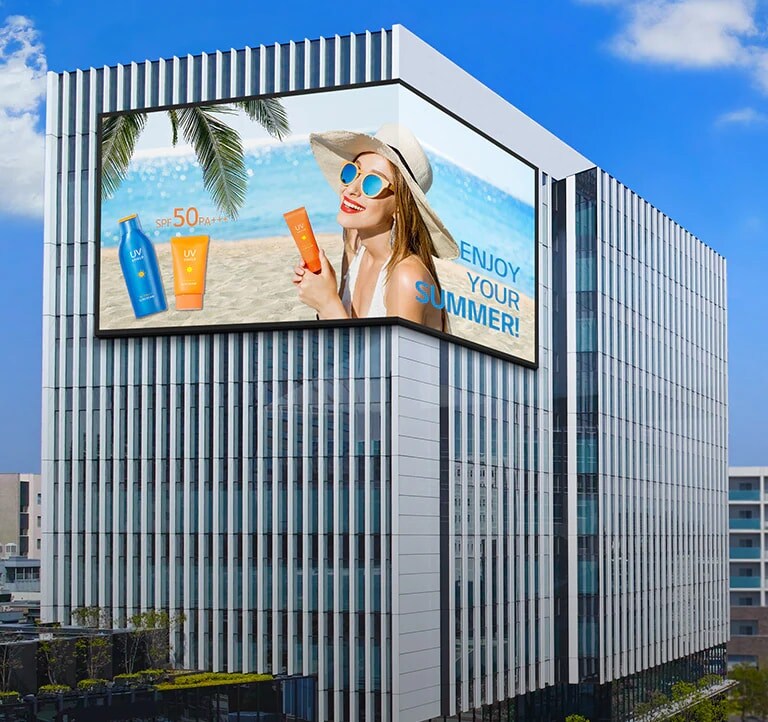

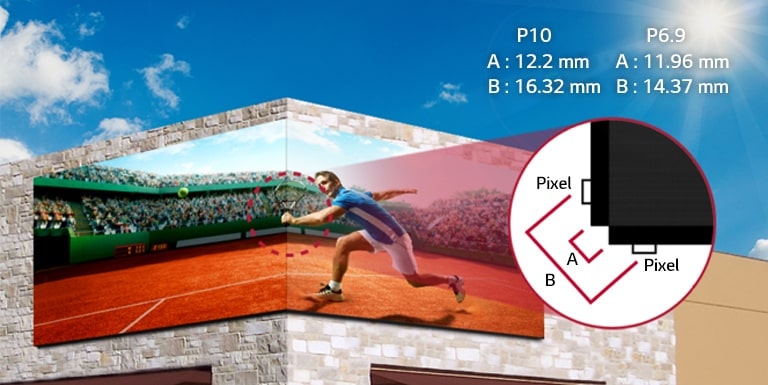

There is a screen installed on the corner of the building.
* GSCD100-GR series only
* Require purchase of 90° corner installable model.
Compatibility with
LG Software Solutions

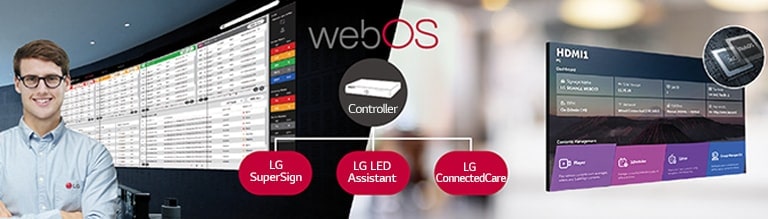

The LG employee is remotely monitoring the GSCD series installed in a different place by using a cloud-based LG monitoring solution. System controller with web OS enables GSCD series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

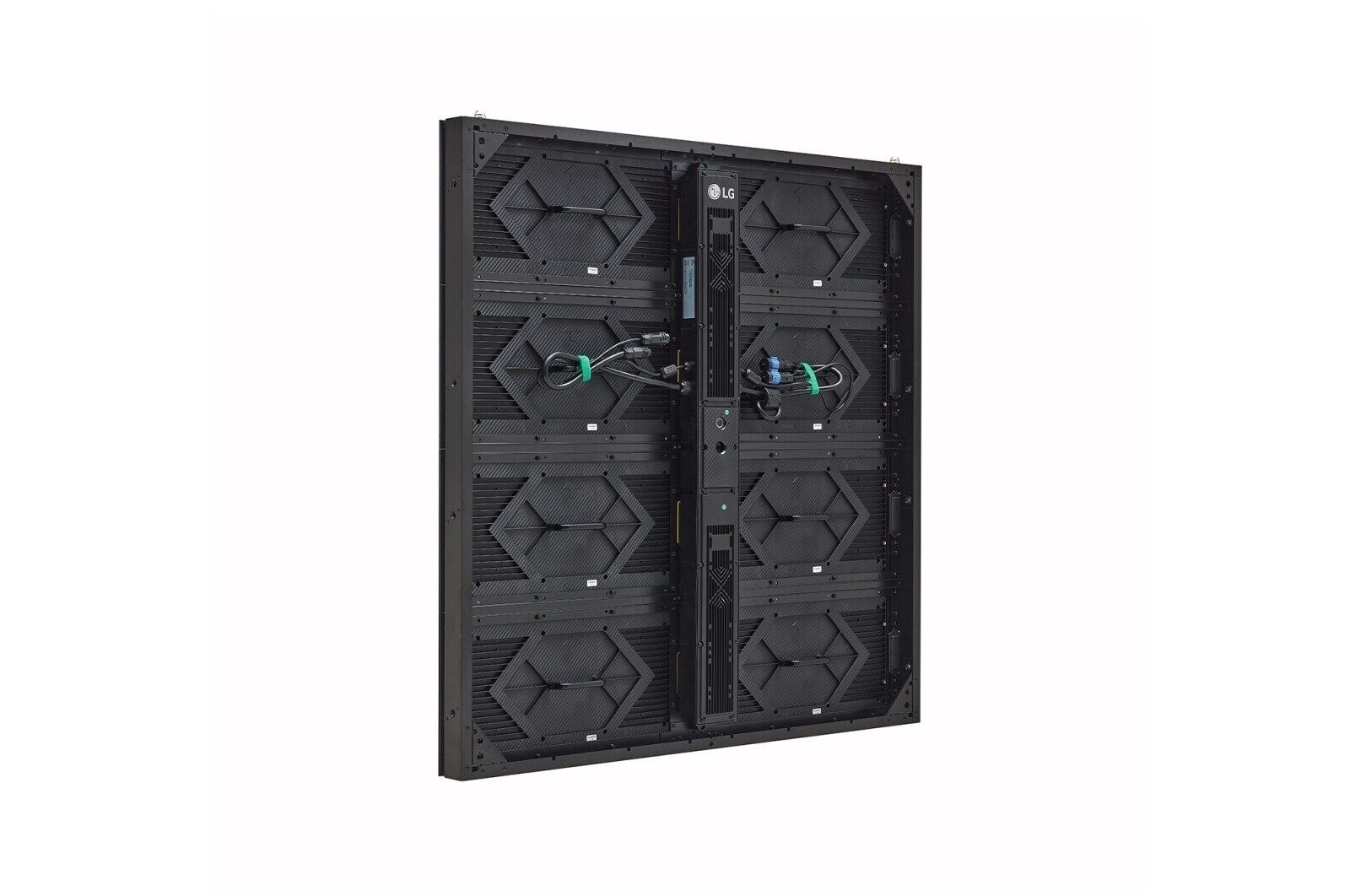

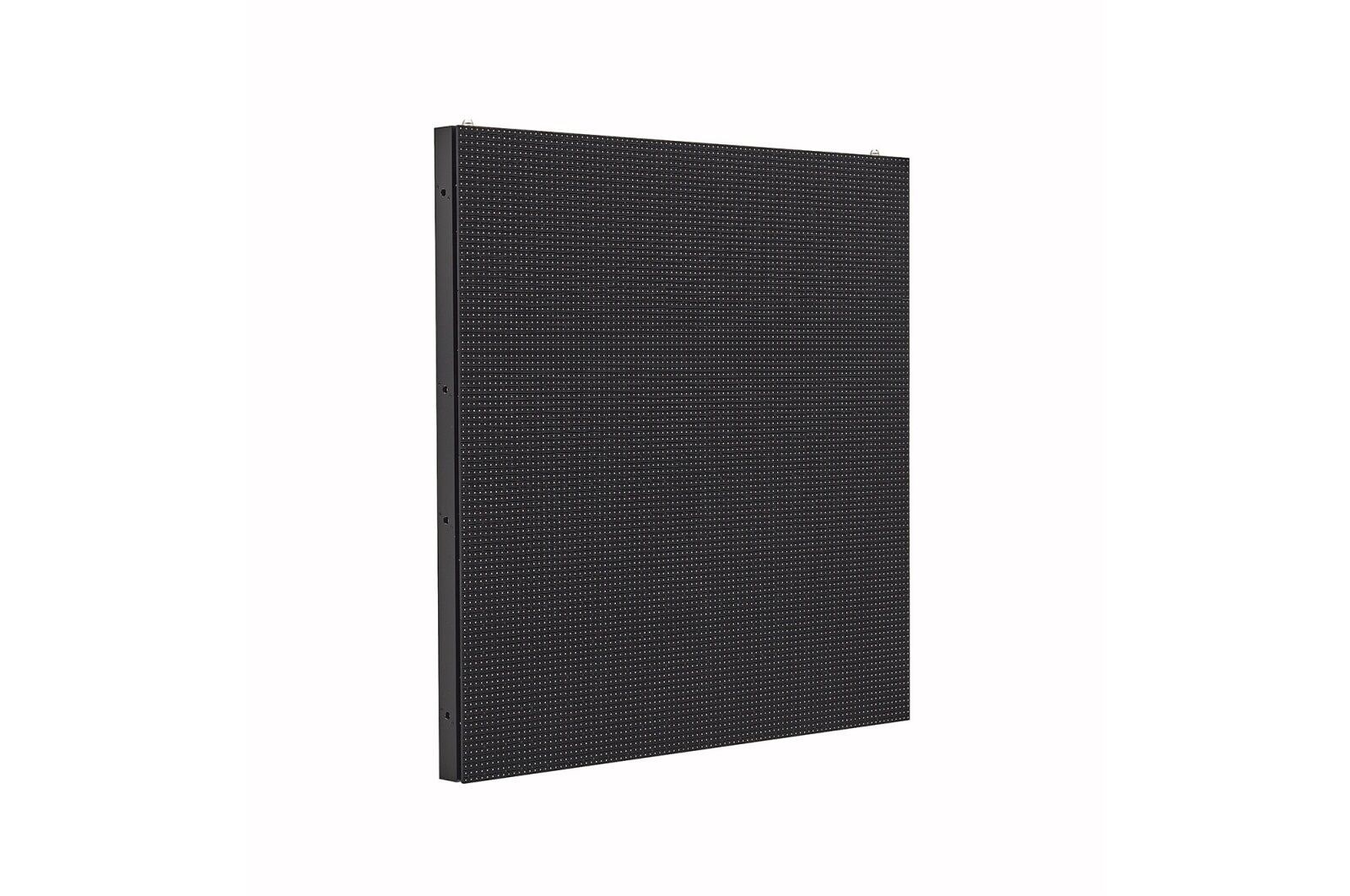

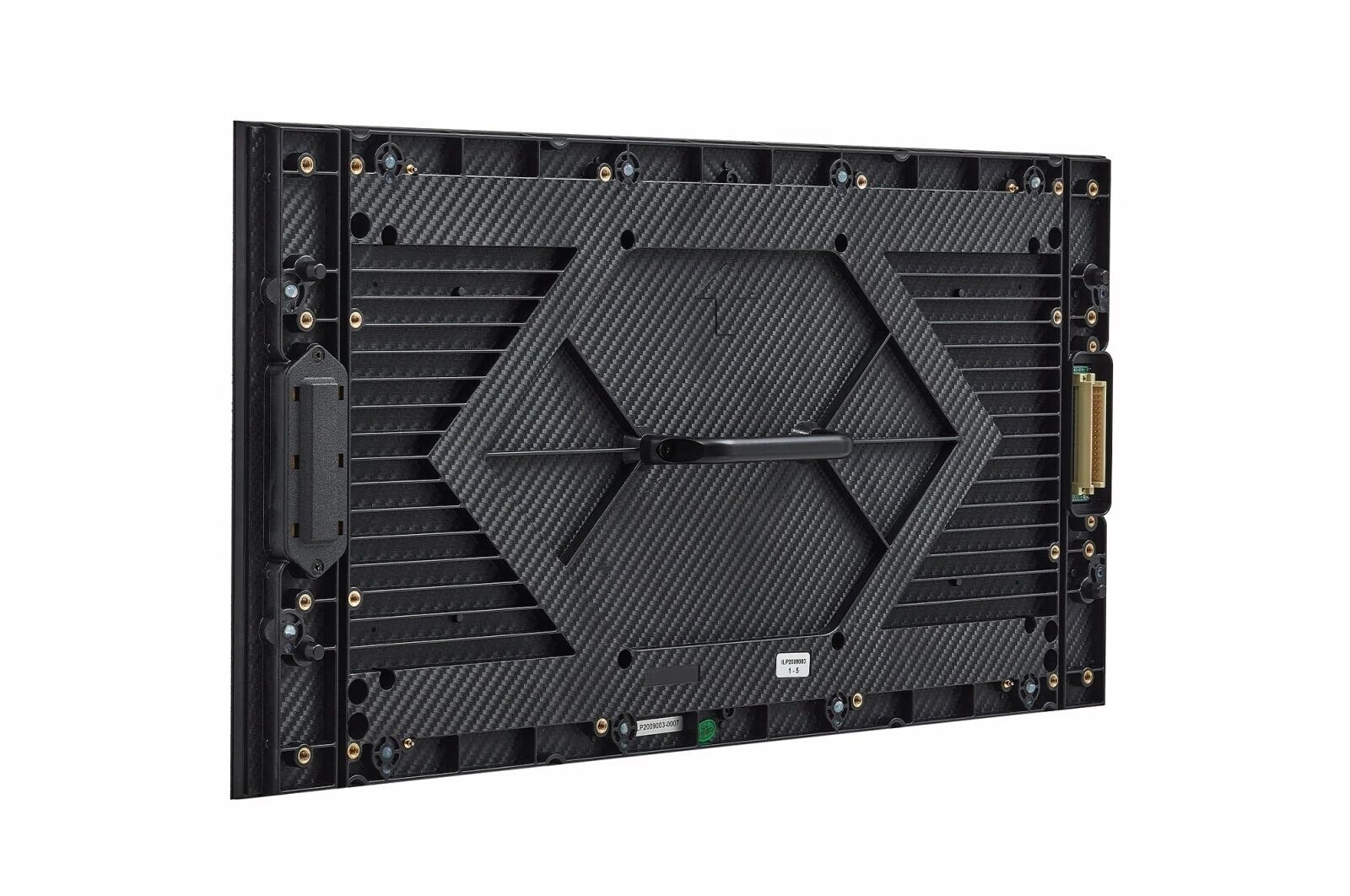

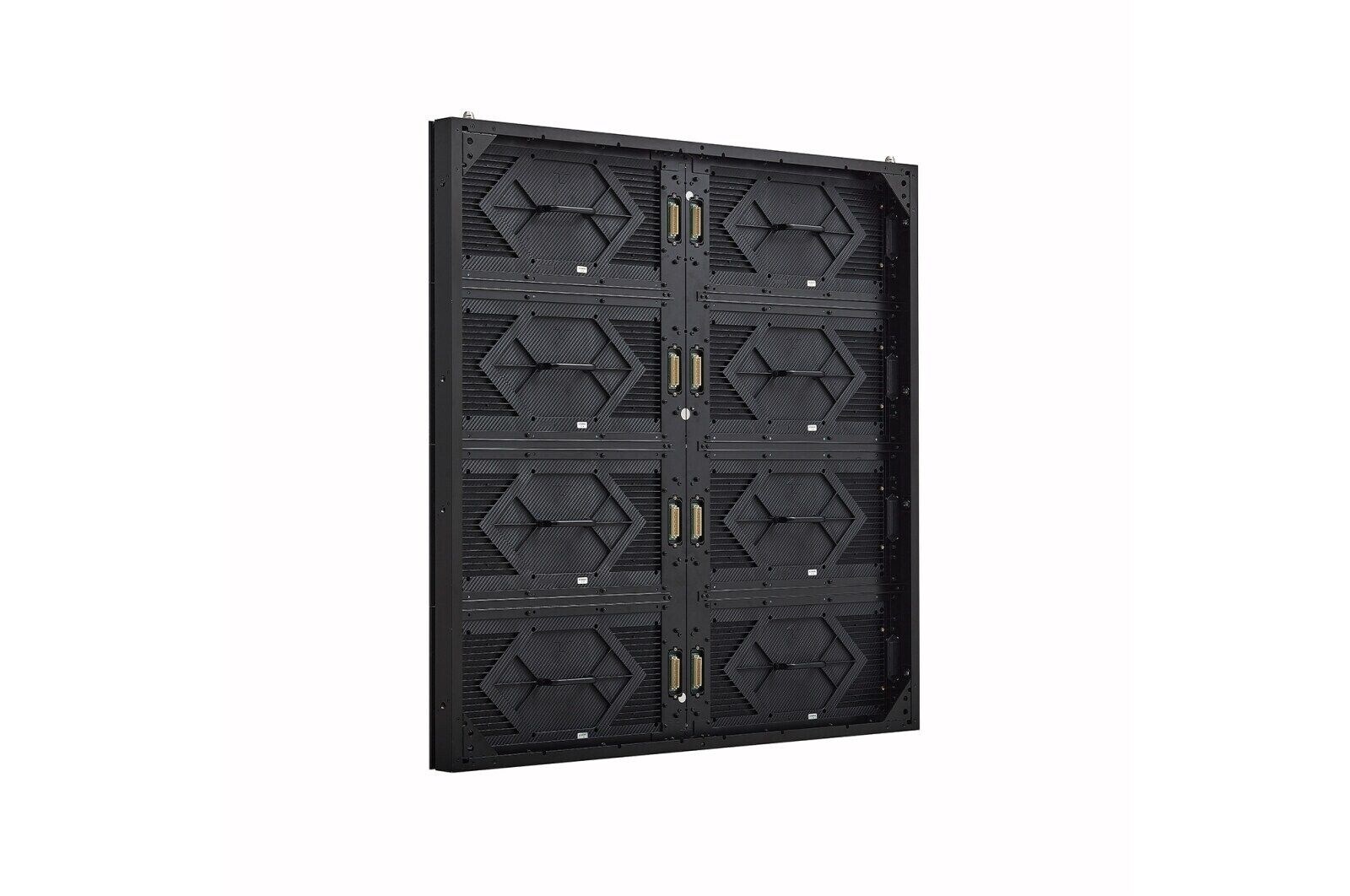

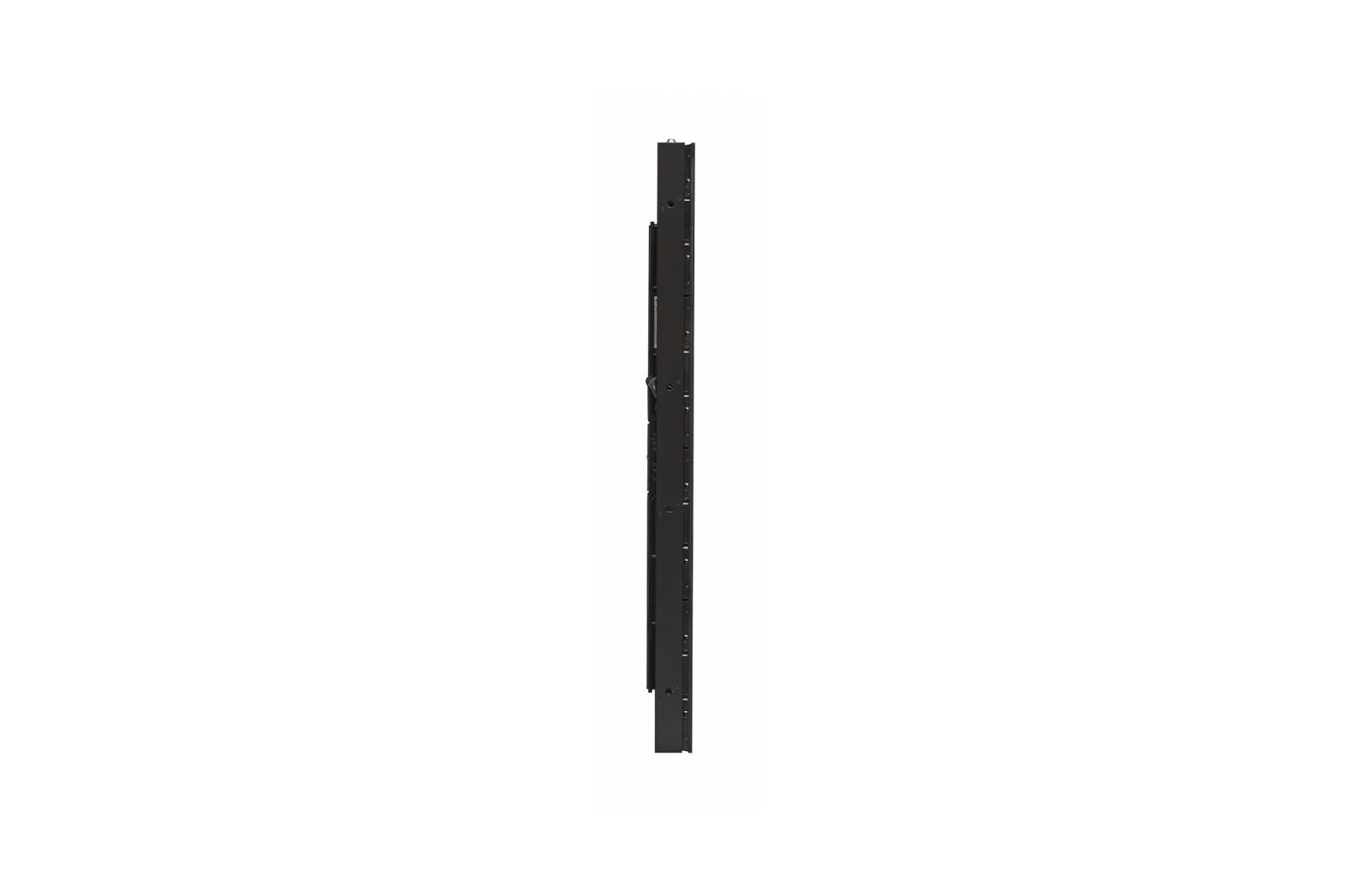

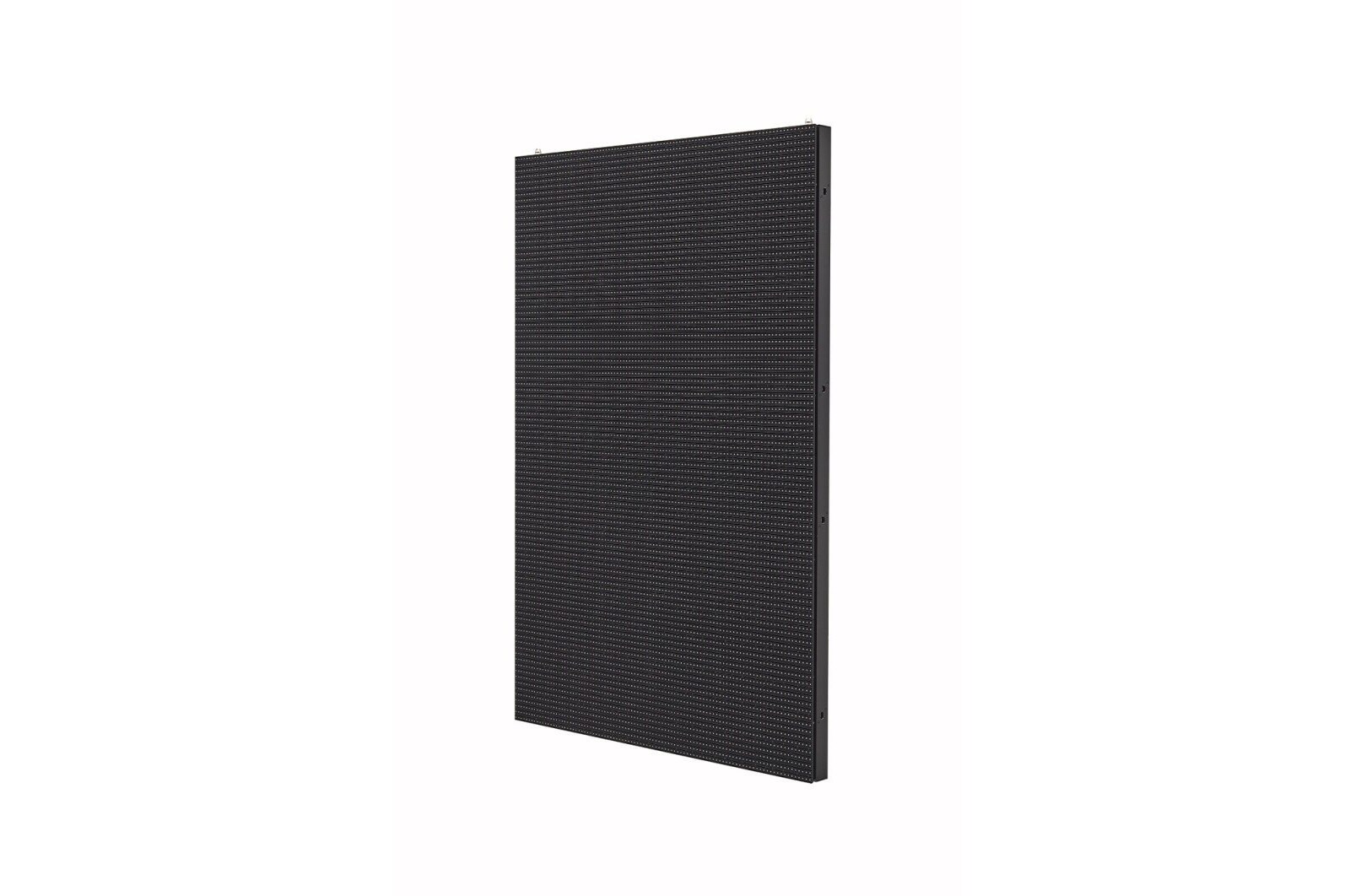

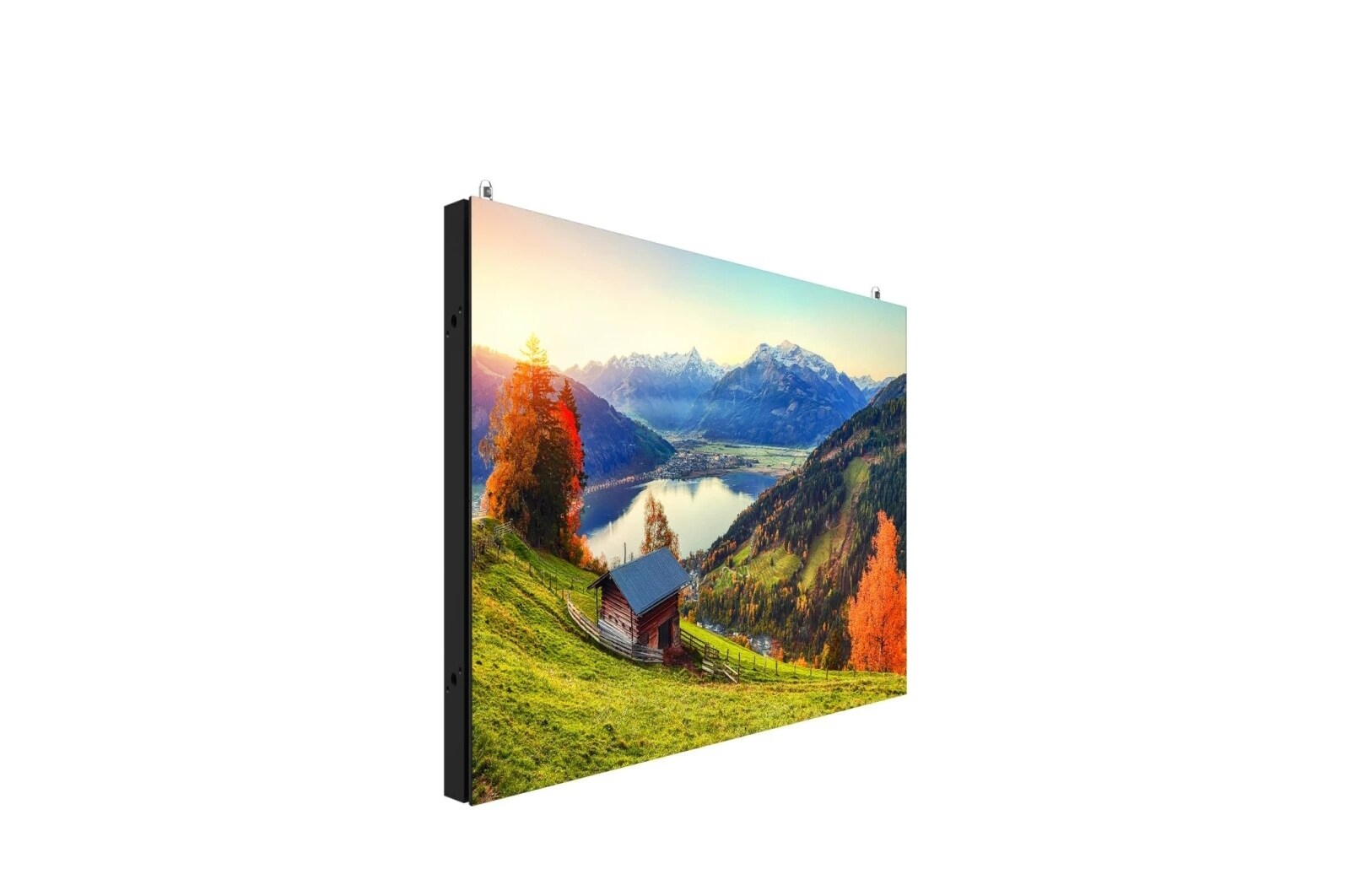

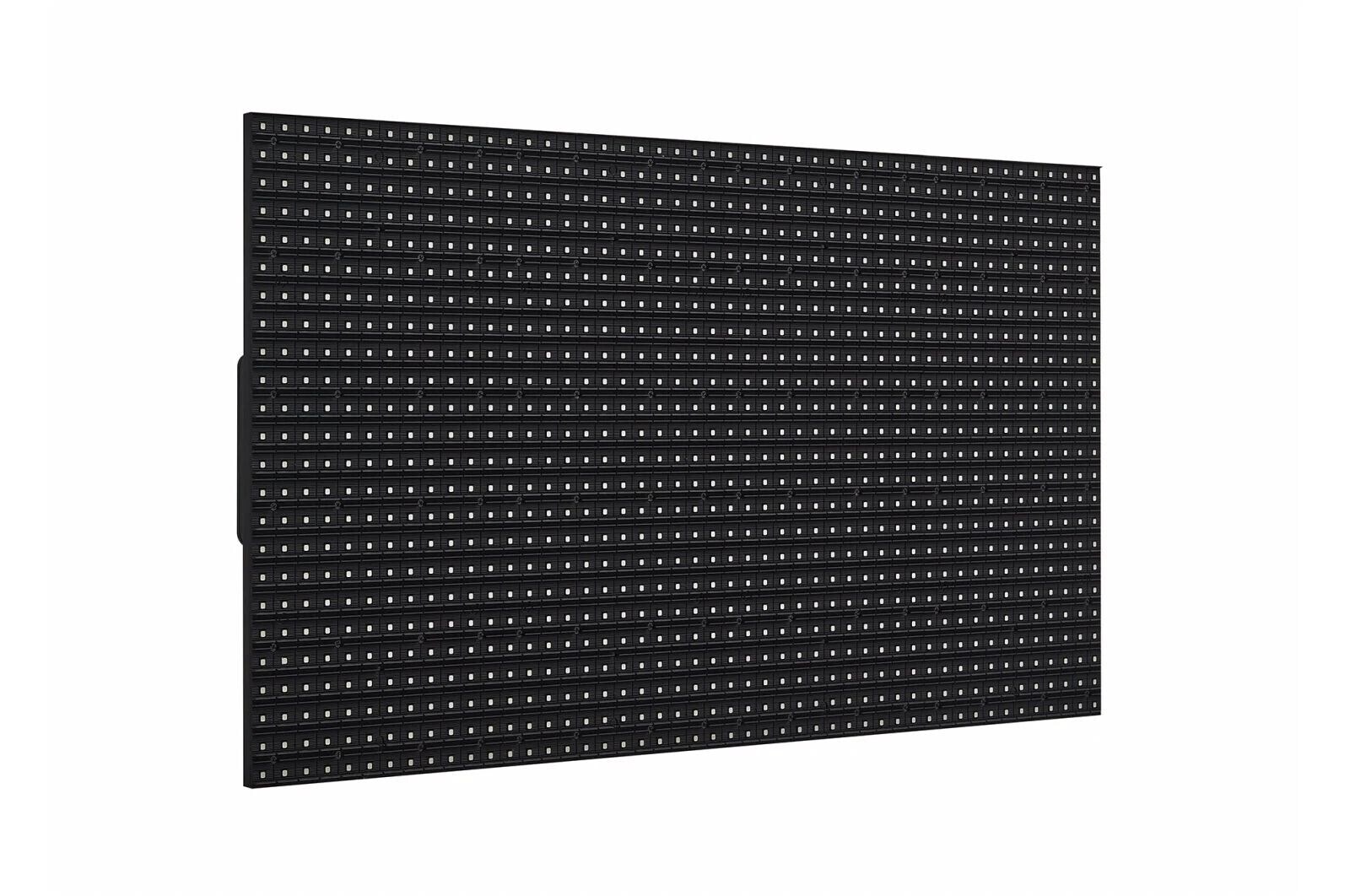

Gallery
All Spec
SERIES DIMENSIONS
-
Series Dimensions (W x H x D, mm)
GSCD069-GN: 1,000 × 1,000 × 84.4
GSCD069-GN2: 1,000 × 500 × 84.4
GSCD069-GN3: 500 × 1,000 × 84.4
GSCD069-GN4: 500 × 500 × 84.4
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch (mm)
6.94
-
Module Resolution (W x H)
72 x 36
-
Module Dimensions (W x H, mm)
500 x 250
-
Weight per Module (kg)
1.3
-
No. of Modules per Cabinet (WxH)
2 x 4
-
Cabinet Resolution (WxH)
144 x 144
-
Cabinet Dimensions (W x H x D, mm)
1,000 × 1,000 × 84.4
-
Cabinet Surface Area (m²)
1.000
-
Weight per Cabinet (kg/Cabinet)
18.5
-

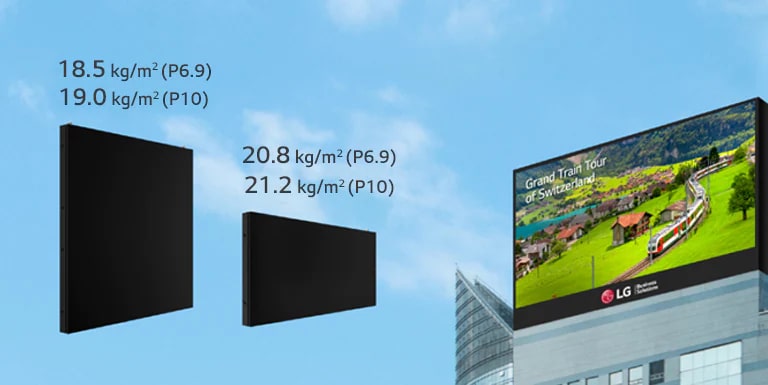

Weight per Square Meter (kg/m² )
18.5
-
Physical Pixel Density (pixels/m² )
20,736
-
Flatness of Cabinet (mm)
±0.5
-
Cabinet Material
Aluminum Profile
-

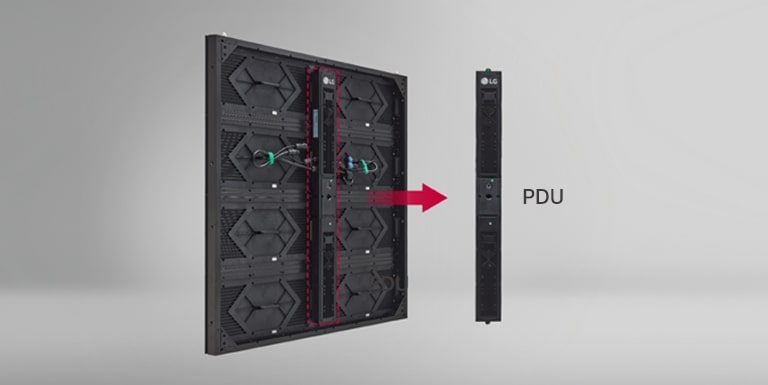

Service Access
Front or Rear (One Option Only)
OPTICAL SPECIFICATIONS
-
Max. Brightness (After Calibration)
5,000
-
Colour Temperature (K)
3,200 ~ 9,300
-
Visual Viewing Angle (H × V)
160 x 134
-
Brightness Uniformity
97%
-
Contrast Uniformity
±0.003 Cx,Cy
-
Contrast Ratio
6,000
-
Processing Depth (bit)
16
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
680
-
Power Consumption (W/Cabinet, Avg.)
226
-
Power Consumption (W/m², Max.)
680
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
Lifetime (Hours to Half Brightness)
100,000
-
Operating Temperature (°C)
-30°C to +50°C
-
Operating Humidity
10-99%RH
-
IP Rating Front / Rear
IP65 / IP65
To access more technical documentation and resources, please visit the LG B2B partner portal.
