All Spec

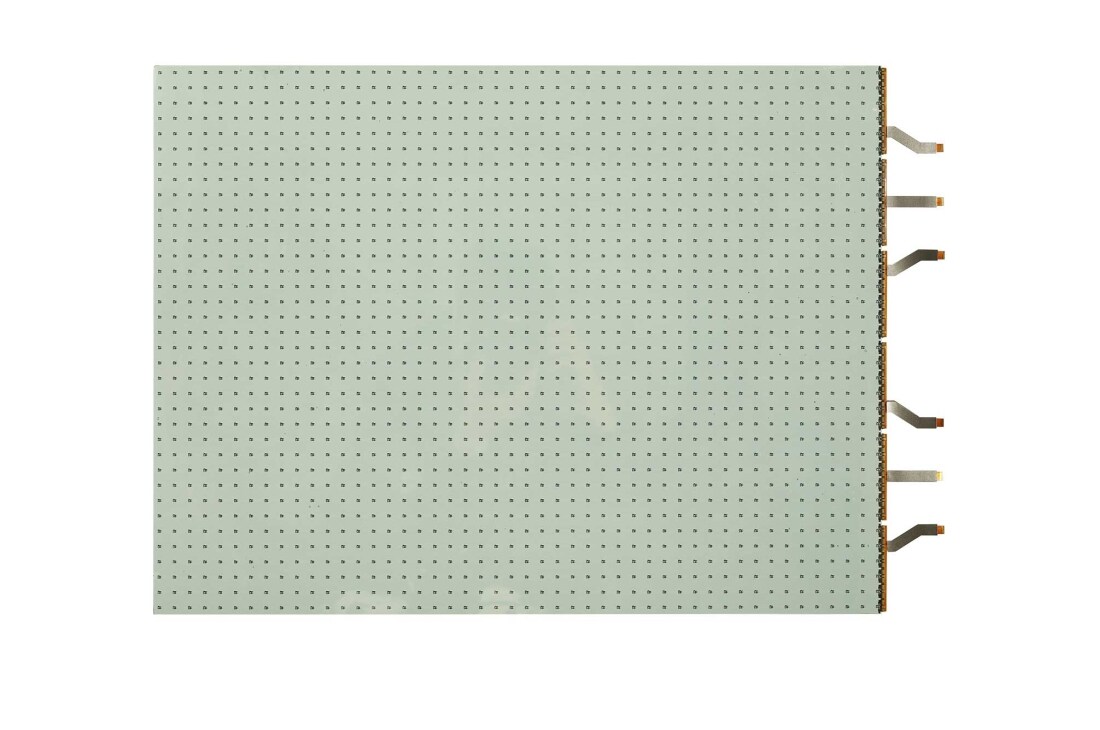

LED FILM
-
Model Name
-
LAT140
-
Pitch
-
13.7 ± 0.2 mm
-
LED Type
-
R, G, B 3in1 Colour Package (SMD2020)
-
Resolution
-
48x36
-
Pixels per Panel
-
1,728
-
Pixel Density [point/m2 ]
-
5,102
-
Brightness
-
2,100 cd/m2 (Typ.)
-
Contrast Ratio
-
100,000:1
-
Luminance Uniformity
-
≥ 70%
-
Viewing Angle (H x V)
-
120 x 120
-
Lifetime (Half Brightness)
-
Up to 50,000 Hrs
-
Daily Usage
-
24 Hrs / 7 Days
-
Transmittance
-
53%
-
Operating Temperature
-
0° ~ 45° (Indoor Glass Installation Only)
-
Curved Installation
-
1,100R (Convex & Concave, Glass Only)
-
Film Trimming
-
Yes (Parallel to the Bezel Side Only)
-
Colour Processing
-
9bit
-
Colours
-
125,000,000 Colours
-
Colour Chromaticity
-
Cx: 0.25±0.03, Cy : 0.34±0.03
-
Dimension (W x H x D)
-
655 x 492 x 2.9mm(with Front & Back Protection Film)
-
Weight
-
1 kg
-
Power Consumption
-
37W(Transparent panel 1EA + Common Bezel kit 2EA)
1ST BEZEL KIT
-
Model Name
-
ACC-14LATB1
-
Dimension (W x H x D)
-
69.4 x 492 x 25mm
-
Weight
-
0.4 kg
COMMON BEZEL KIT
-
Model Name
-
ACC-14LATB2
-
Dimension (W x H x D)
-
51.4 x 492 x 25mm
-
Weight
-
0.3 kg
POWER(BEZEL KIT & LED FILM)
-
Model Name
-
ACC-LATP1
-
Dimension (W x H x D)
-
183 × 86 × 28 mm
-
Weight
-
0.769 kg
-
Input
-
100~240V, 50~60Hz
-
Output
-
19.5V/10.8A (210W)
-
Colour
-
White
-
DC Output Cable
-
14AWG, 1.5m
-
Type
-
L Type
UNIT CONTROLLER
-
Model Name
-
LCLG140U
-
Resolution
-
960x540 (1/4 FHD)
-
Interface
-
LVDS In, RJ45 (4ea) Out
-
Maximum Transmission Length
-
100 m (CAT5E, CAT6)
-
Dimension (W x H x D)
-
293 x 37 x 188.7 mm
-
Weight
-
1.5 kg
-
Power Consumption
-
20 W
-
Accessories
-
Power Cord, LVDS MCX Cable, ESG,
Regulation Book, Warranty Card
SYSTEM CONTROLLER
-
Model Name
-
LCLG002
-
Video
-
DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz
-
Input
-
HDMI, DP, DVI-D, RS232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
-
Output
-
DP, RS232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
-
Dimension (W x H x D)
-
293 x193.3 x 40.1mm
-
Weight (Head)
-
1.6 kg
-
Temperature Sensor
-
O
-
Light Sensor
-
O
-
Source Selection
-
HDMI, DVI-D, DP
-
TPC (Temporal Peak Luminance Control)
-
Yes
-
Power Consumption
-
17 W
-
CMS S/W
-
SuperSign CMS,Signage365care
-
Accessories
-
Power Cord, IR & Bright Sensor, 4P Phone-to-RS232C Gender, ESG, Regulation Book, Warranty Card
