Transparent OLED Touch Signage
Transparent OLED Touch Signage
See Beyond, LG Transparent OLED Touch Signage
A man is doing his job by looking at the data displayed on the Transparent OLED screen.
*All images in this web page are for illustrative purposes only.
A New Level of
See-through View
LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.
Vivid Picture Quality
A man is getting information through the Transparent OLED screen showing photos of the dessert menu.
Intuitive P-Cap Touch
In a car exhibition hall, a man is changing the car’s color on the screen by touching the Transparent OLED Signage screen installed in front of the car.
Customisable and Expandable Design
A woman is checking content with a Transparent OLED Signage installed next to the window.
*Installation accessories are not supplied by LG.

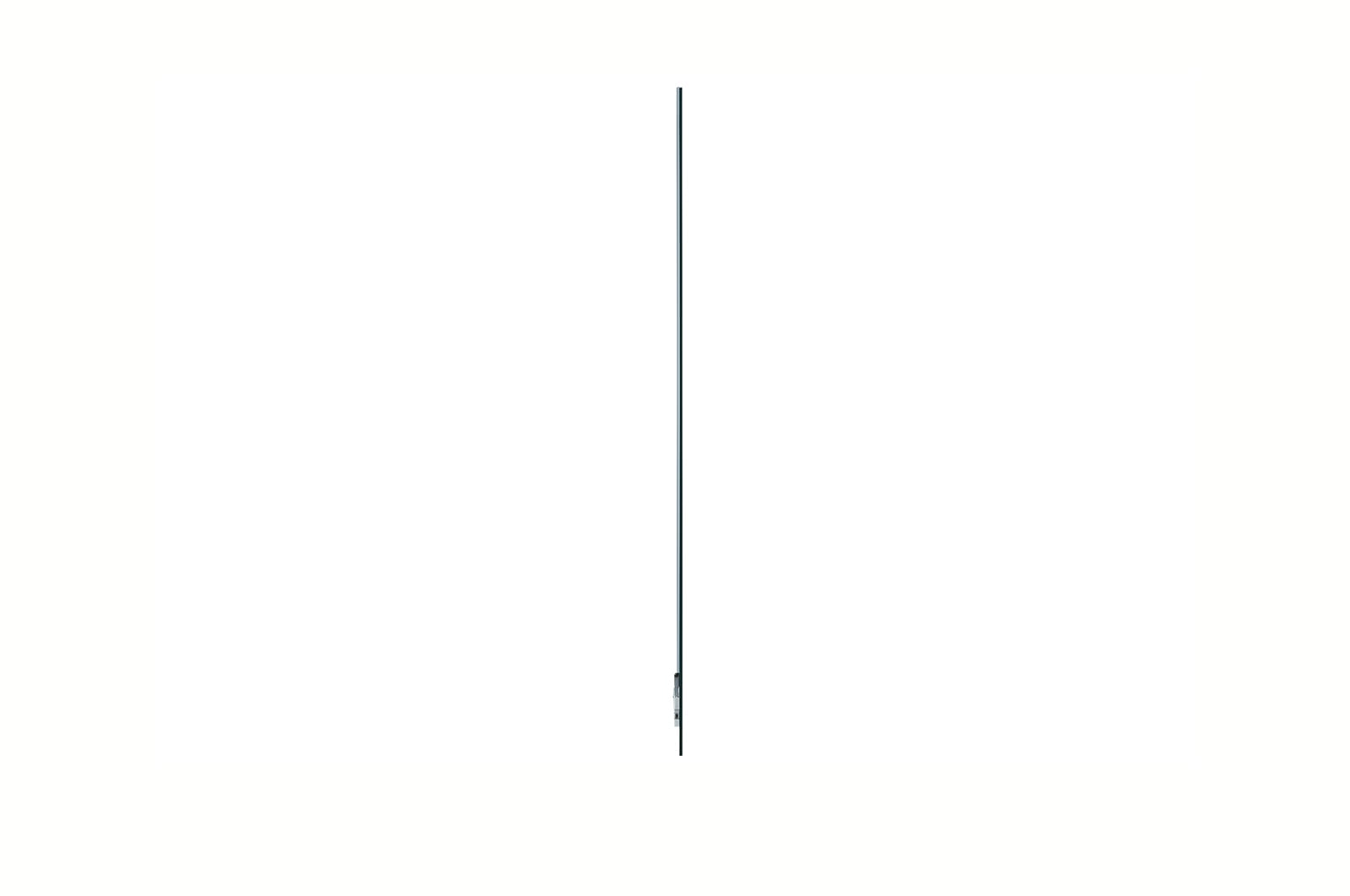

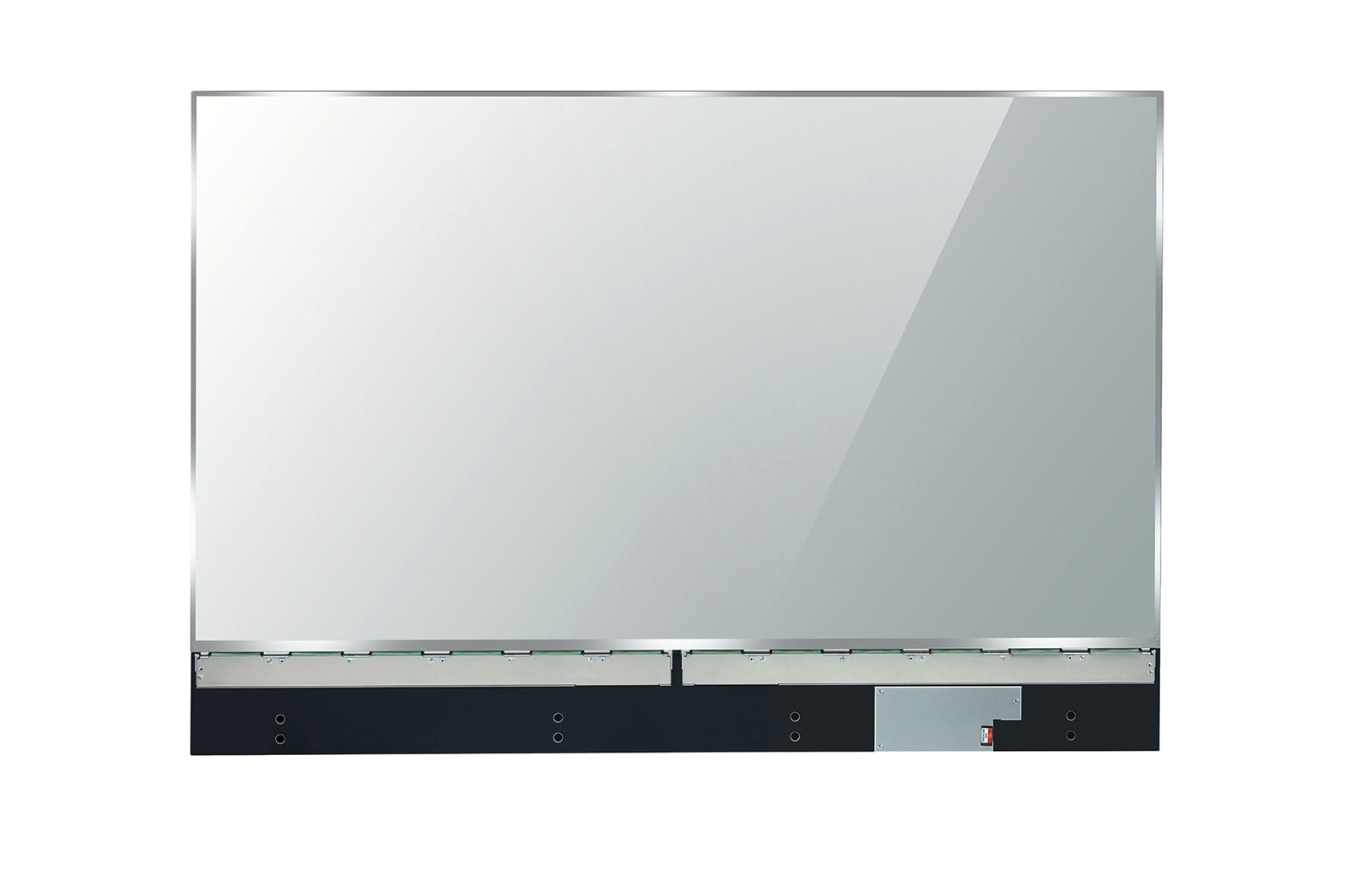

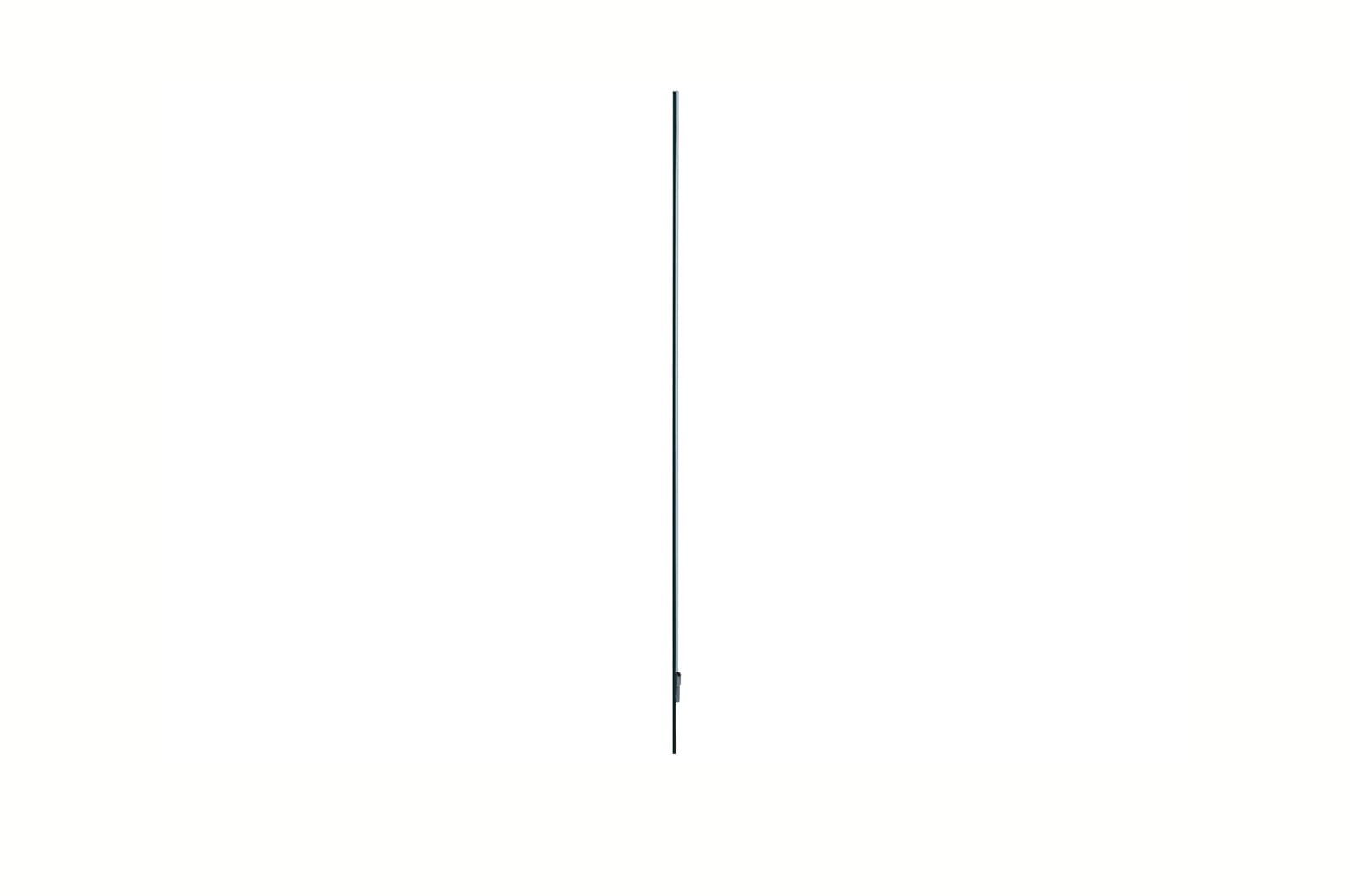

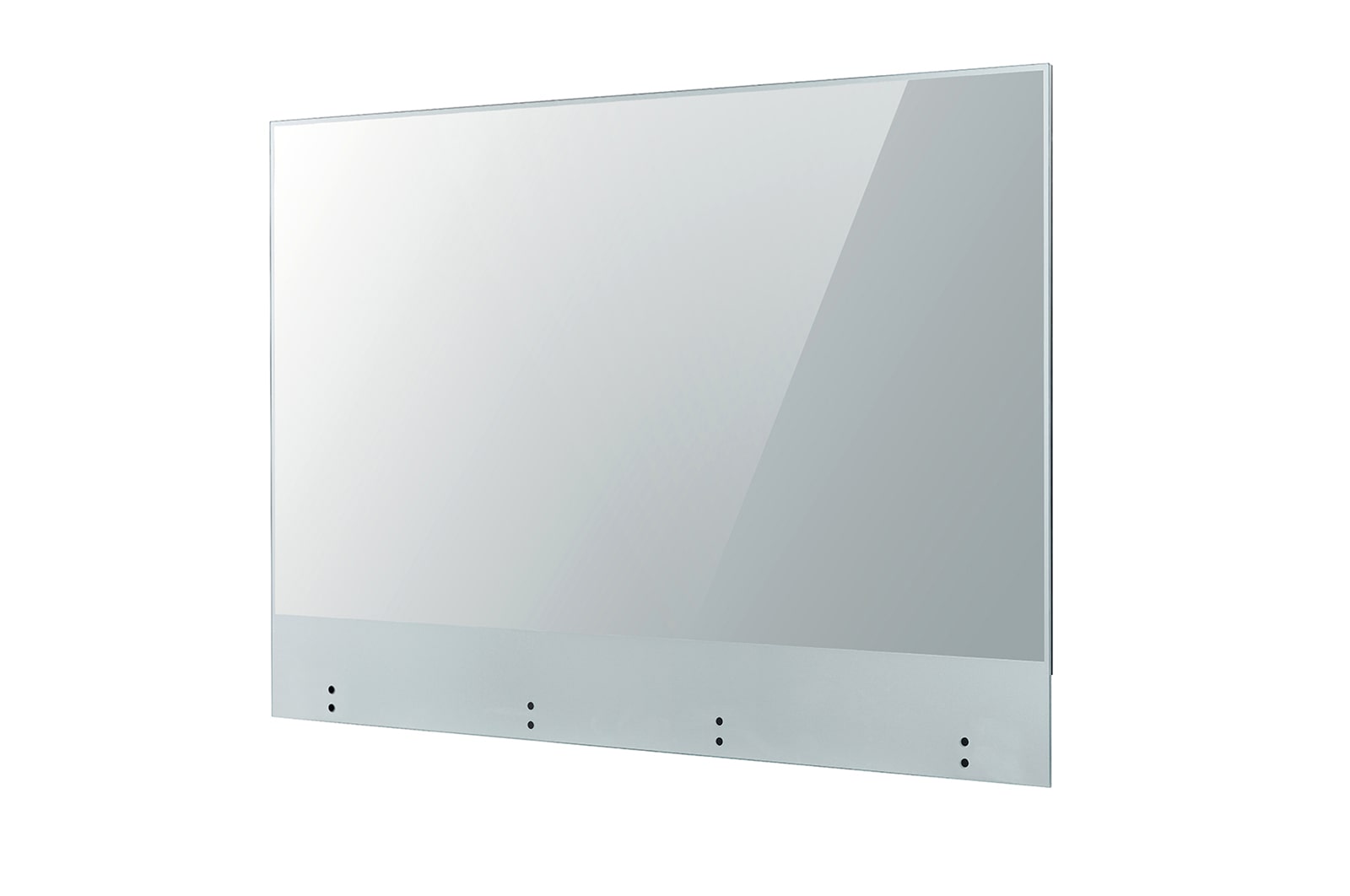

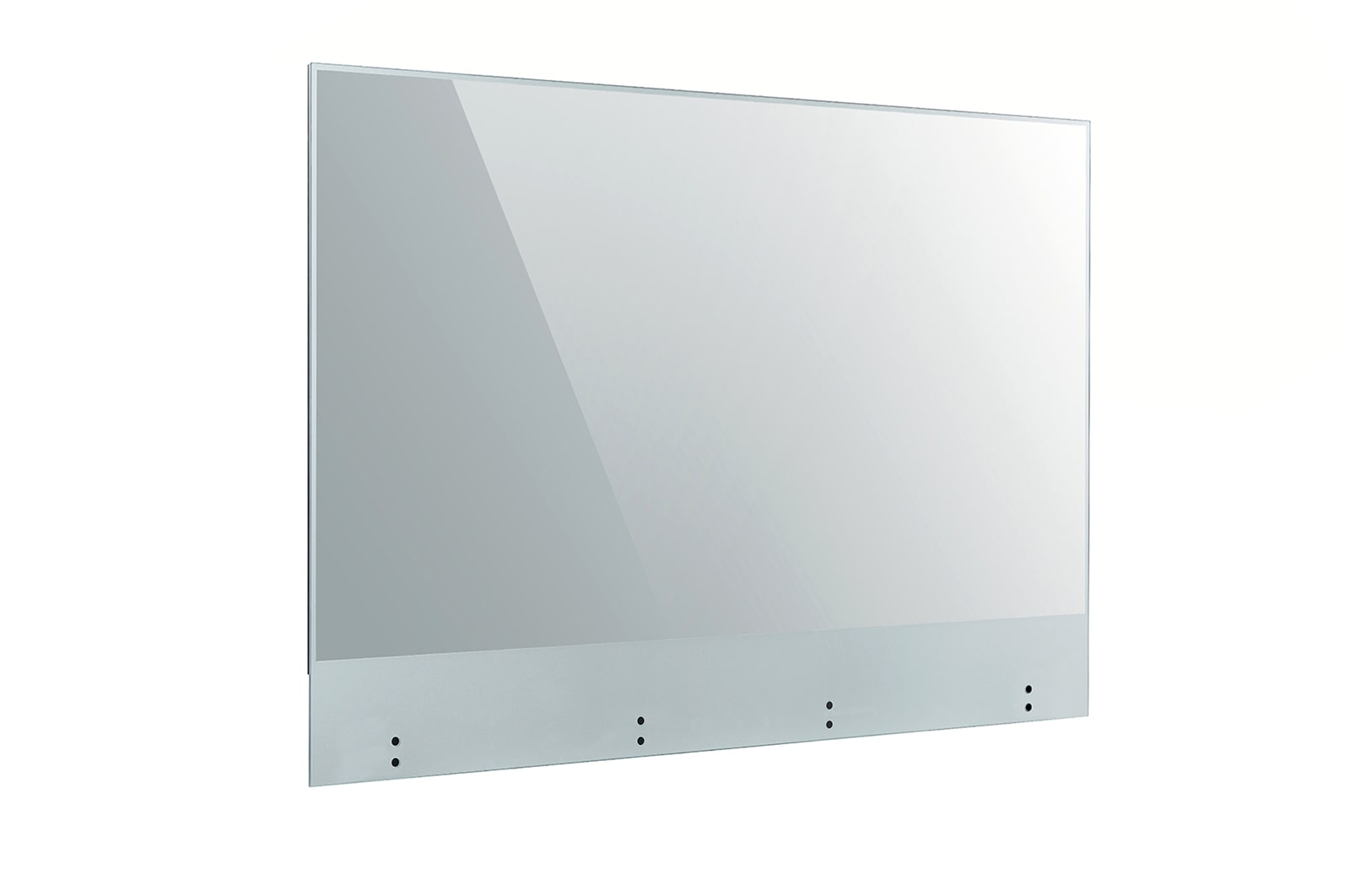

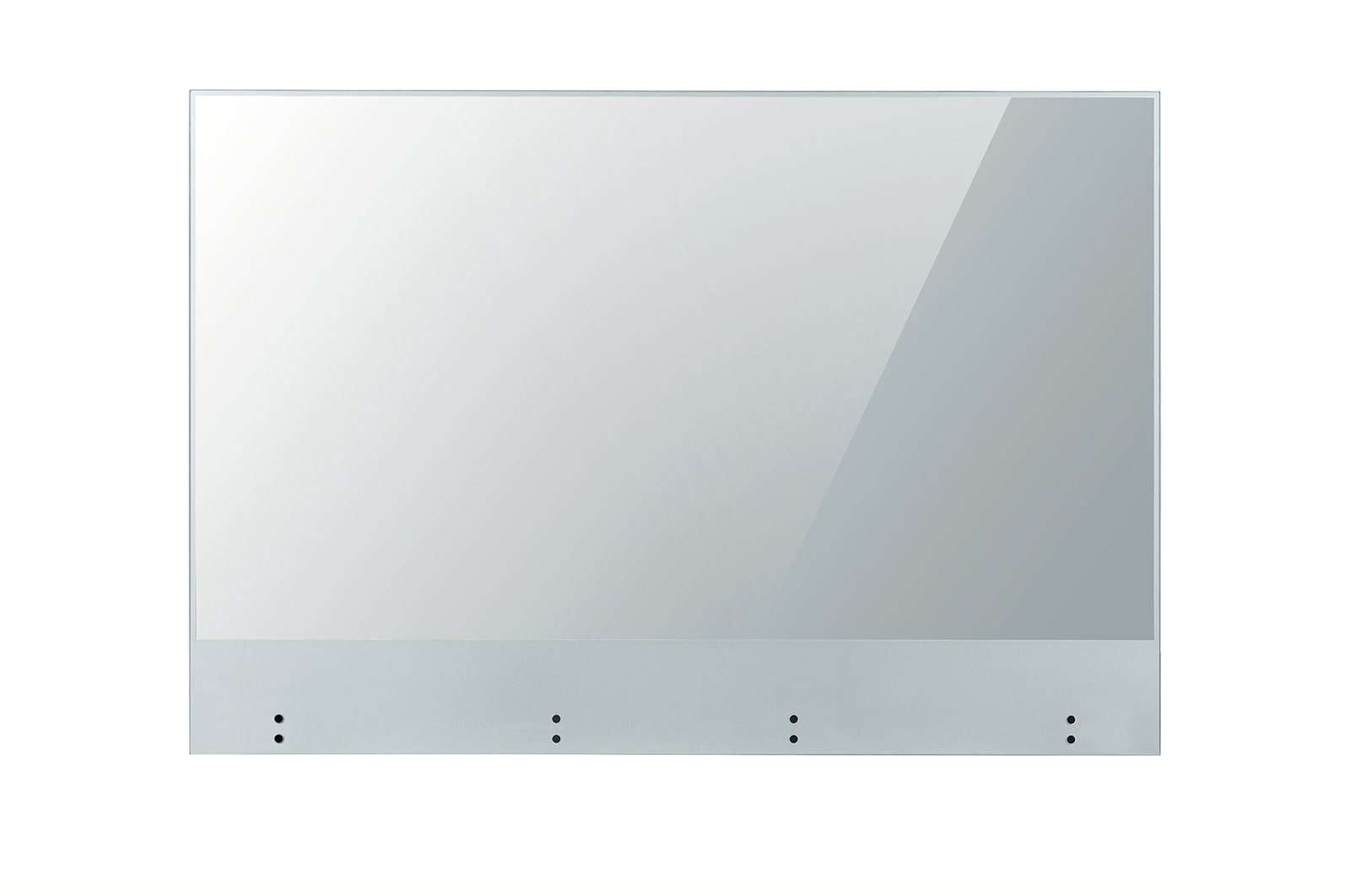

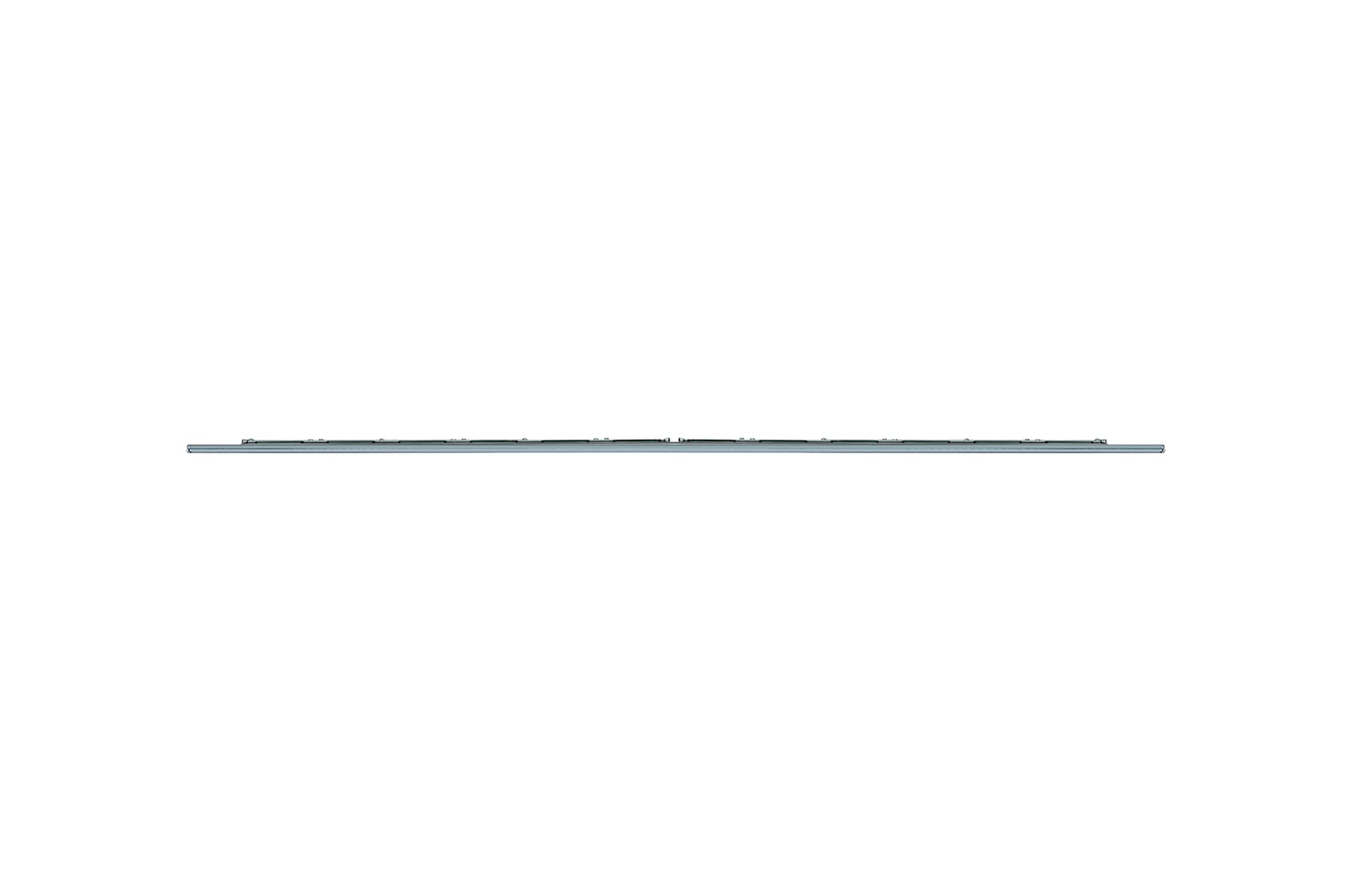

Gallery
All Spec
PANEL
-
Screen Size (Inch)
55
-
Panel Technology
OLED
-
Back Light Type
OLED
-
Aspect Ratio
16:9
-
Native Resolution
1920 x 1080 (FHD)
-
Refresh Rate
120Hz
-
Brightness
150/400nit (APL 100%/25%, without Glass)
-
Contrast Ratio
150,000:1
-
Dynamic CR
NO
-
Color Gamut
BT709 120%
-
Viewing Angle (H x V)
178º x 178º
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Response Time
1ms (G to G), 8ms (MPRT)
-
Surface Treatment (Haze)
Haze 3% (SET)
-
Life time
30,000Hrs (Typ.)
-
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
-
Portait / Landscape
YES / YES
-
Transparency
33% (SET)
-
QWP (Quarter Wave Plate)
N/A
CONNECTIVITY
-
HDMI In
YES (1ea)
-
HDMI In (HDCP Ver.)
1.4
-
DP In
YES (HDCP 1.3)
-
DVI-D In
NO
-
RGB In
NO
-
Audio In
NO
-
RS232C In
YES
-
RJ45(LAN) In
YES (1ea)
-
IR In
YES
-
USB In
USB2.0 Type A (2ea)
-
HDMI Out
NO
-
DP Out
YES
-
Audio Out
YES
-
Touch USB
USB2.0 Type B (1ea)
-
External Speaker Out
NO
-
RS232C Out
YES
-
RJ45(LAN) Out
YES
-
IR Out
YES (Sharing RS232C Out)
-
Daisy Chain
NO
MECHANICAL SPECIFICATION
-
Bezel Color
Matt Silver
-
Bezel Width
T/R/L/B : 7.9/7.9/7.9/144.5mm
-
Weight (Head)
12.9Kg (Head) 3.4Kg (Signage Box)
-
Weight (Head+Stand)
N/A
-
Packed Weight
24.5Kg
-
Monitor Dimensions (W x H x D)
1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
-
Monitor Dimension with Stand (W x H x D)
N/A
-
Carton Dimensions (W x H x D)
1345 x 945 x 207mm
-
Handle
NO
-
VESA Standard Mount Interface
N/A

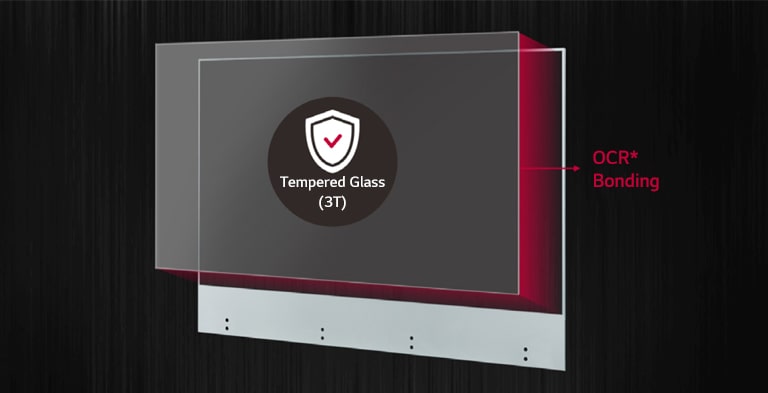

PROTECTION GLASS
-
Thickness
3mm
-
Degree of Protection
N/A
-
Tempered / Chemical strengthening
Chemical strengthening
-
Anti-Reflective
YES
-
Infrared - Resistance (IR)
N/A
-
Shatter-Proof
YES
FEATURE - HARDWARE
-
Internal Memory (eMMC)
16GB
-
Wi-Fi/BT (Built-in)
NO
-
Temperature Sensor
YES
-
Auto Brightness Sensor
NO
-
Pixel Sensor
NO
-
Proximity Sensor
NO
-
Current Sensor
NO
-
BLU Sensor
NO
-
Humidity Sensor
NO
-
Acceleration(Gyro) Sensor
NO
-
Power Indicator
NO
-
Local Key Operation
NO
-
FAN (Built-in)
NO
FEATURE - SOFTWARE
-
OS Ver. (webOS)
webOS 4.0
-
Local Contents Scheduling
YES
-
Group Manager
YES
-
USB Plug & Play
YES
-
Fail over
YES
-
Booting Logo Image
NO
-
No Signal Image
NO
-
RS232C Sync
NO
-
Local Network Sync
NO
-
Backlight Sync
NO
-
PIP
NO
-
PBP
NO
-
Screen Share
NO
-
Video Tag
YES (4 Video Tag)
-
Play via URL
NO
-
Screen Rotation
YES
-
External Input Rotation
NO
-
Gapless Playback
YES
-
Tile Mode Setting
NO
-
Setting Data Cloning
YES
-
SNMP
YES
-
ISM Method
YES
-
Auto Set ID
YES
-
Status Mailing
YES
-
Control Manager
YES
-
Cisco Certification
NO
-
Crestron Connected
YES
-
Smart Energy Saving
NO
-
PM mode
YES
-
Wake on LAN
YES
-
Network Ready
NO
-
Beacon
NO
-
HDMI-CEC
YES
-
SI Server Setting
YES
-
webRTC
NO
-
Pro:Idiom
YES
-
Brightness Compensation
NO
-
W/B Setting by Grey scale
NO
-
Scan Inversion
NO
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
POWER CONSUMPTION
-
Typ.
84W (IEC 62087)
-
Max.
300W
-
BTU (British Thermal Unit)
955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)
-
Smart Energy Saving (70%)
N/A
-
DPM
0.5W
-
Power off
0.5W
SOUND
-
Speaker (Built-in)
NO
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "A" / CE / KC
-
ERP / Energy Star
YES / NO
-
ePEAT(US only)
NO
OPS COMPATIBILITY
-
OPS Type compatible
N/A
-
OPS Power Built-in
N/A
SOFTWARE COMPATIBILITY
-
SuperSign CMS
YES
-
SuperSign Control+
YES
-
SuperSign WB
NO
-
SuperSign Cloud
NO
-
Promota
NO
-
Mobile CMS
YES
-
Connected Care
YES
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
-
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea
-
Optional
NO
SPECIAL FEATURE
-
Overlay Touch Compatibility
N/A
-
Smart Calibration
N/A
-
Tilt (Face up)
N/A
-
Tilt (Face down)
N/A
-
IP Rating
N/A
-
Conformal Coating (Power Board)
N/A
-
Power Protection
N/A
-
Direct Sunlight
N/A
DEDICATED FEATURE - TOUCH
-
Available Object Size for Touch
Ø12 mm ↑
-
Response Time ('Paint' app on Windows 10 PC)
120ms ↓
-
Accuracy (Typ.)
3.5mm
-
Interface
USB2.0
-
Protection Glass Thickness
3mm (Anti-Reflective / Anti-Finger print)
-
Protection Glass Transmission
84% (Typ.)
-
Operating System Support
Windows 8.1, Windows 10
-
Multi Touch Point
Max. 10 Points
