*Support may differ by model

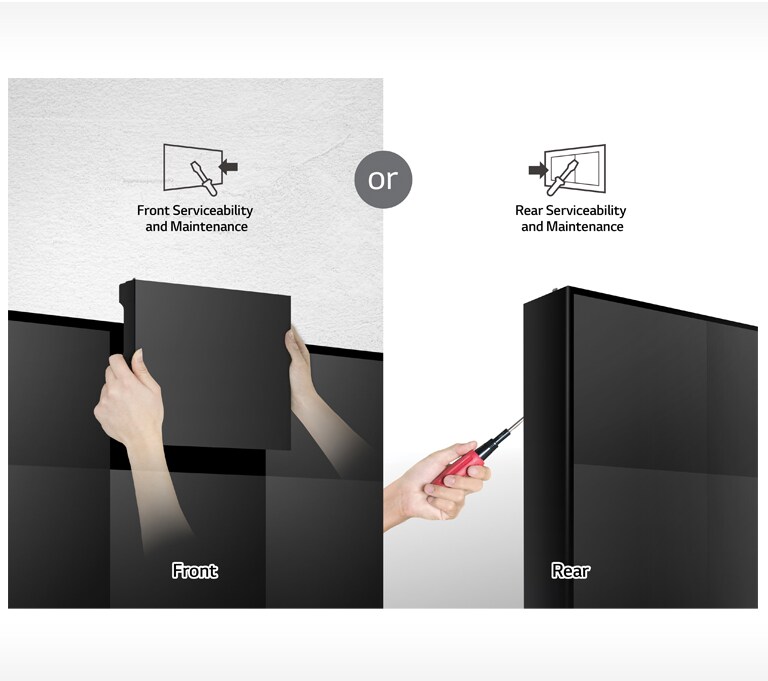

*Rear access only for 4.6mm and 6.9mm unit case
*Images dramatised for illustrative purposes only.
*Images dramatised for illustrative purposes only.
| Model name | LBE039DD4 | LBE046DD4 | LBE069DD4 |
|---|---|---|---|
| Pixel configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel pitch(mm) | 3.91 | 4.63 | 6.94 |
| Unit case resolution (WxH) | 128x256 | 108x216 | 72 x 144 |

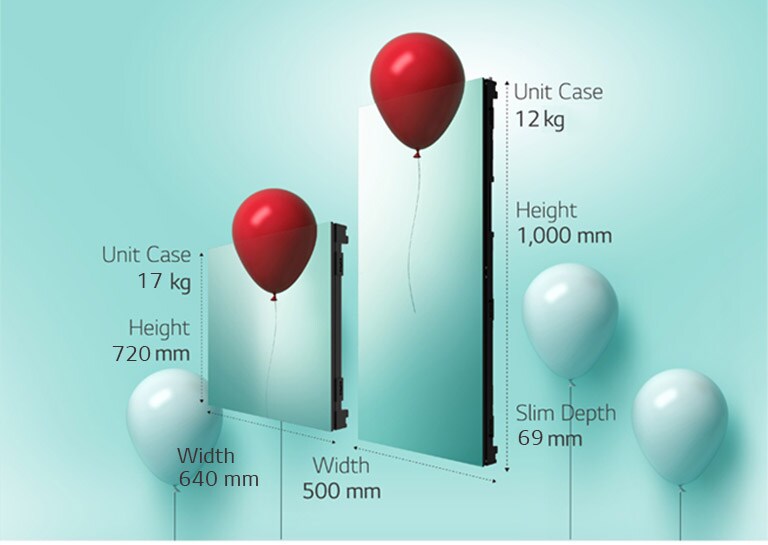

| Unit case dimensions (WxHxD, mm) | 500x1000x68 | 500x1000x68 | 500x1000x68 |
| Weight per unit case / square meter (kg) | 12.0/24.0 | 12.0/24.0 | 12.0/24.0 |
| Service access | Front or Rear | Rear | Rear |
| Min. Brightness (After calibration) | 5,000 | 5,000 | 5,000 |
| Color temperature | 6,500 | 6,500 | 6,500 |
| Visual viewing angle (Horizontal/Vertical) | 160/120 | 160/120 | 160/120 |
| Brightness uniformity / Color Uniformity | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy | 97％/±0.003Cx,Cy |
| Contrast ratio | 5,000 | 5,000 | 5,000 |
| Processing depth (bit) | 14 | 14 | 14 |
| Power consumption (W/Unit, Avg./Max.) | 110/330 | 110/300 | 110/330 |
| Power consumption (W/m², Max.) | 660 | 660 | 660 |
| Power supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh rate (Hz) | 3,840 | 3,840 | 3,840 |
| Lifetime (Half brightness)* | 50,000 | 50,000 | 50,000 |
| Operating temperature(°C) / Humidity | -10° to 45°/0-80％RH | -10° to 45°/0-80％RH | -10° to 45°/0-80％RH |
* The Lifetime (Half brightness) spec is subject to LED package specifications.
| Model name | LBE080DD4 | LBE100DD4 |
|---|---|---|
| Pixel configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel pitch(mm) | 8.00 | 10.00 |
| Unit case resolution (WxH) | 80x90 | 64x72 |
| Unit case dimensions (WxHxD, mm) | 640x720x90 | 640x720x90 |
| Weight per unit case / square meter (kg) | 17.0/36.9 | 17.0/36.9 |
| Service access | Front or Rear | Front or Rear |
| Min. Brightness (After calibration) | 5,000 | 5,000 |
| Color temperature | 6,500 | 6,500 |
| Visual viewing angle (Horizontal/Vertical) | 160/120 | 160/120 |
| Brightness uniformity / Color uniformity | ≥97％/±0.003Cx,Cy | ≥97％/±0.003Cx,Cy |
| Contrast ratio | 2,000 | 2,000 |
| Processing depth (bit) | 14 | 14 |
| Power consumption (W/Unit, Avg./Max.) | 100/300 | 100/300 |
| Power consumption (W/m², Max.) | 650 | 650 |
| Power supply (V) | 100 to 240 | 100 to 240 |
| Refresh rate (Hz) | 3,840 | 3,840 |
| Lifetime (Half brightness)* | 50,000 | 50,000 |
| Operating temperature(°C) / Humidity | -10° to 45°/0-80％RH | -10° to 45°/0-80％RH |
* The Lifetime (Half brightness) spec is subject to LED package specifications.
