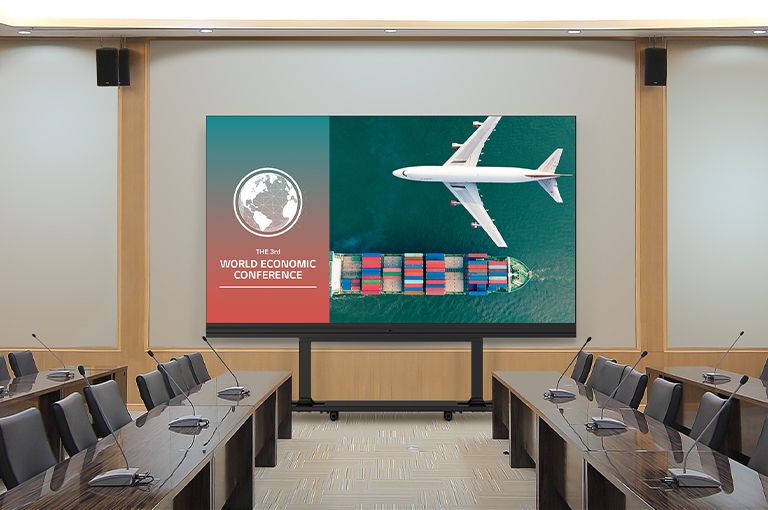

In a spacious meeting room with long tables on both sides, a LABA series which is TAA (Trade Agreements Acts) compliant All-in-One LED model is placed against the wall. The LABA screen displays meeting content vividly.
* All images in this page are for illustrative purposes only and may differ from the actual product.
* Stand accessory needs to be purchased separately.

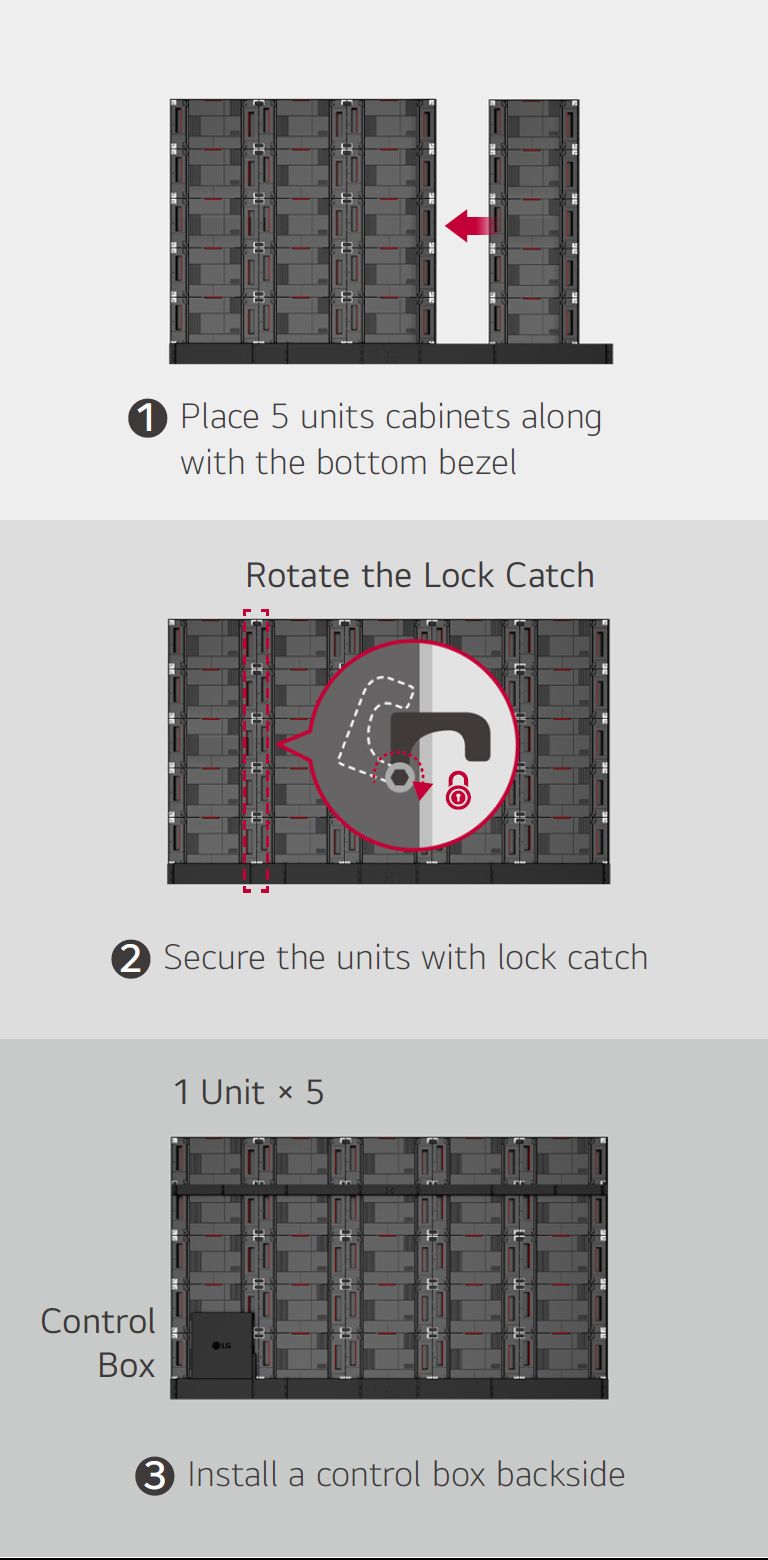

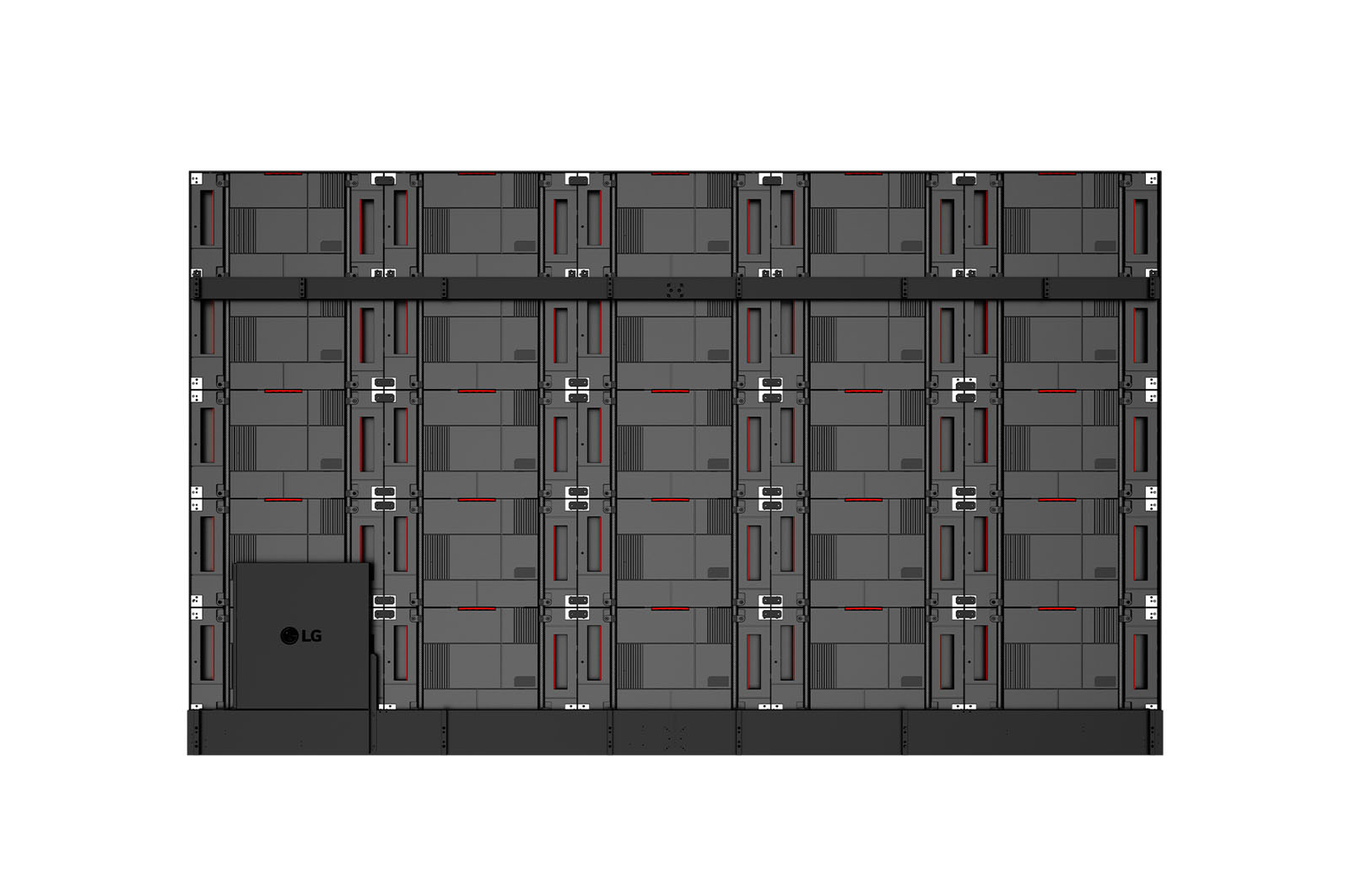

Thanks to the carbon fiber tubes and locks located behind the cabinets, installation is straightforward. Simply place the 5 units of cabinets, connect and secure them with locking catches. Then the assembly is done. 5 cabinets forming a unit are pre-assembled with carbon fiber tubes and each unit can be held tightly with lock catches.
This consists of a total of 3 images illustrating the installation steps to place 5 units of cabinets, secure the units, and install a control box. This shows how LABA series can be installed with ease.
* Fixing screws or installing wall mount/accessories is needed additionally.

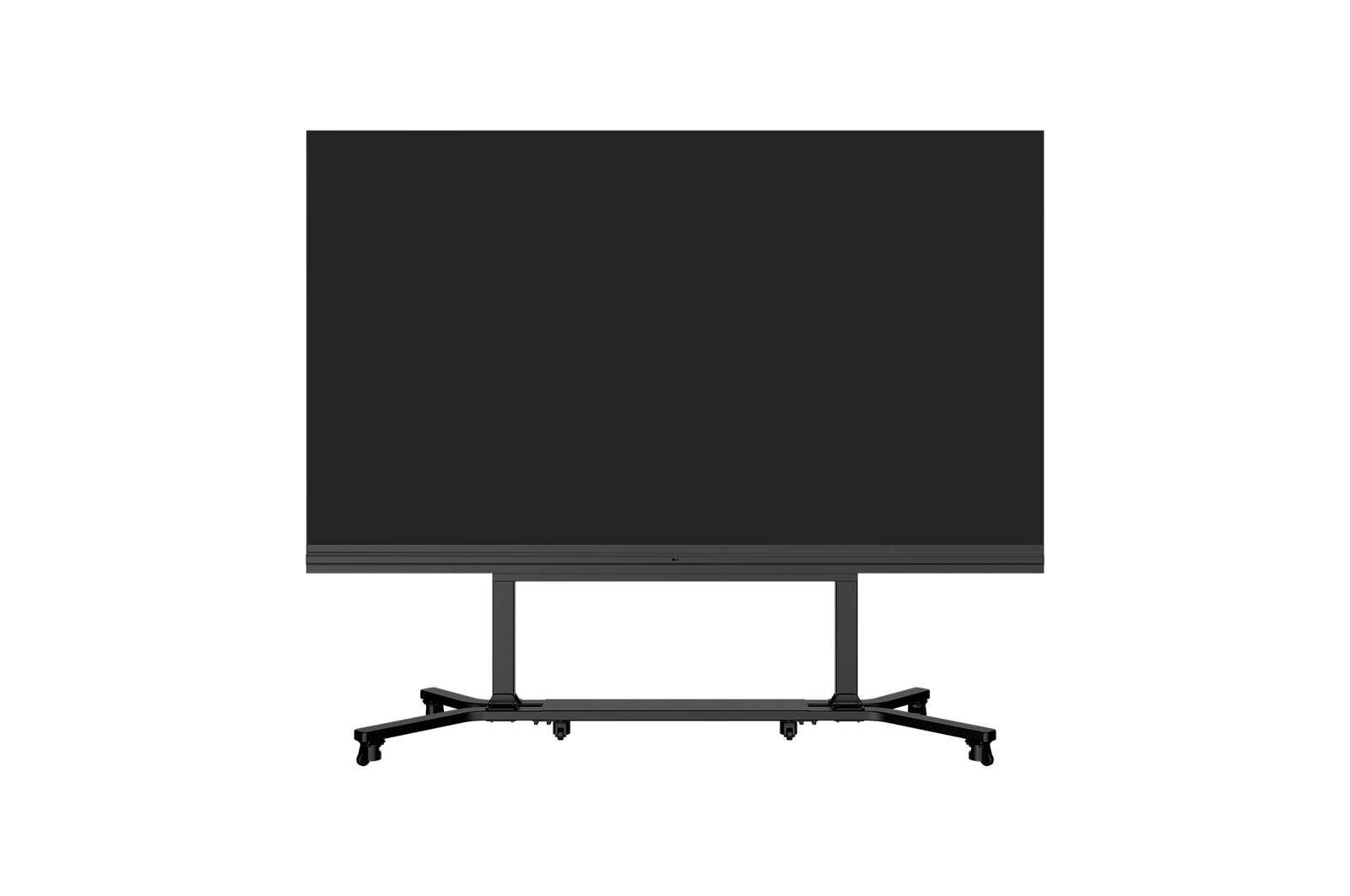

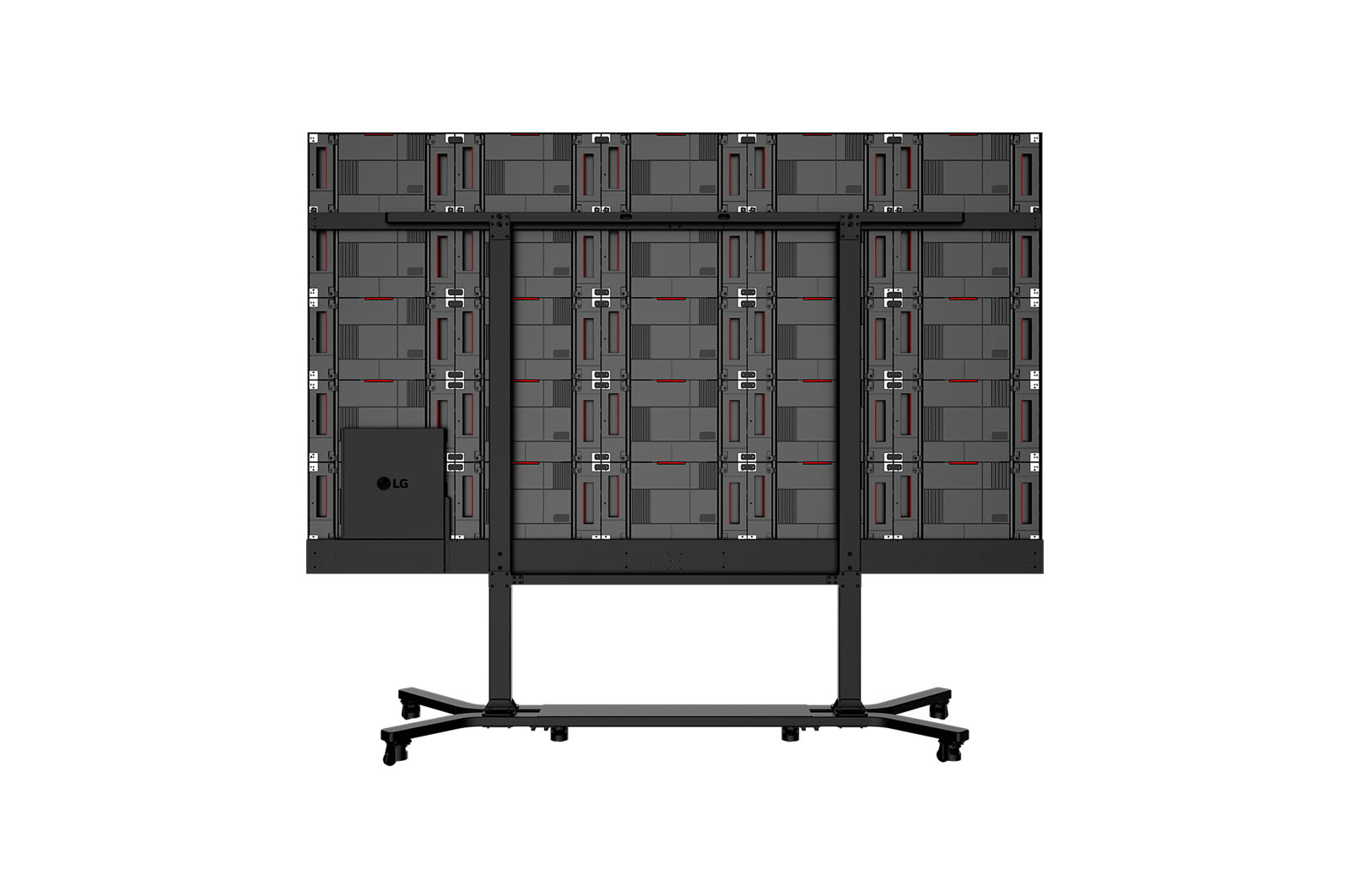

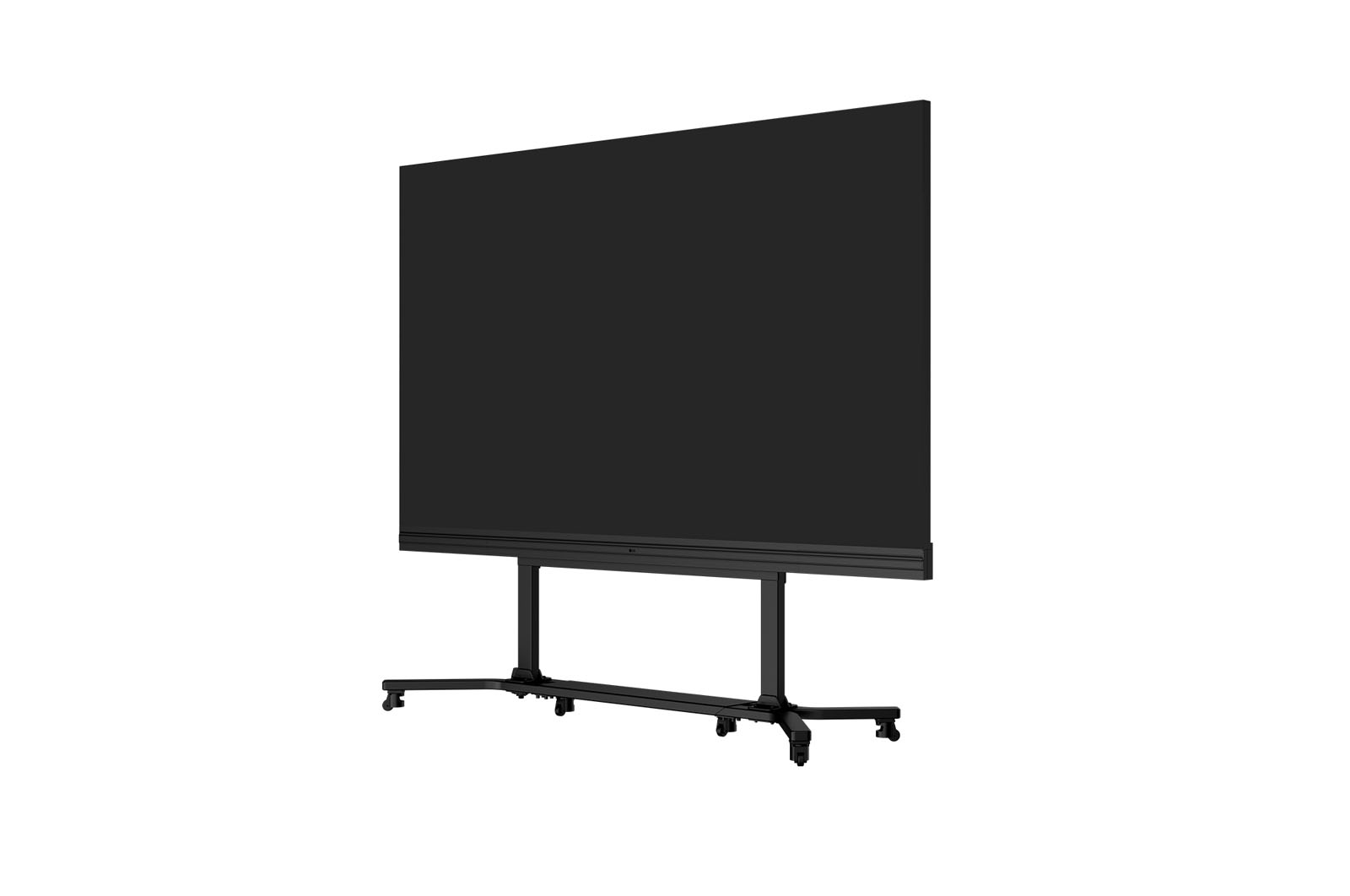

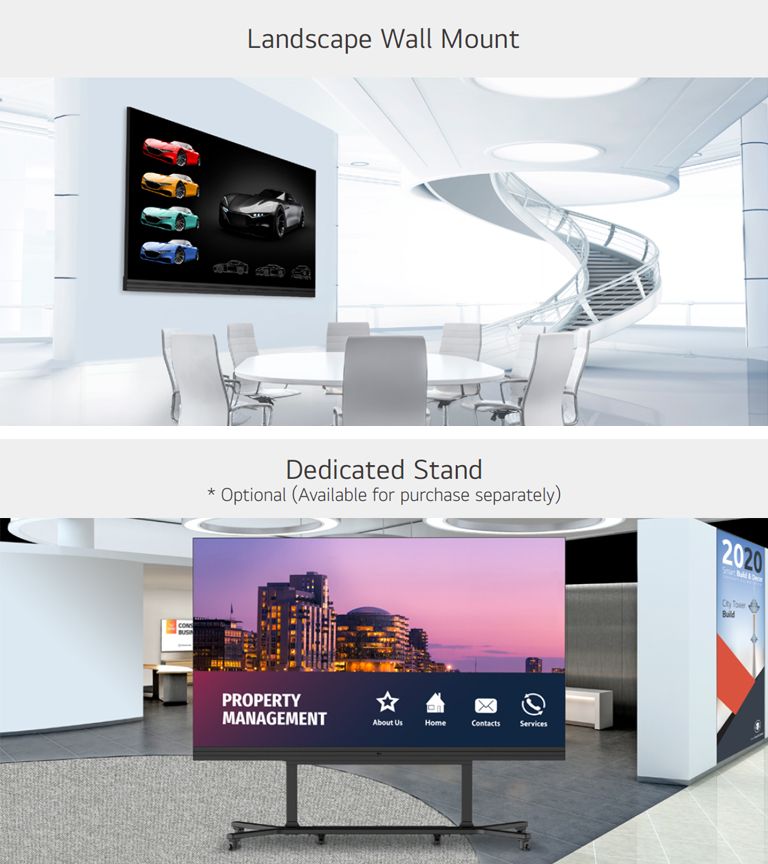

The product includes necessary components including the landscape wall mount and tools for installation. The dedicated stand is provided as an option, so that you can easily place it depending on your installation sites.
"The LABA series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images. The LABA’s have been installed along with the motorized stand in an event hall."
* Stand accessory needs to be purchased separately.

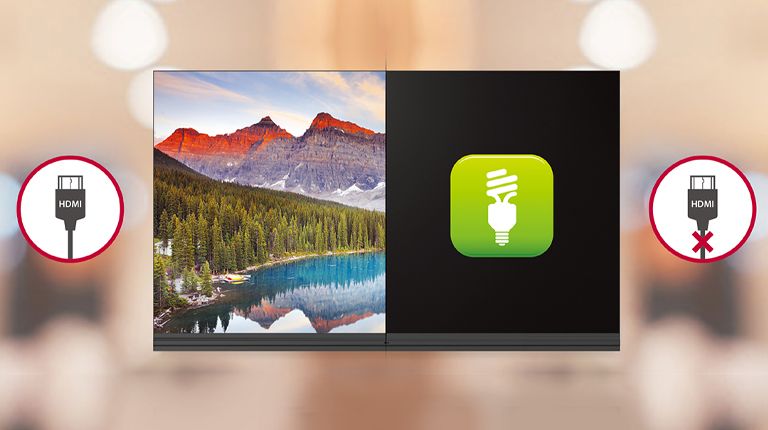

The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.
The LABA series can be set to be in standby mode when there is no signal from the input source device.
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
The one of LG employee is remotely monitoring the LABA LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare.
* The availability of LG ConnectedCare differs by region.
** Stand accessory needs to be purchased separately.
*** LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.
Model name
LABA015-GD
Pixel Configuration
Single SMD
Module Resolution (WxH)
120x135
Module Dimensions(WxH,mm)
300x337.5x13
Weight per Module (kg)
0.95
Physical Pixel Density (pixels/㎡)
403,124
Flatness of Cabinet (mm)
≤0.15
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
Max. 500
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx, Cy
Contrast Ratio
8,000:1
Processing Depth (bit)
16
Refresh Rate (Hz)
1,600
Power Consumption (W/Screen, Avg.)
950
Heat Dissipation (BTU/h/Screen, Max.)
5,456
Heat Dissipation (BTU/h/Screen, Avg.)
3,240
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0℃~40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
Certification
CE,FCC,cTUVus,CB
Environment
RoHS, REACH
Speaker
Altavoz integrado (8 W + 8 W)

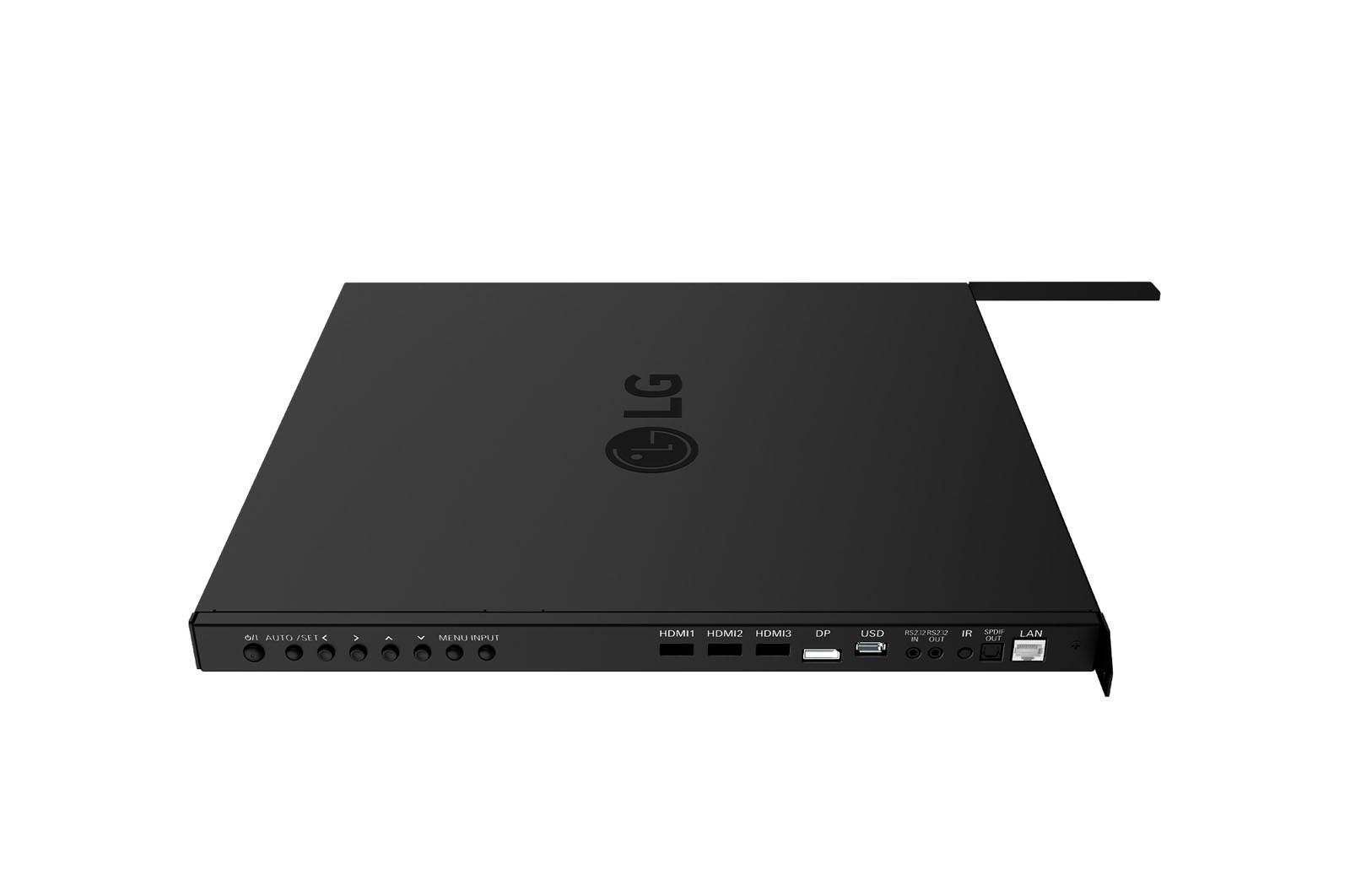

I/O Port
HDMI(3), DP(1), USB, LAN, entrada/salida RS232C, IR, salida de audio digital (1, SPDIF óptico)
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
