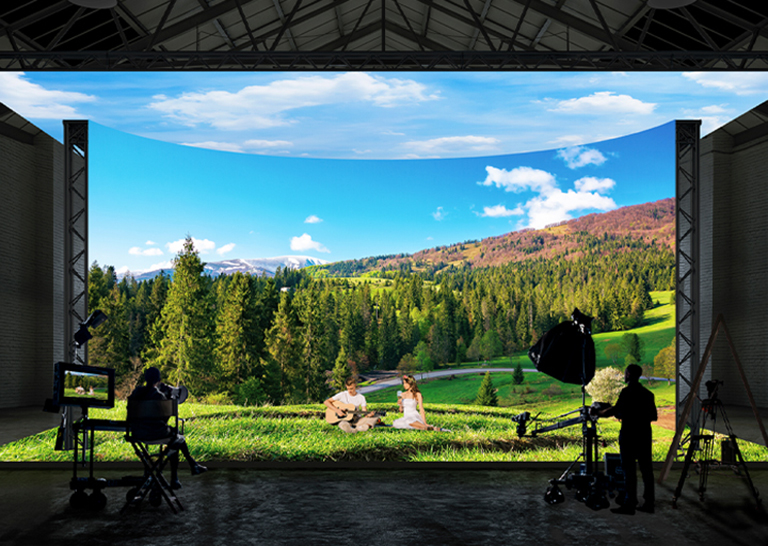

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming images of a forest and field landscape.
* All images in this page are for illustrative purposes only.

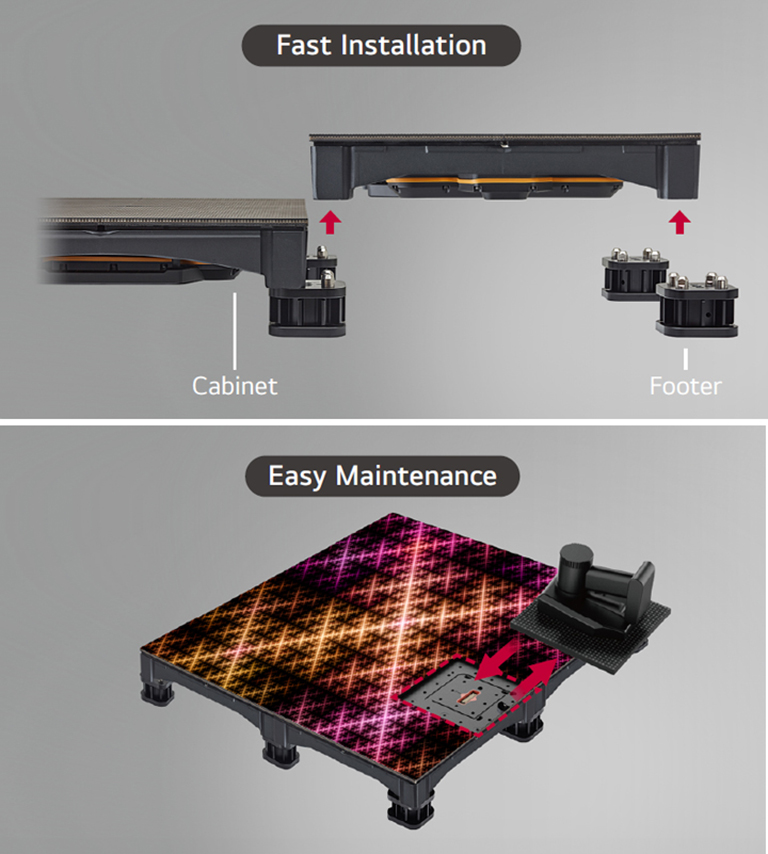

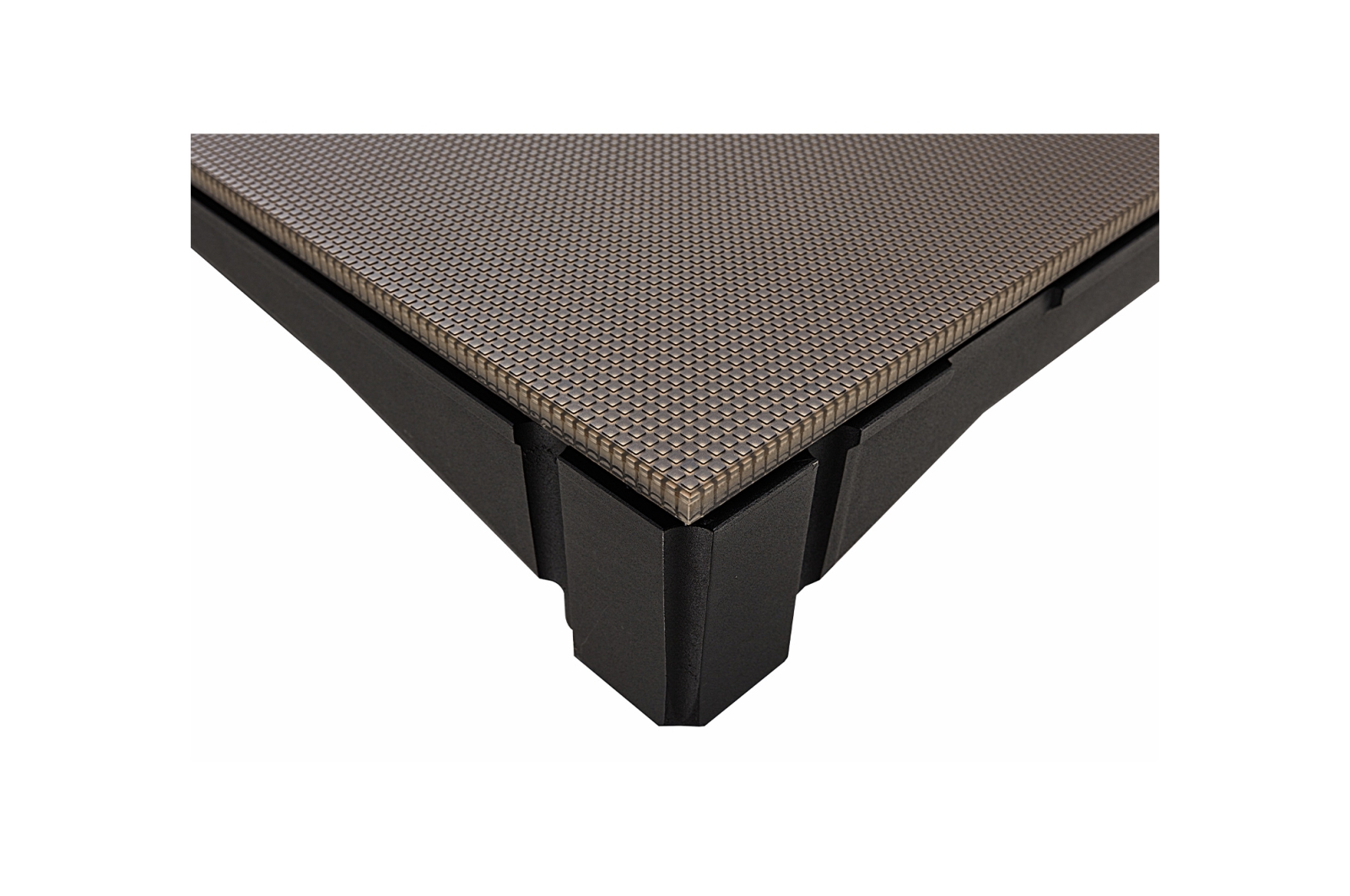

The product features a simple structure that enables fast installation and easy maintenance. The cabinets can be easily deployed and connected using the foot support system. A straightforward flush control mechanism design helps to maintain consistent height levels on different types of floors. Additionally, the LED module is equipped with magnets for convenient maintenance, and hot swapping is possible even while the display is in operation.
It is easy to install LFCM by simply fixing the cabinet with the footer, and the magnets attached to the LED module allow for easy maintenance with the screen on.
* Hot Swapping : Swap module on-site during screen’s on the operation.
Thanks to the compatibility between LFCM and the Megapixel VR HELIOS LED processing platform, you can now utilize the powerful UX and UI functionalities offered by HELIOS. HELIOS processing platform includes Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics.
The Megapixel VR HELIOS LED processing platform provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-Speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics.
* Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.
Model name
LFCM039-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
3.91
Module Resolution (WxH)
64x64
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.90
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
128x128
Cabinet Dimensions (W x H x D, mm)
500x500x83.3
Cabinet Surface Area (㎡)
0.25
Weight per Cabinet (kg/unit)
12
Weight per Square Meter (kg/㎡)
48
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
1,500
Color Temperature (K)
3,500~9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16
Power Consumption (W/Cabinet, Max.)
180
Power Consumption (W/Cabinet, Avg.)
60
Power Consumption (W/㎡, Max.)
720
Heat Dissipation (BTU/h/Cabinet, Max.)
819
Heat Dissipation (BTU/h/Cabinet, Avg.)
273
Heat Dissipation (BTU/h/㎡, Max.)
3,276
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0~80%RH
IP rating Front
IP65
IP rating Rear
IP65
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
(MVR HEIOS)
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
