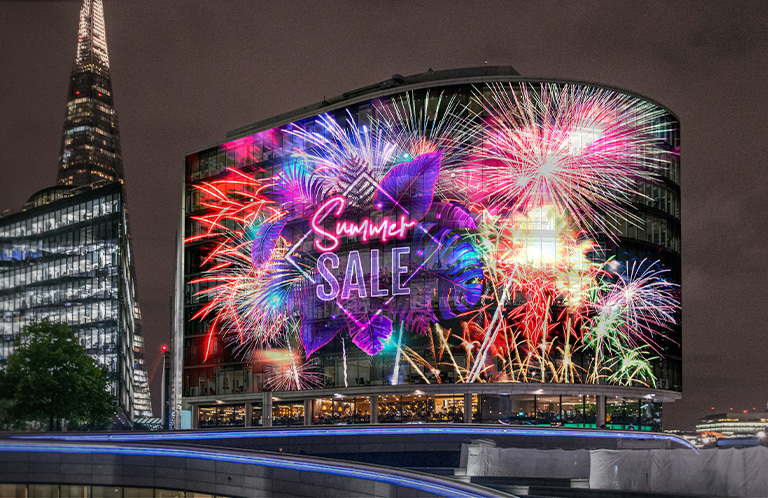

A mesh LED is installed to fit the building’s curved exterior wall shape. The colorful advertisement reflected by the LED appears to harmonize with the city’s night view.
* All images in this page are for illustrative purposes only.

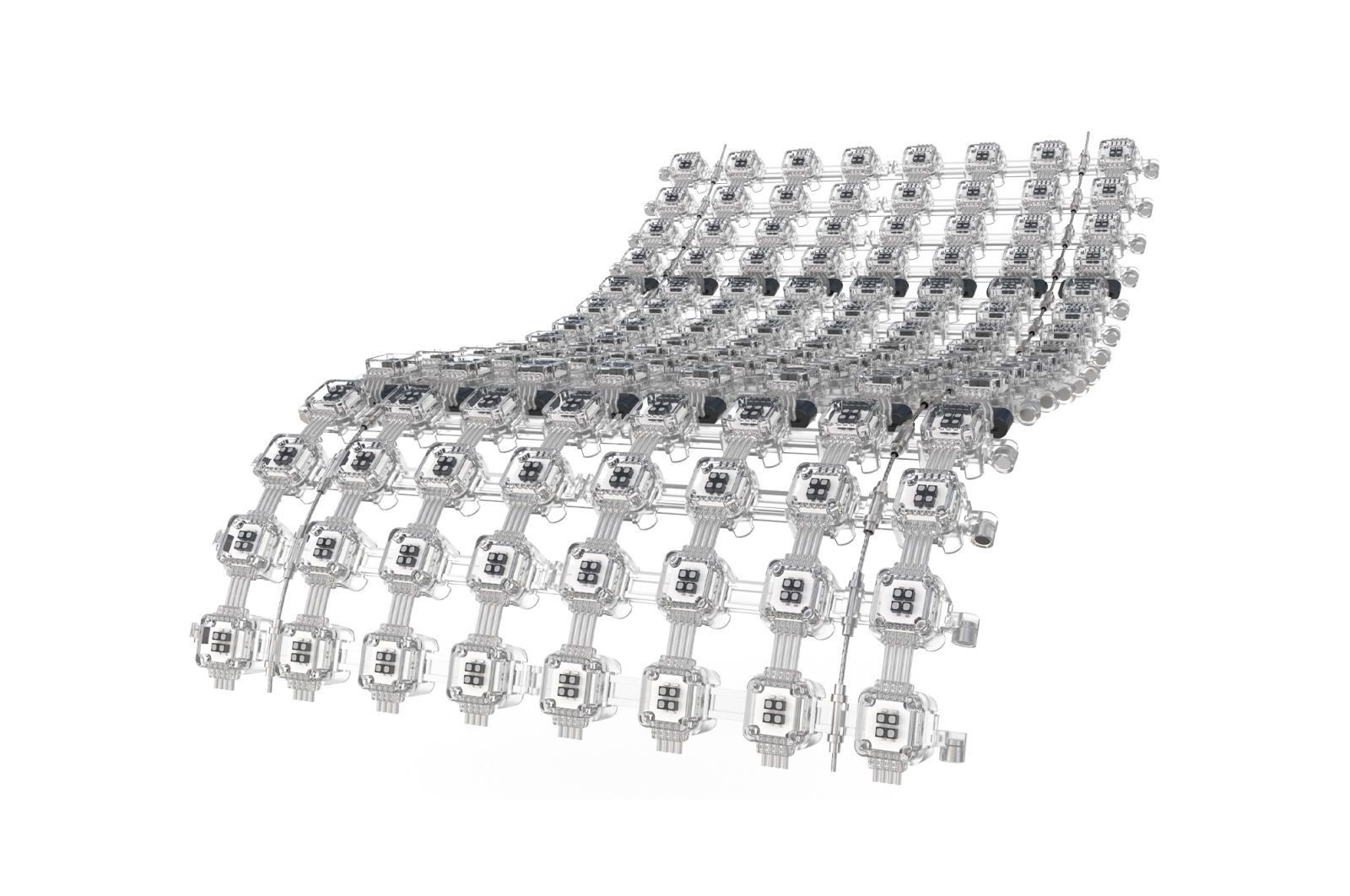

With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views.

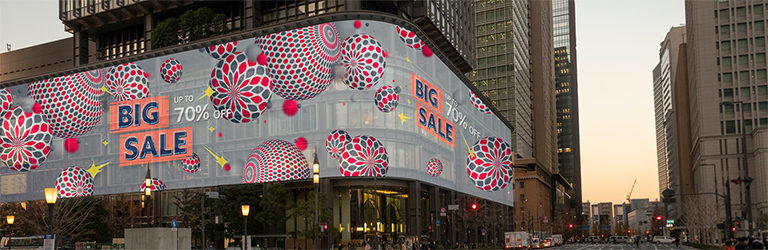

An LED is installed to fit the shape of the building’s outer wall which has rounded corner.

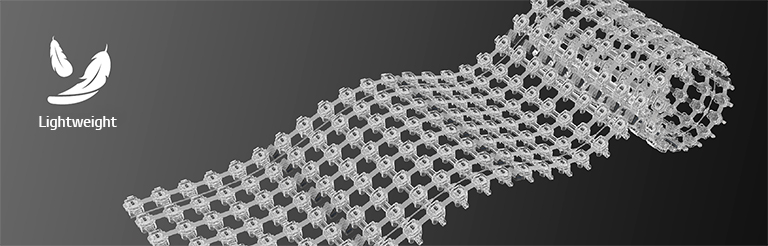

Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation.

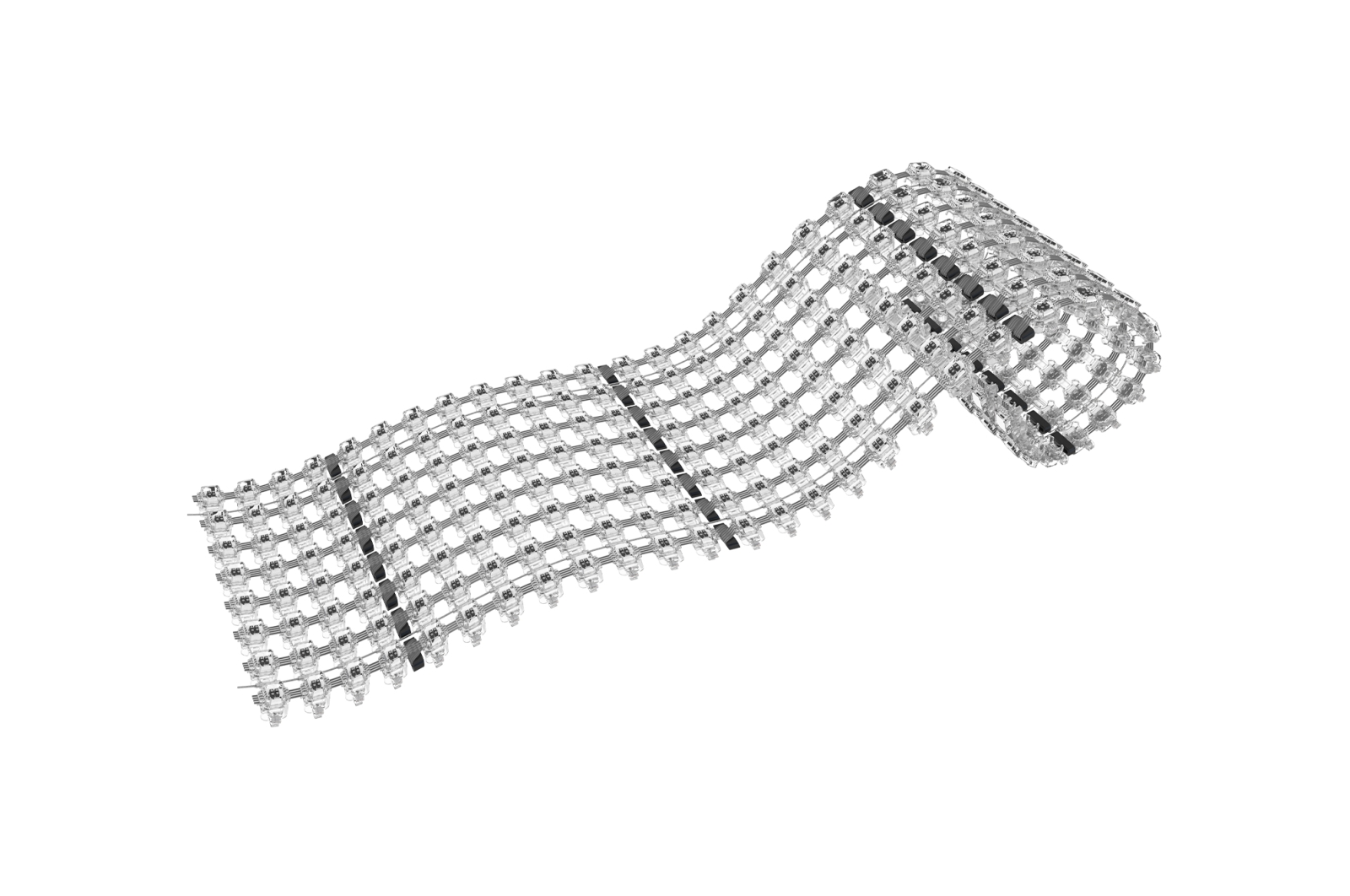

One side of the lightweight mesh GMBD is rolled.

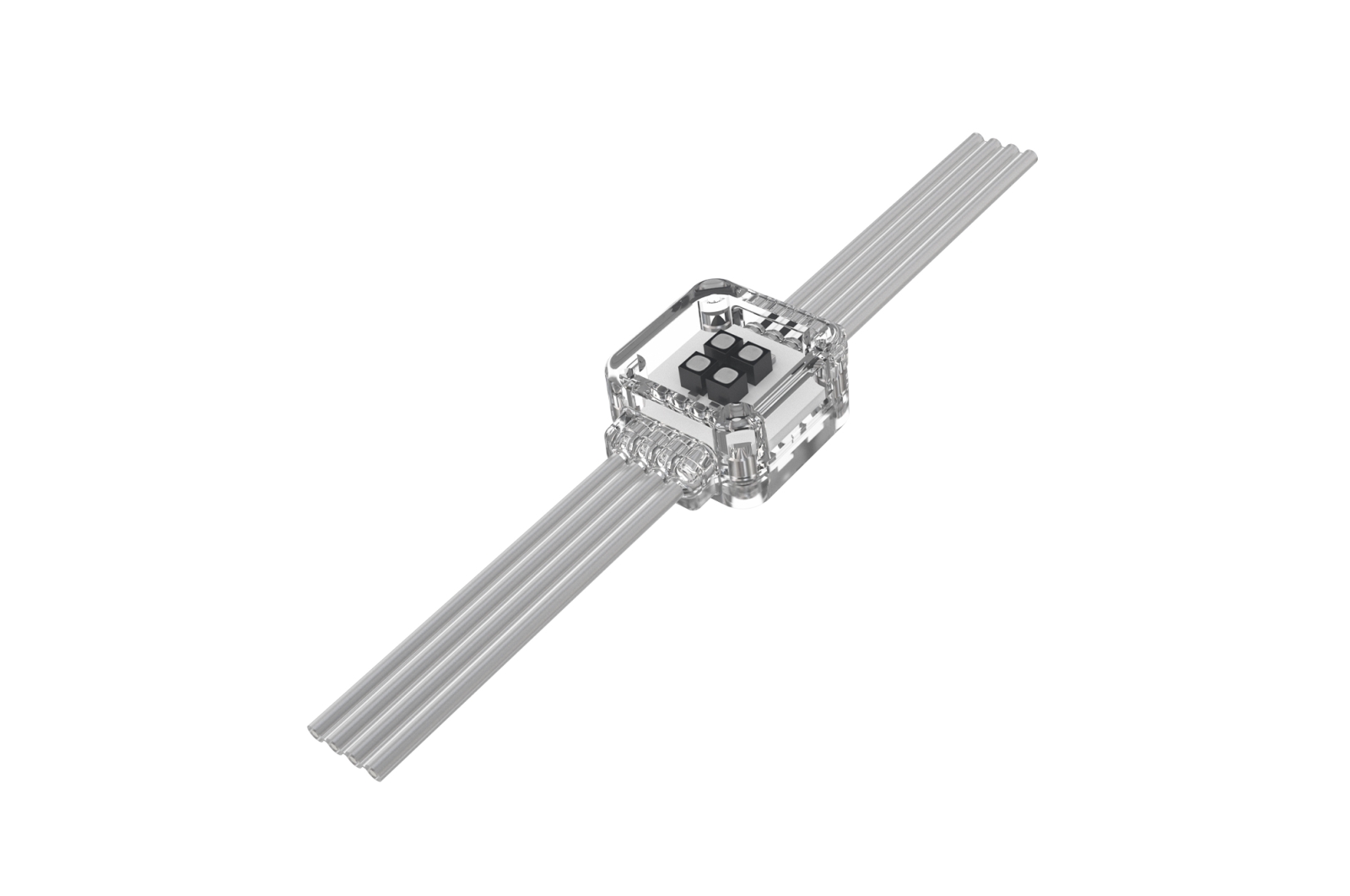

Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.

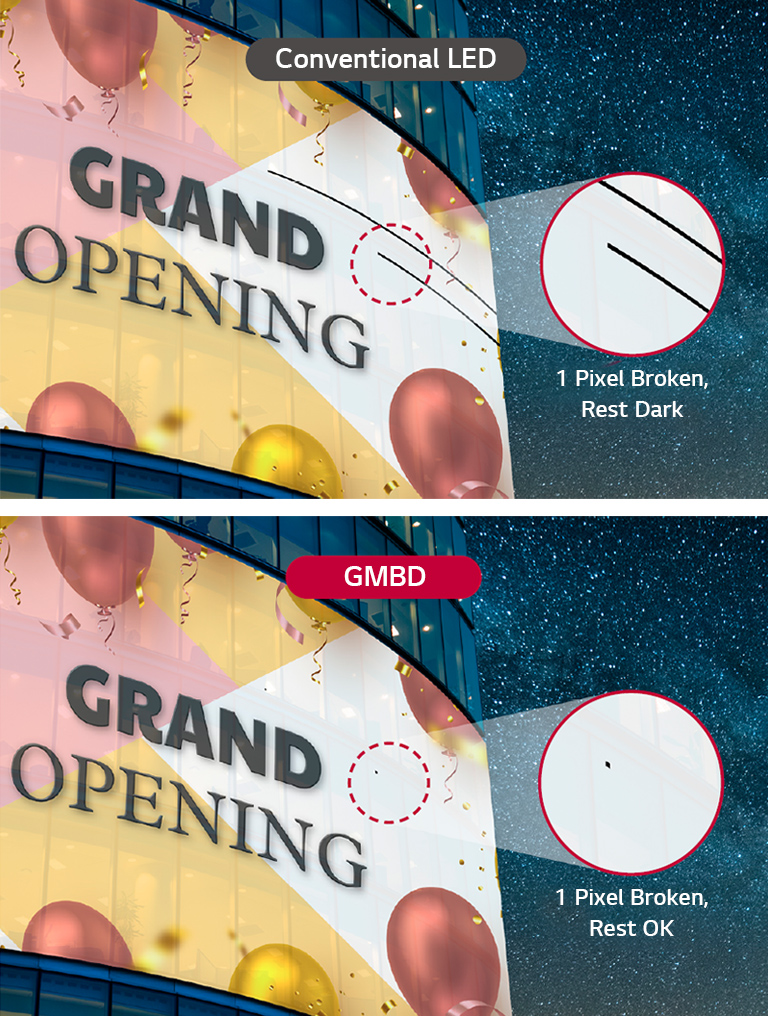

Conventional LED cuts off the signal when one pixel fails and the rest of the pixels in the line become black. However, for GMBD, the rest of the pixels are visible showing no problems even if one pixel dies.
Model name
GMBD035-GN4
Pixel Configuration
3 in 1 SMD with 4 Dots
Pixel Pitch (mm)
35
Cabinet Resolution (WxH)
8 x 80
Cabinet Dimensions (W x H x D, mm)
280 x 2,800 x 24.5
Cabinet Surface Area (㎡)
0.784
Weight per Cabinet (kg/unit)
6.2
Weight per Square Meter (kg/㎡)
8.0
Physical Pixel Density (pixels/㎡)
816
Cabinet material
Plastic body and silicon cable
Service access
Front and Rear
Max Brightness (After Calibration, nit)
7,500
Color Temperature (K)
18,000-25,000
Visual Viewing Angle (Horizontal)
120
Visual Viewing Angle (Vertical)
120
Brightness Uniformity
90%
Contrast Ratio
40,000:1
Processing Depth (bit)
12 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
640
Power Consumption (W/Cabinet, Avg.)
213
Power Consumption (W/㎡, Max.)
816
Heat Dissipation (BTU/h/Cabinet, Max.)
2,184
Heat Dissipation (BTU/h/Cabinet, Avg.)
727
Heat Dissipation (BTU/h/㎡, Max.)
2,784
Power Supply (V)
100~240 VAC
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
20,000
Operating Temperature(℃)
-40℃ to +60℃
Operating Humidity
10~90%RH
IP rating Front
IP66
IP rating Rear
IP66
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB
Environment
RoHS, REACH
Controller
CVBA
90 degree corner cut
Yes
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
