Outdoor Signage for
Short-Range Impact

The LED screen is positioned at eye level near the bottom of the building, spanning two sides. Despite being installed across a corner, it displays content vividly without interruptions.

* All images in this page are for illustrative purposes only.

A display as tall as a person is installed at eye level on the street.

Eye-level Pitch for Outdoor

Unlike traditional large-scale screens that are typically installed at a height for visibility, the GSPC series features a low pixel pitch of 2.98 mm, allowing for installation at eye level and enabling clear image display even on smaller screens.

The GSPC series, with its enhanced power consumption, offers higher energy efficiency.

Enhanced Energy Efficiency

Compared to LG’s traditional model, power consumption has decreased by more than 27%*, based on the same brightness. This means that operating costs can be significantly reduced.

* Power consumption improvement is compared to the LG GSCF026-GP model.
* Test Information Details (1) Testing Institution: LGE Internal, (2) Testing Criteria: Power consumption measured while operating at 5,500 nits brightness (full white, after calibration), (3) Model Names: GSPC029-GA, GSCF026-GP, (4) Test Results: Each below 520 W/sqm, below 720 W/sqm
* Actual results may vary depending on the use environment.

Flexible Installation

The GSPC series offers three sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPC series integrates seamlessly into the installation place and clear content to customers.

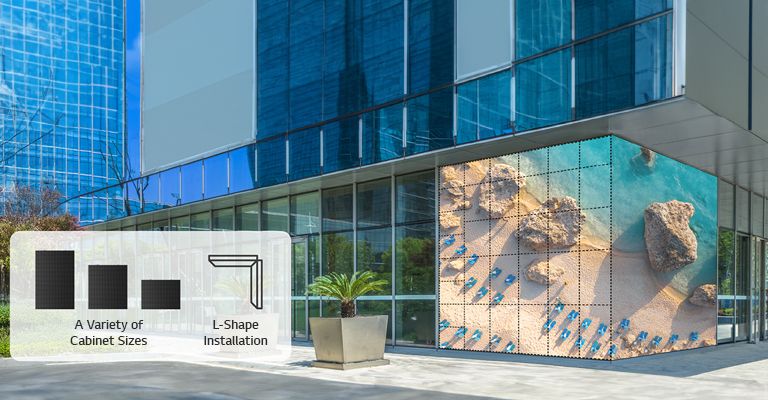

The use of three cabinet sizes and an L-shaped installation enables the LED screen to be seamlessly mounted on the building's cornered wall.

Compatibility with LG Software Solutions

When connected with LG's CVGA system controller, the GSPC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

The LG employee is remotely monitoring the GSPC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the GSPC series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

Key Feature

  • Pixel Pitch : 2.98 mm
  • Brightness : 5,500 nit
  • Service Access : Front and Rear
  • IP Rating : IP66 (Front / Rear)

All Spec

INFORMATION

  • Model name

    GSPC029

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    2.98

  • Module Resolution (WxH)

    84 x 84

  • Module Dimensions(WxH,mm)

    250 x 250

  • Weight per Module (kg)

    1

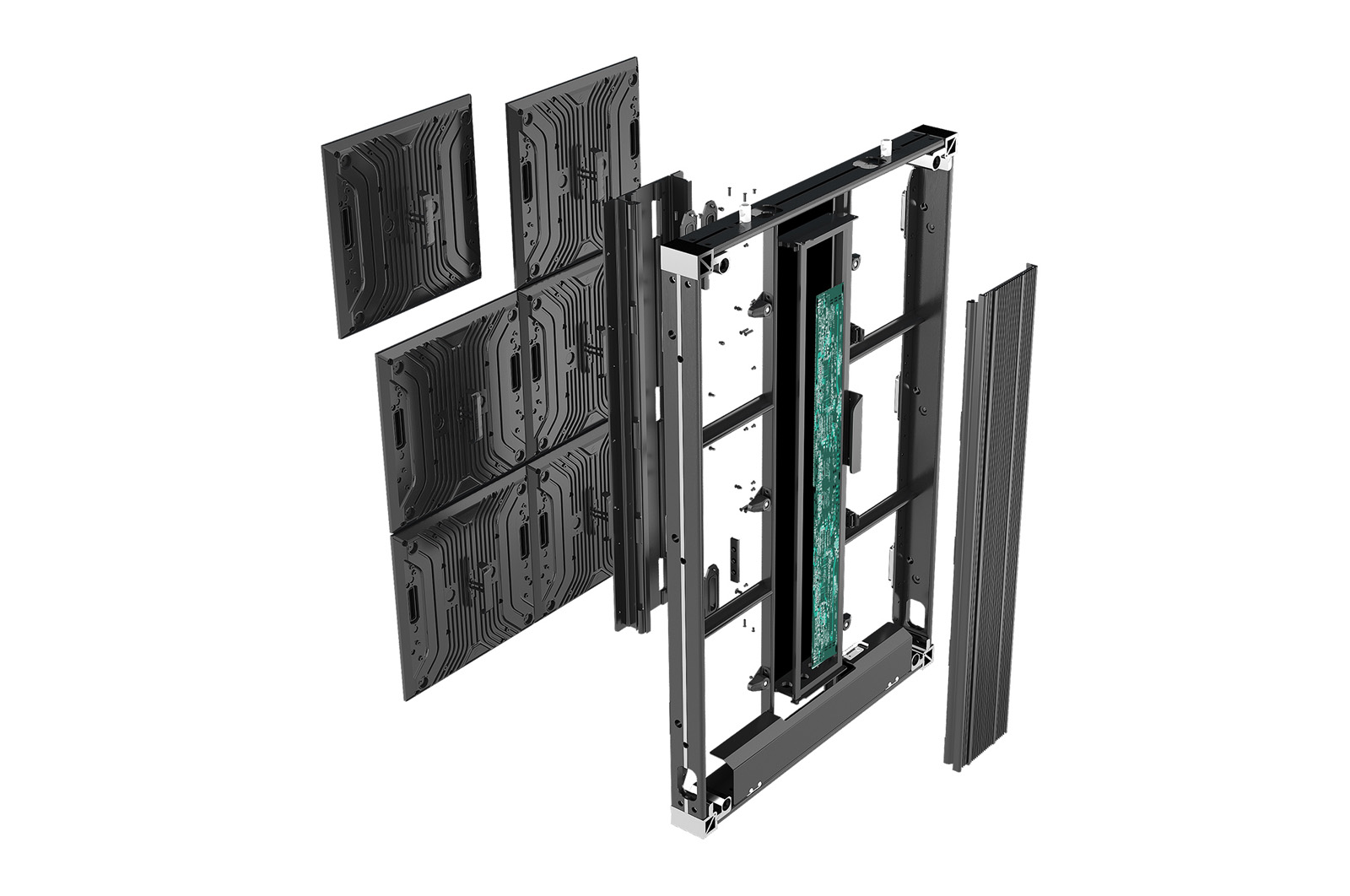

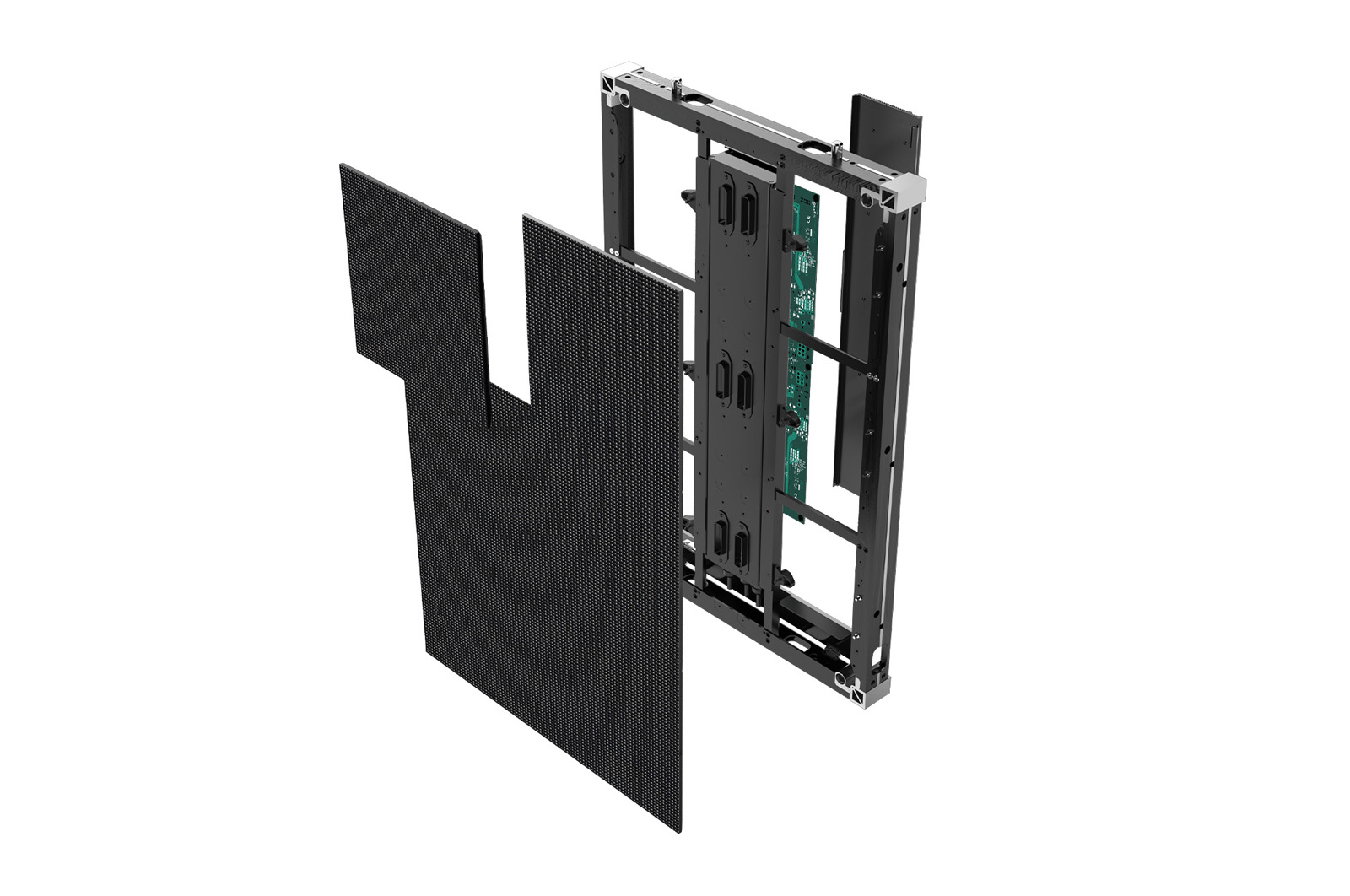

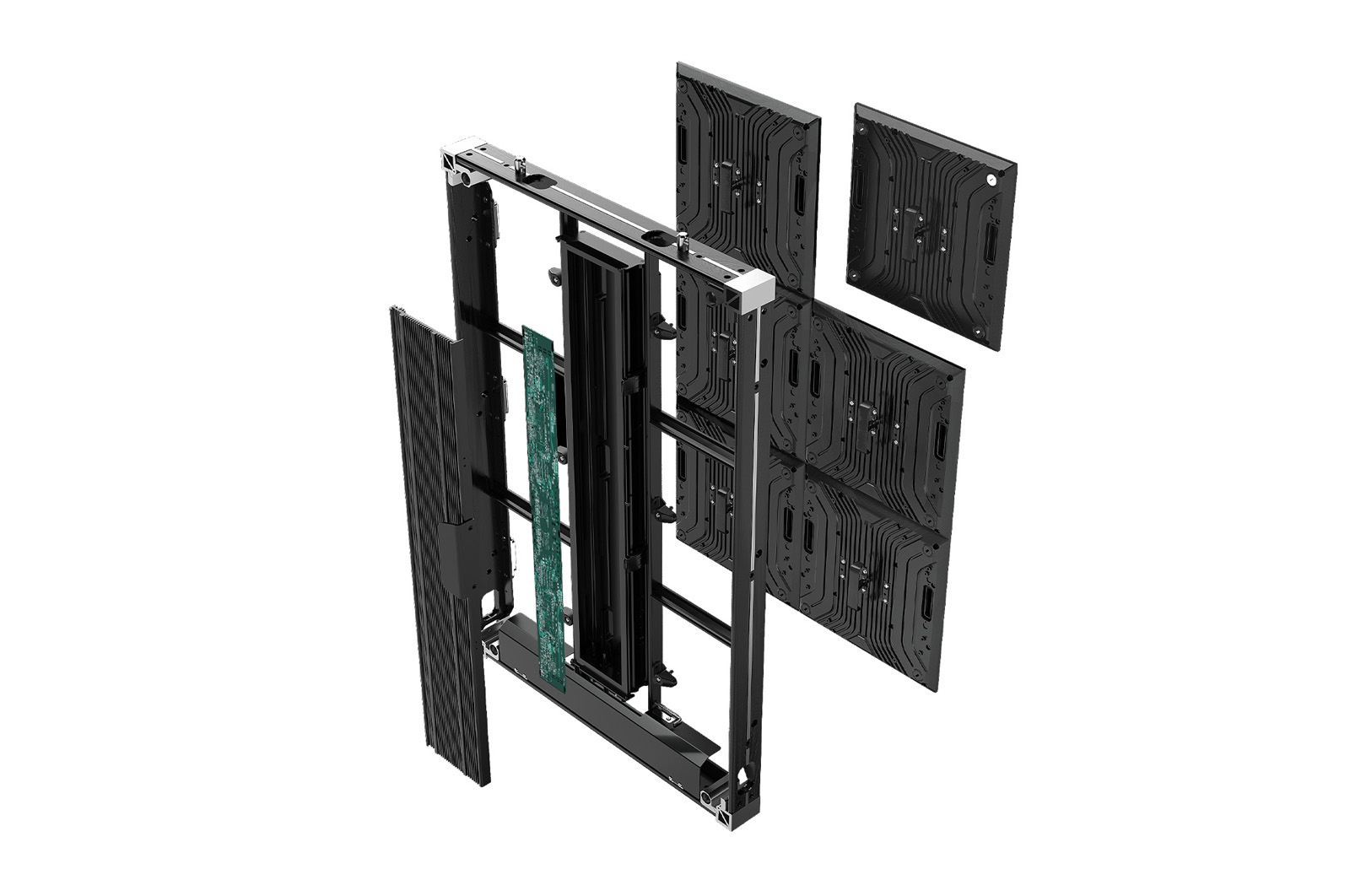

  • No. of Modules per Cabinet (WxH)

    2 x 4

  • Cabinet Resolution (WxH)

    168 x 336

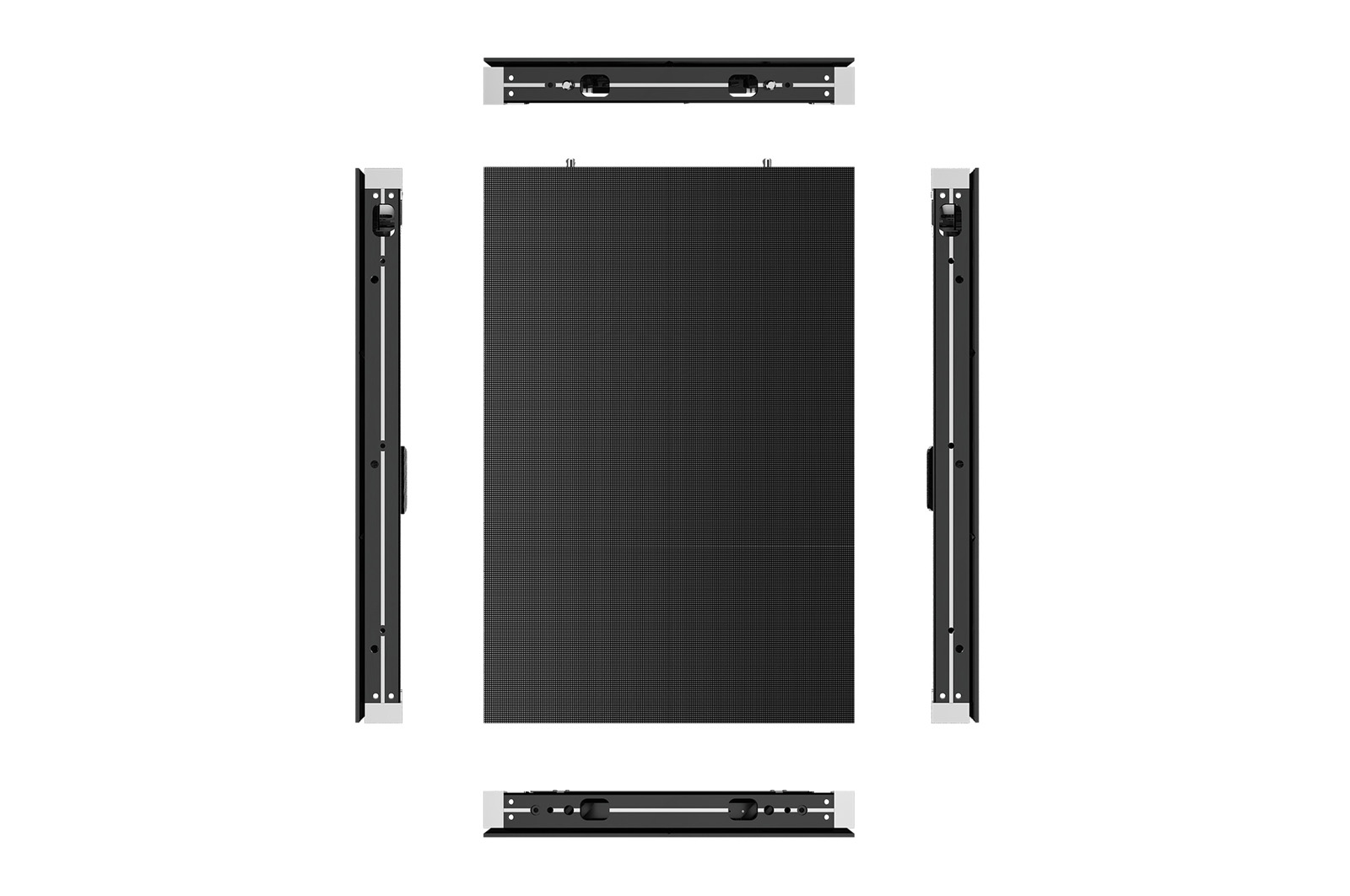

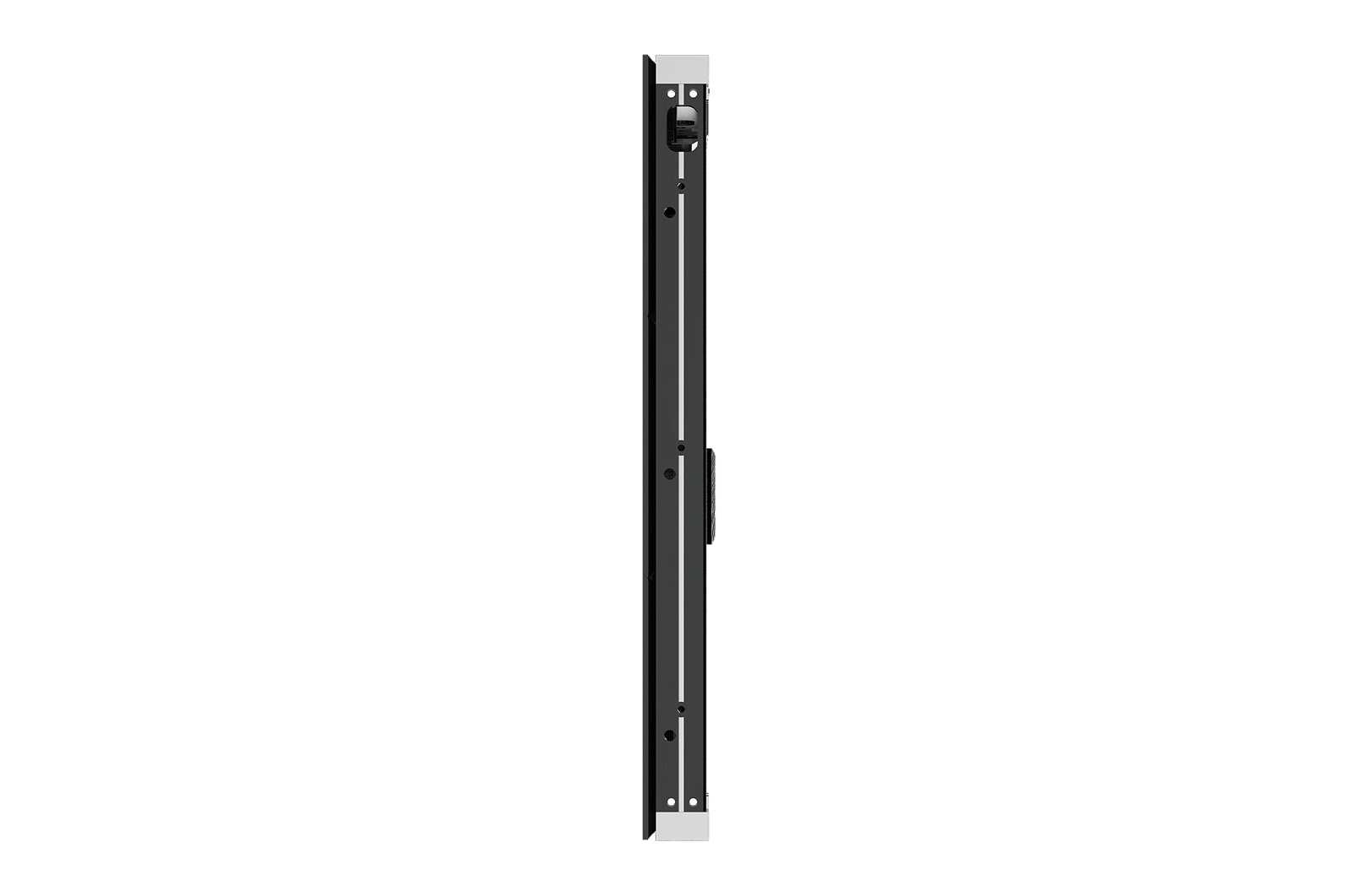

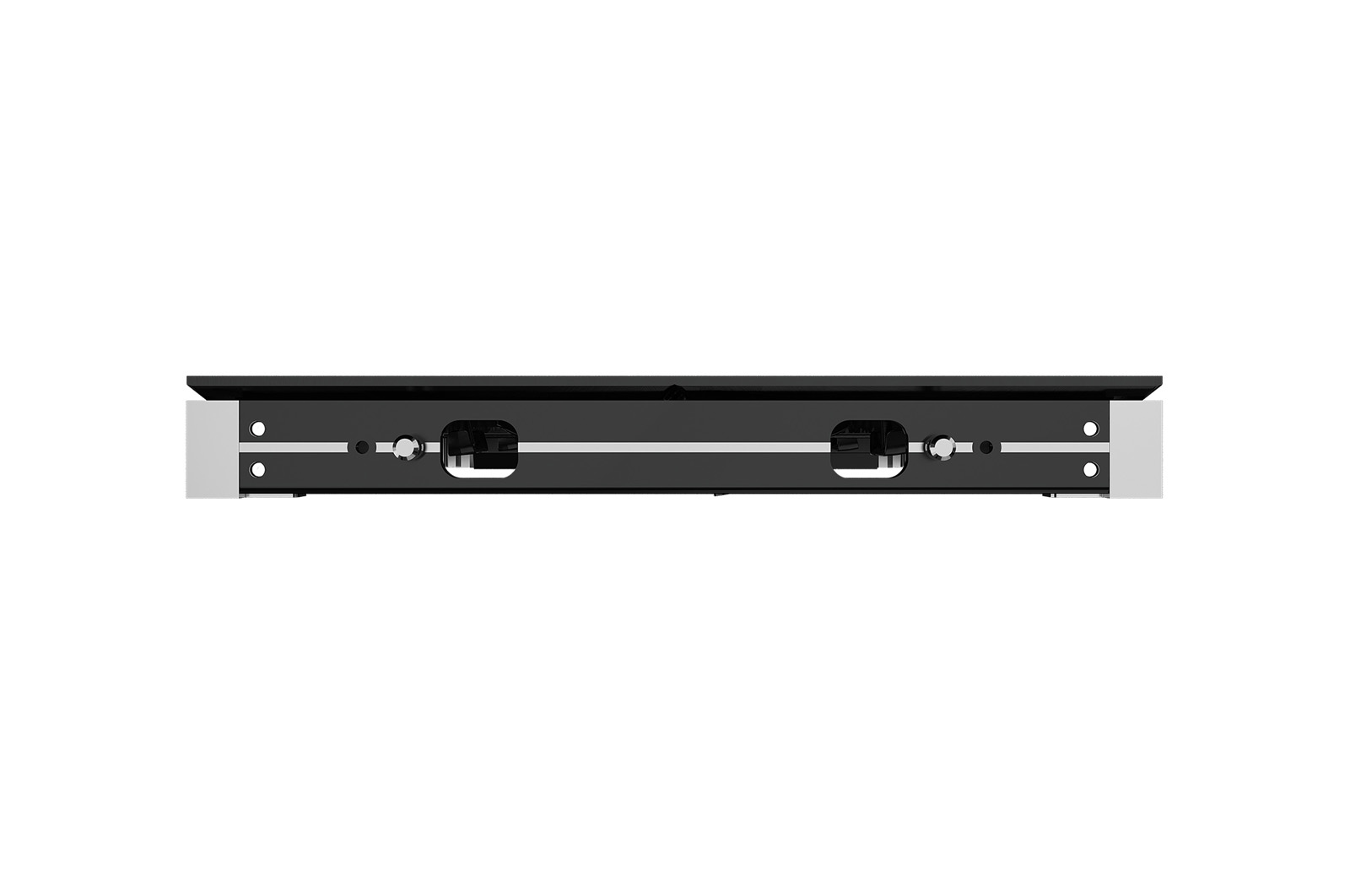

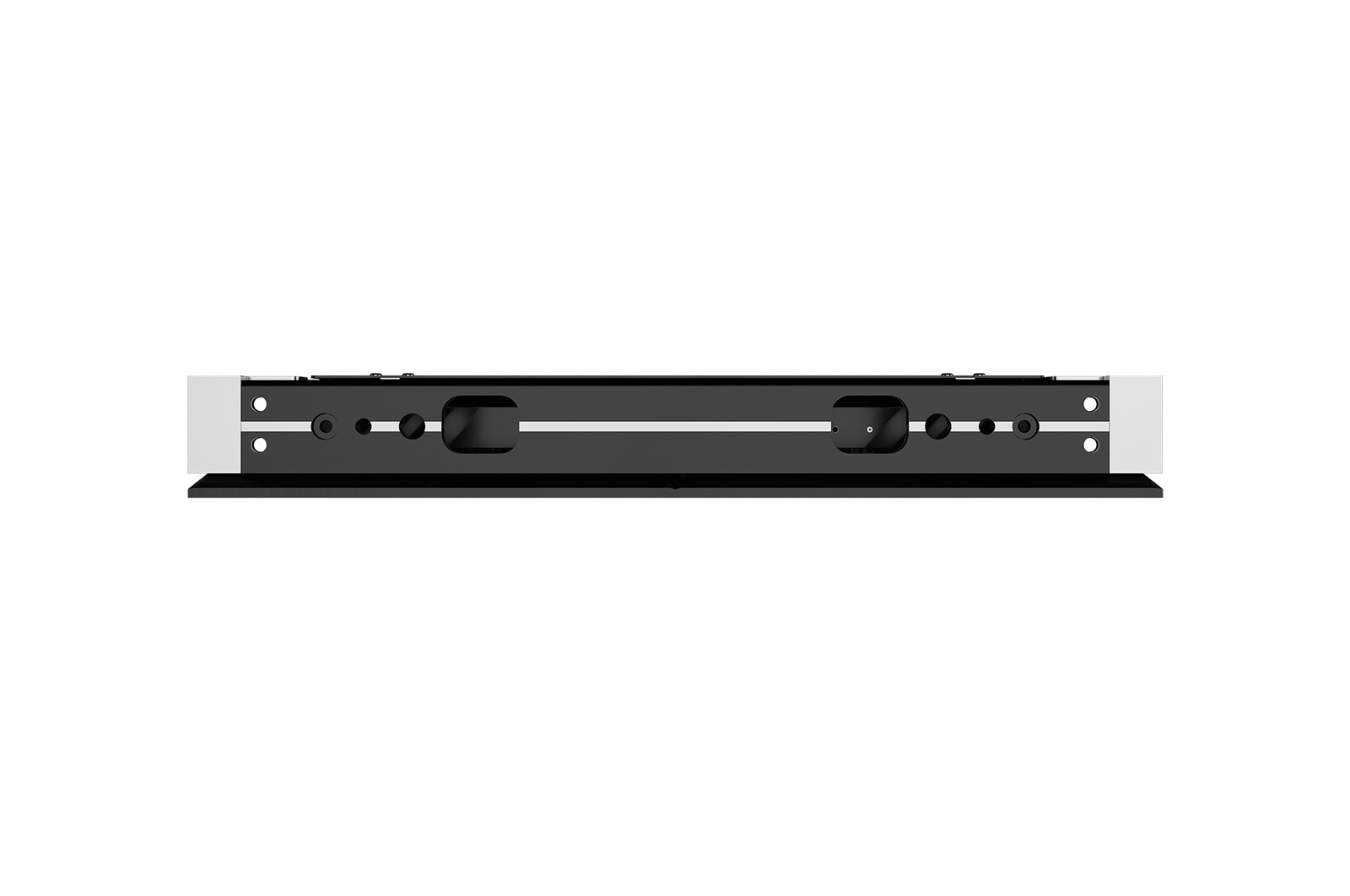

  • Cabinet Dimensions (W x H x D, mm)

    500 x 1000 x 68

  • Cabinet Surface Area (㎡)

    0.5

  • Weight per Cabinet (kg/unit)

    16

  • Weight per Square Meter (kg/㎡)

    32

  • Physical Pixel Density (pixels/㎡)

    112,896

  • Flatness of Cabinet (mm)

    ±0.2

  • Cabinet material

    Aluminum

  • Service access

    Front and Rear

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    5,500

  • Color Temperature (K)

    3200-9300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

  • Brightness Uniformity

    97

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    10,000:1

  • Processing Depth (bit)

    14 (HDR10, HDR10 Pro)

  • Color Temperature

    5500 nit

  • Color Temperature

    3200-9300 k

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    260

  • Power Consumption (W/Cabinet, Avg.)

    87

  • Power Consumption (W/㎡, Max.)

    520

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    887

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    297

  • Heat Dissipation (BTU/h/㎡, Max.)

    1,774

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Operating Temperature(℃)

    -30℃ to +50℃

  • Operating Humidity

    10~90%RH

  • IP rating Front

    IP66

  • IP rating Rear

    IP66

  • LED Lifetime (Half brightness)

    100,000

STANDARD

  • Certification

    CE, CB, ETL, FCC, BIS

ENVIRONMENT

  • Environment

    RoHS, REACH

90 DEGREE CORNER CUT

  • 90 degree corner cut

    Optional
