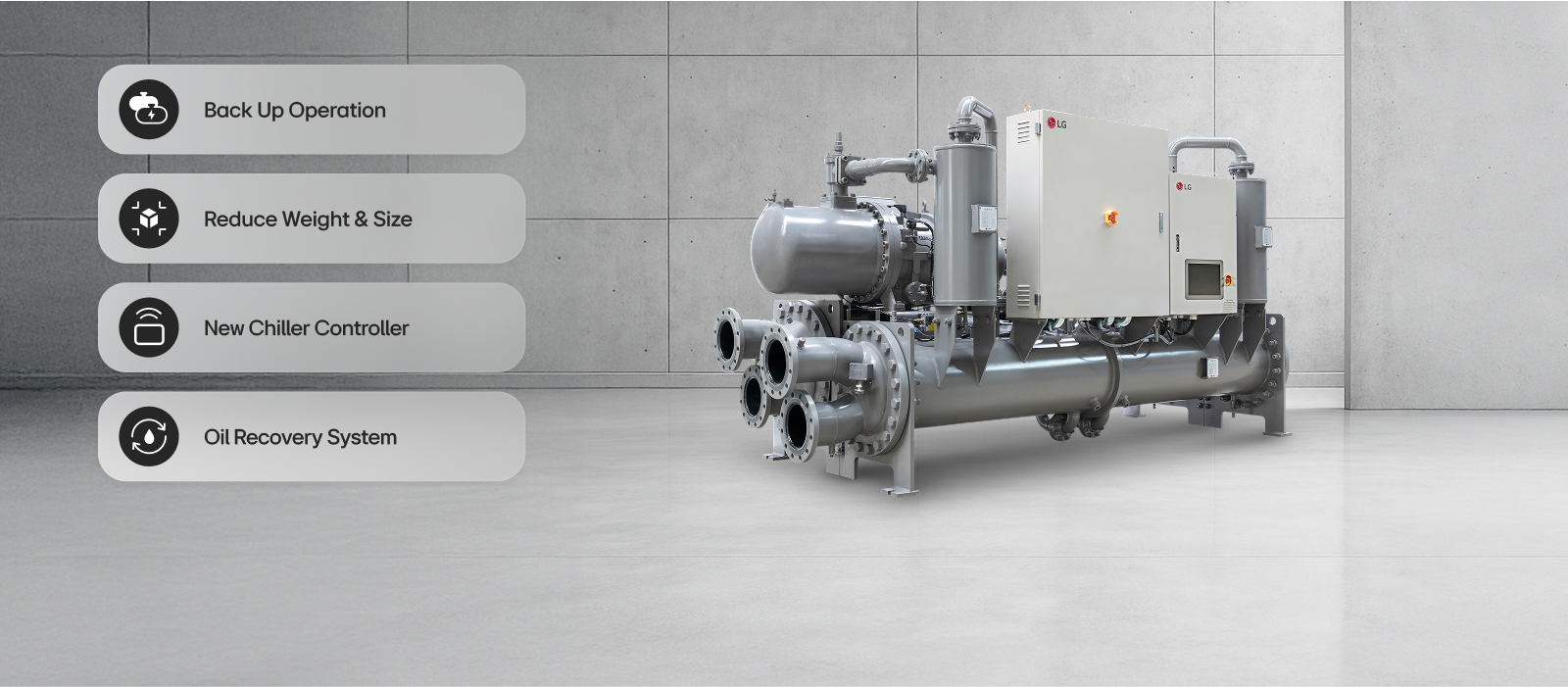

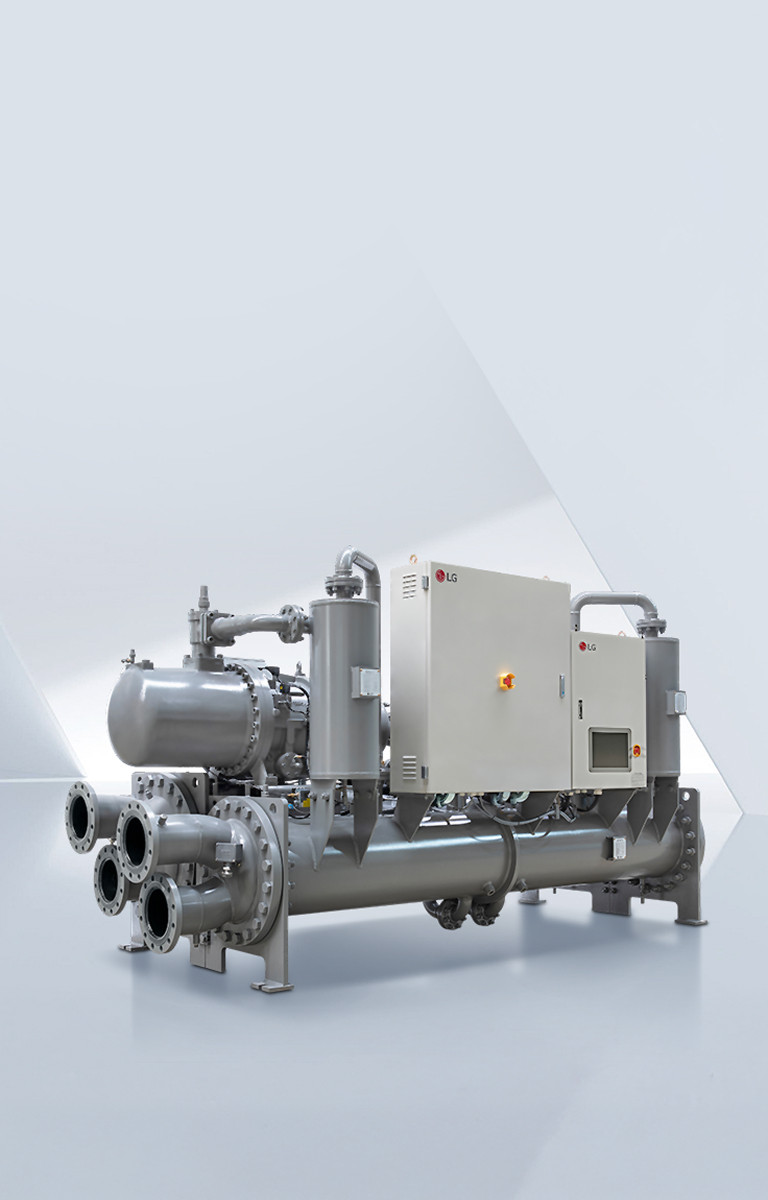

LG Water-cooled Screw Chiller placed in a light gray virtual space.

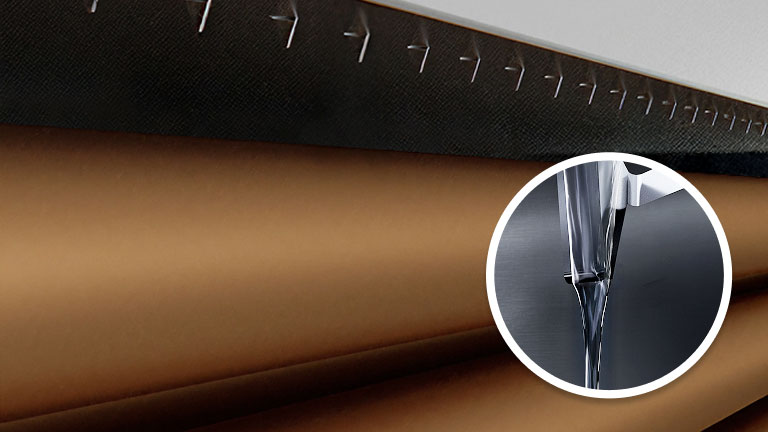

Unlike flooded evaporators, falling film types drip refrigerant from distributors over stacked tubes, providing direct contact with each tube for greater efficiency with less refrigerant.

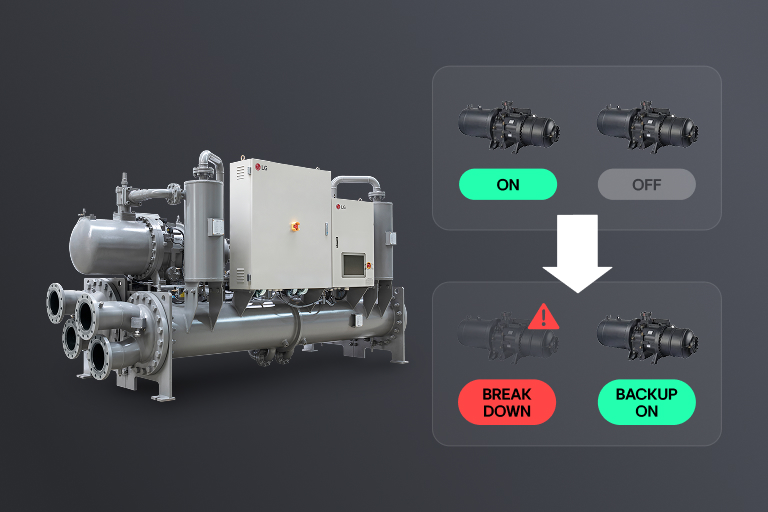

The LG Water-cooled Screw Chiller offers continuous operation through an automatic emergency backup if an issue occurs in one compressor or cycle. This enhances system reliability and provides stable performance.

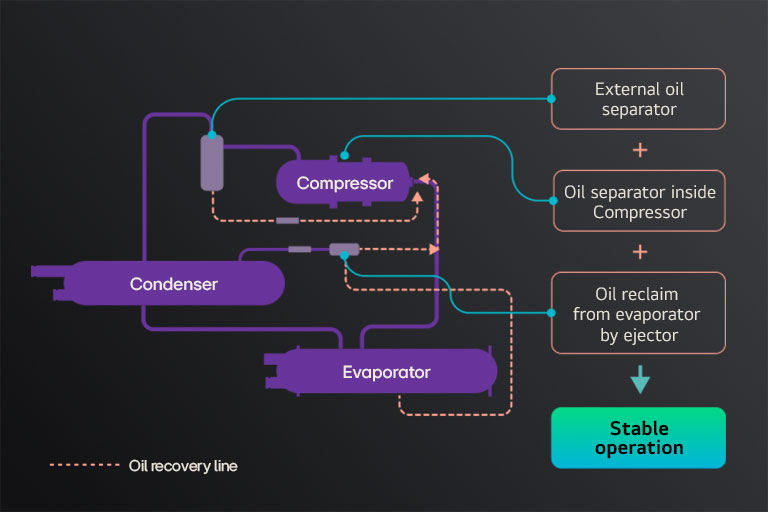

During high-speed rotation of the compressor, the supplied oil is recovered through a three-stage separation system. The three-stage oil recovery system minimizes the amount of oil during refrigerant circulation, improving cooling efficiency. Continuous oil supply and recovery prevents oil shortage.
* Back Up Operation function is available for over 2 compressor models.

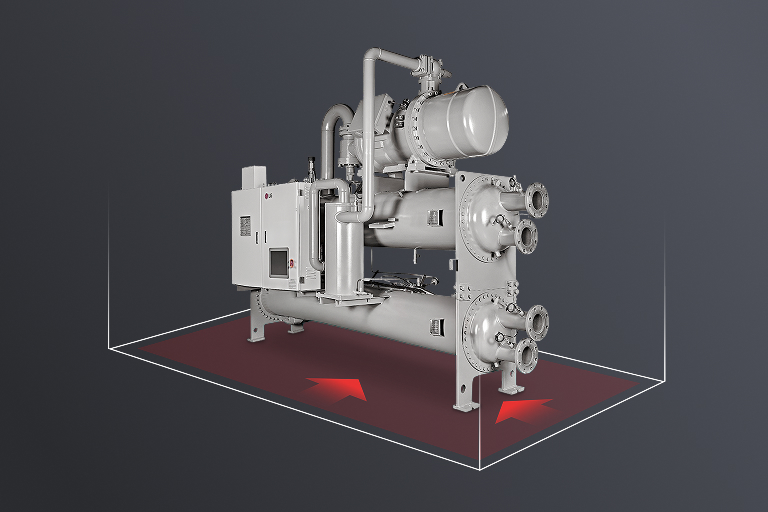

The 1 Compressor model utilizes installation area efficiently and features a reduced weight design.
The 15” large touched screen has improved visibility, operability. Also it supports various functions such as run history, information, scheduling, and report functions. 1)
1) Depending on the model, the New Chiller Controller may not be applicable.
LG Water-cooled Screw Chiller provides various utilizing options such as heat pump, ice thermal storage. These options help provide efficient heating and cooling.

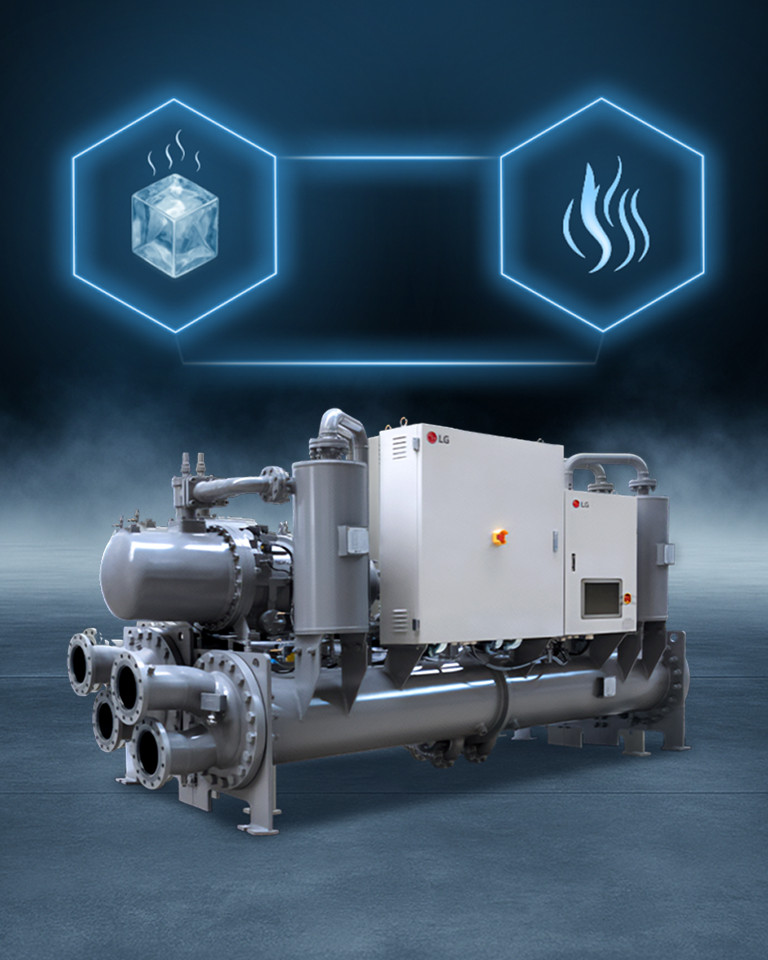

LG Water-cooled Screw Chiller on cold surface, with ice icon on the left and heat pump icon on the right.
* Images are simulated to enhance feature understanding, and may differ from actual use experience.
LG Water-cooled Screw Chiller lineup displayed with capacities: 90–350usRT (50Hz) and 60–410usRT (60Hz).
* The above range is based on the nominal tonnage at AHRI condition.

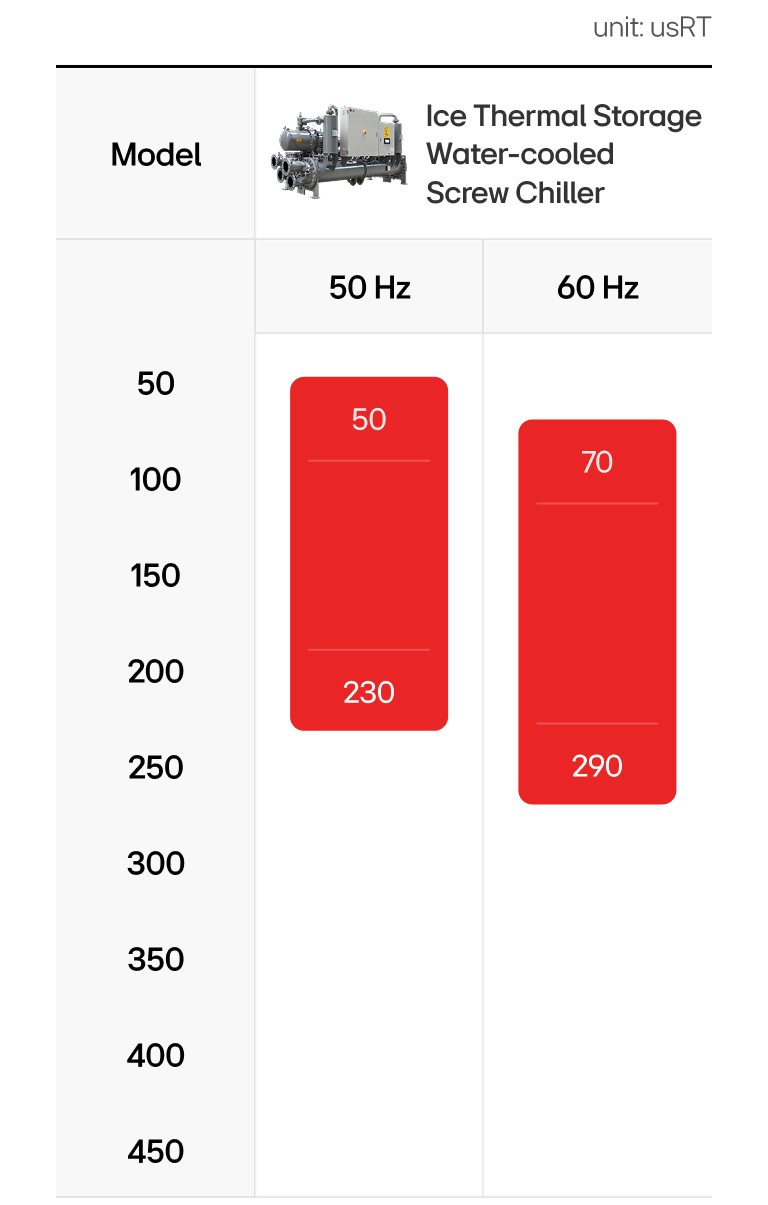

LG Ice Thermal Storage Screw Chiller lineup shown: 50–230usRT (50Hz), 70–290usRT (60Hz).
* Glycol Water(EG30%): -1/-4.5℃ Cooing water: 32/37℃ Condition
LG Screw Heat Pump lineup shown: 340–1,350usRT (50Hz), 310–1,630usRT (60Hz).
* Hot Water: 40/45℃ Heat Source: 12/7℃ condition
* Hot water outlet temperature up to 60℃.
What are the lineup, refrigerant type, and features of LG Water-cooled Screw Chiller?
(1) Lineup
- Water-cooled Screw Chiller 50Hz : 90 ~ 350usRT
- Water-cooled Screw Chiller 60Hz : 80 ~ 410usRT
- Ice Thermal Water-cooled Screw Chiller 50 Hz : 50 ~ 230usRT
- Ice Thermal Water-cooled Screw Chiller 60 Hz : 70 ~ 290usRT
- Screw Heat Pump 50Hz : 340 ~ 1350kW
- Screw Heat Pump 50Hz : 310 ~ 1630kW
(2) Refrigerant
- Refrigerant Option : R-134a
(3) Key Features
- Highly efficient operation with falling film type evaporator
- Highly reliable technology with back up operation and oil recovery system
- Conveninent installation & control with reduced size and new chiller controller
- Optimal and Flexible solution with heat pump and ice thermal storage
Why LG Water-cooled Screw Chiller?
LG Water-cooled Screw Chiller offers the compact and efficient cooling solution through advanced technologies such as falling film type evaporator, oil recovery system. Also, It provides various utilizing options with heat pump and ice thermal storage.
Where is it usually used?
The Water-cooled Screw Chiller is used in factories, industrial facilities, and commercial buildings to provide cooling or heating.
Which refrigerant is the LG Water-cooled Screw Chiller optimized for?
The chiller is primarily optimized for R134a refrigerant. R134a, a type of HFC refrigerant, offers a zero Ozone Depletion Potential (ODP) and a lower Global Warming Potential (GWP) compared to R22.
