Ceiling Concealed Duct

LG Ceiling Concealed Duct is a concealed cooling and heating solution that provides optimal temperature control without affecting interior aesthetics.

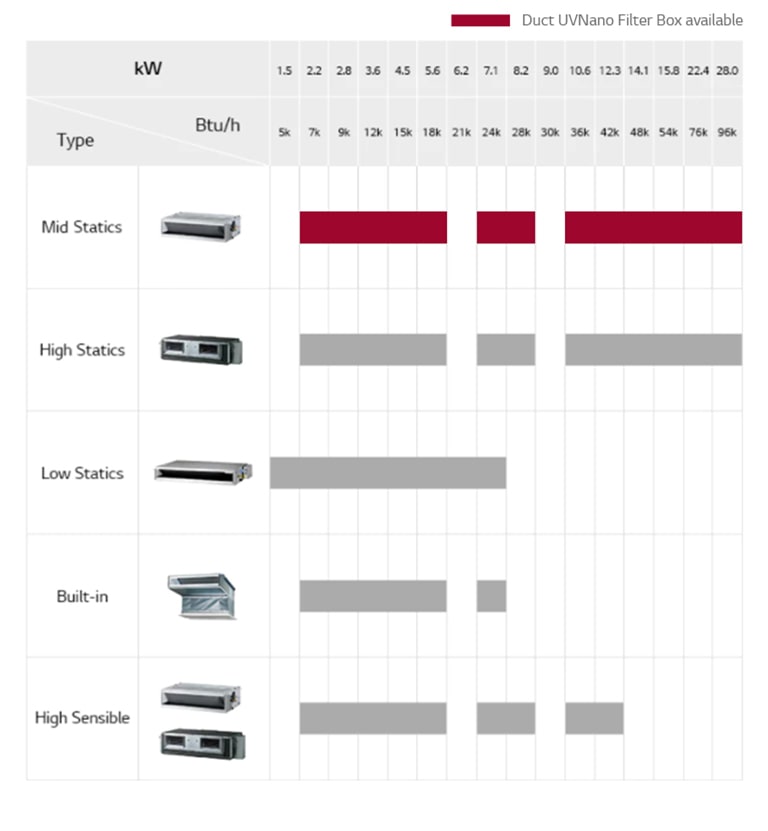

Features Solution Application Line Up

Clean and Fresh air with LG Duct UVnano Filter box

LG Ceiling Concealed Duct with Duct UVnano Filter Box can provide the suitable solution for Clean and Fresh Environment

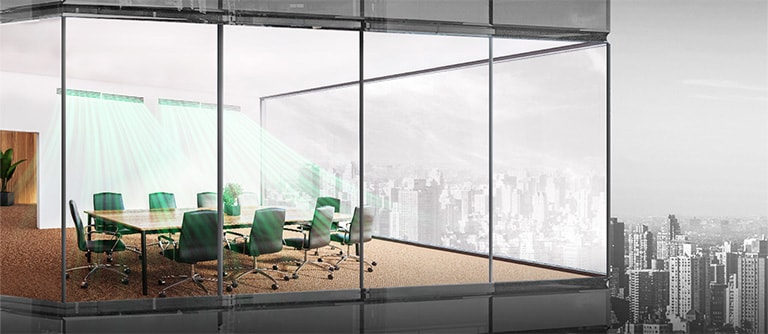

An LG Ceiling Concealed Duct, centered atop the office wall, perceptibly emits a stream of green airflow, blending seamlessly into the environment.

*LG Kanallı UVnano Filtre Kutusu, isteğe bağlı olarak ek olarak satın alınmalıdır. Satın alırken hangi modelin geçerli olduğunu yerel ofise danışabilirsiniz.

The LG Concealed duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room.

Powerful Removal of Dust and Virus

LG UVnano Duct Filter Box is a dust and virus removal solution that reflects increased indoor air quality needs. Simply assemble the filter box with the duct to sterilize a pre-filter with UVnano and remove bacteria and viruses with MERV13 filter

UVnano™

MERV 13 Filter

Certified by

Pre-Filter

It captures parts of fine dust, bacteria, and viruses in the droplet

UVnano™

It sterilizes up to 99.99% of bacteria and viruses in the pre-filter

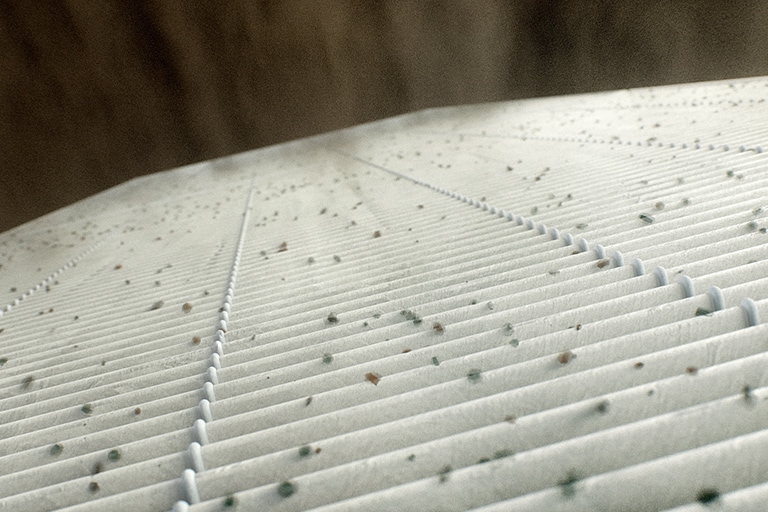

MERV 13 Filter

MERV 13 Filter removes 1-3 μm particles over 85%, 0.3-1 μm over 50%. It has more than 89.93% efficiency when viruses spread in droplet form (*Based on the result of ASHRAE test)

*Uvnano™ is a compound word derived from the words UV and its unit nanometer.

**Based on TÜV Rheinland test conducted according to LG test method in compliance with ISO 20743 : 2007 removing 99.99 of percent of Staphylococcus aureus, Staphylococcus epidermidis, and Klebsiella pneumoniae from the air conditioner blower fan after being exposed to UV LED lights for 4 hours (tested models : PBM13M1UA, PBM13M2UA, PBM13M3UA). The result value is measured at a specific point set in the experiment.

***This result may differ in actual use conditions of the air conditioning system.

*Based on KCL test conducted in compliance with ASHRAE 52.2. ASHARE recommends MERV 13-equivalent filters for reducing airborne infectious aerosol exposure.

A Suitable Indoor Air Quality Solution for Any Type of Space

Any type of space is suitable for indoor air solutions with a combination of LG ducts and Duct UVnano filter boxes. Interworking with a sufficient ventilation system is recommended.

An LG Ceiling Concealed Duct visibly circulates air in three diverse spaces. A conference room, hotel room, and lecture room.

*Based on ASHRAE Standard's experiment data.

Easy Installation of LG Duct UVnano Filter Box

Easy to assemble with Duct and simple to maintain

Parts of the UVnano Filter Box are meticulously assembled and securely fastened with bolts into the LG Ceiling Concealed Duct.

A man wearing blue nitrile gloves is replacing the black filter in an installed LG Dual Vane cassette.

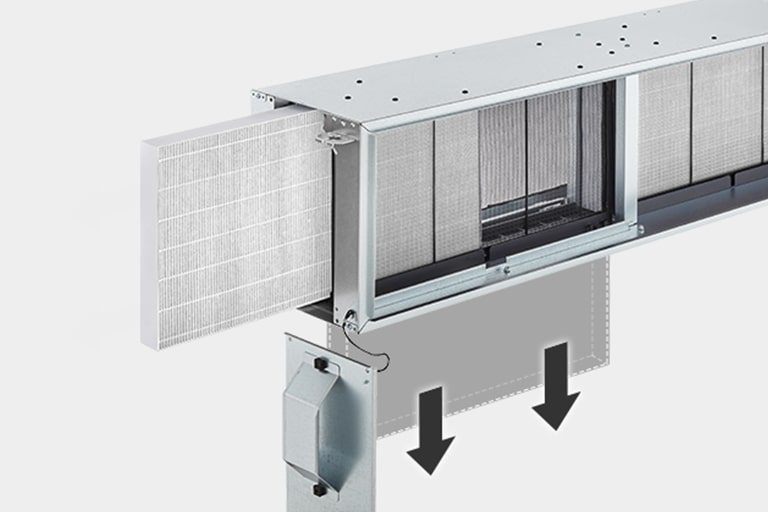

Filter Replacement

MERV13 filter is recommended for replacement after 960 hours of use. The filter can be easily disassembled through the side or bottom

The black exterior framework and mesh central pre-filter are thoroughly cleaned, with water cascading from above.

Washable Filter

Pre-Filter can be reused after washing with water without replacement

* The replacement cycle of filter may vary depending on the environment.
** The hours indicate the time the filter has been used until the rated air flow rate drops to about 30%.

An image of multiple rooms as through birds' eye view.

Operation for Multiple Rooms

Using a spiral duct (embedded or flexible type) and stream chamber, it is possible to operate cooling and heating for several rooms simultaneously.

The LG Ceiling Concealed Duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room.

E.S.P. Control

E.S.P. (External Static Pressure) control function can make air volume controlled easily with remote controller. The BLDC motor can control fan speed and air volume regardless of the external static pressure. No additional accessories are necessary to control air flow.

Installed on the conference room ceiling, the LG Ceiling Concealed Duct is linked to a remote controller on the left wall by a red dotted line.

Two Thermistors Control

The indoor temperature can be checked using the thermistors in the remote controller, as well as from the indoor unit to sensor temperature difference in one place. Two thermistors can optimize indoor air temperature for a more comfortable environment.
