Surrounding it are four smaller connected devices, representing different components of an HVAC system. The background is dark with a grid pattern.
The LG MULTI V system integrates with the DX coil of an Air Handling Unit, providing fresh, conditioned air and offering various control options, allowing smooth communication via contact signals.
On the left side of the image is an LG MULTI V 5 outdoor unit, and on the right is a graph illustrating inverter control according to cooling load. The graph displays different control methods over time.
1) For compatible LG HVAC products, please reach out to your local office.

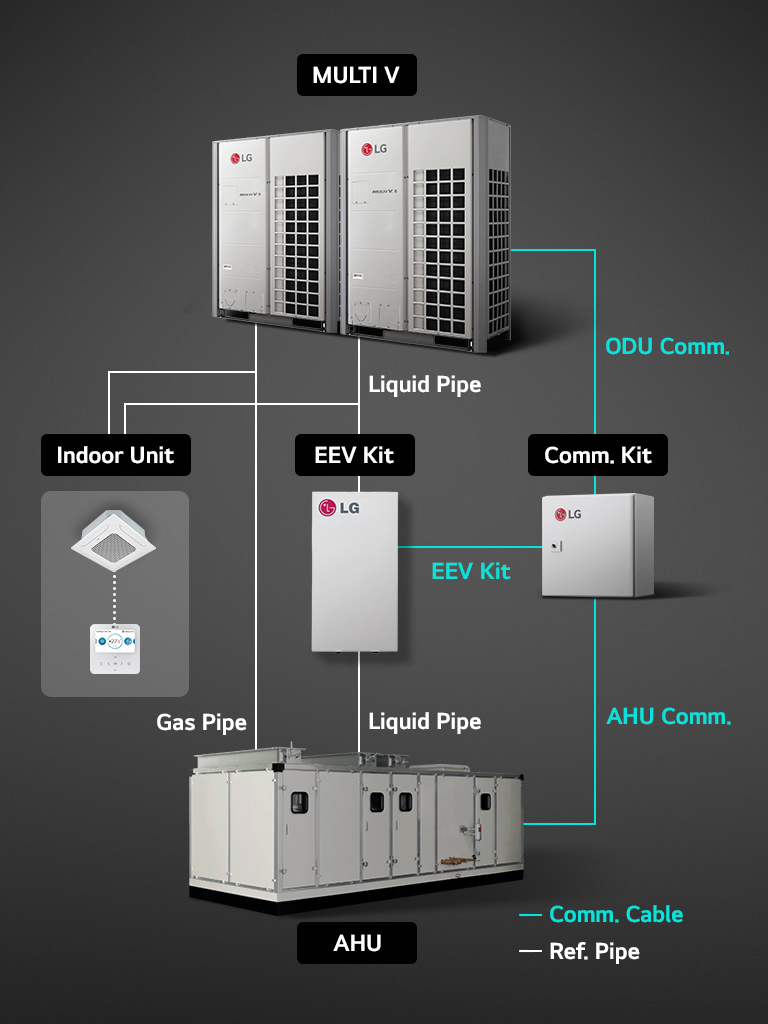

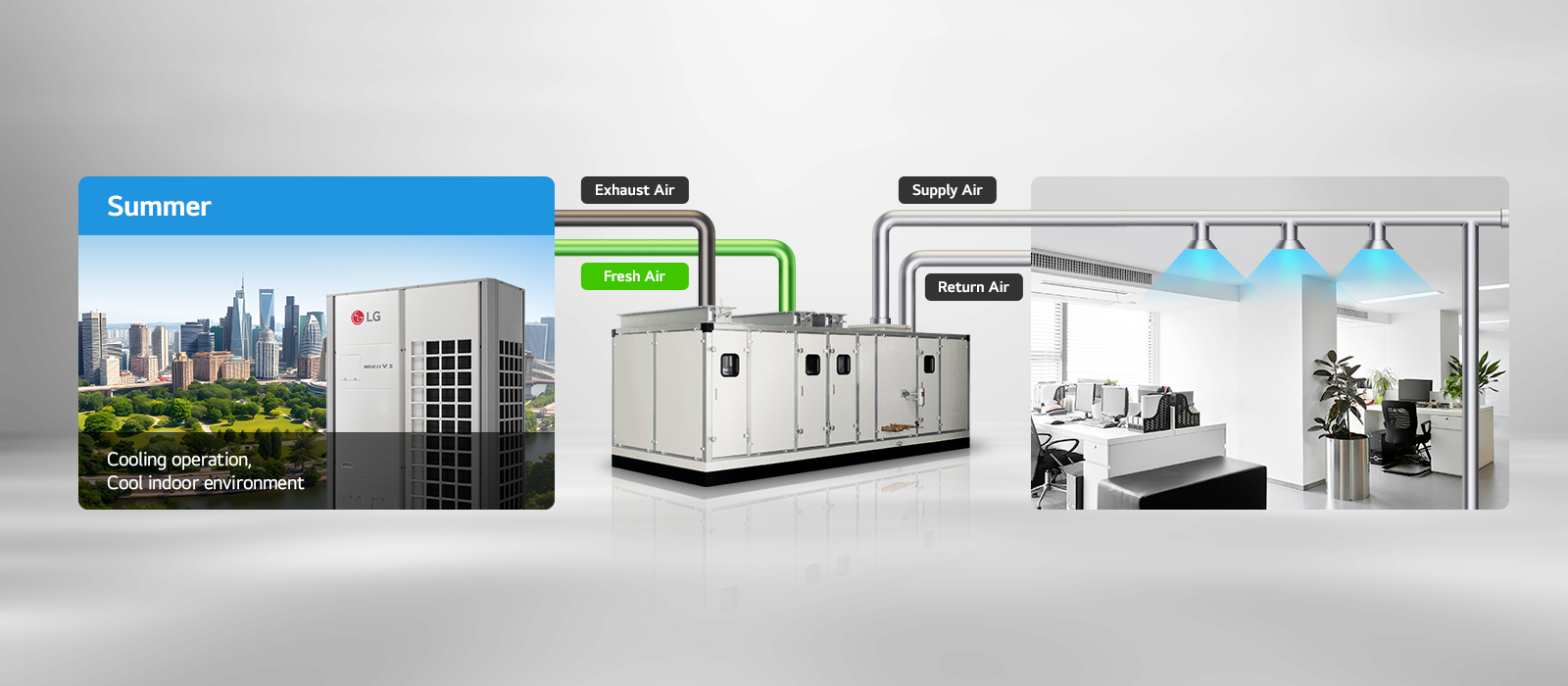

The DX AHU is a heat pump air handling unit that integrates AHU Comm kit, EEV kit, and MULTI V technologies, providing year-round cooling and heating for both indoor and outdoor environments.
LG Ceiling Suspended features a filter with arrow indicators at the bottom, while the front view shows two red circles indicating screw locations.
AHU can be connected to various control links such as individual remote controllers, the LG central control system, or (execute) contact control via direct contact with DDC and Modbus RTUs.

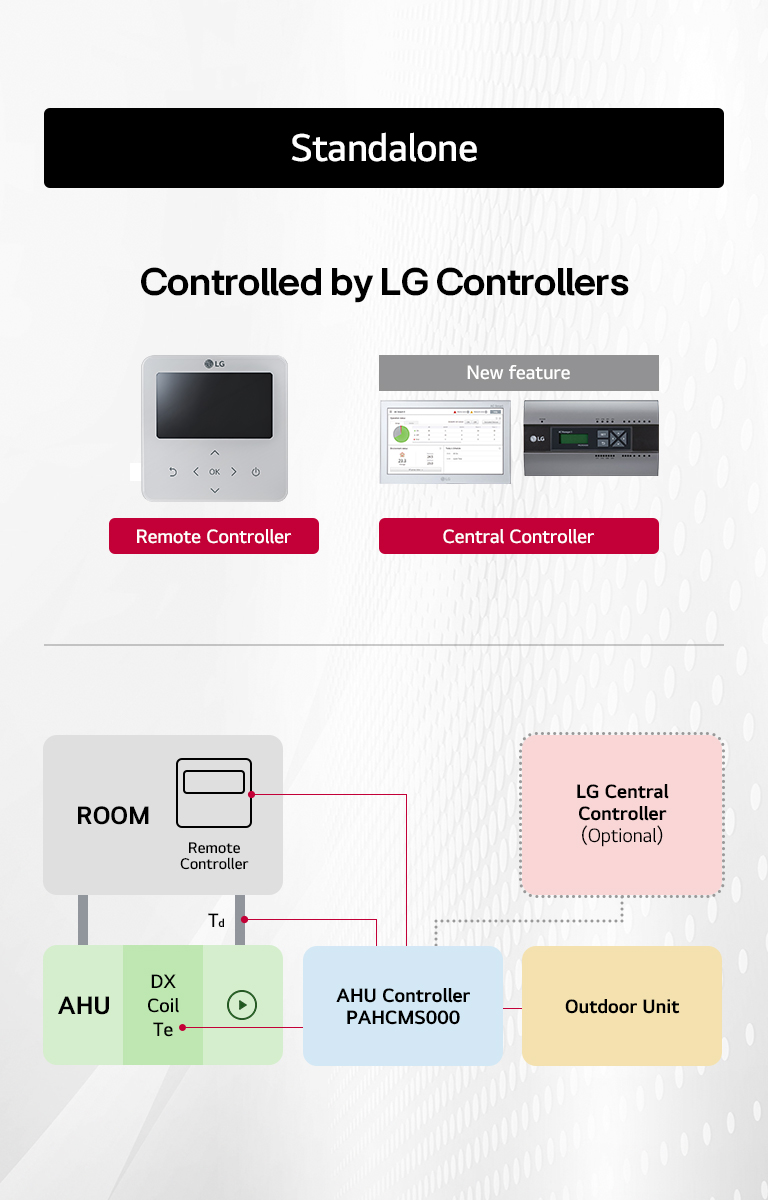

The image illustrates the control options for an LG HVAC system. A central controller or remote controller can manage individual rooms, with connections to AHU (Air Handling Unit) and outdoor units.

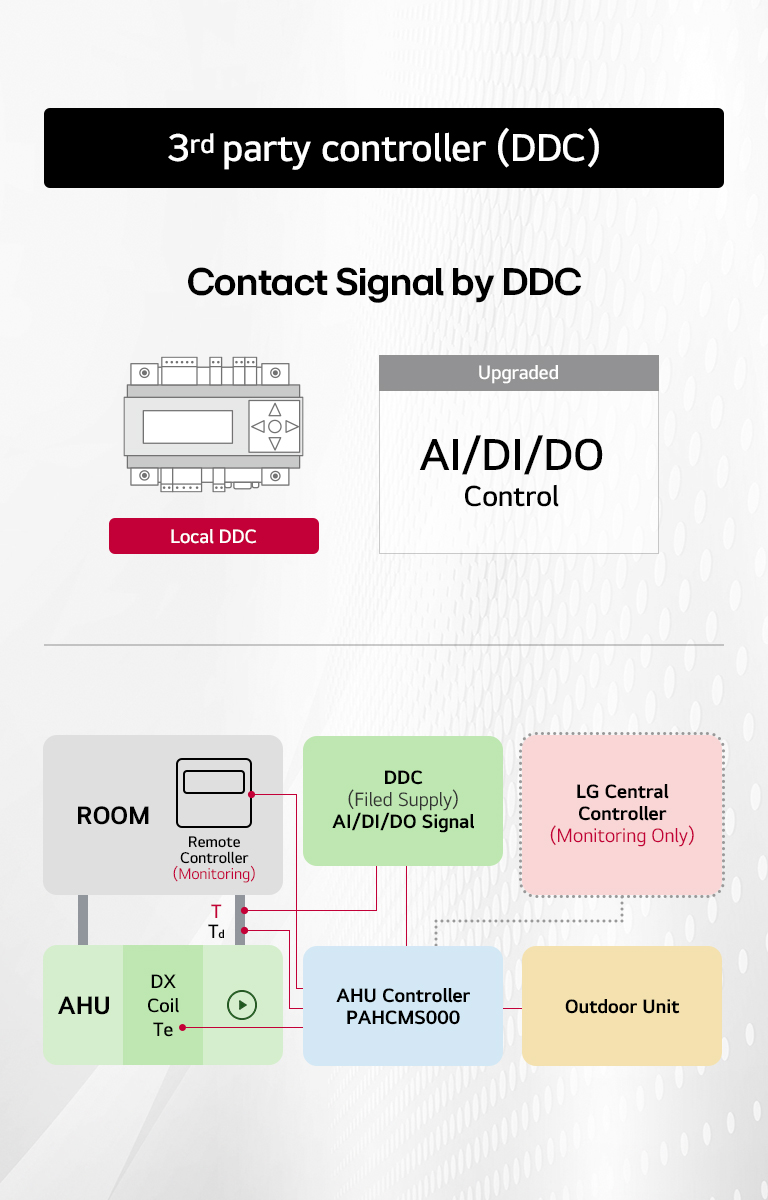

The diagram shows connections between the remote controller, room, AHU, DX coil, AHU controller, and outdoor unit.

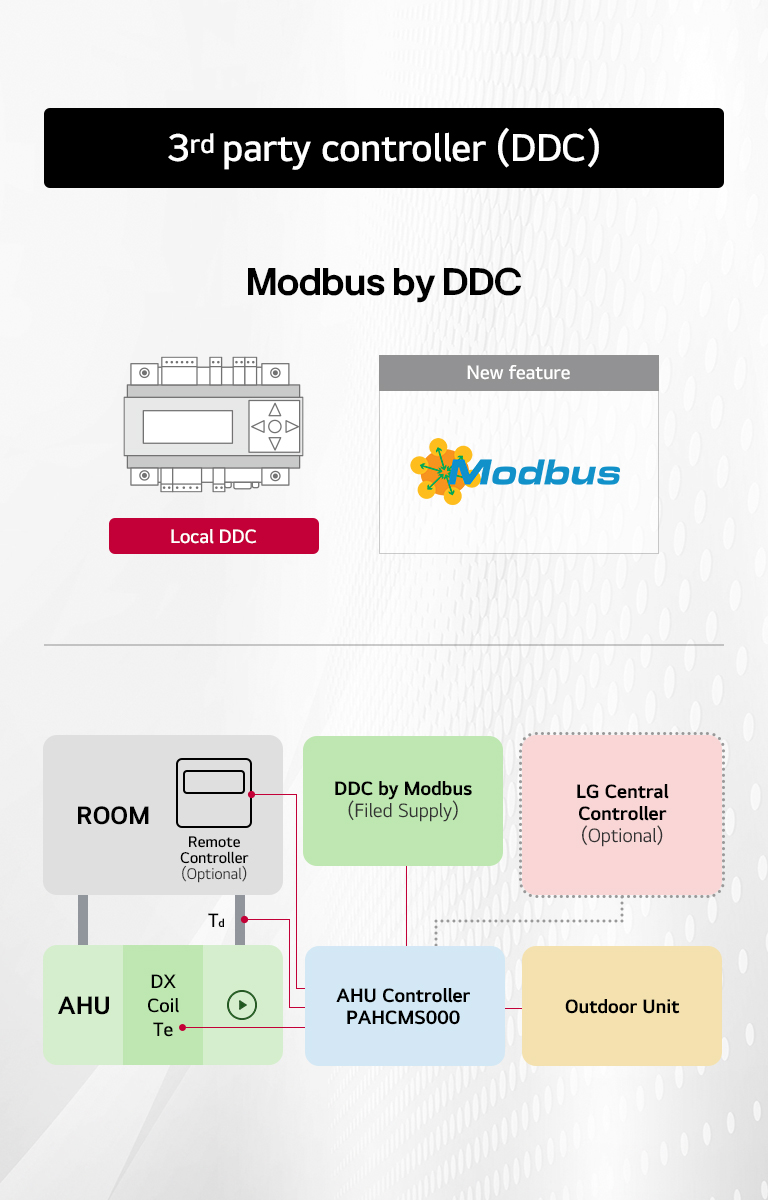

A diagram showing a building automation system with various components connected via Modbus. The system includes a local DDC, AHU controller, outdoor unit, and a remote controller.

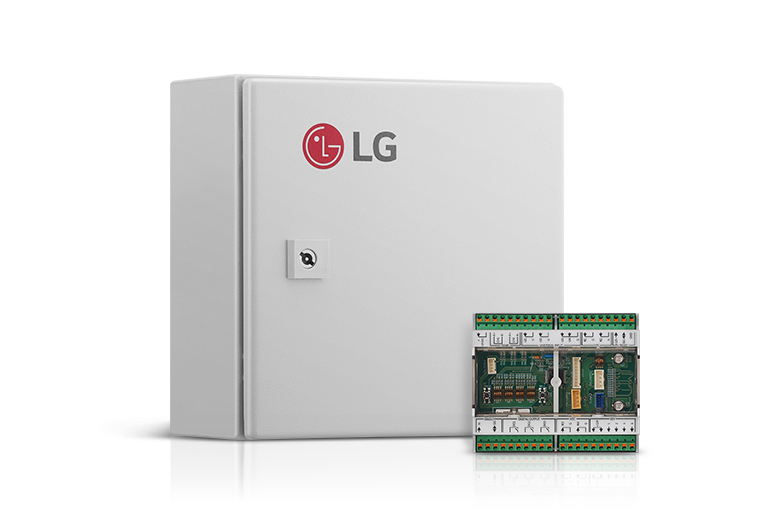

•Temperature controller for return air
• Various combinations of LG VRF indoor units with single or multiple AHU
• The LG Central Controller is compatible

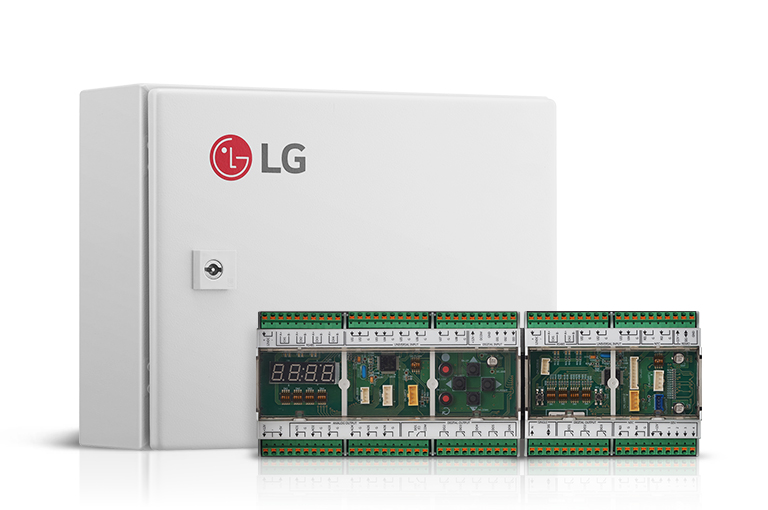

• Temperature controller for supply (discharge) air
• Demand (capacity) control for the temperature of supply air via 0-10V input from DDC
• The LG Central Controller is compatible
• Various combinations of LG VRF indoor units & AHU Communication kit

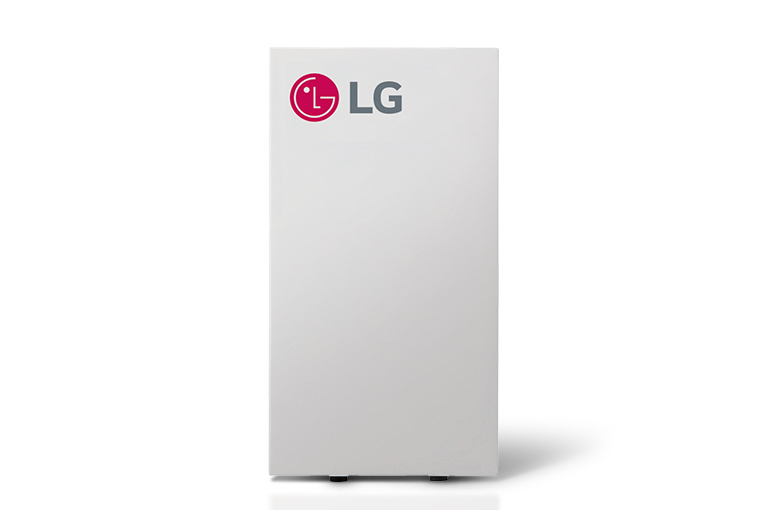

• Composed of warm gray-colored galvanized steel plate
• Controlled with wired remote controller (optional)
