4K UHD(3840x2160) Laser
5,000 ANSI Lumens
Short Throw
Zoom x 1.2
Lens shift H ±20%, V ±50%
SuperSign
LG Connected Care
*The images simulated to enhance feature understanding. It may differ from actual use.
Even in tight spaces, LG short throw projector provides a high-definition large screen with a short projection distance.
*It can project an 40-inch screen from a distance of 0.79m, a 150-inch screen from a distance of 3.04m, and a 300-inch screen from a distance of 6.12m.

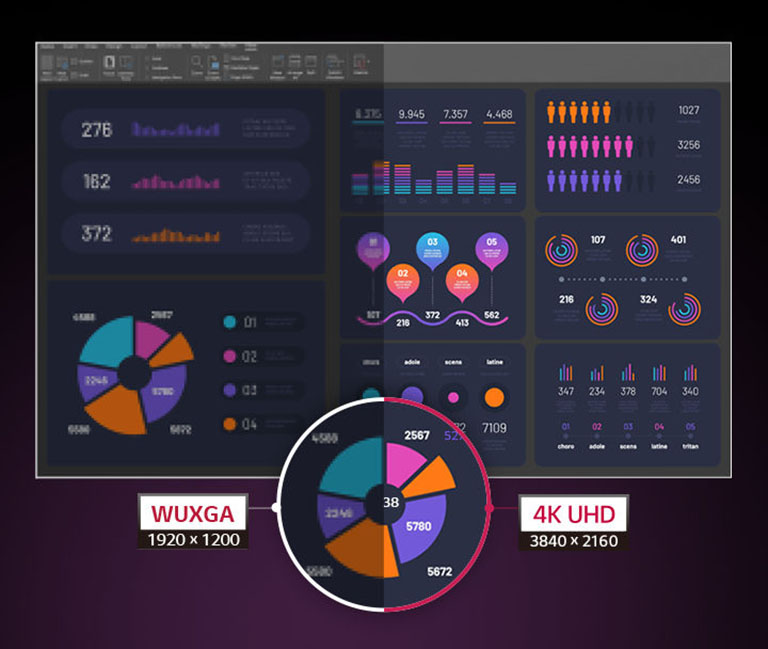

Real 4K Laser
LG ProBeam brings a stunning visual quality even on up to 300-inch big screen with 8.3 million pixels utilizing 4K UHD Laser technology.
The crisp and clear high definition of 4K UHD.

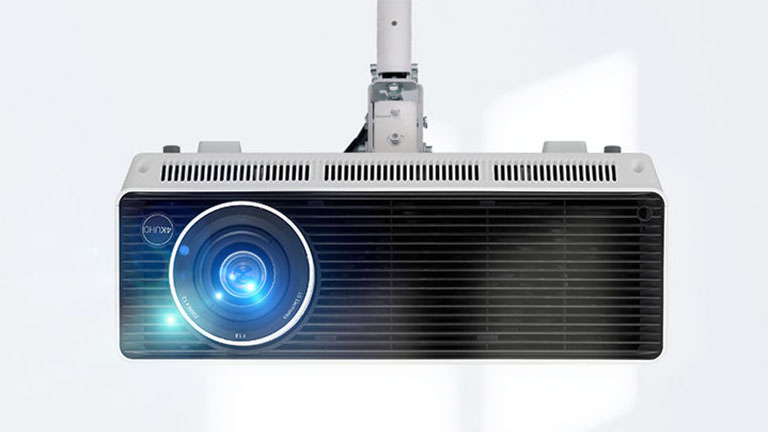

5,000 ANSI Lumens
5,000 ANSI Lumens of brightness delivers accuracy and clarity, even in brightly lit conference rooms without loss of picture quality, magnifying productivity of business meetings.
Scalable & Adaptive Projector

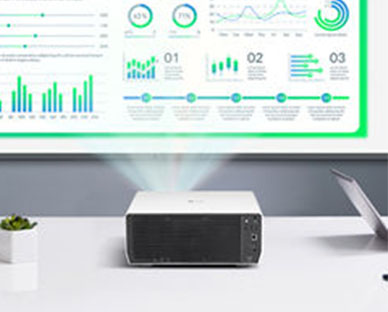

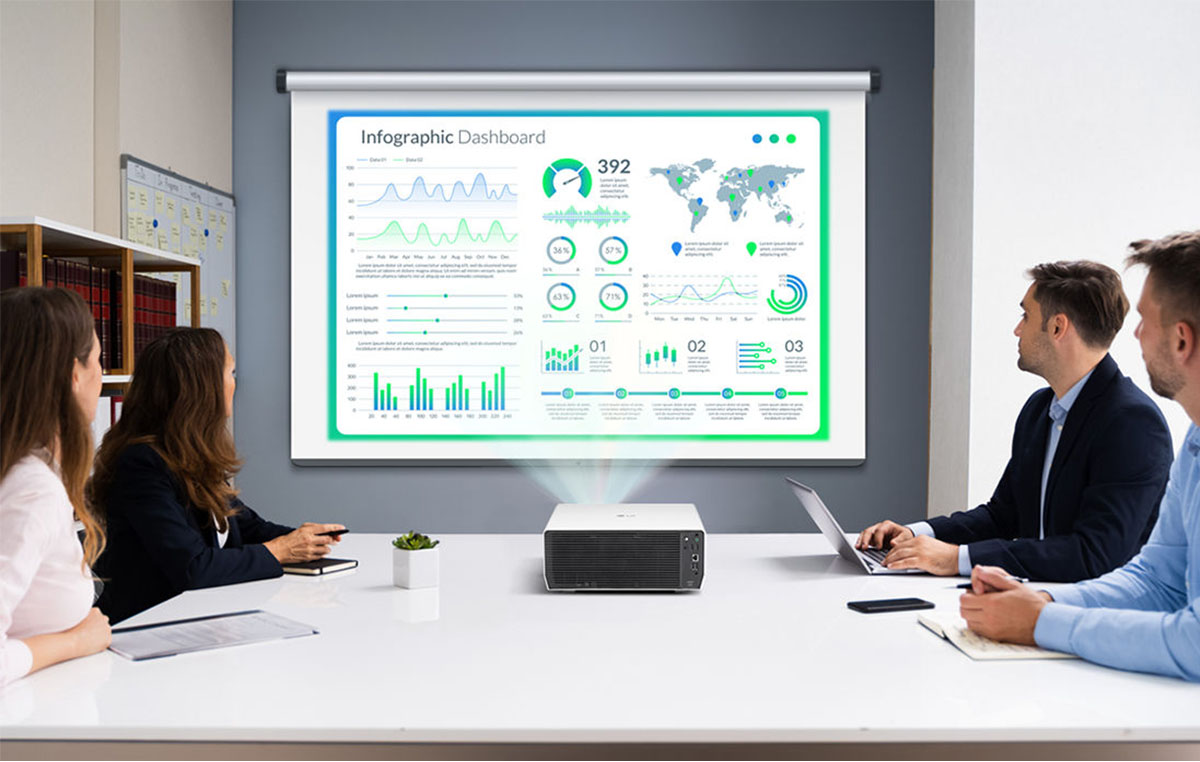

The corporate-quality projector is designed for business meeting, conferences, and collaboration. It allows users to boost work efficiency and productivity.

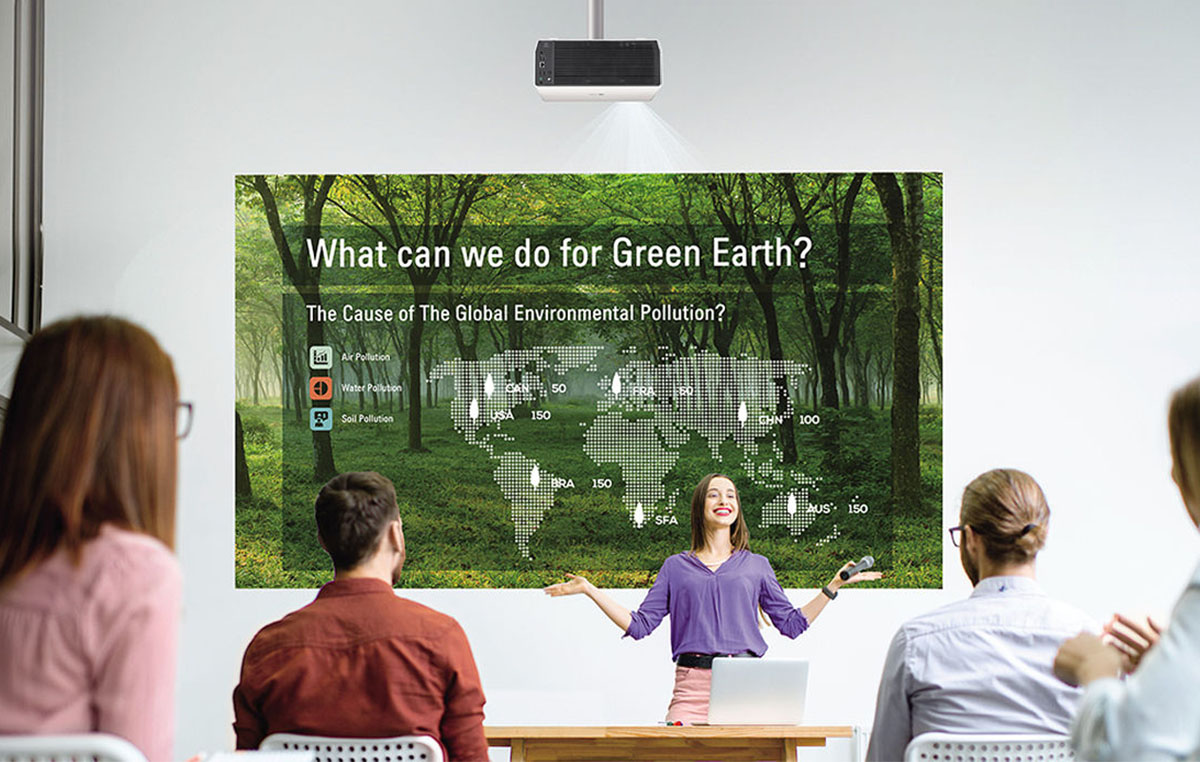

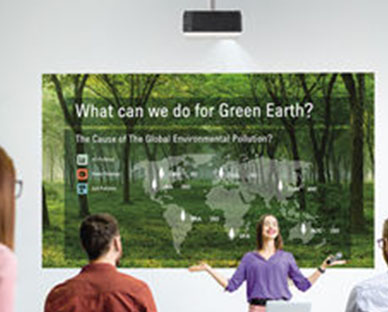

Makes digital learning spaces where every student can be actively involved with the aid of visual and auditory stimulation as well as sharing their contents.

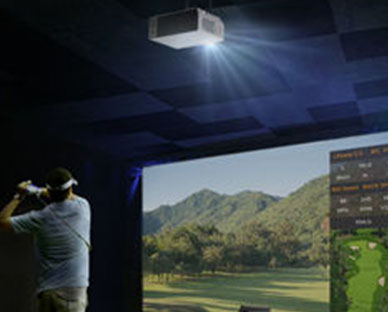

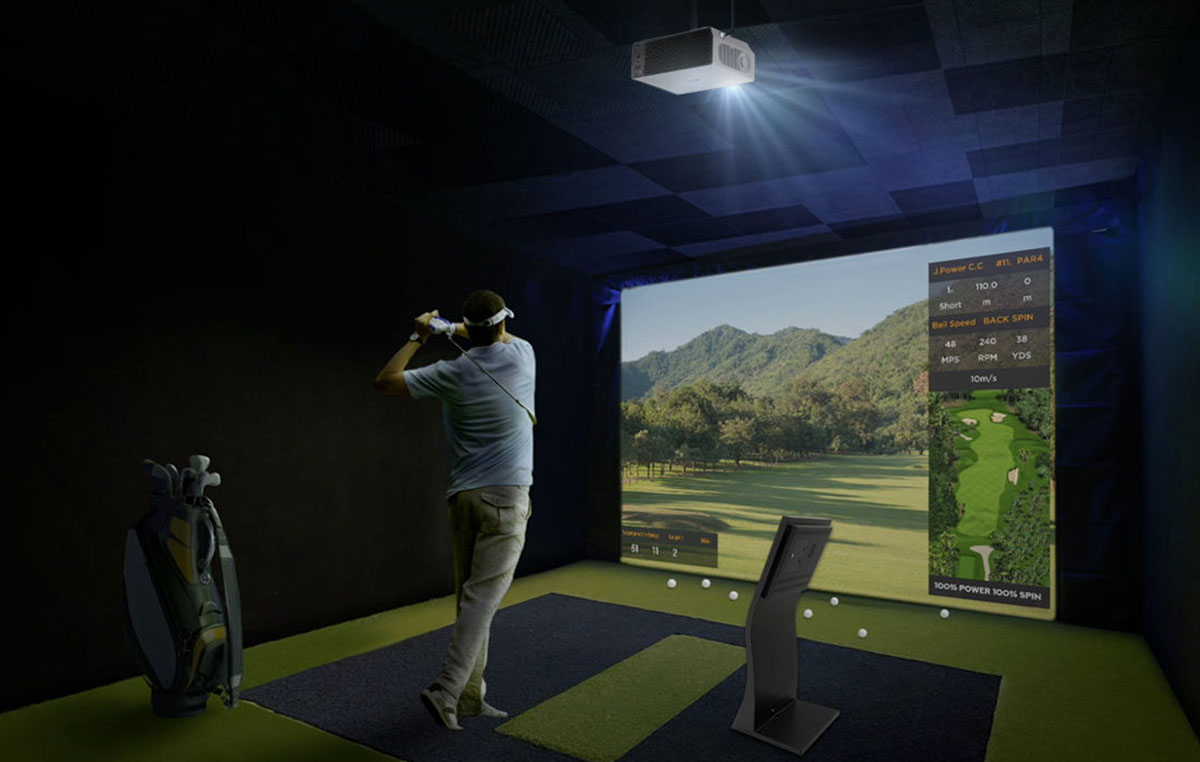

It provides a large screen at a closer distance by the short throw projection and helps to set the optimal indoor golf environment.

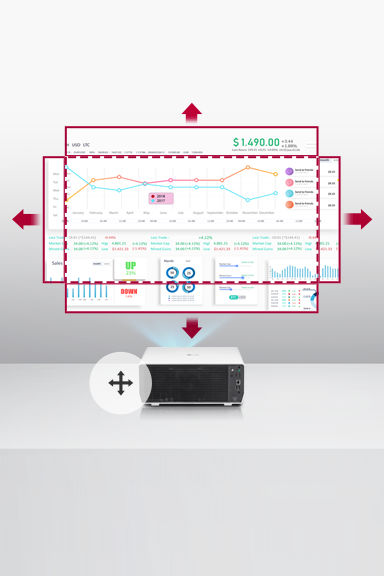

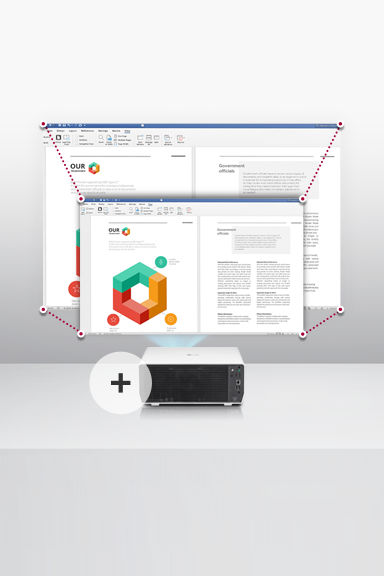

With zoom x1.2 & lens shift (H ±20%, V ±50%) functionality, the user can install the device anywhere and set the screen to the exact size and location.
Zoom x1.2
Lens shift (H ±20%, V ±50%)

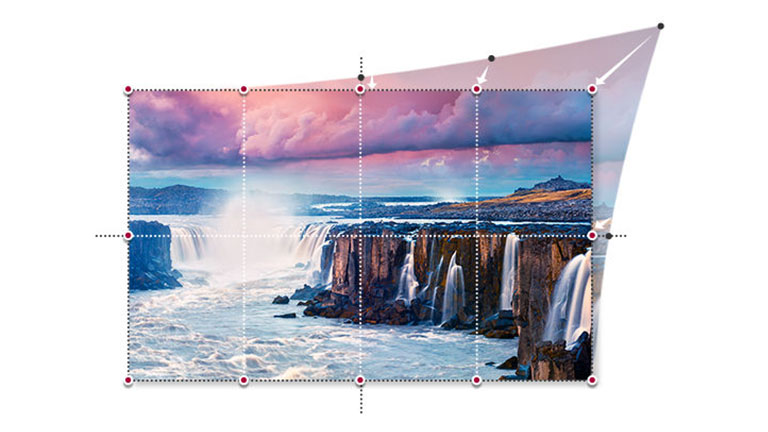

12 Point Warping
You can adjust screen distortion and set up a more precise screen by using the 12-point warping function on the screen.

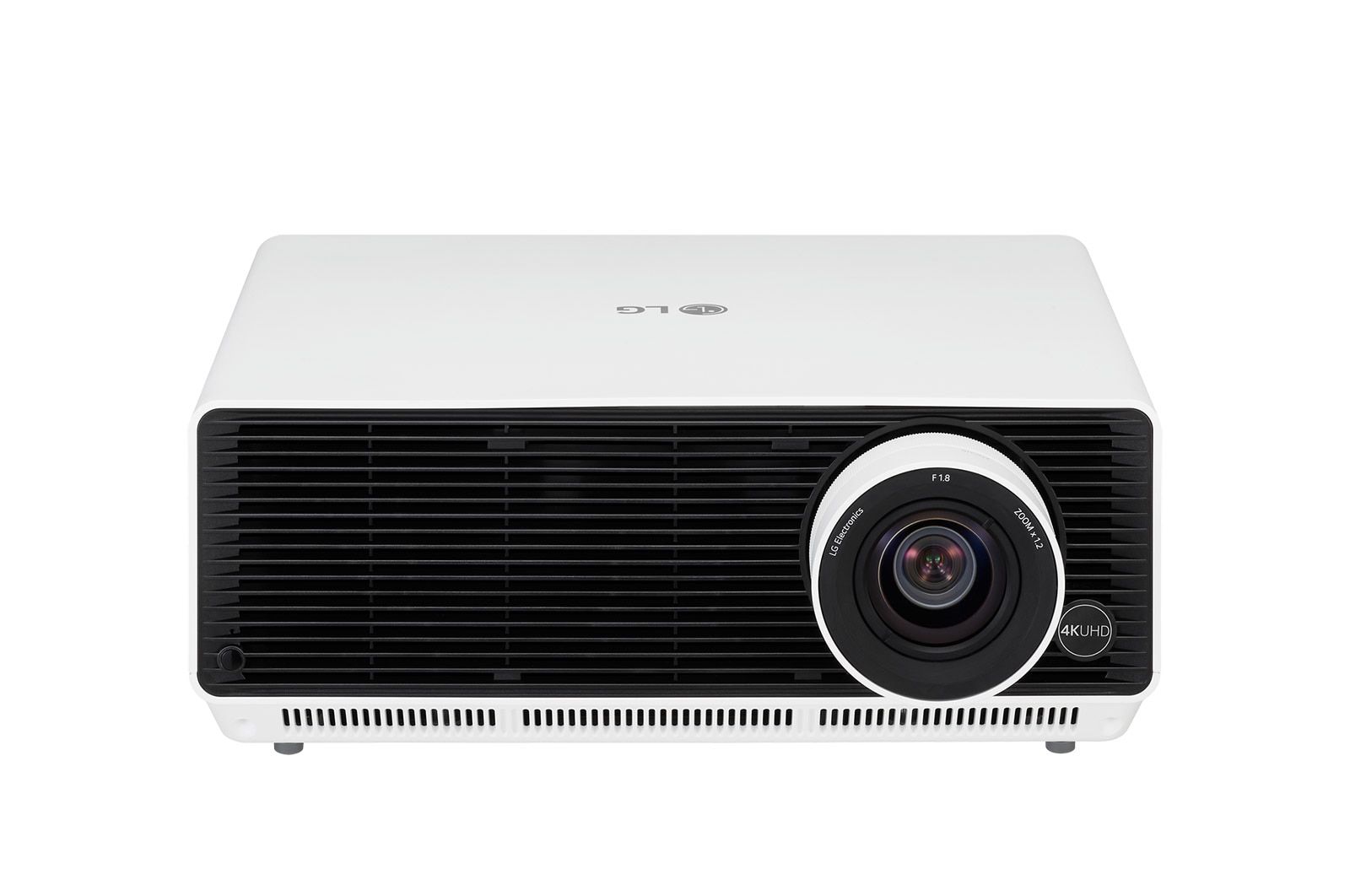

The smallest 4K 5,000 ANSI projector

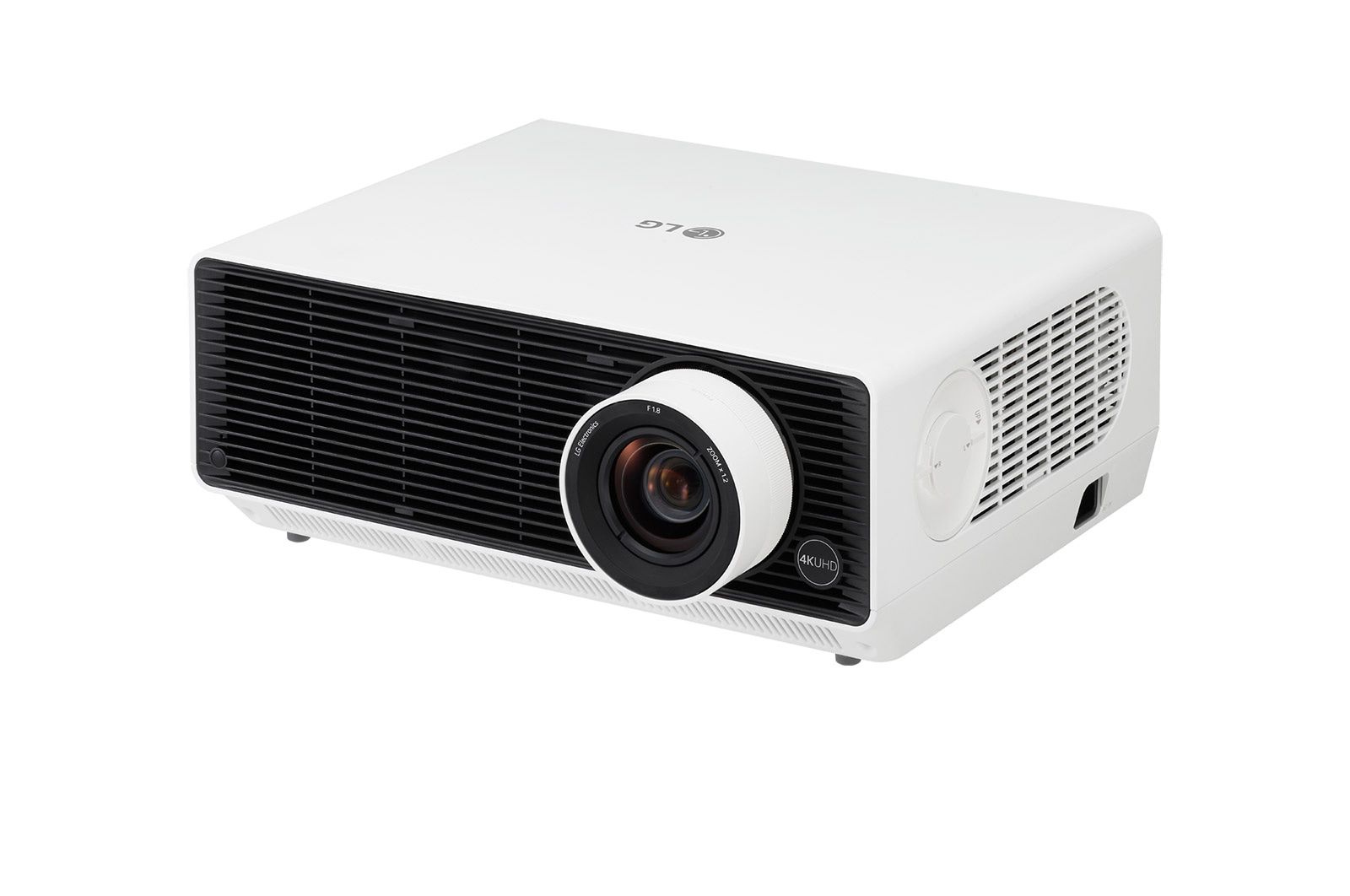

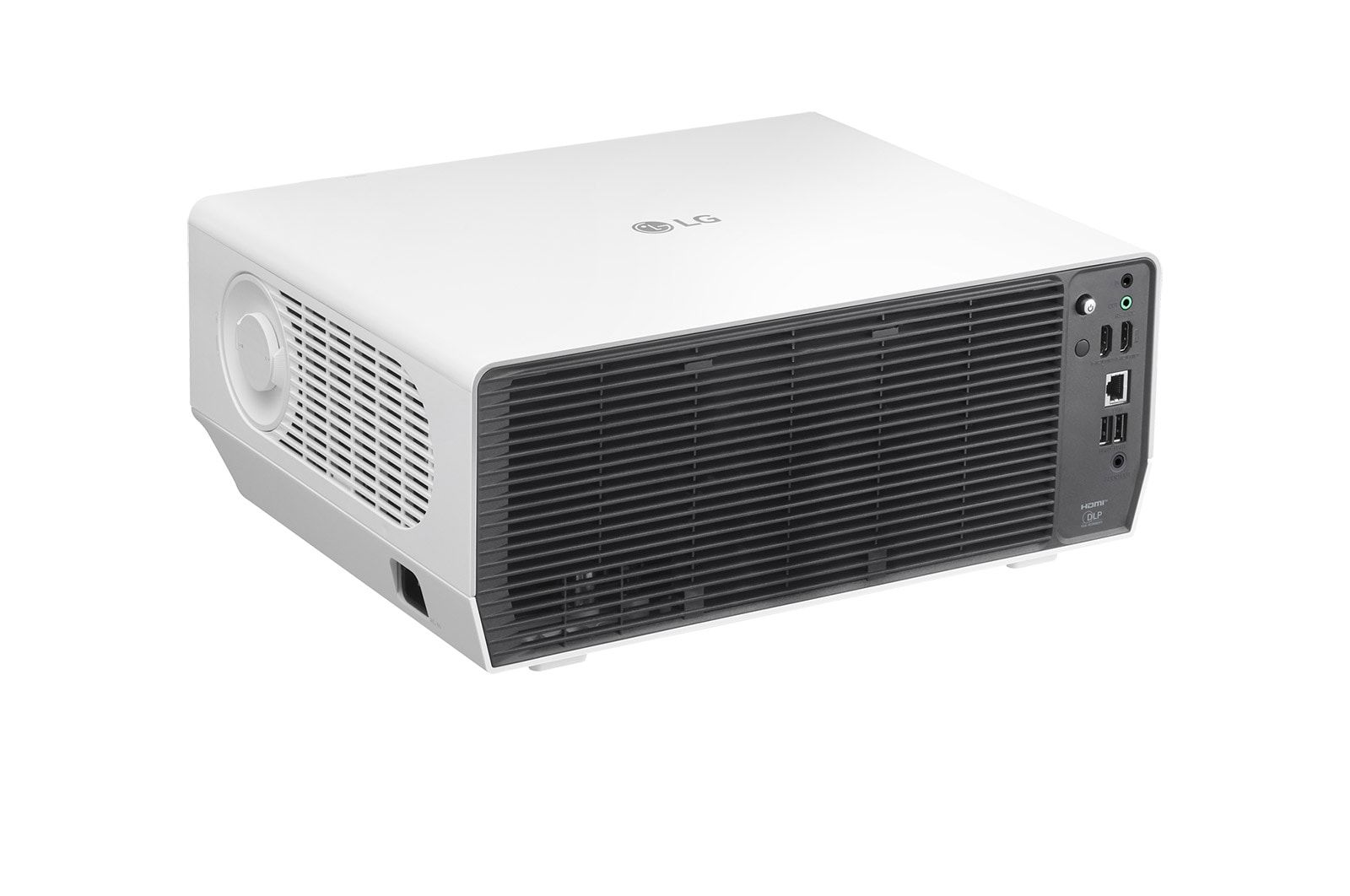

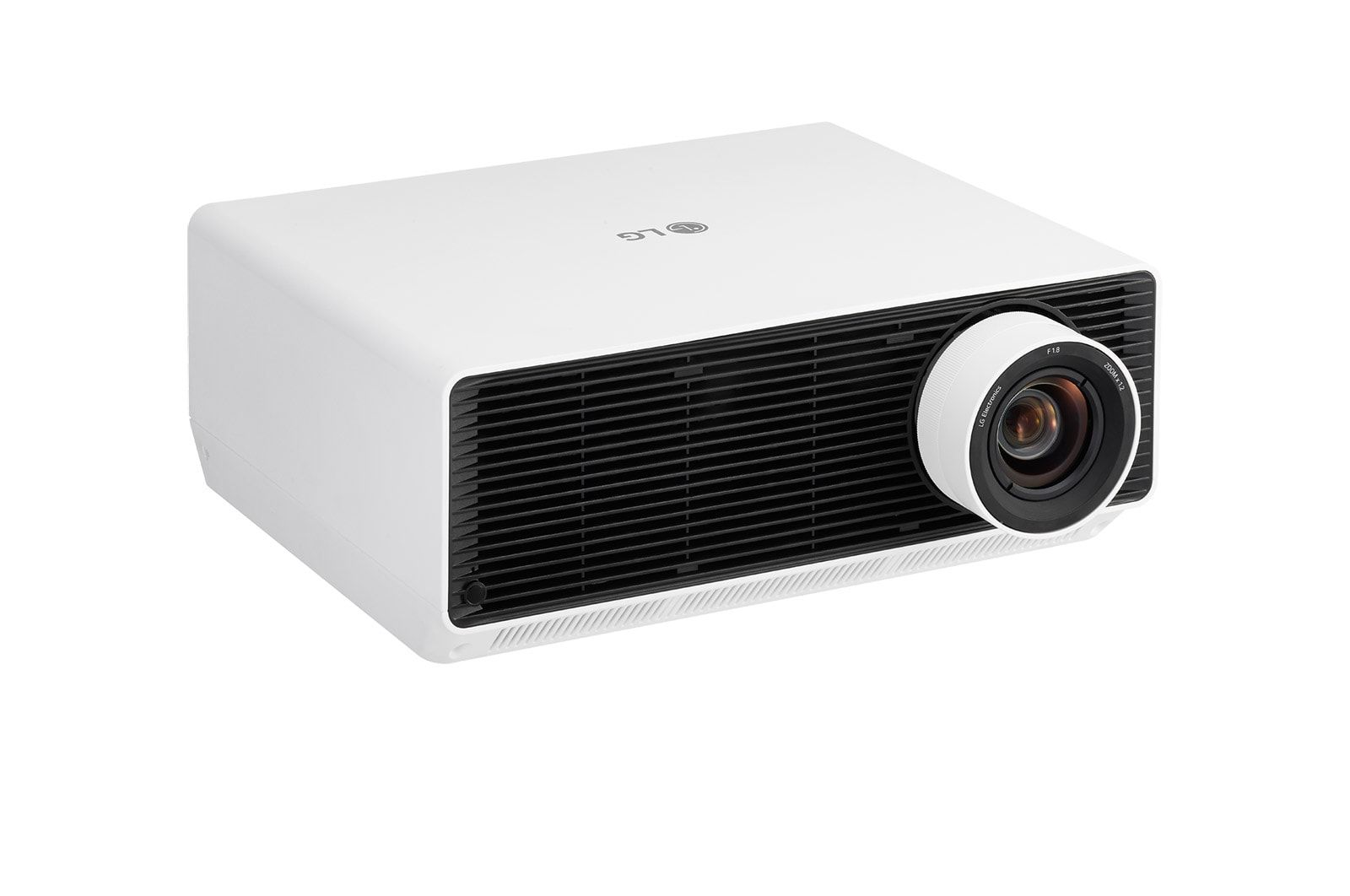

LG BU53RG, has not only 16.7 liter compact body but also 4K high-resolution and 5,000 ANSI Lumens brightness, perfectly matches any business space.

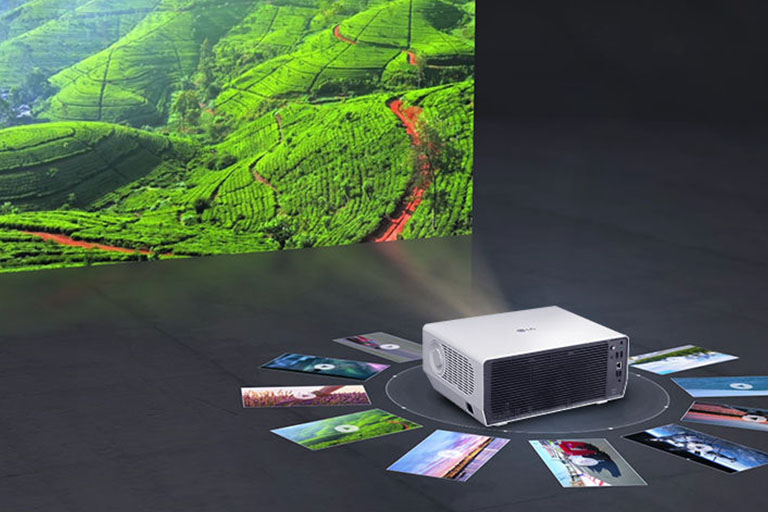

20,000 hrs. Longer-lasting Laser
The powerful laser light source displays brighter images and lasts up to 20,000 hours.
If you play videos on this projector 8 hours a day, then the laser light source would last for 7 years.
The LG ProBeam with its laser light source keeps its initial brightness longer without the high cost of lamp replacements.
SuperSign
By supporting signage-optimized functions, various solutions such as content distribution and remote management of installed projectors are provided.

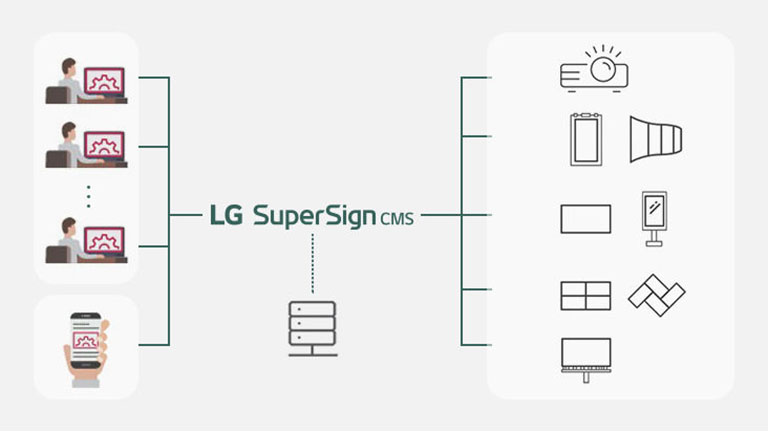

It is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, so multiple users can easily access the server from pc or mobile, then manages content creation and editing, scheduling, and distribution.

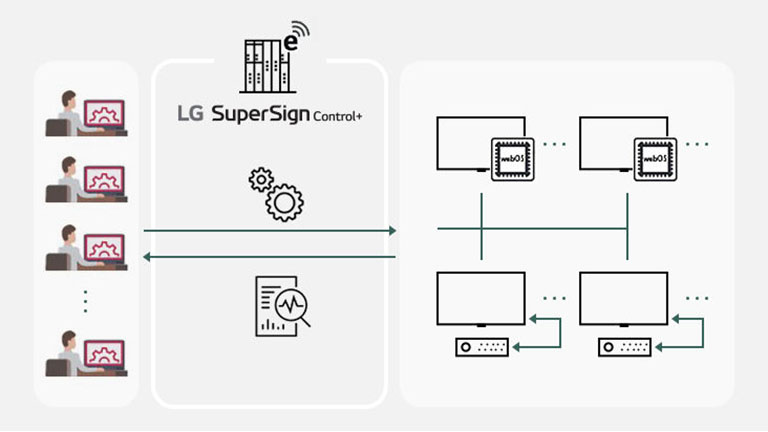

SuperSign Control+ is a remote control and monitoring software solution. It focuses on large scale deployment. Multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real-time, control them, and adjust their setting values.
It is a cloud service solution that can remotely manage the operating status of installed projectors, guaranteeing stable business operations by providing remote monitoring and fault diagnosis.
1. Real-time monitoring
2. B2B call center : request assistance
3. SE preparation : mobile diagnosis
4. Site visit by service engineer
5. Troubleshooting
6. Issue resolved

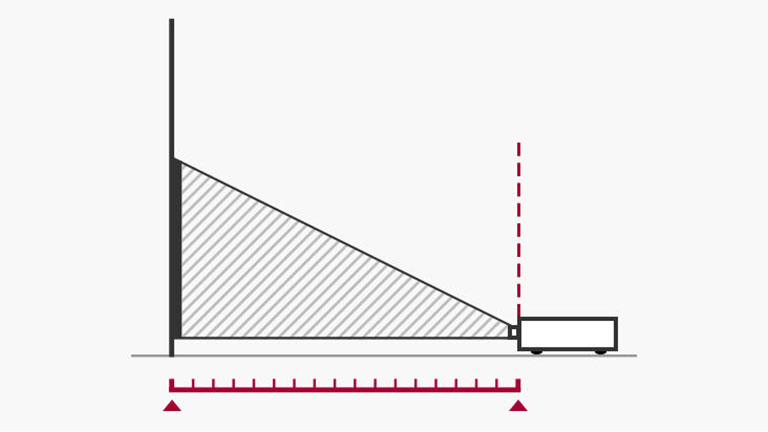

You can simulate LG projector in your space with LG Projection Calculator.
Projection System
DLP
Native Resolution
4K UHD (3840 x 2160)3)
Brightness (ANSI Lumen)
5000
Contrast Ratio
3,000,000:1 ↑
Changeable F#
X
Focus (Auto / Manual)
Manual
Zoom
1.2x
Screen Size
40" ~ 300"
Standard (lens to wall)
Wide 2017 /Tele 2454 (100인치)
Throw Ratio
0.94 - 1.14
Projection Offset
1
Type
Laser (LD + P/W)
Life High Brightness
20,000 Hrs
Aspect Ratio Control
Full / Original
Panel Aspect Ratio Control
16:6 / 16:9 / 16:10 / 21:9 / 4:3
Output
10W (5W+5W)
Clear Voice
○ (Clear Voice lll)
Dolby Surround Audio
X
DTS-HD
X
Power Consumption (Max.)
400W
Stand-by Power
0.5W↓
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
Operation Temperature
0 ~ 40℃
Audio out
○(Phone jack)
USB Type-A
2 (USB2.0)
RJ45
1
IP control
○
HDMI (in)
2
RS-232C(in)
1
RS-232C(out)
1
Cabinet Color
Top/Bottom - White Front/Rear - Black
Local Key
Joystick
Kensington Lock
○
Leg-Stand
○ (4 Leg)
Ceiling mount hole (for bracket)
○
Manual (Full or Simple Book)
Simple Book, Full Book(일본)
Warranty Card
○

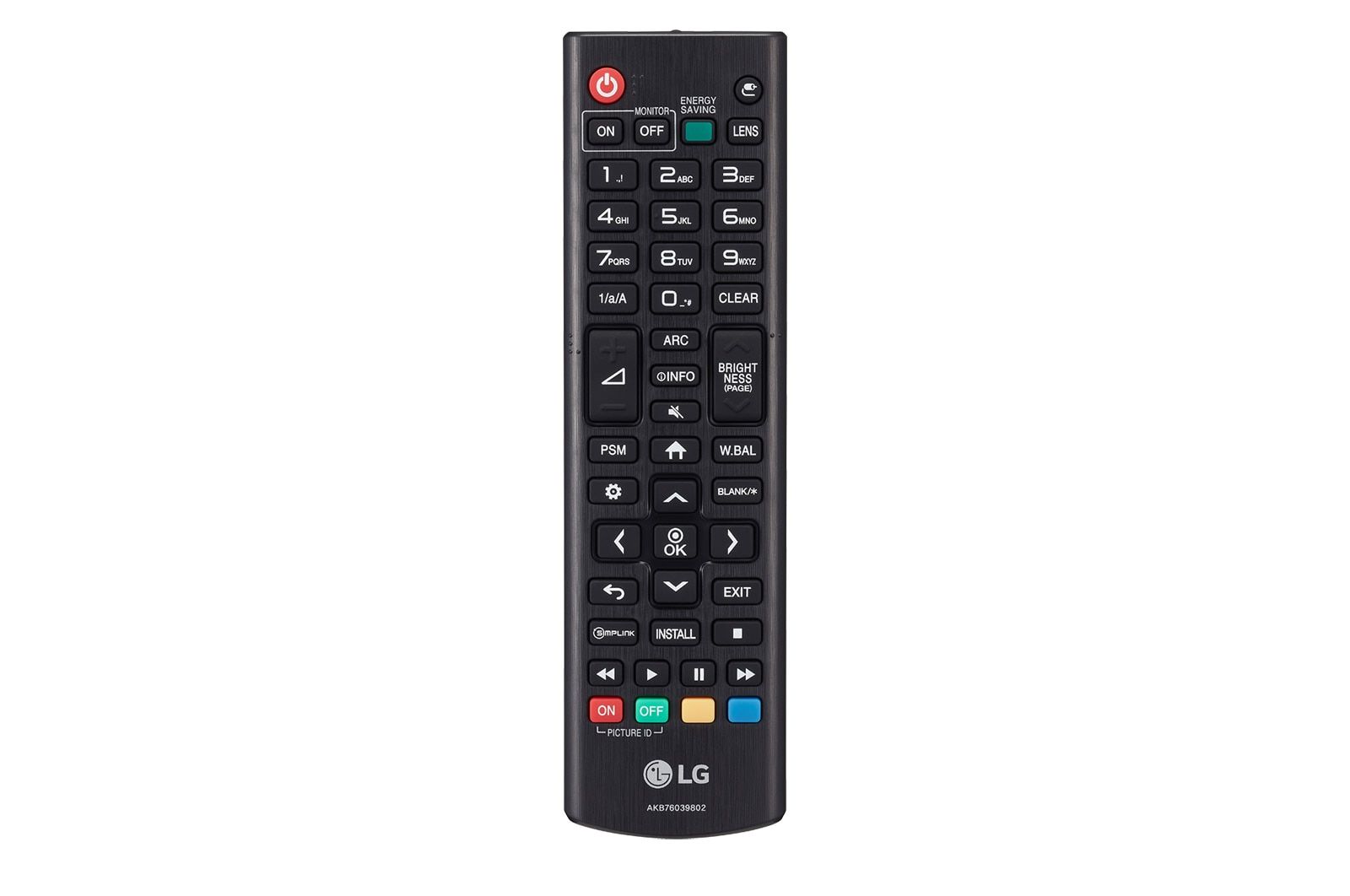

Remote Control - Normal
O
Conformances(Regulation)
FCC/ETL/CE/CB/CCC/PSE/BIS
Quick User Guide (Quick Set-up Guide)
○
Power cord
1
RS232C cable(D-sub to phone)
1
Net Size (mm) (W x D x H)
370 x 290 x 155.7 370 x 290 x 143.7 (Without Leg)
Gross size (mm) (W x D x H)
580 x 441 x 273
Net Weight (kg or g)
9,7Kg
Gross Weight (kg or g)
11.5KG
Digital Keystone Correction
Warping (4/9/15/25/HV)
Auto Keystone
X
HDR
O
HDCP
HDCP2.2
TruMotion
○
Screen Share (Wireless Mirroring with MiraCast supporting device)
○
File(Office) Viewer
X
USB Host (Movie, Music, Photo)
○(Music 제외)
Internet Browser
X
Platform (OS, UI)
Signage webOS 6.0
Home Dashboard (Input, IoT with OFC device)
X
Background Image
○
Contents Suggestion
X
Contents Sharing (with DLNA supporting device)
○
Bluetooth Sound out
○
LG Sound Sync(with Sound Bar)
○
HDMI ARC(Audio Return Channel)
○
HDMI simplink(CEC)
○
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
○
Setting Guide
○ (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB)
○
Eco Function - Energy Saving Mode
○ (Min/Mid/Max)
Eco Function - Sleep Timer
X
Eco Function - Auto Off / Auto Sleep
○
Eco Function - Time Power On/Off
○ (On / Off)
Eco Function - Automatic Standby / Auto Power Off
○
Eco Function - HDD Eco Mode
X
HDR Effect
X
DICOM
X
Image Flip
○ (Horizontal/Vertical)
Black Level Control
○
Noise Reduction
○
Color Temperature Adjustment
○
Gamma Correction (Expert control)
○
Brilliant Color™ (Overlap Duty)
○
Quick(Instant) Power on/off
○ (on 12 Sec off 2 Sec)
Store Mode
X
Built-in Memory (for Storage)
O(about 9G)
Blank
○
Self Diagnosis
X
Expert controlvADJ
○
24/7 Operation
○
Crestron RoomView™
○
One Quick Share
○
PBP
○
PIP
○
Screen Freezing
O
Lens Shift
O ( Horiz ± 20% / Vert ± 50% )
Energy Saving Min. (Bright)
29
Energy Saving Med.
27
Energy Saving Off (Max)
26
Uniformity (JBMMA 9 Point)
0.85
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
Edit mode / Recent
X
