LG One:Quick Share

()

Start Working with Simple and Easy Connecting

LG One:Quick Share is a wireless screen sharing solution available through LG webOS Signage*, USB transmission unit for PC (SC-00DA), and its app. With One:Quick Share, you can simply share personal PC screen to LG Signage with easy initial setup to use, as well as availability to manage LG Signage's basic functions*.

* All images in this web page are for illustrative purposes only and may differ from the actual product.
* One:Quick Share may not be available in certain products.
** Volume, Picture Mode, Auto Bright, Presentation Timer, Agenda/Note can be set on LG One:Quick Share PC App.

EASY TO START

Easy Pairing

Connect USB type dongle devices to LG Signage for auto pairing, and disconnect them. Just by doing so, these two are ready to be connected each other.

* One signage can be connected to a total of 4 USB-type dongle devices.

EASY TO START

Plug and Play

Simply share your personal PC screen to the LG Signage by connecting the USB dongle device on the PC after pairing with the Signage.

* At the very first time, personal PC needs to install One:Quick Share monitoring software by connecting the dongle device.

SIMPLE TO USE

Wireless Screen Share with One Click

Through pressing the USB dongle button in different ways, you can simply share the PC screen, change to another's one, and can show up to 4 PC screens on the Signage at the same time.

SIMPLE TO USE

Embedded Wi-Fi

With SoftAP function in LG Signage, USB dongle device and the Signage can be easily connected and used without additional transceiver.

* LG Signage needs to set up Soft AP enabled at Network Menu in Settings App.

VALUE ADDED FEATURES

Setting Without Remote Control

Without a remote control, you can adjust the default setting values of signage (volume, picture mode, auto bright, etc.) on the One:Quick Share PC application, as well as further edit the agenda/note, presentation settings displayed in Office Meeting Mode.

* Setting without remote control function is enabled when the USB Dongle is paired to the LG Signage and connected to the PC.
** Users can enable Office Meeting Mode at EZ Setting menu of the Signage.

VALUE ADDED FEATURES

Screen Manager

Meeting organizer with admin privileges can manage screens shared on the Signage. You can change the order of the split screens, stop screen sharing, or even select the screen among other connected screens.

All Spec

COMPATIBLE MODEL LIST(AS OF JANUARY 2021)

Standard Signage

65 (165.1 cm) / 55 (139.7 cm) / 49 (124.46 cm) UH7F
65 (165.1 cm) / 55 (139.7 cm) / 49 (124.46 cm) / 43 (109.22 cm) UH5F (-H)
65 (165.1 cm) / 55 (139.7 cm )/ 49 (124.46 cm) / 43 (109.22 cm) UM3DG
86 (218.44 cm) / 75 (190.5 cm) / 65 (165.1 cm) / 55 (139.7 cm) /50 (127 cm) / 43 (109.22 cm) UL3G

ONE:QUICK SHARE

User Switching

Yes
Split View

Yes (Max. 4 Screen)
Admin Mode

Yes
Signage Control

Yes
Sound

Windows Only

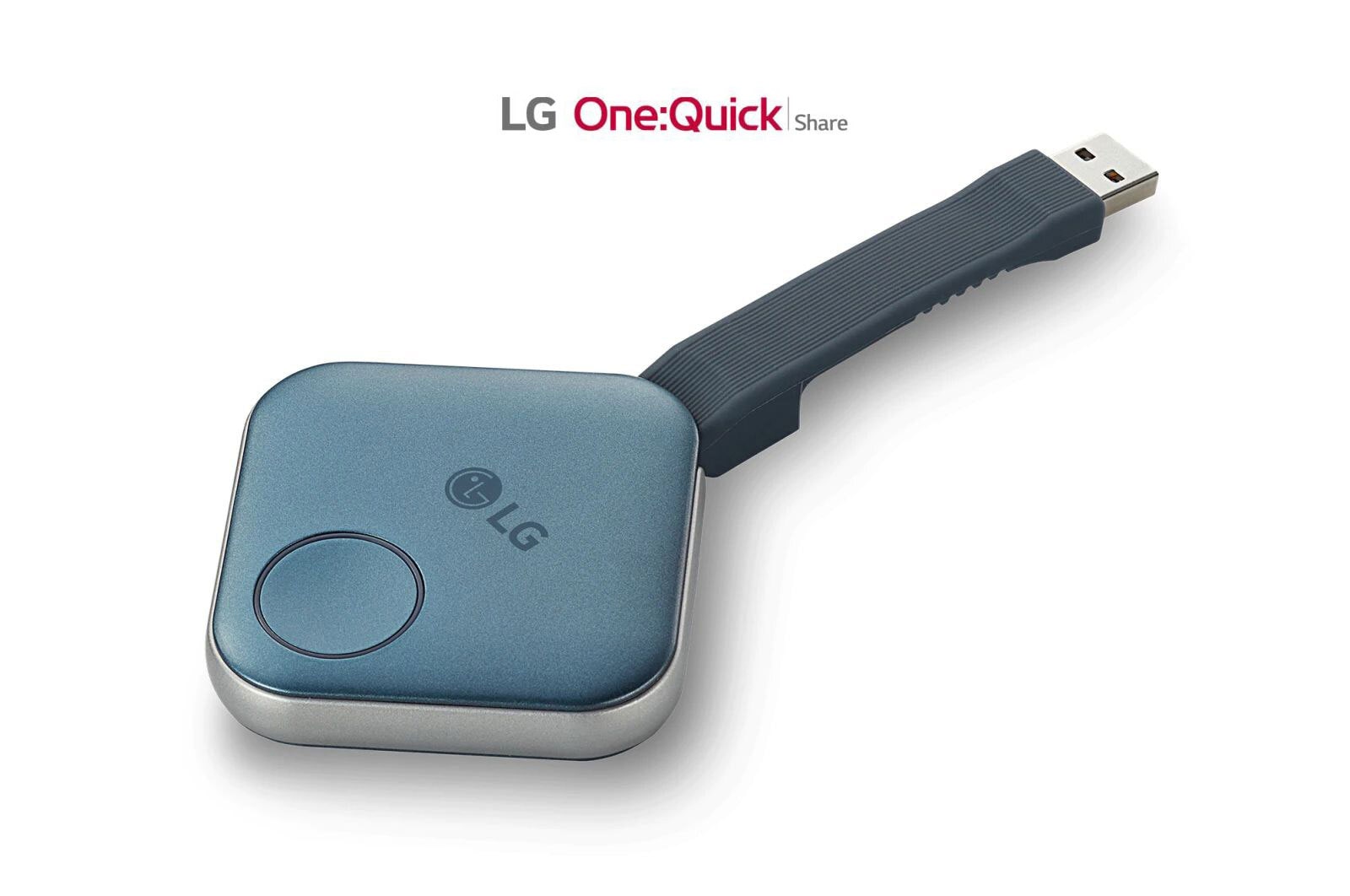

USB DONGLE HW(SC-00DA)

Embedded OS

Linux
CPU

Quad-core CortexTM-A7
Internal Memory

eMMC (4 GB) , DDR3 (512 MB)
Wi-Fi

IEEE 802.11 a/b/g/n/ac (Max. 30 m available)
Video

H.264
Connectivity

USB 2.0 Type A (1)
Size (W × H × D)

63.8 × 63.8 × 13.5 mm / USB cable (85.5 mm)
Weight

0.046 kg
Power Consumption

2.0 W (Typ.), 2.5 W (Max.)
Operating Temperature / Humidity

0℃ to 40℃ / 0% to 85%

RECOMMENDED PC SPECIFICATION

Operating System Support

Windows 7 SP1 / 8 / 8.1 / 10 64 bit
macOS 10.11 / 10.12 / 10.13 / 10.14 / 10.15 64 bit
CPU

Intel Sandy Bridge i3 (or Later Version)
Skylake i3 / i5 / i6 (or Later Version)
AMD Rygen 1st Generation (or Later Version)
Memory

8 GB↑
