Non-Glare Ultra HD Series

(7)

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

PRODUCT RELIABILITY

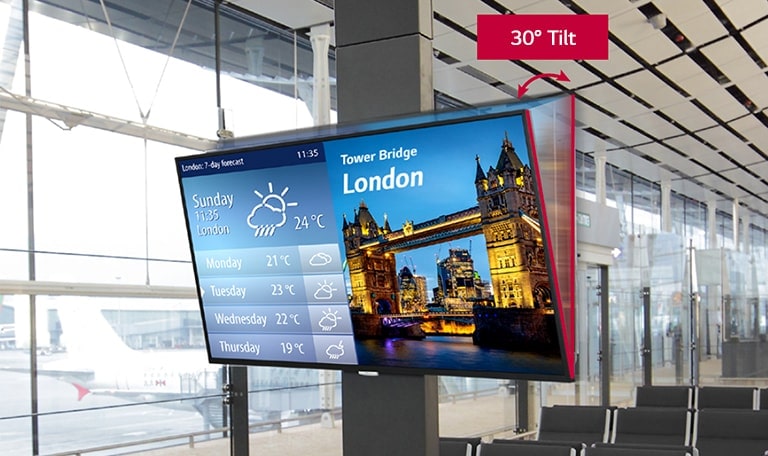

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

* Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

EASY INSTALLATION

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

EASY INSTALLATION

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

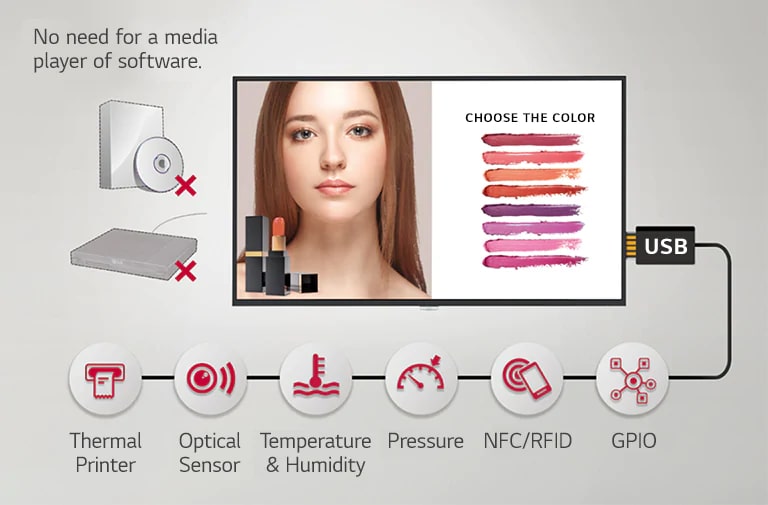

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

ENERGY STAR^® Certified

All Spec

PANEL

Screen Size

55 (139.7 cm)
Panel Technology

IPS
Native Resolution

3,840 x 2,160 (UHD)
Brightness(Typ.)

500
Contrast Ratio

1,100:1
Dynamic CR

1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
Color Gamut

BT709 95%
Viewing Angle (H x V)

178 x 178
Color Depth

1.07 Billion Colors (10 bit)
Response Time

8 ms (G to G)
Surface Treatment (Haze)

Haze 28%
Operation Hours (Hours / Day)

24 / 7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
Output

DP, Audio
External Control

RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

9.9mm(T/R/L), 14.4mm(B)
Weight (Head)

19.0 kg
Monitor Dimension (W × H × D)

1,234.4mm x 720.9mm x 39.9mm
Monitor Dimensions with Stand (W × H × D)

1,234.4 × 770.7 × 290.0 mm
VESA™ Standard Mount Interface

300 x 300 mm

SPECIAL FEATURE

Tilt (Facedown)

Yes (Max. 30º) *In conditions within 30ºC temperature, 50% humidity
IP Rating

IP5x

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

Typ. / Max.

105W / 145W
BTU (British Thermal Unit)

358 BTU/Hr (Typ.),
495 BTU/Hr (Max.)

SOUND

Speaker

10W + 10W

CERTIFICATION

Safety

CB, NRTL
EMC

FCC Class "A" / CE / KC
ErP

Yes

OPS COMPATIBILITY

OPS Type Compatible

Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes
SuperSign Control / Control+

Yes
SuperSign WB

Yes
SuperSign Media Editor

Yes
LG ConnectedCare

Yes (The availability can differ by region.)

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional

Stand (ST-653T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
