LG Color Transparent LED Film

(2)

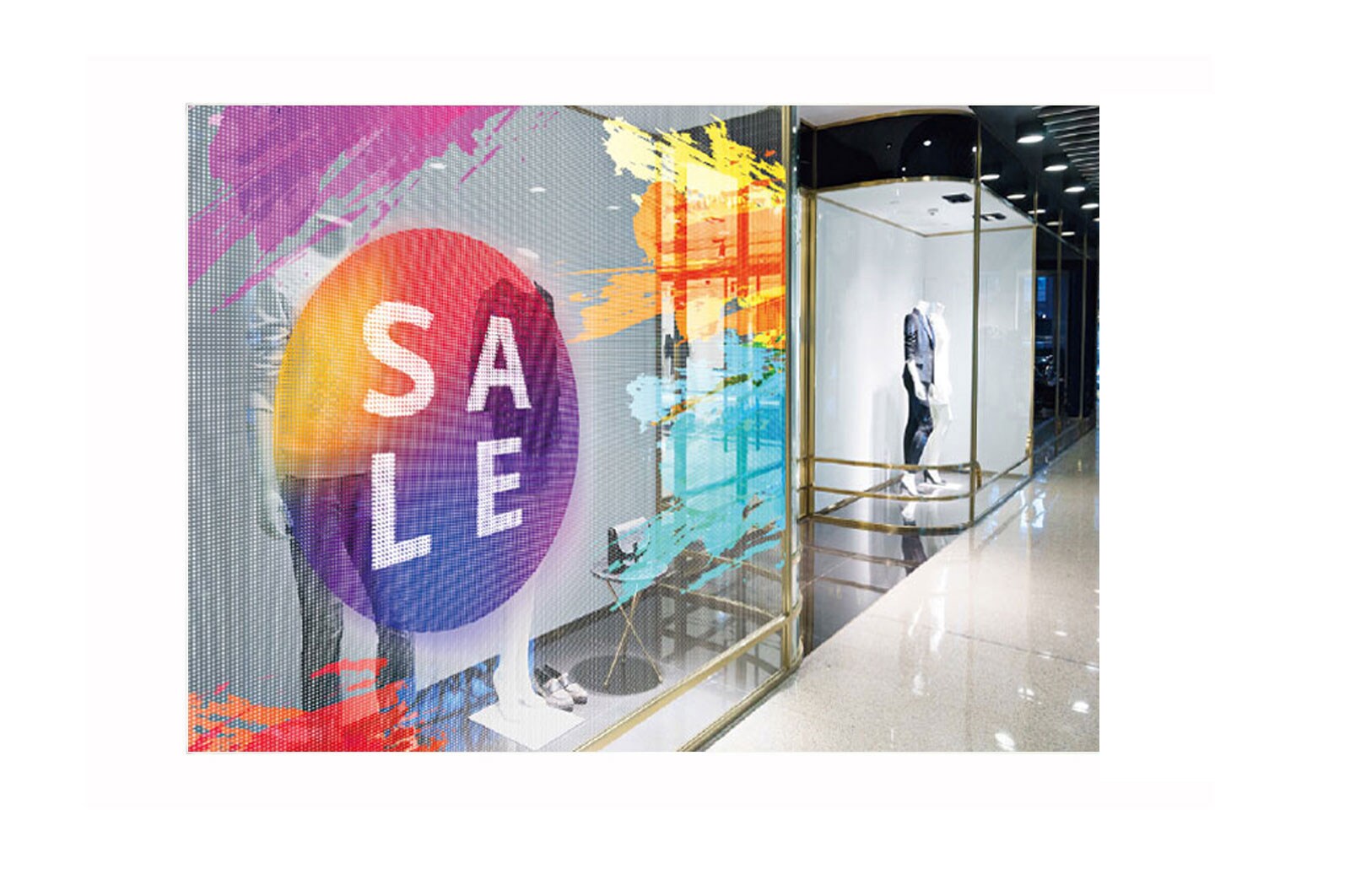

High Transparency

High transparency*(73%) allows glass to remain visible even after attaching the film, with no adverse effects on the original design. When the LED is OFF, the film is unnoticeable, blending into the glass completely.

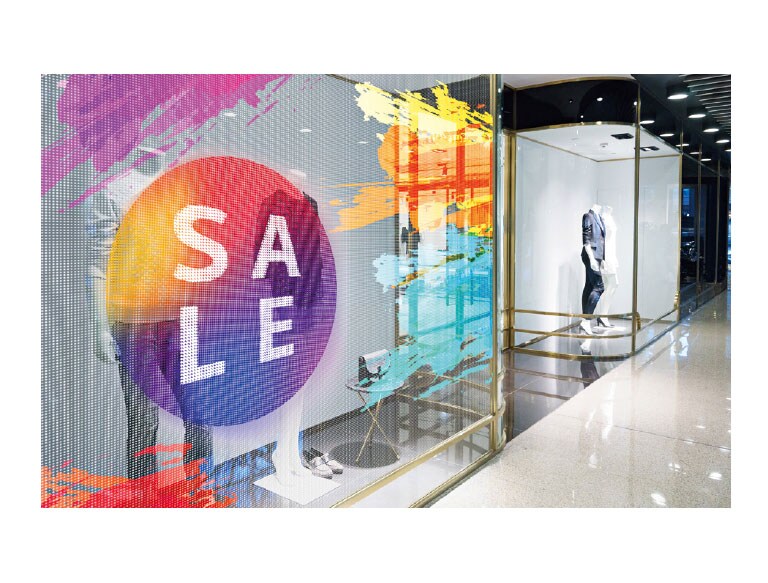

Full Color Expression

LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

Easy Space Innovation

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

Easy Space Innovation

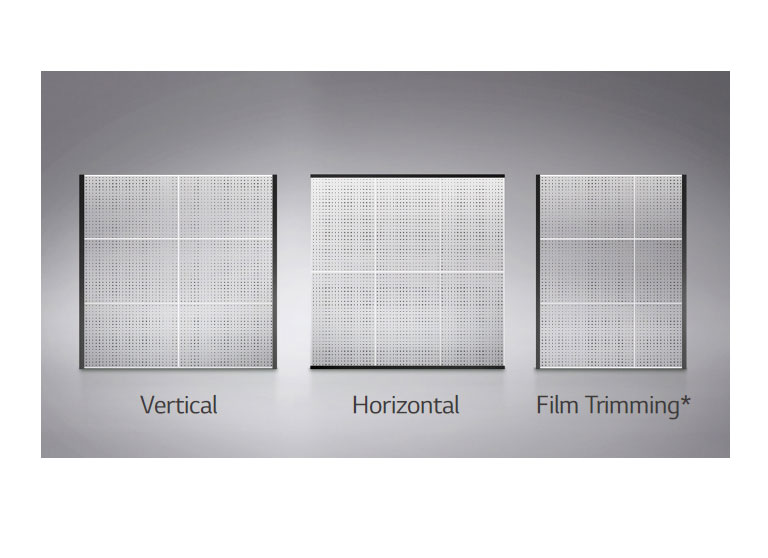

Superb Expandability and Flexibility

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

*The film must be cut in parallel with the bezel by 1 pixel.

Easy Space Innovation

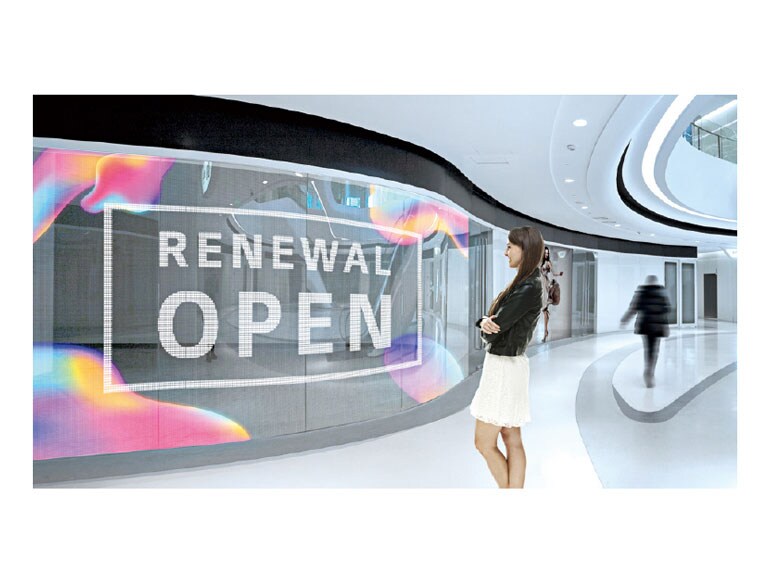

Curved Format Supported

The transparent LED film supports curvatures up to 1,100R Convex and Concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

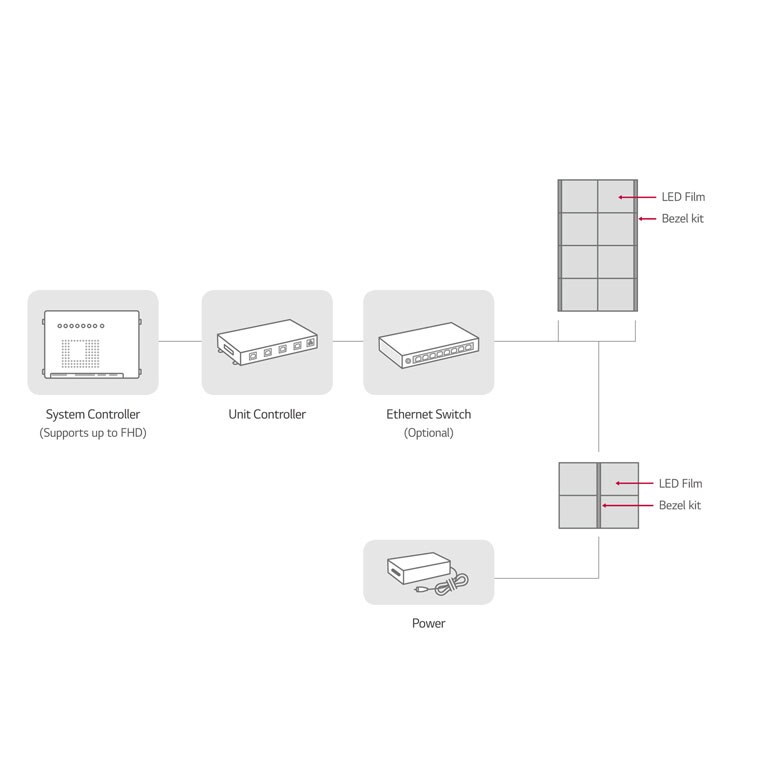

System Connection

*The actual system structure may be subject to change from the above example.

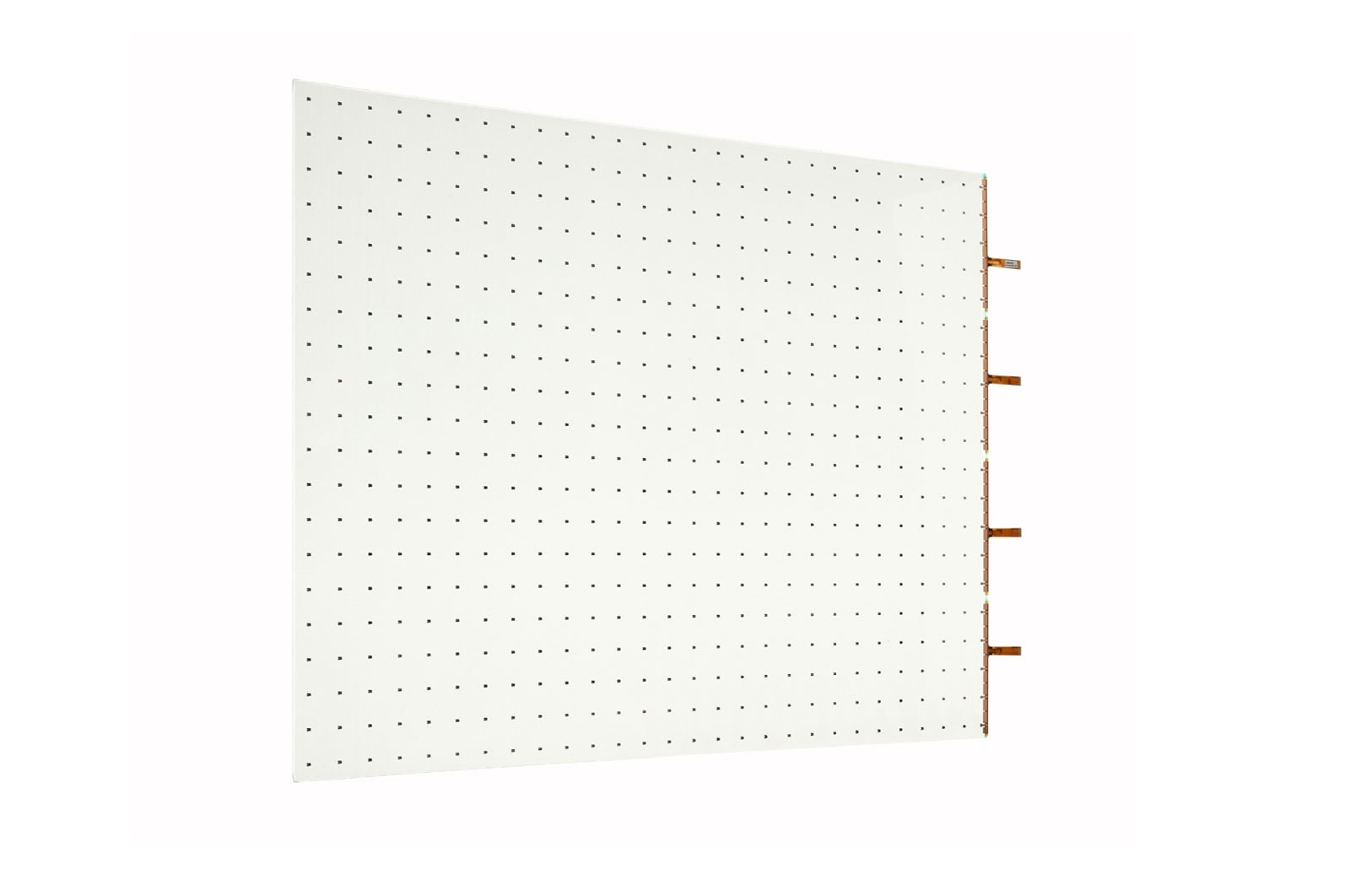

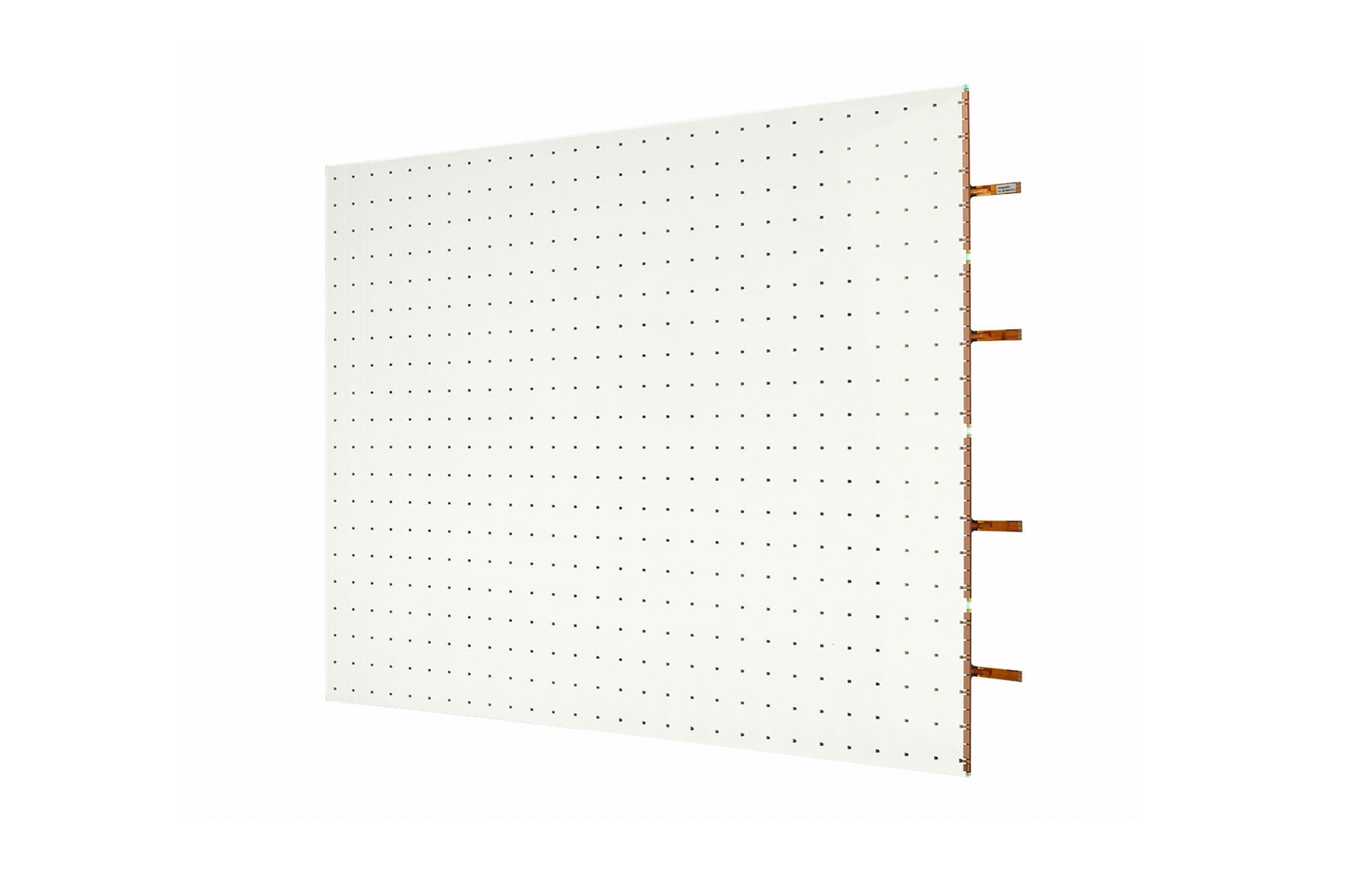

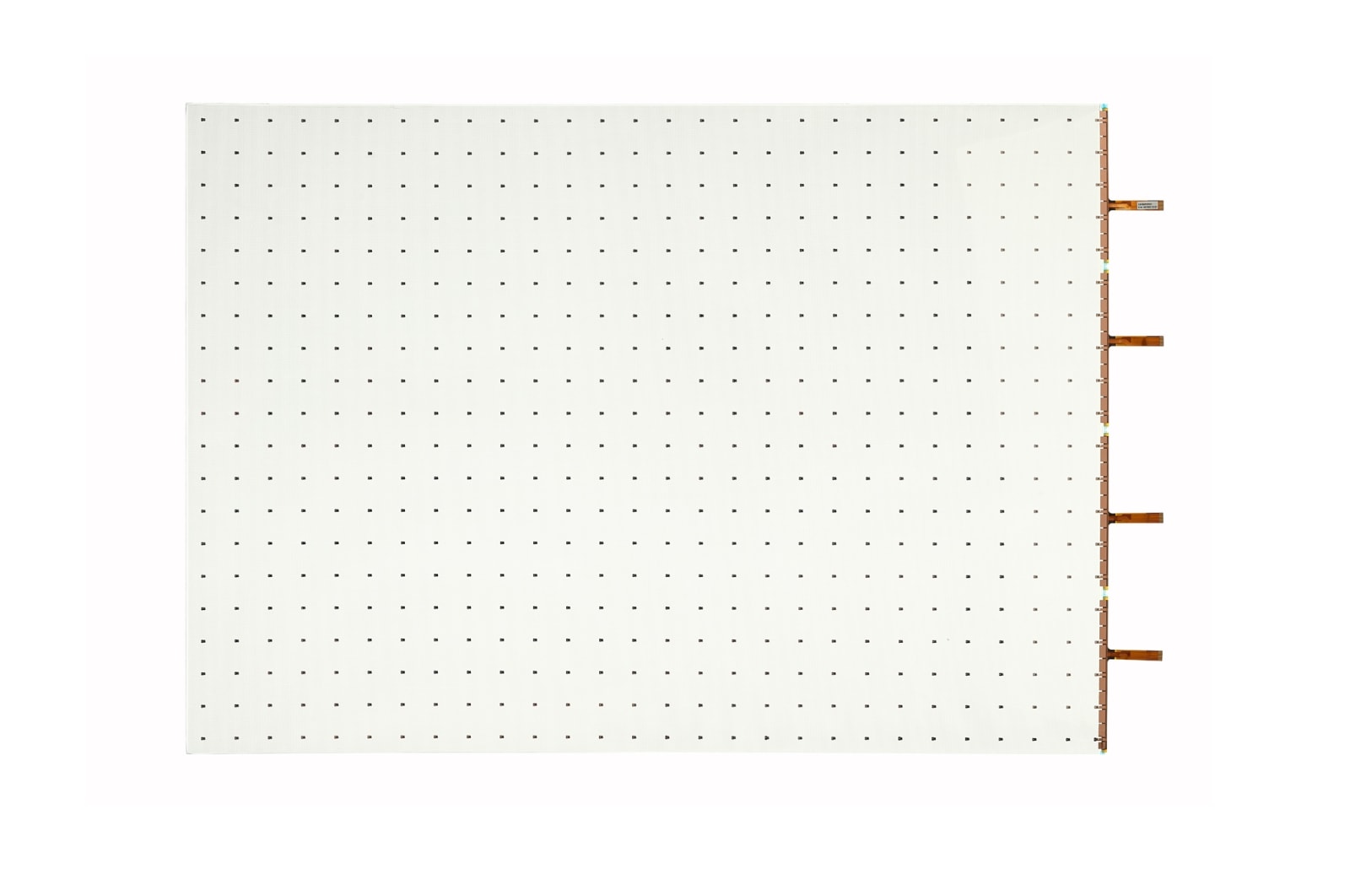

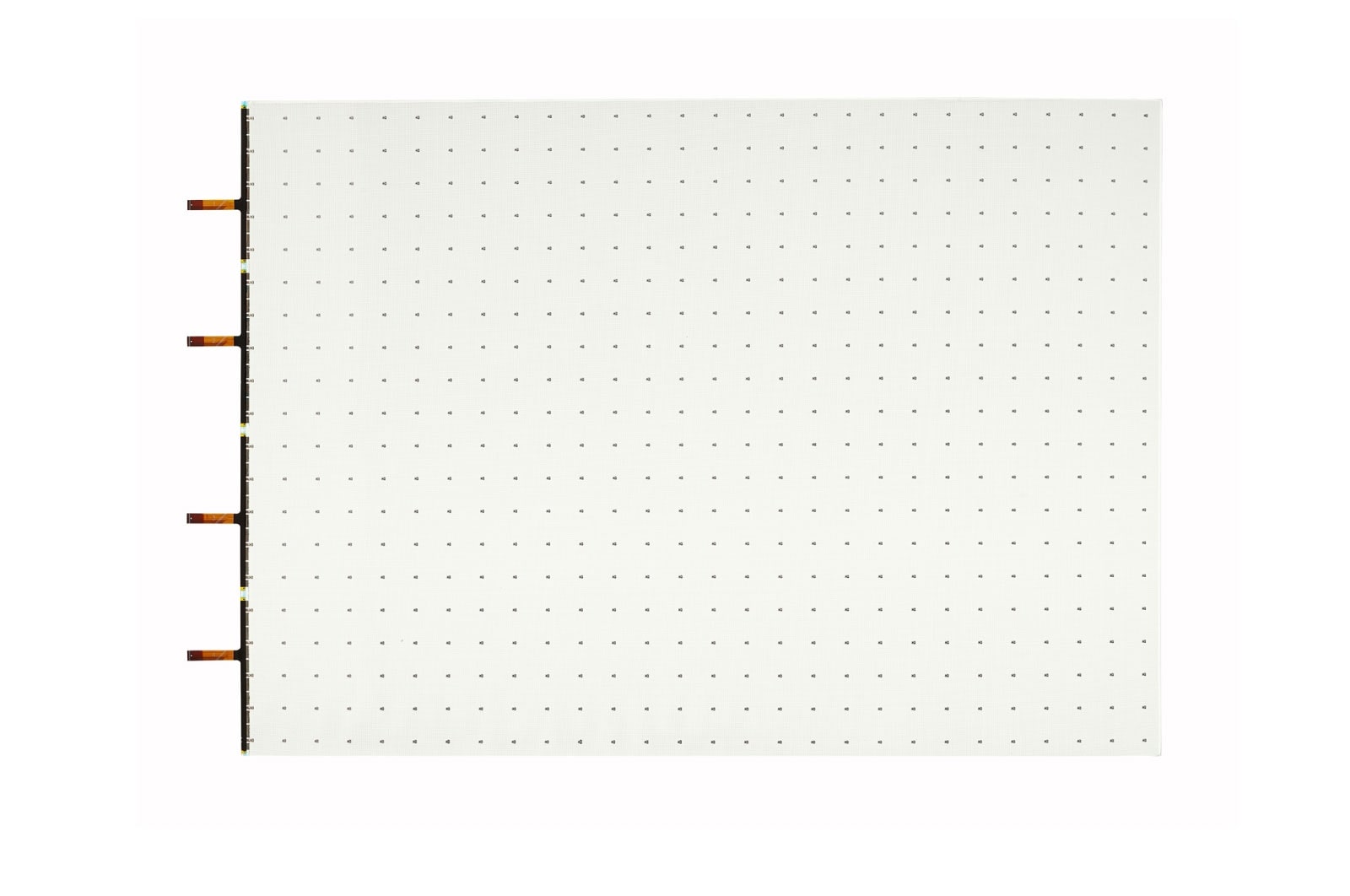

LG Color Transparent LED Film, LAT240DT1

All Spec

LED FILM: LAT240DT1

Pitch

24mm
LED Type

R, G, B 3in1 Color Package (SMD1818)
Resolution

28 x 20
Pixels per Panel

560
Pixel Density [point/m²]

1,736
Brightness

> 1,000cd/m²
Contrast Ratio

≥ 100,000:1
Luminance Uniformity

≥ 70%
Viewing Angle (H x V)

120 x 120
Life Time (Brightness 50%)

50,000 Hrs
Daily Usage

24 Hrs/7 Days
Adhesion (After Installation)

50,000 Hrs
Transmittance

73%
Operating Temperature

0℃ ~ 45℃ (Indoor Glass Installation Only)
Curved Installation

1,100R (Convex and Concave)
Film Trimming

Yes (Parallel to the Bezel Side Only)
Color Processing

130/120/110 Level (R, G, B)
Colors

1,716,000 Colors
Color Chromaticity

Cx: 0.28±0.03, Cy: 0.28±0.03
Dimension (W x H x D)

668 x 480 x 2.0 mm (with Front & Back Protection Film)
Weight

0.73kg
Power Consumption

37W (Transparent Panel 1ea, Bezel Kit 1ea)

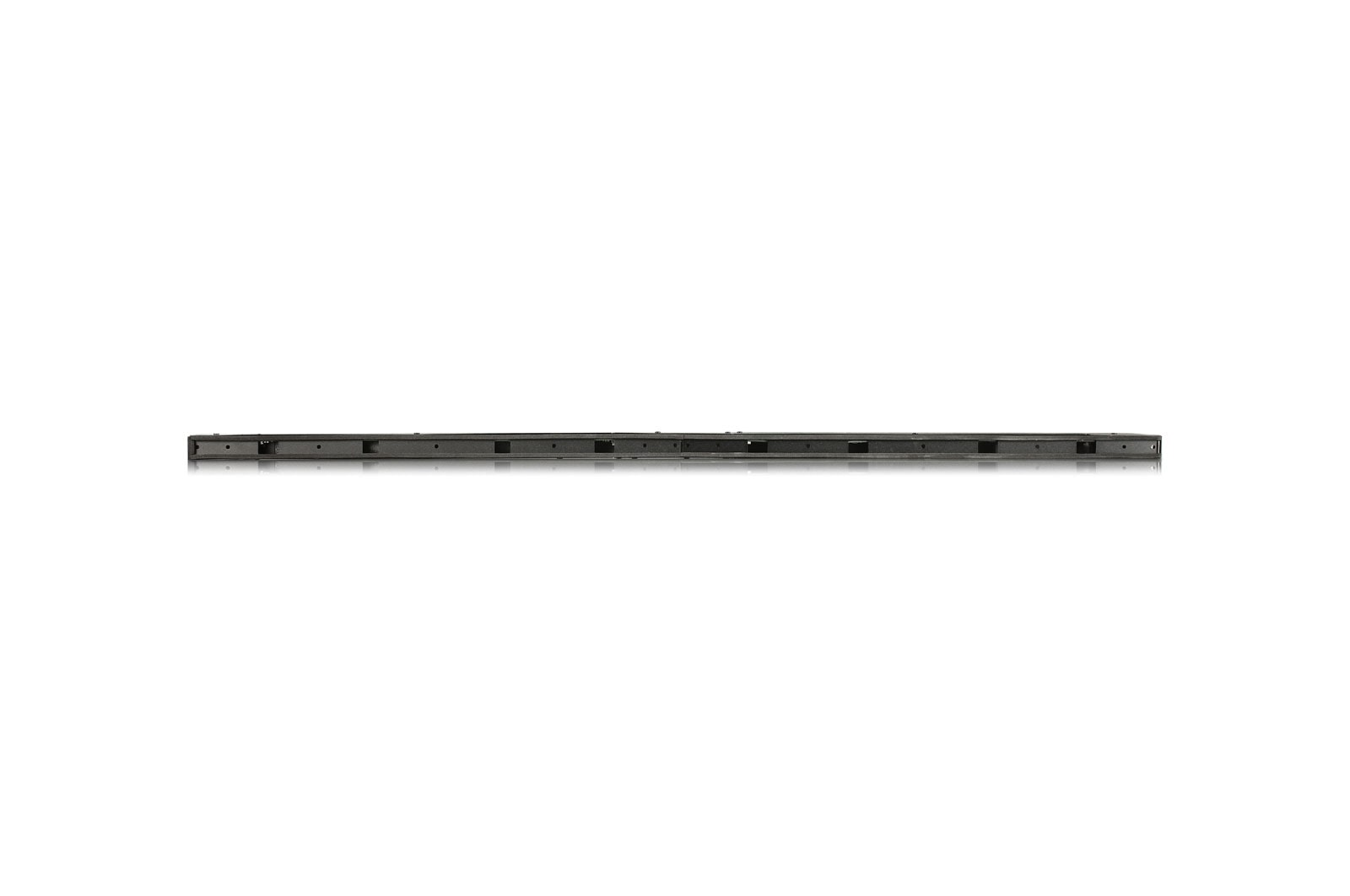

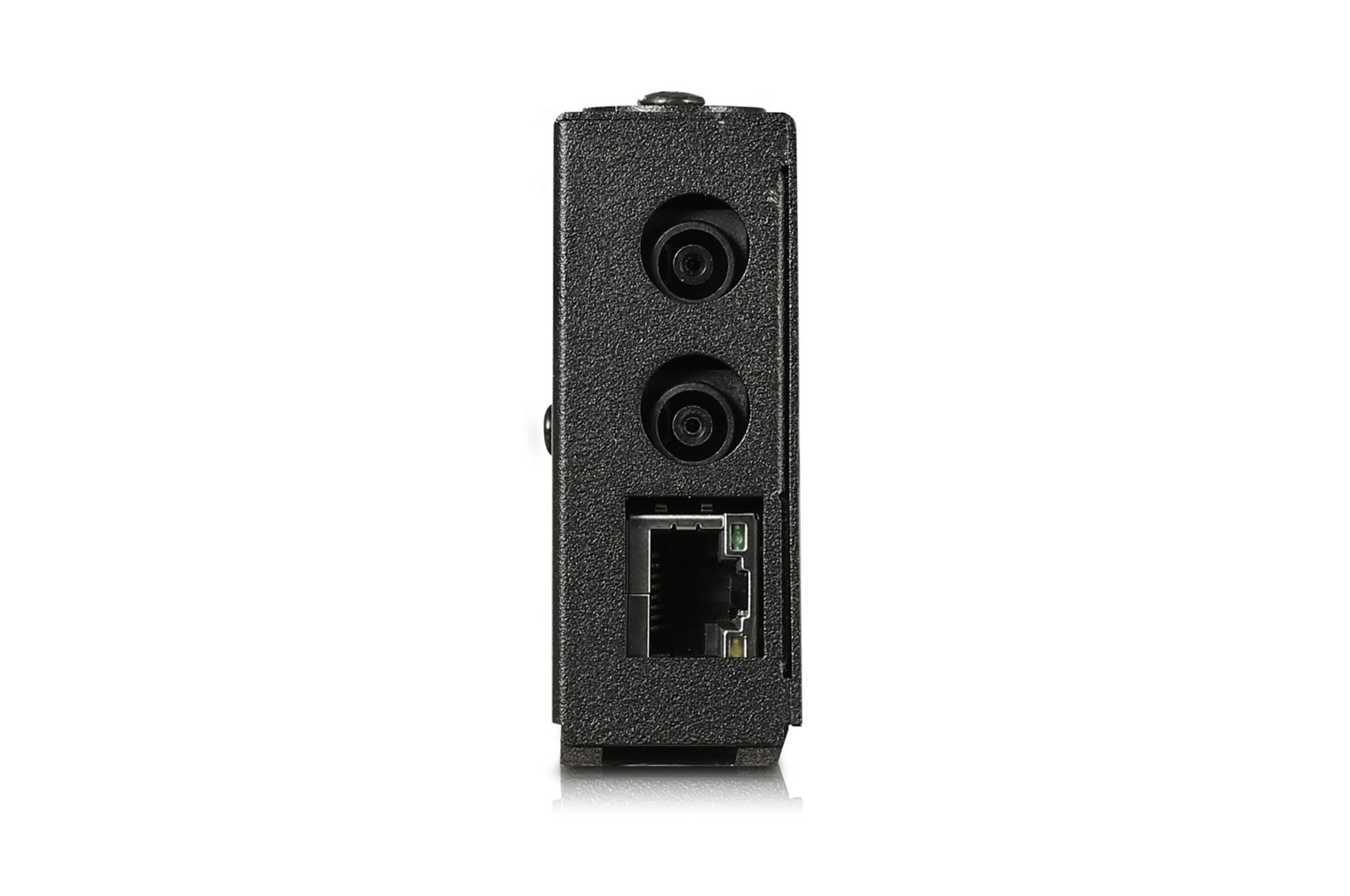

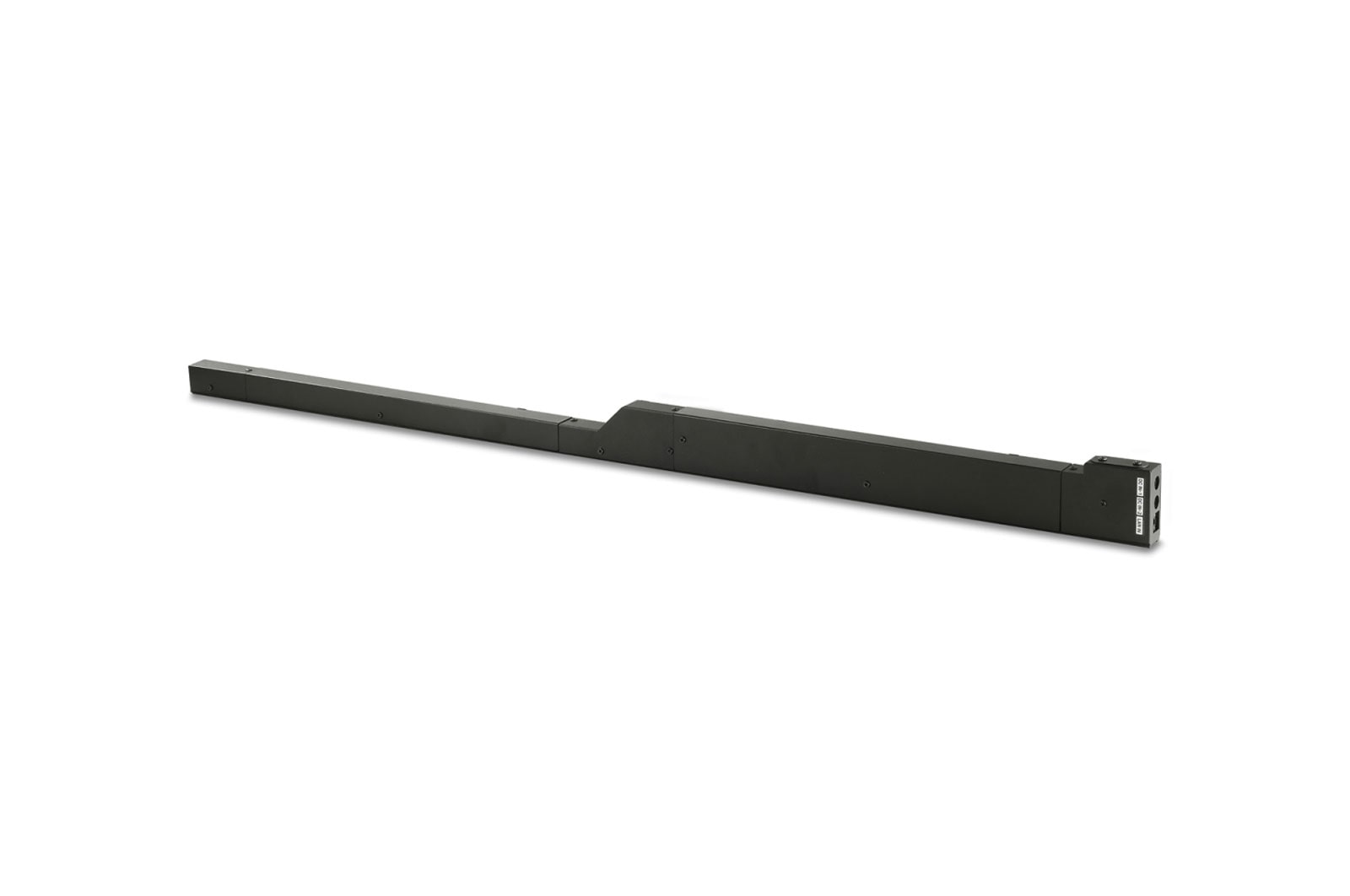

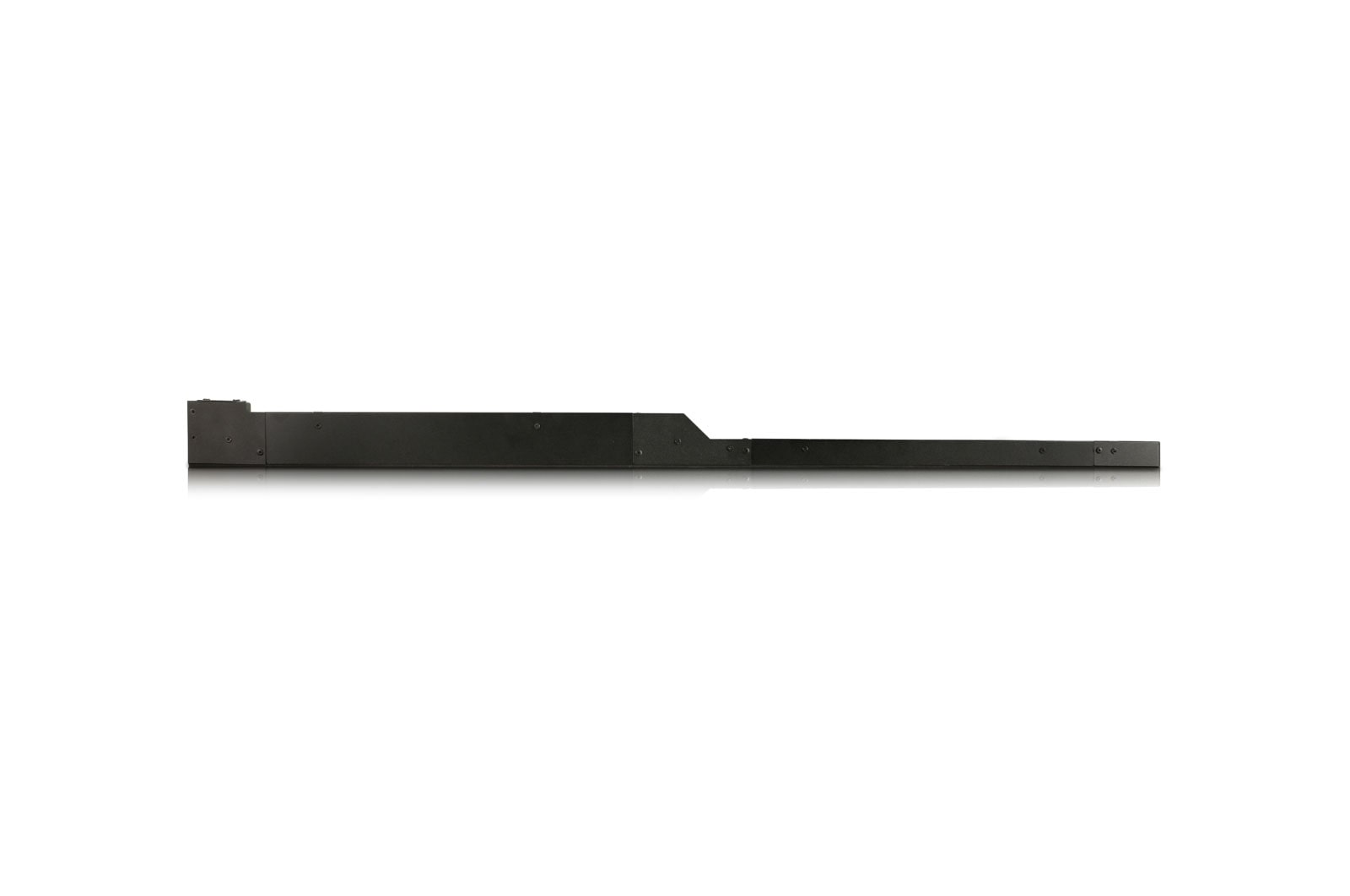

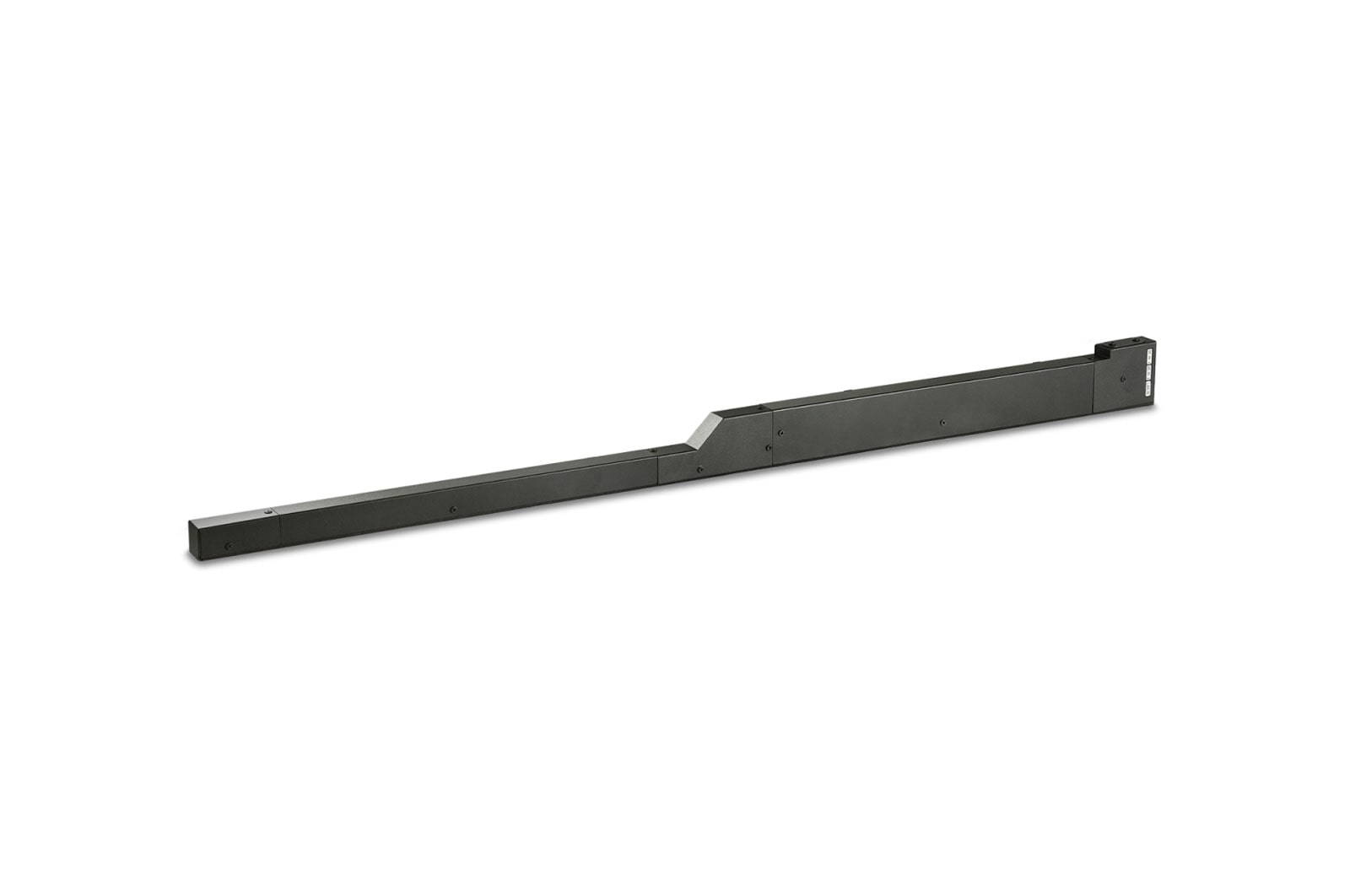

1ST BEZEL KIT: ACC-LATB2

Dimension (W x H x D)

547.3 x 63 x 24 mm
Weight

0.45kg

COMMON BEZEL KIT: ACC-LATB3

Dimension (W x H x D)

479.5 x 28.1 x 24 mm
Weight

0.26kg

POWER(BEZEL KIT & LED FILM): ACC-LATP1

Dimension (W x H x D)

183 × 86 × 28 mm
Weight

0.769kg
Input

100~240V, 50~60Hz
Output

19.5V/10.8A (210W)
Color

White
DC Output Cable

14AWG, 1.5m

UNIT CONTROLLER: LCLG012U

Resolution

960 x 540 (4 Unit Controllers Needed for FHD)
Interface

LVDS In, RJ45 (4ea) Out
Maximum Transmission Length

100m
Dimension (W x H x D)

273 × 186.8 × 37 mm
Weight

1.5kg
Power Consumption

20W
Accessories

Power Cord, LVDS MCX Cable, ESG, Regulation Book, Warranty Card

SYSTEM CONTROLLER: LCLG002

Video

DP: 3,840 x 2,160 @30Hz
HDMI: 3,840 x 2,160 @30Hz
DVI-D: 1,920 x 1,080 @60Hz
Input

HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
Output

LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
Dimension (W x H x D)

293 x 40.1 x 193.3 mm
Weight (Head)

1.6kg
Temperature Sensor

0
Light Sensor

0
Source Selection

HDMI, DVI-D, DP
TPC

Yes
Power Consumption

17W
CMS S/W

Yes
Accessories

Power Cord, IR & Bright Sensor, 4P Phone-to-RS232C Gender, ESG, Regulation Book, Warranty Card
