LG 136(345.44 cm) All-in-One LED Display

LAEC015

LG 136(345.44 cm) All-in-One LED Display

()

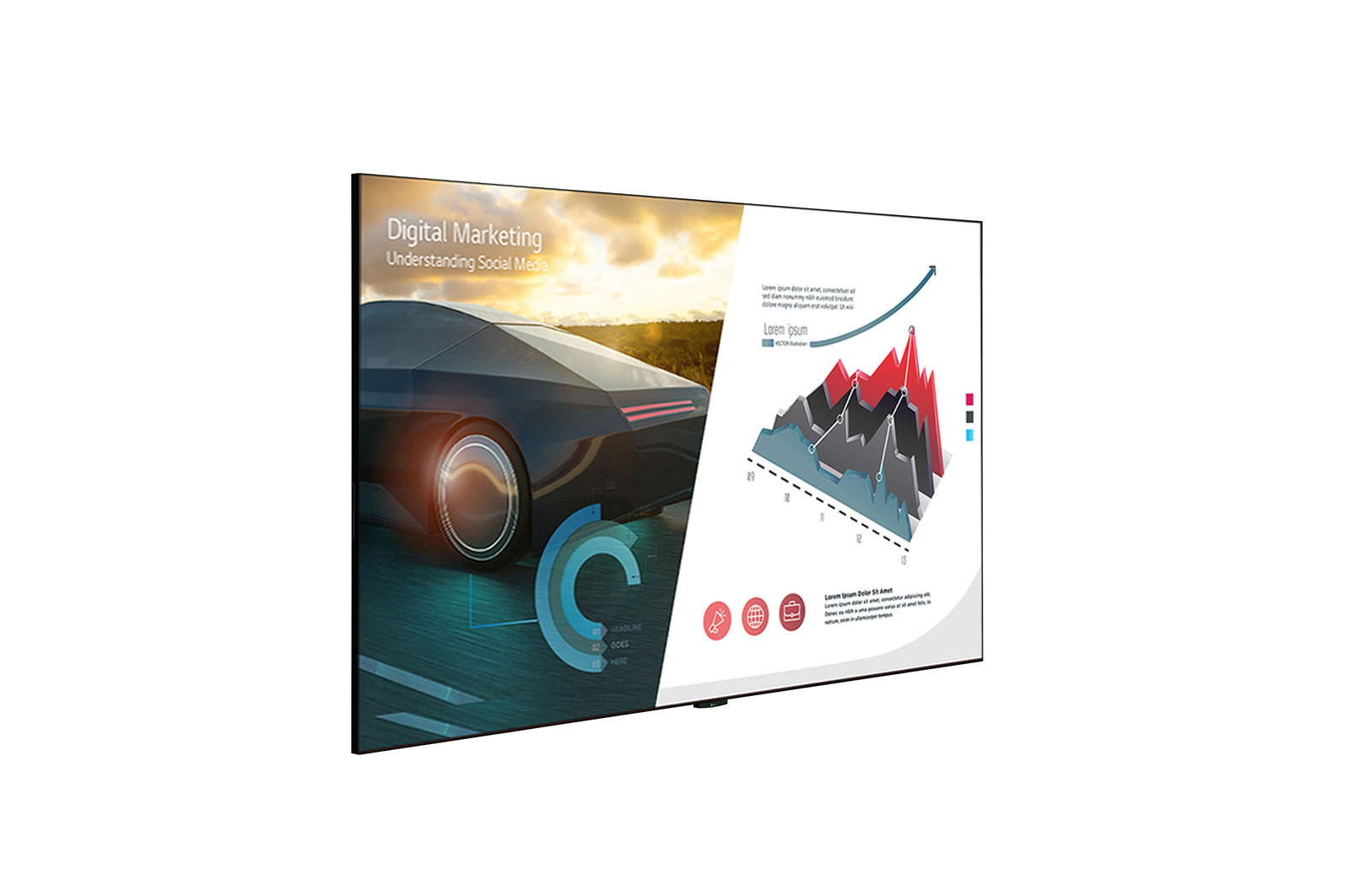

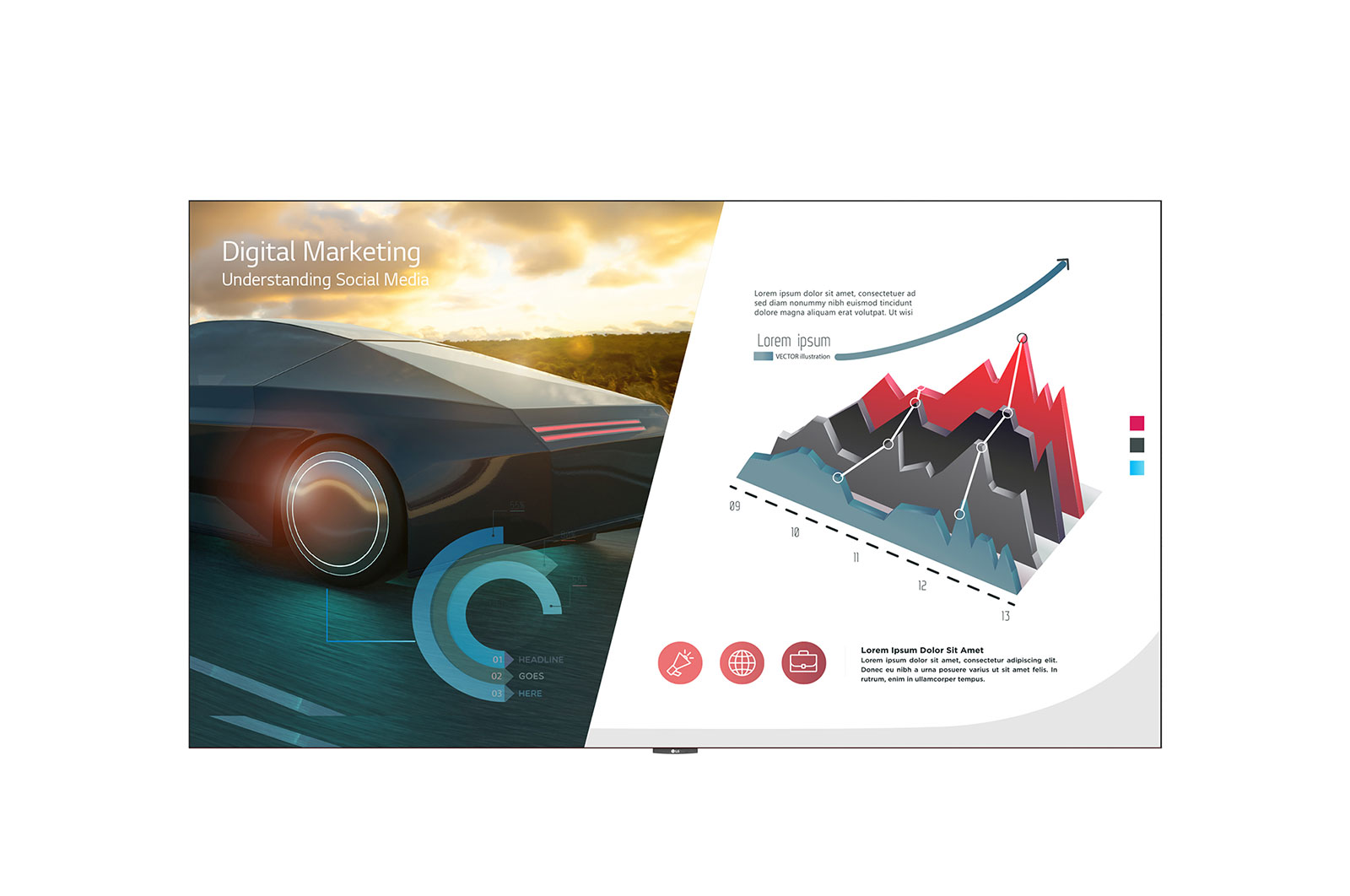

LG LAEC015 Front View

LG LED All-in-One Smart Series

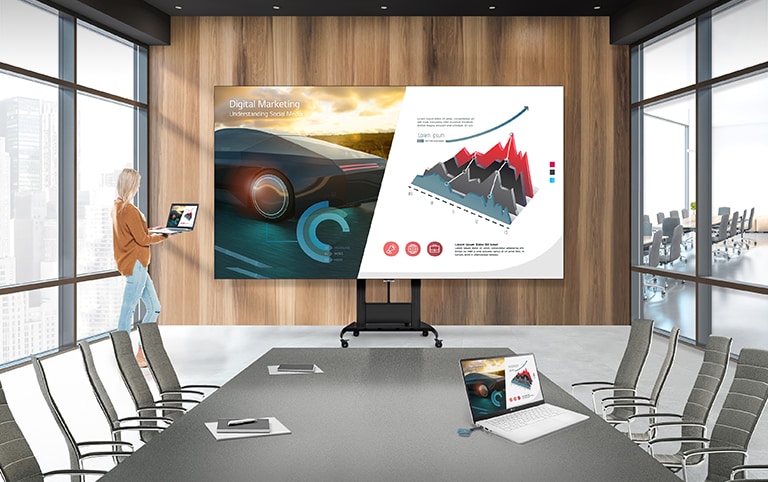

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.

*All images in this web page are for illustrative purposes only and may differ from the actual product.

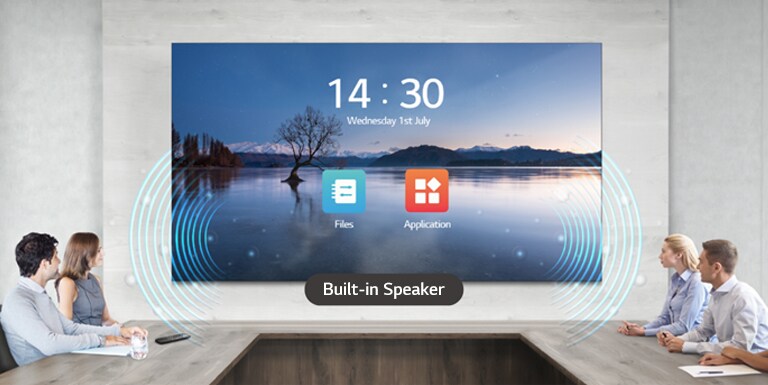

People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room.

All-in-One
LED Screen with Built-in Speaker

The LAEC series is a 136 (345.44cm) large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

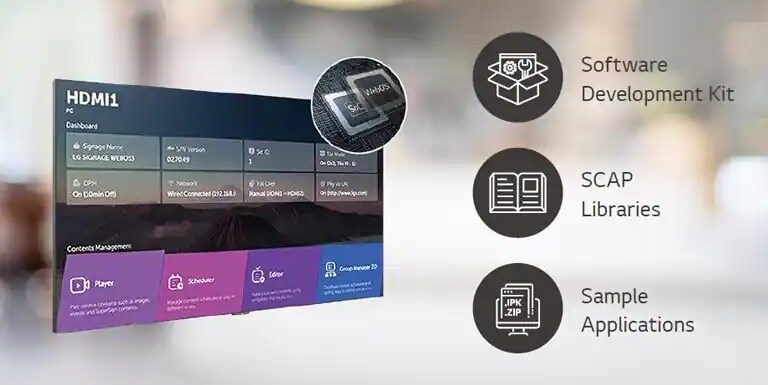

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

*The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

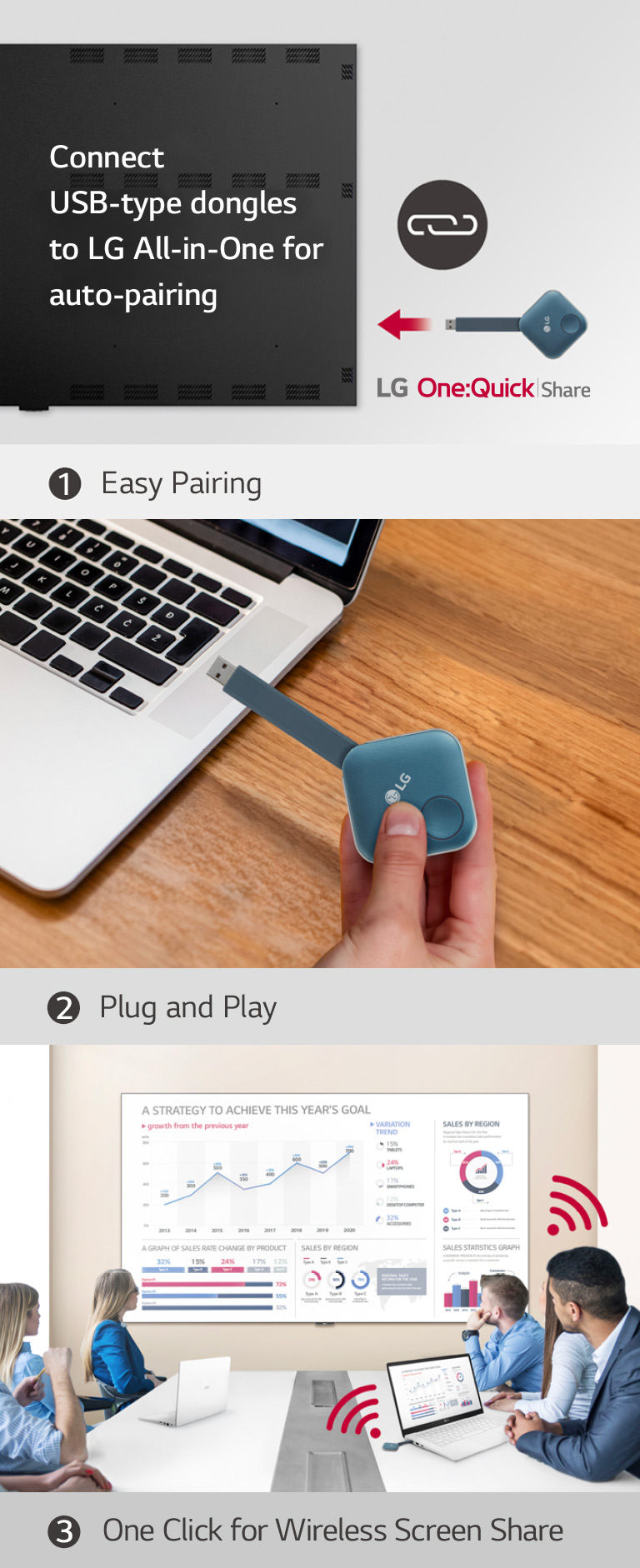

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.

*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
***LG One:Quick Share needs to be purchased separately.

Easy Installation

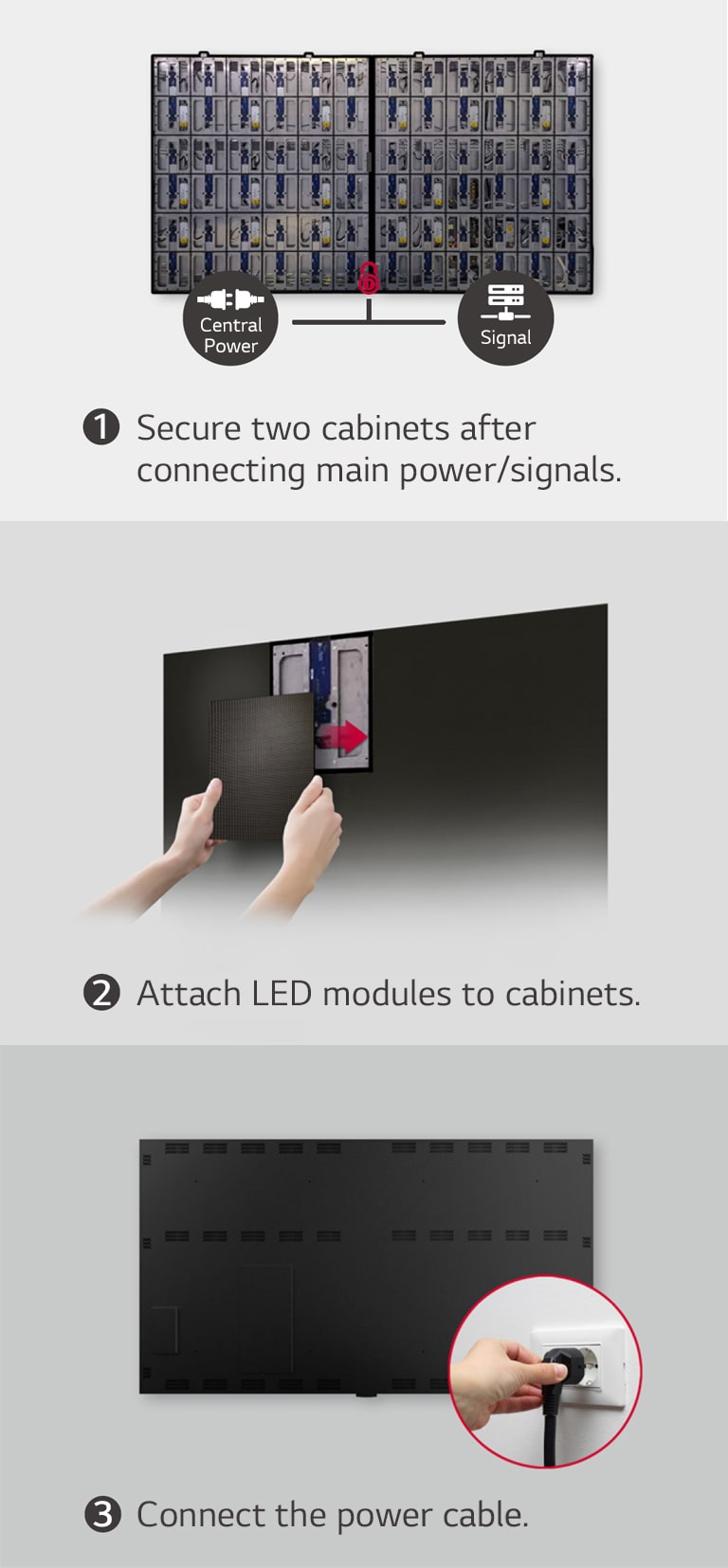

The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

LG LAEC015 Easy Installation

*Fixing screws or installing wall mount / accessories is needed additionally.

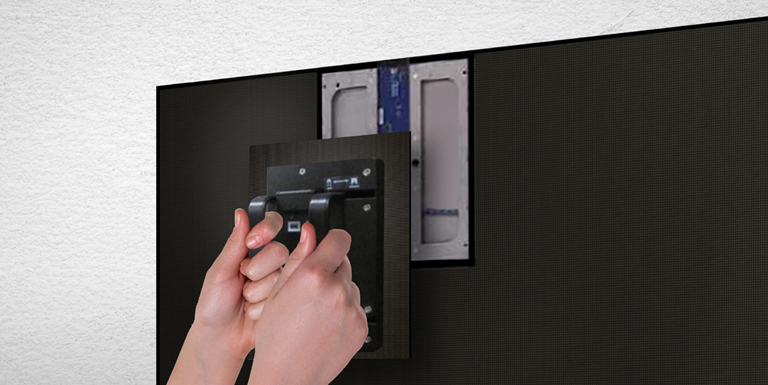

A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Dedicated Installation Accessories

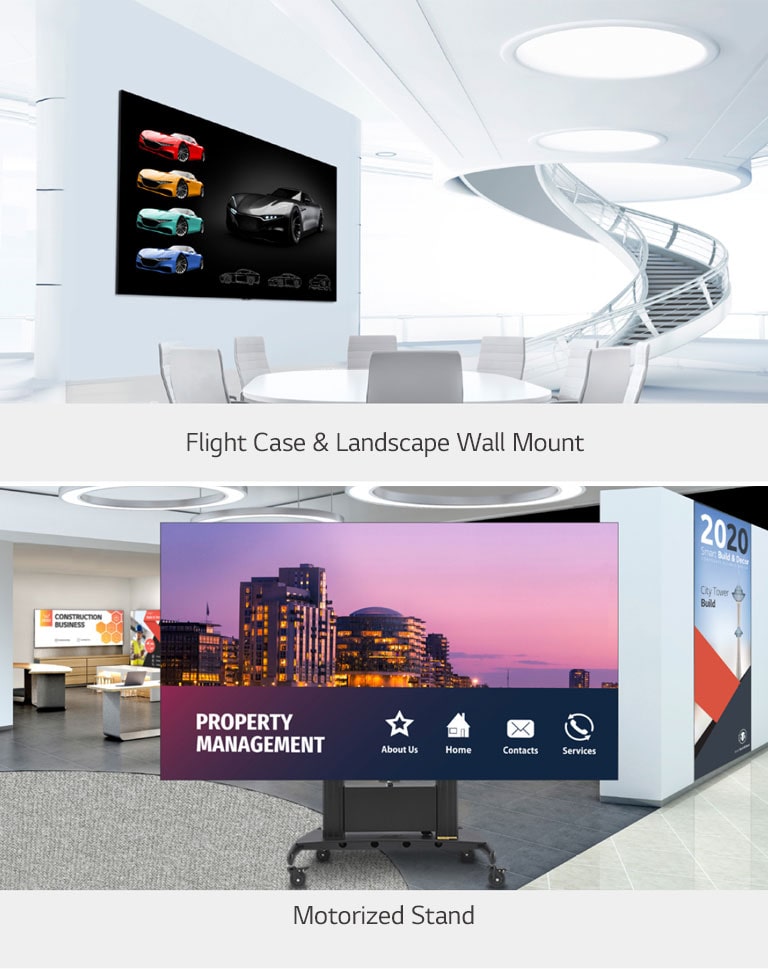

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.

LG LAEC015 Dedicated Installation Accessories

*Optional (Available for Purchase Separately).

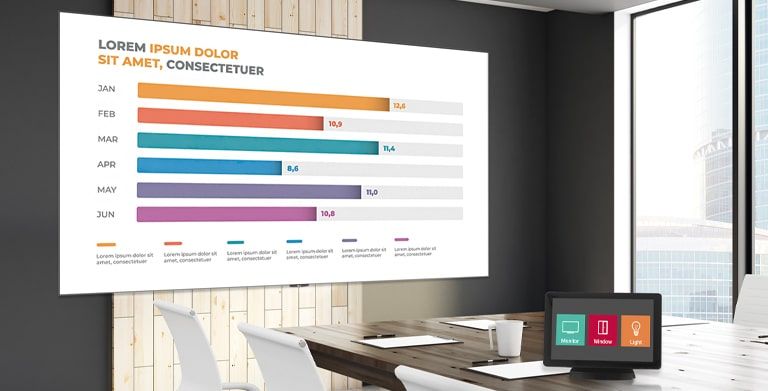

The meeting room is equipped with the signage and one of AV control system which helps users control the LAEC series.

Compatible with AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control.

LG LAEC015 ConnectedCare

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*The availability of LG ConnectedCare differs by region.

Print

All Spec

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    1.56

  • Screen Resolution

    1,920 x 1,080

  • Module Dimensions (WxH,mm)

    250 x 281.25

  • No. of Modules per Screen (WxH)

    12 x 6 (Total 72)

  • Screen Dimensions (W x H x D, mm, including bezel)

    3,004.6 x 1692.1 x 36.5 (Thickest 70)

  • Screen Surface Area (㎡)

    5.06

  • Weight of the screen

    129

  • Physical Pixel Density (pixels/㎡)

    409,600

  • Flatness of Unit Case (mm)

    ±0.2

  • Unit Case material

    Aluminum

  • Service access

    Front

OPTICAL SPECIFICATIONS

  • Min. Brightness (After Calibration)

    500

  • Color Temperature

    7300K

  • Visual Viewing Angle (H x V)

    160° x 160°

  • Brightness Uniformity

    98%

  • Color Uniformity

    ±0.015Cx,Cy

  • Contrast Ratio

    3000:1

  • Processing Depth (bit)

    16

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Screen, Max.)

    2,000

  • Power Consumption (W/Screen, Avg.)

    800

  • Power Consumption (W/㎡, Max.)

    395

  • Power Consumption (BTU/h/Screen, Max.)

    6,824

  • Power Consumption (BTU/h/Screen, Avg.)

    2,730

  • Power Consumption (BTU/h/㎡, Max.)

    1,348

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    ≥2880

OPERATION SPECIFICATIONS

  • I/O Port

    HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, SPDIF

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    0℃ to +40℃

  • Operating Humidity

    <90%RH (without condensation)

  • IP rating Front

    IP30

  • IP rating Rear

    IP20

  • Speaker

    Built-in (9W+9W)

  • Certification

    CE,FCC,ETL,CB

  • Environment

    RoHS, REACH

  • Controller

    Embedded

Data Sheets

extension : pdf
LG LAEC Series_Datasheet.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
