GSCD Ultra Light Series
LG GSCD069-GN Ultra Light Series

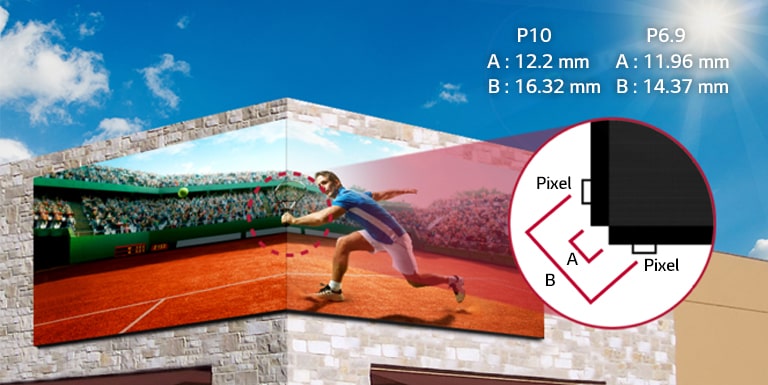

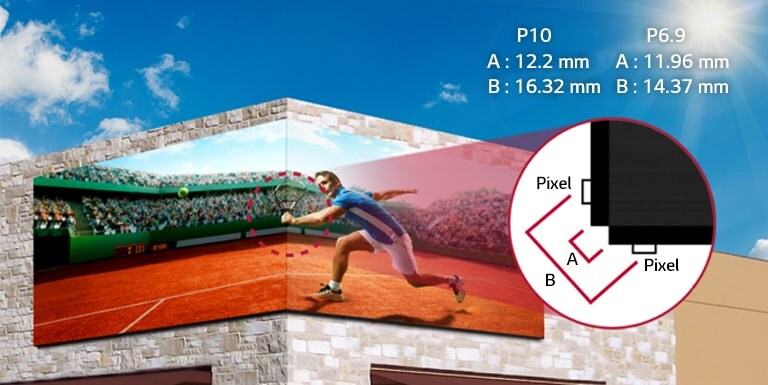

* Require purchase of 90° corner installable model.
Compatibility with
LG Software Solutions
LG GSCD069-GN Software Solutions
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

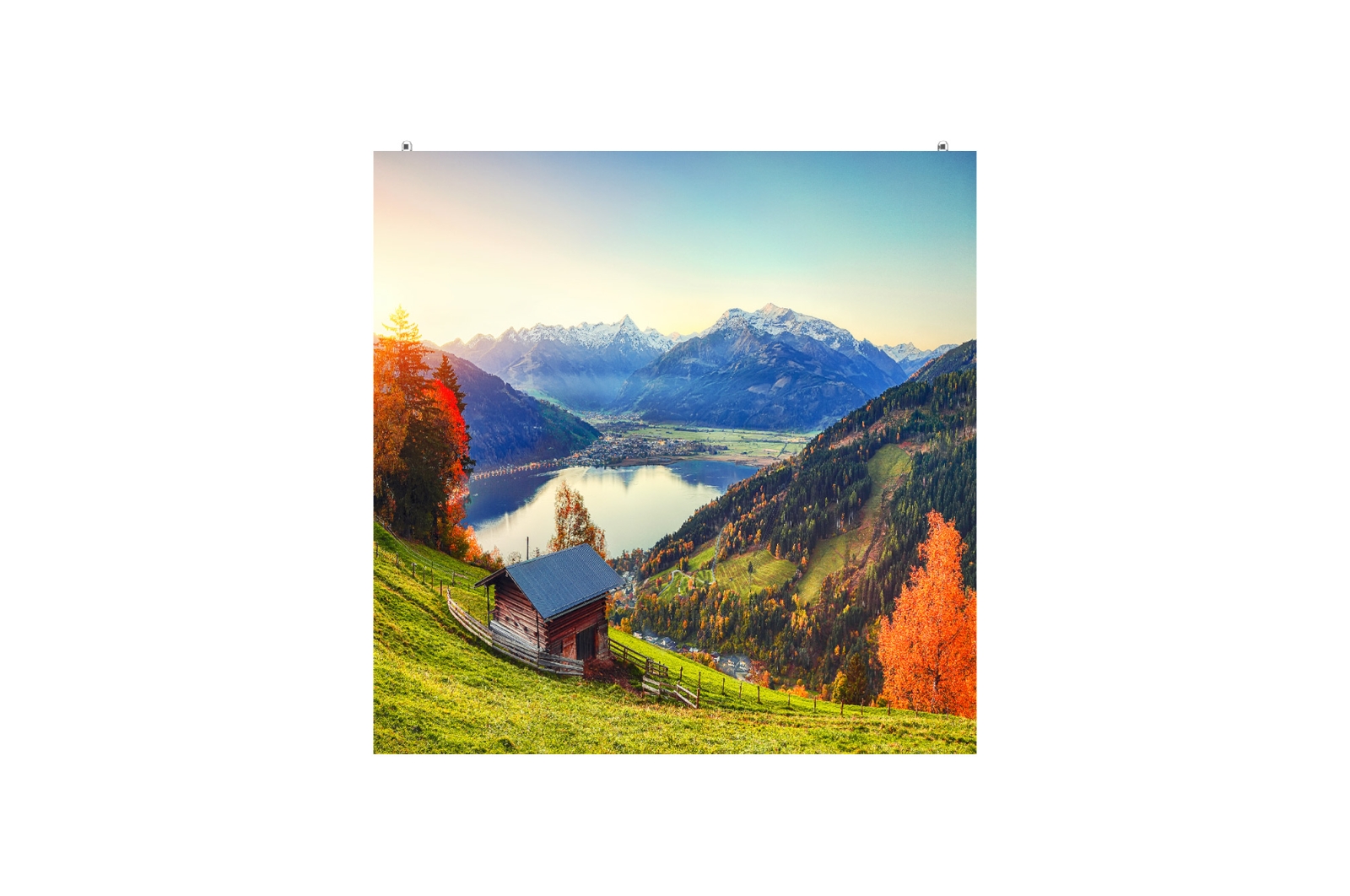

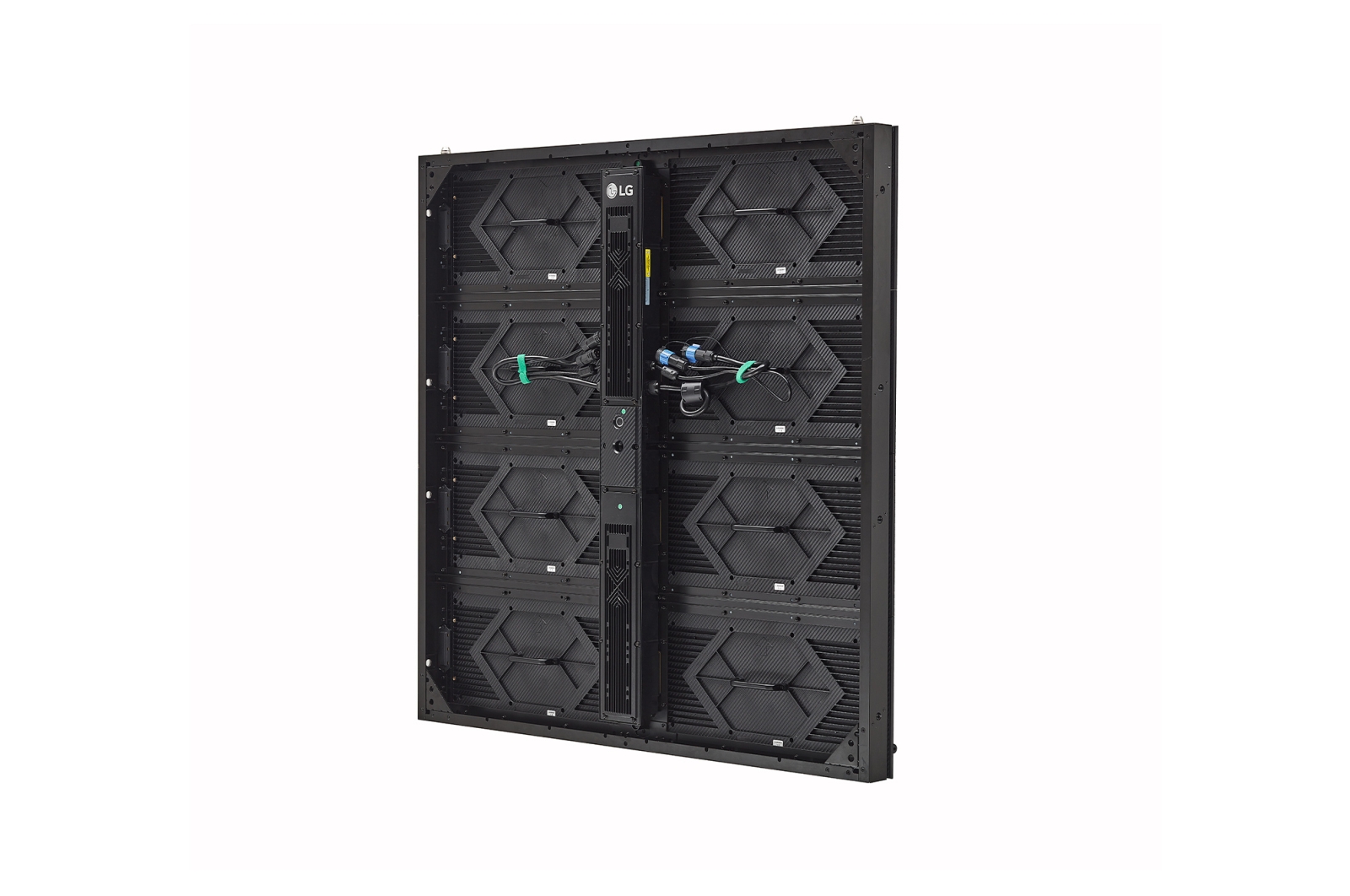

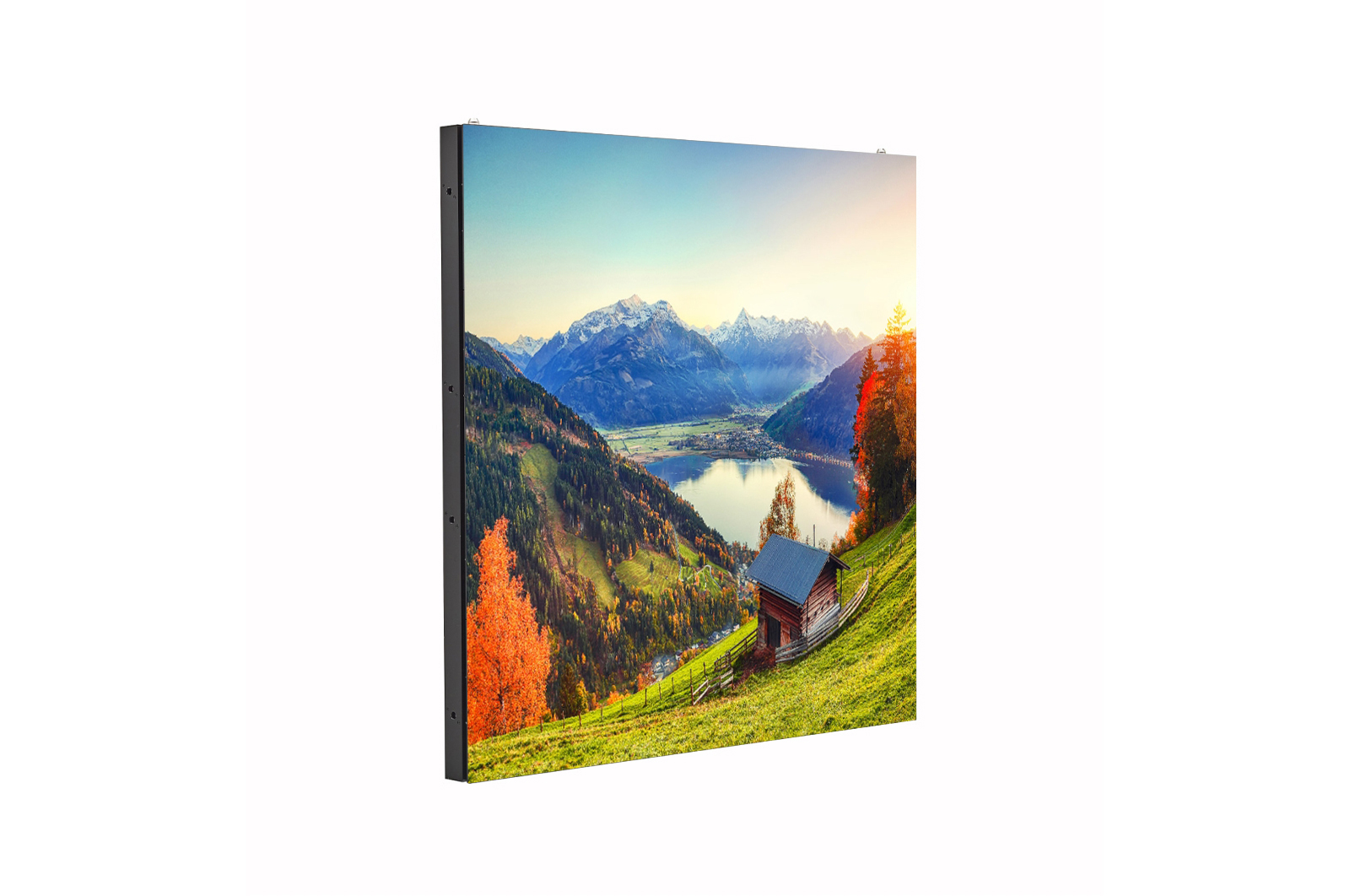

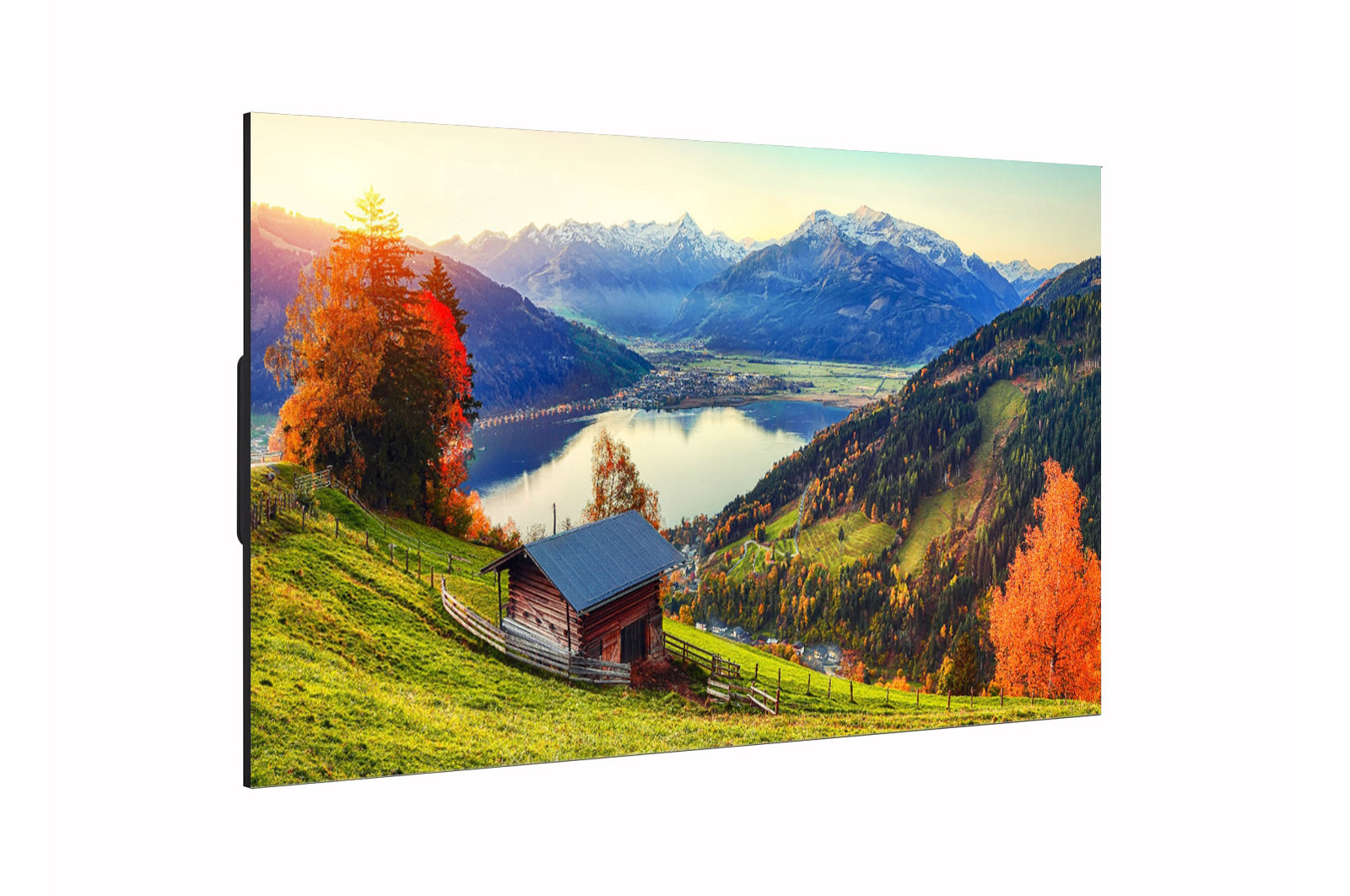

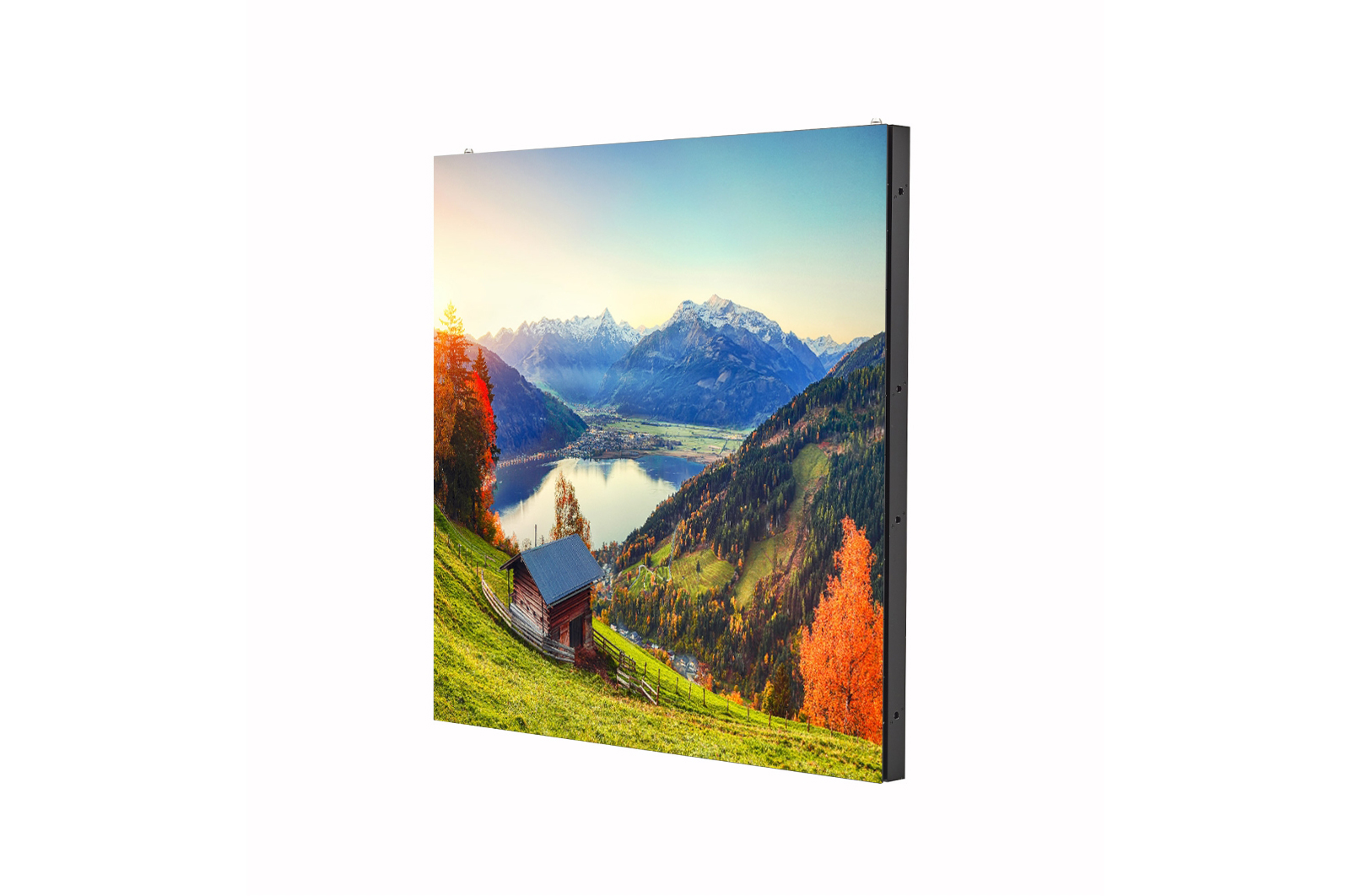

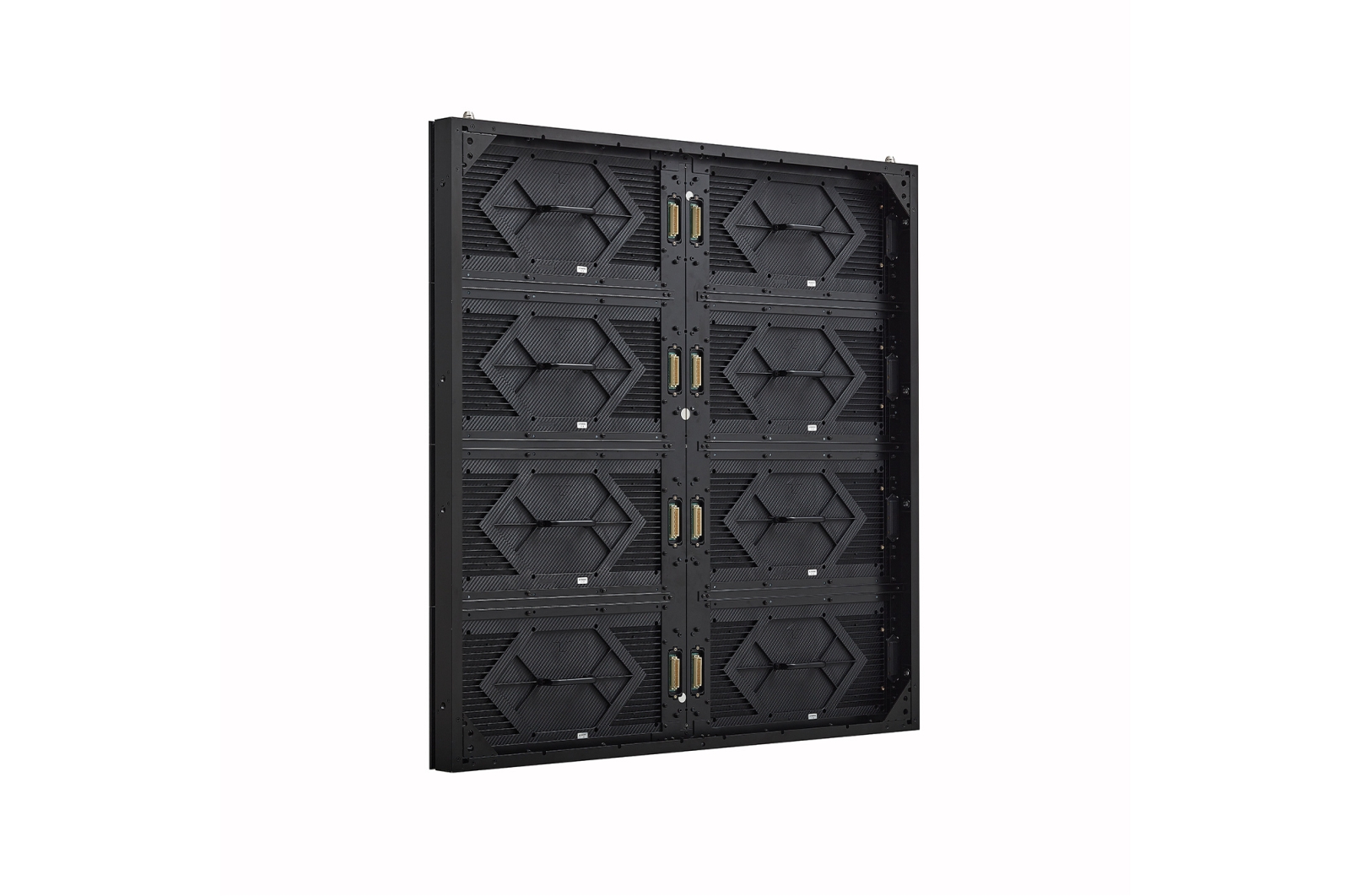

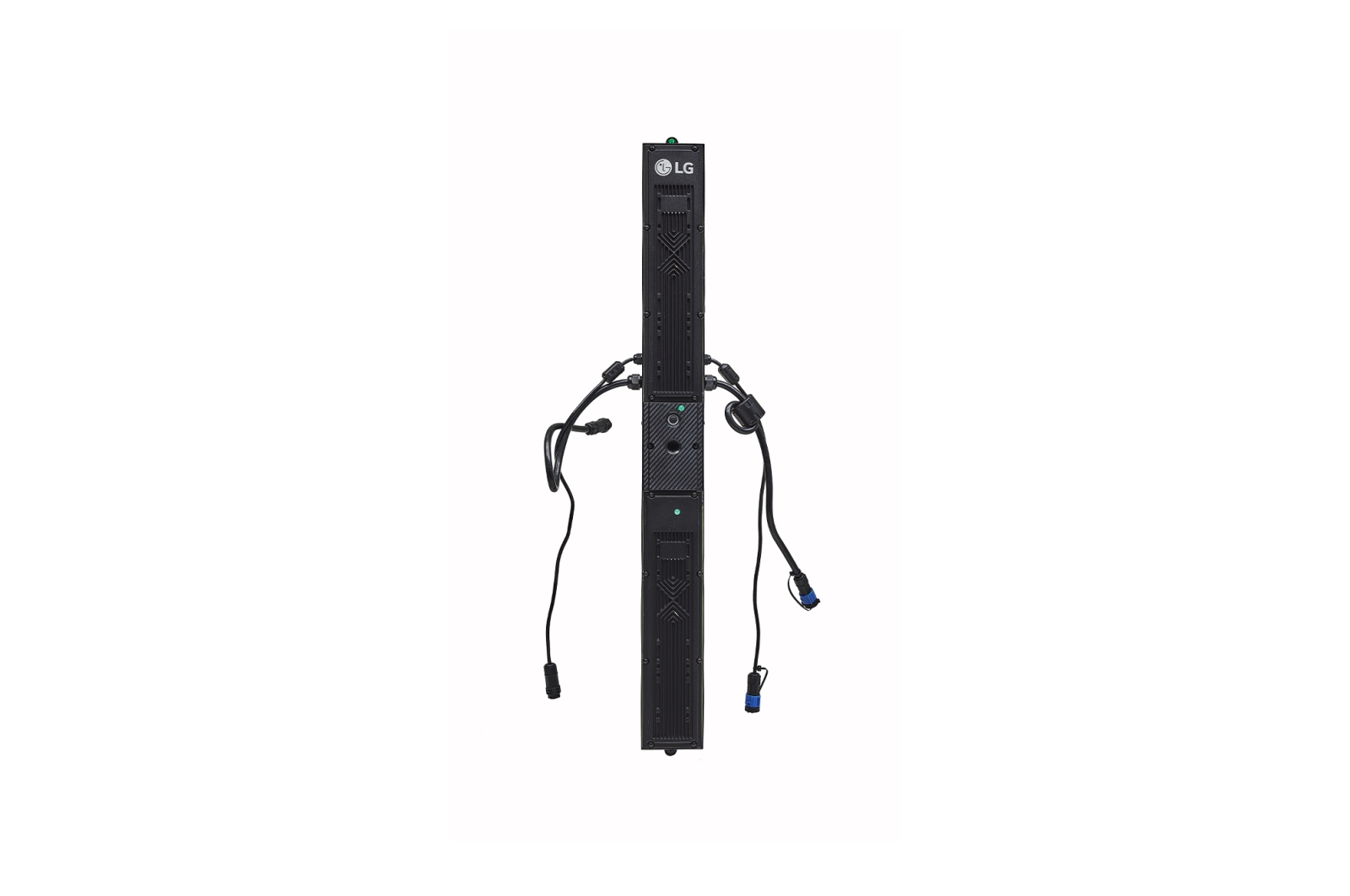

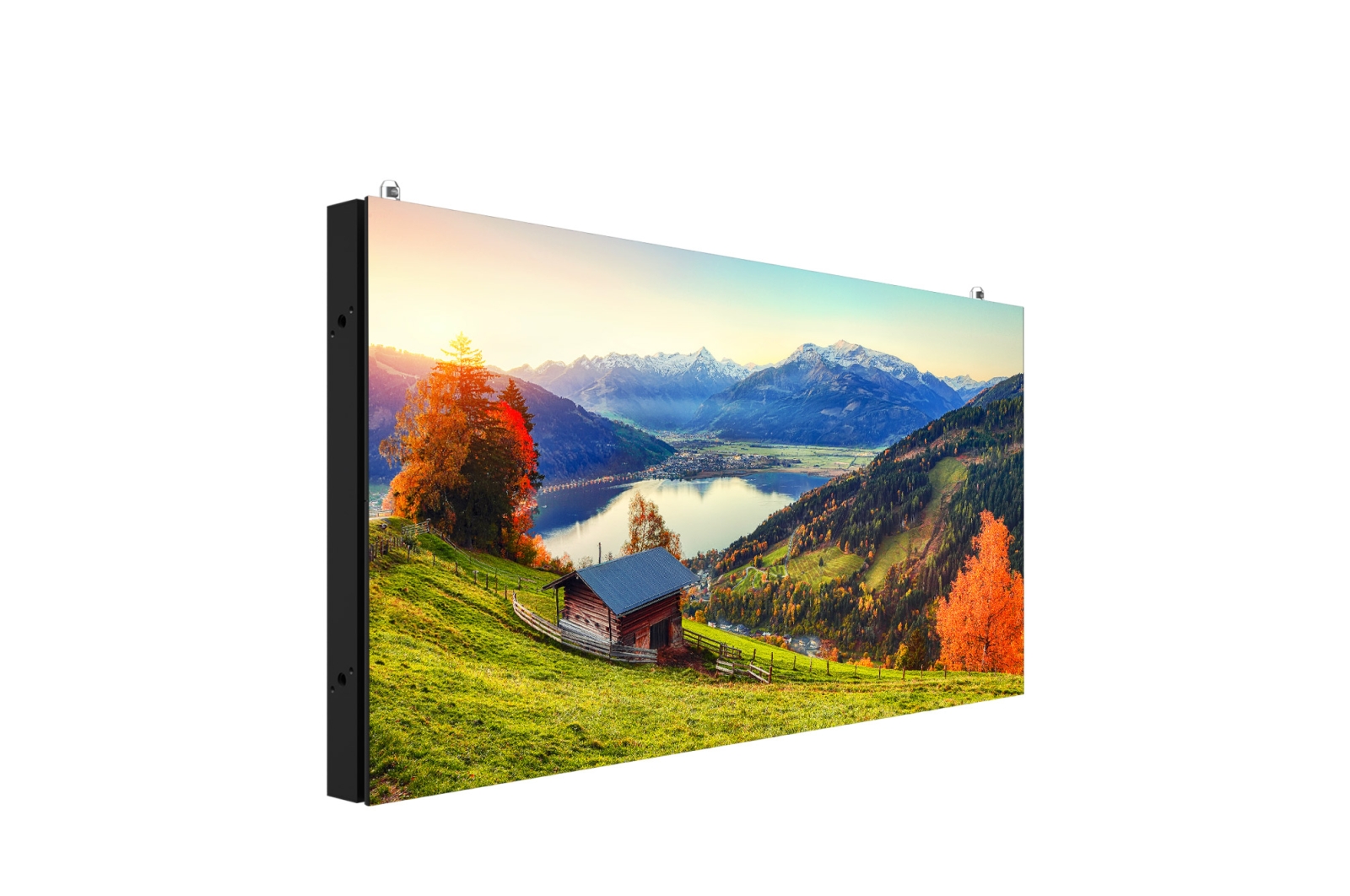

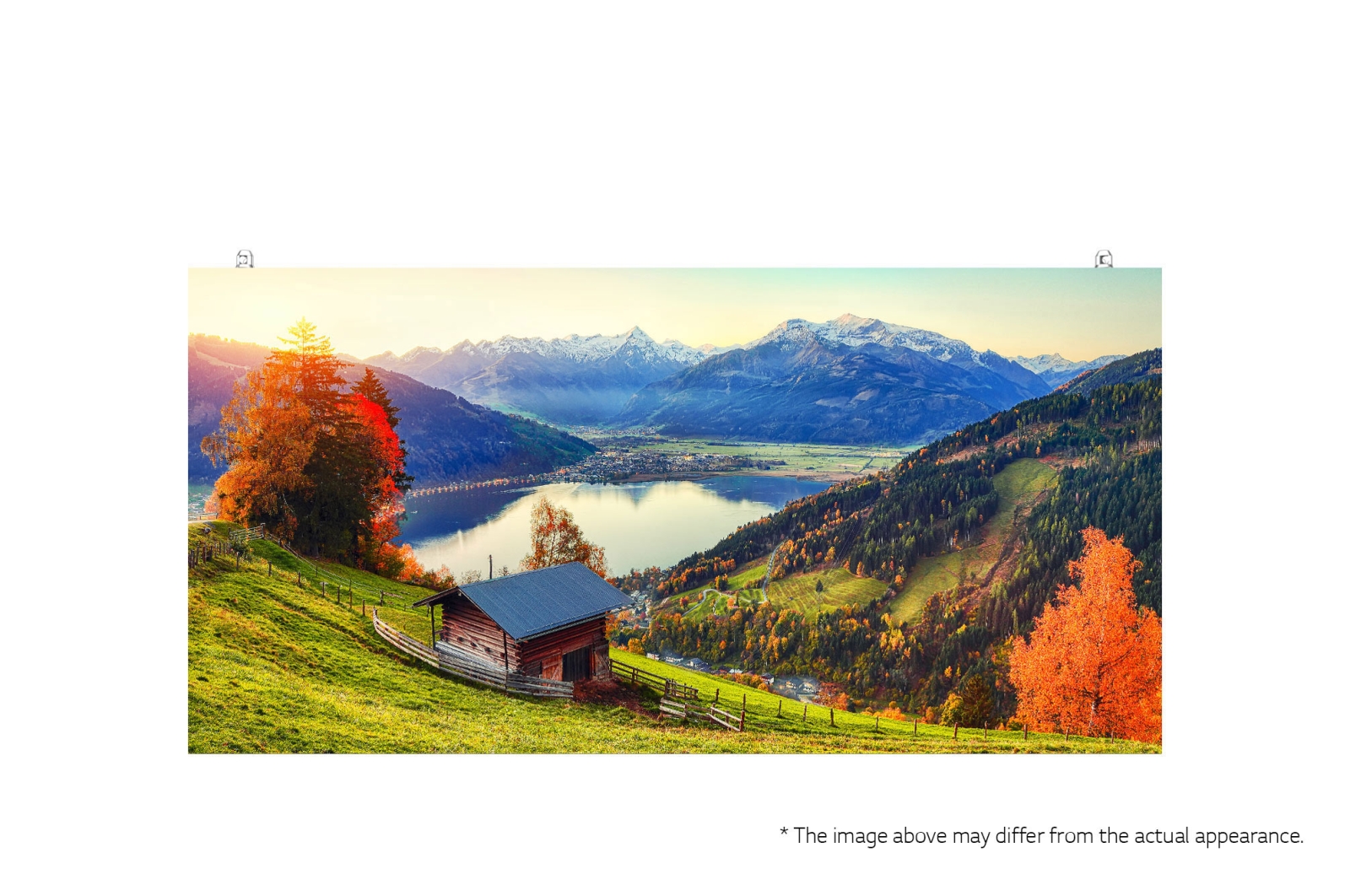

Gallery
All Spec
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD 1921
-
Pixel Pitch (mm)
6.94
-
Module Resolution (WxH)
72x36
-
Module Dimensions (WxH, mm)
500x250mm
-
Weight per Module (kg)
1.3kg
-
No. of Modules per Cabinet (WxH)
2 × 4 / 2 × 2 (Half-sized)
-
Cabinet Resolution (WxH)
144 × 144 / 144 × 72 (Half-sized)
-
Cabinet Dimensions (W x H x D, mm)
1,000 × 1,000 × 84.4 mm / 1,000 × 500 × 84.4 mm (Half-sized)
-
Cabinet Surface Area (㎡)
1.000 / 0.500 (Half-sized)
-
Weight per Cabinet (kg/unit)
18.5 / 10.4 (Half-sized)
-

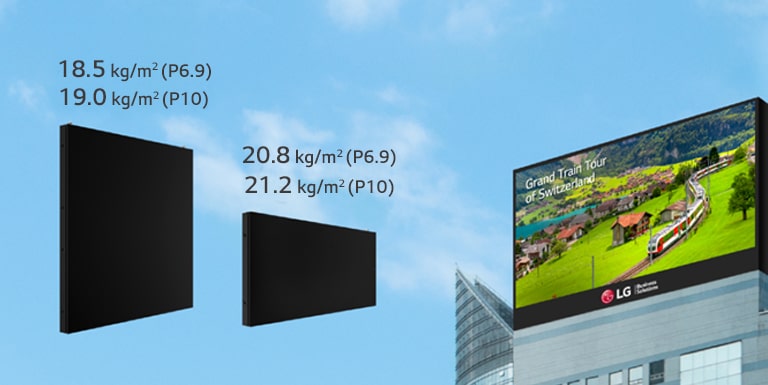

Weight per Square Meter (kg/m²)
18.5 / 20.8 (Half-sized)
-
Physical Pixel Density (pixels/m²)
20,736
-
Flatness of Cabinet (mm)
±0.5
-
Cabinet Material
Aluminum Profile
-

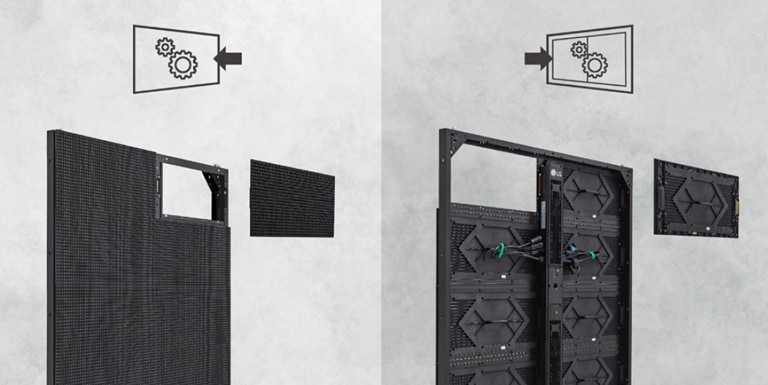

Service access
Front or Rear (One Option Only)
OPTICAL SPECIFICATIONS
-
Max. Brightness (After Calibration)
5,000
-
Color Temperature (K)
3,200-9,300
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
134
-
Brightness Uniformity
97%
-
Color Uniformity
±0.003CxCy
-
Contrast Ratio
6,000
-
Processing Depth (bit)
16
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/cabinet, Max.)
680 / 340 (Half-sized)
-
Power Consumption (W/cabinet, Avg.)
226 / 114 (Half-sized)
-
Power Consumption (W/m², Max.)
680
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
Lifetime (Hours to Half Brightness)
100,000
-
Operating Temperature(℃)
-30°C to +50°C
-
Operating Humidity
10-99%RH
-

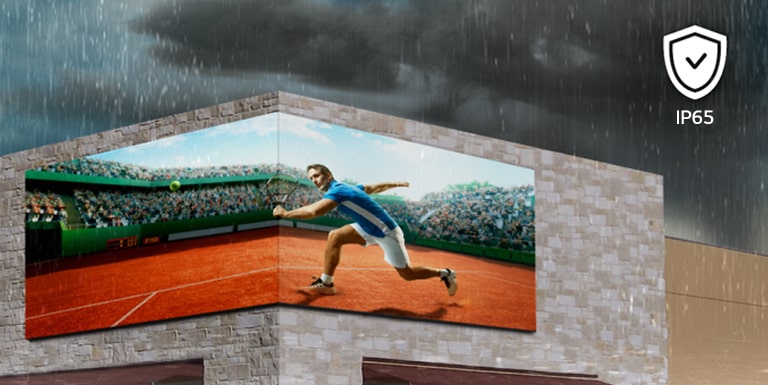

IP Rating (Front / Rear)
IP65 / IP65
CONTROLLER(CVCA)
-
Connectivity - Input
HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0
-
Connectivity - Output
Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack)
-
Connectivity - Control
RJ45 In (LAN)
-
Video - Resolution
3,840 × 2,160 @ 60Hz
-
Video - Format
RGB / YCbCr4:4:4 / YCbCr4:2:2
-
Feature
8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10
-
Software - Platform
webOS 4.0 w / Open API Support
-
Software - Setup and Maintenance
LG LED Assistant
-
Software - Content Management
LG SuperSign CMS
-
Software - Cloud Monitoring
LG ConnectedCare
-
Physical Specs - Dimensions (W × H × D, mm)
443 × 63 × 307.5 → EIA Standard Rack (2U)
-
Physical Specs - Weight (kg)
4.9
-
Power Specs - Power Supply (V)
AC 100-240 V, 50/60 Hz
-
Power Specs - Power Type
Built-in Power
-
Power Specs - Power Consumption (W)
50 (Max.)
-
Environmental Conditions - Operation Temperature
0°C to 40°C
-
Environmental Conditions - Operation Humidity
10% to 80%
-
Certifications - Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
Certifications - EMC
FCC Class "A" / CE / KC
-
