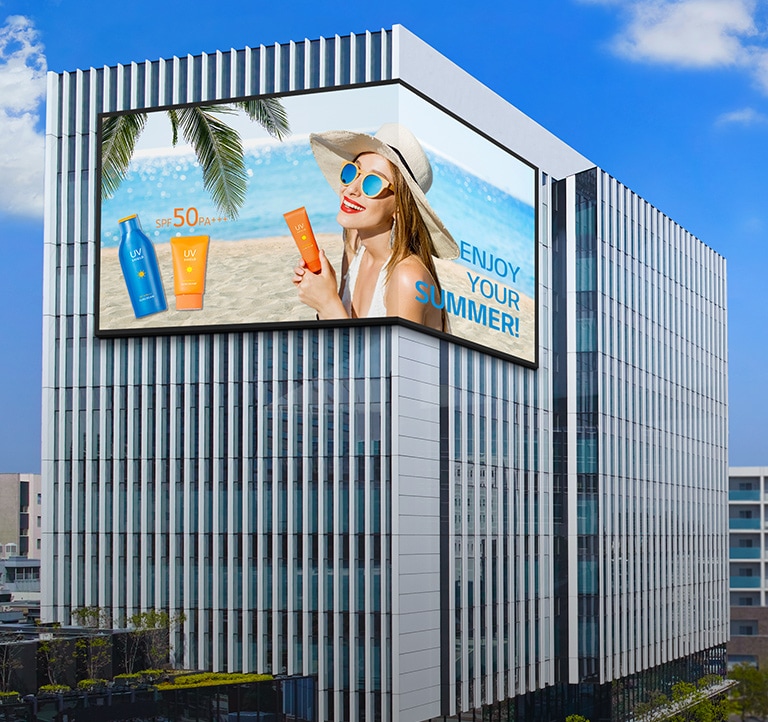

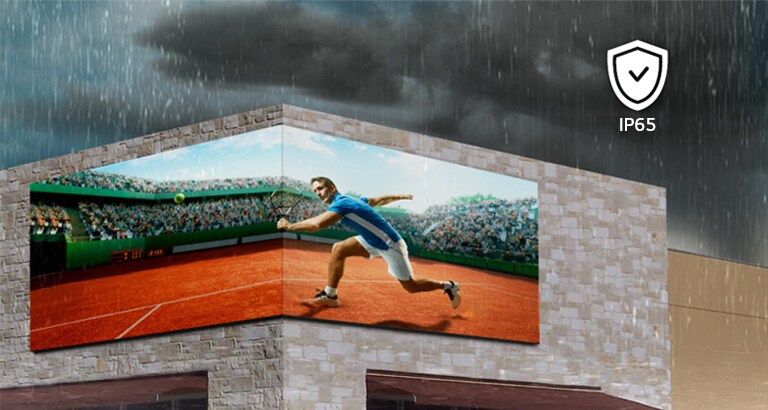

There is a LED screen installed on the corner of the building.

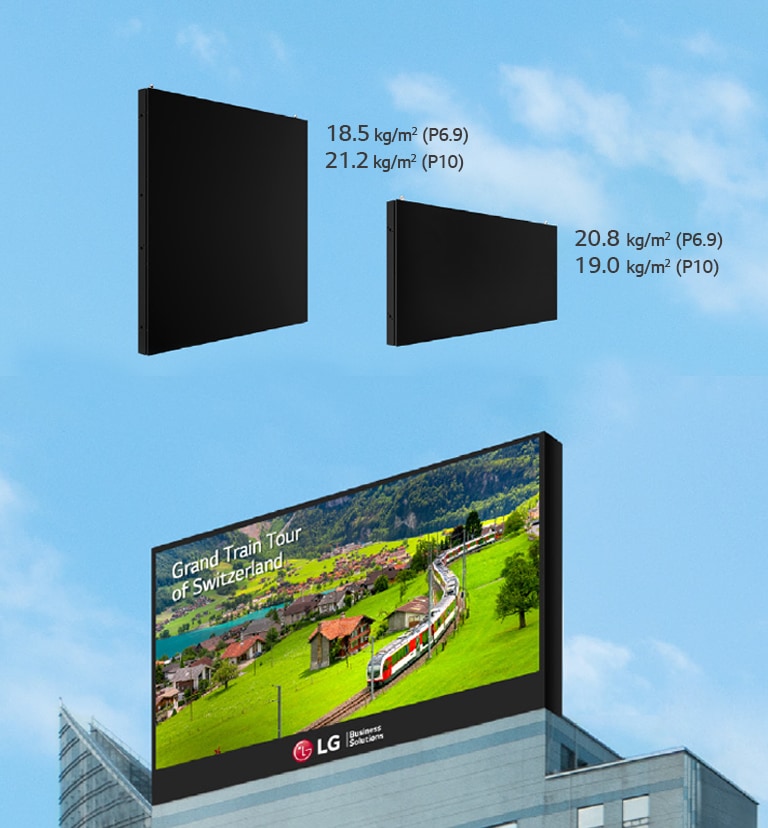

The GSCD series is installed on the roof of the building.

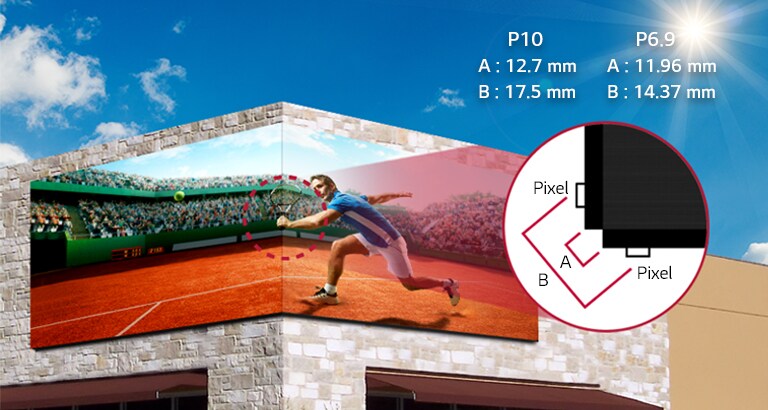

*Require purchase of 90° corner installable model.
Certification
CE, ETL, FCC
Controller
LCIN006
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
10.41
Module Resolution (W x H)
48 × 24
Module Dimensions (W x H, mm)
500 × 250
Weight per Module (kg)
1.30
No. of Modules per Cabinet (W × H)
2 × 4 / 2 × 2 (Half-sized)
Cabinet Resolution (W × H)
96 × 96 / 96 × 48 (Half-sized)
Cabinet Dimensions (W × H × D)
1,000 × 1,000 × 85.1 mm / 1,000 × 500 × 85.1 mm (Half-sized)
Cabinet Surface Area (m²)
1.000 / 0.500 (Half-sized)
Weight per Cabinet (kg/cabinet)
19.0 / 10.6 (Half-sized)
Weight per Square Meter (kg/m²)
19.0 / 21.2 (Half-sized)
Physical Pixel Density (pixels/m²)
9,216
Flatness of Cabinet
±0.5 mm
Cabinet Material
Aluminum Profile

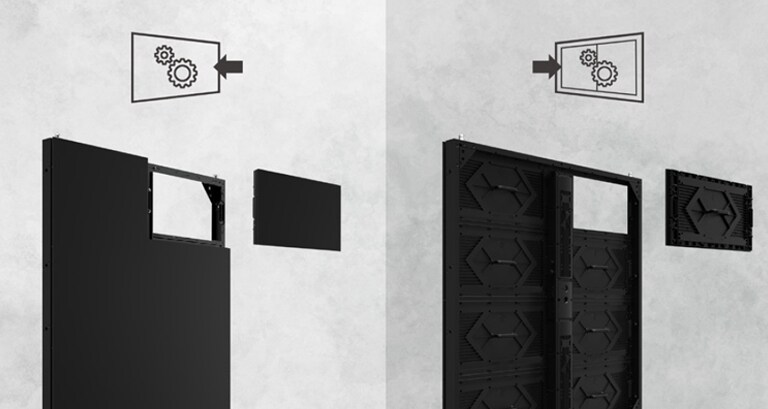

Service Access
Front or Rear (One Option Only)
Min. Brightness (After Calibration)
5,000
Color Temperature
3,500 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
136
Brightness Uniformity
97%
Color Uniformity
± 0.003 Cx,Cy
Contrast Ratio
10,000
Processing Depth (bit)
16
Power Consumption (W/cabinet, Max.)
650 / 330 (Half-sized)
Power Consumption (W/cabinet, Avg.)
216 / 110 (Half-sized)
Power Consumption (W/m², Max.)
650 / 660 (Half-sized)
Power Consumption (BTU/h/cabinet, Max.)
2218 / 1126 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)
737 / 375 (Half-sized)
Power Consumption (BTU/h/m², Max.)
2218 / 2252 (Half-sized)
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-30℃ to +45℃
Operating Humidity
10-99%RH
IP rating Front / Rear
IP65 / IP65
Environment
RoHS
