All Spec

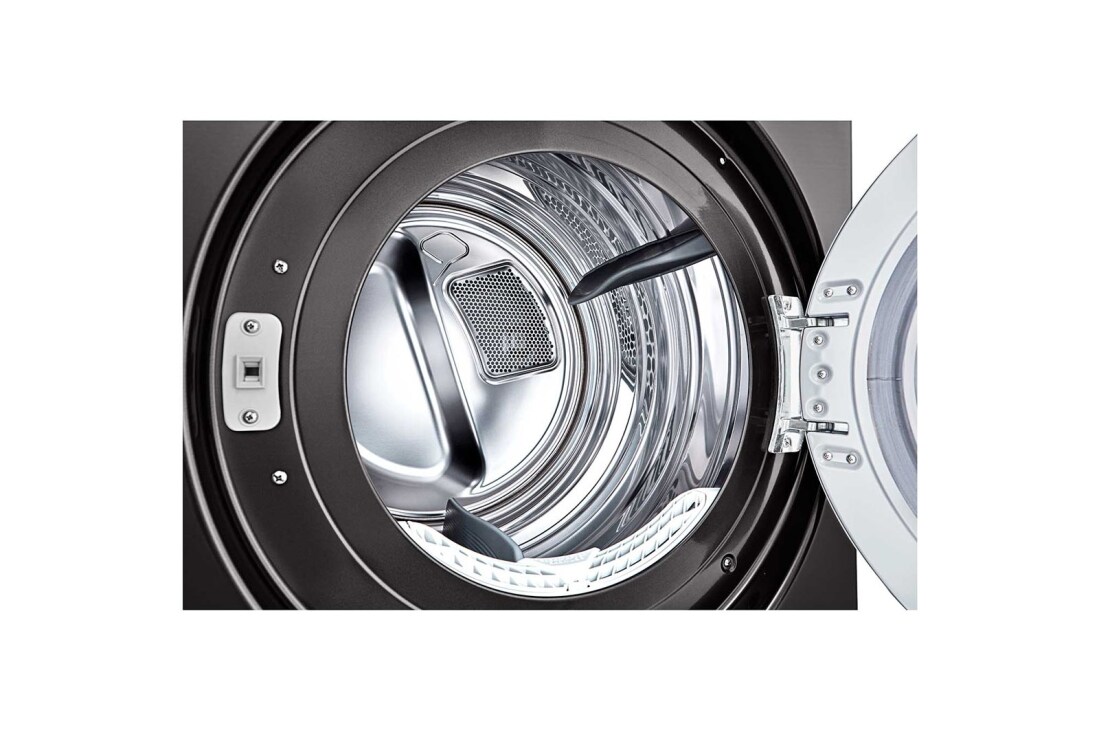

CYLINDER
-
Drum Volume - cu.ft (l)
-
9.0 (254)
-
Diameter - in. (mm)
-
28.2 (716)
-
Depth - in. (mm)
-
24.2 (614)
DIMENSIONS
-
Product (WxHxD) - in
-
29 x 40.2 x 31.9
-
Product (WxHxD) - mm
-
737 x 1,022 x 810
-
With Door Open - in. (mm)
-
51.6 (1310)
-
Carton (WxHxD) - in
-
31.5 x 45.6 x 33.8
-
Carton (WxHxD) - mm
-
800 x 1158x 858
-
Weight (Product/Carton) - lb (kg)
-
150 (68.2) / 167 (75.8)
RATING⁰⁾
-
Electric Ratings-V/Hz/A
-
220/60/5
CONSUMPTION INDEX(PER CYCLE)⁰⁾
-
Electricity-kW
-
0.35
SYSTEM & CONTROL
-
Heating Type
-
LPG
-
Type of Drying
-
Ventilation
-
Air Flow - CFM
-
210
-
Gas Ratings⁰⁾-kW/BTU
-
7.4 / 25,000
-
Motor - kW
-
0.35
-
"Program Duratin inMinutes(Default)⁰⁾"-min
-
40
CONNECTIONS
-
Air Outlet Diameter - in. (mm)
-
4 (100)
-
Exhaust Airflow Diameter - in. (mm)
-
4 (100)
PROGRAMS
-
Program List
-
High Temp
Med Temp
Low Temp
Extra Dry
EXTERNAL FINISH
-
Drum
-
Stainless Steel
DISCLAIMER
-
Disclaimer
-
*Dimensions and weights are approximate.
*Design, features, and specifications subject to change without notice.
*Some models may not be available for sale in certain countries.
*Model name may vary by country
0) This specification is different by countries. For the most accurate information, please refer to service manual.
1) Gas type depends on country sales model.
