24 cu. ft. Smart InstaView® Refrigerator with Craft Ice™ Maker

Specs

Reviews

Support

24 cu. ft. Smart InstaView® Refrigerator with Craft Ice™ Maker

LRFVS2503S

24 cu. ft. Smart InstaView® Refrigerator with Craft Ice™ Maker

(1)

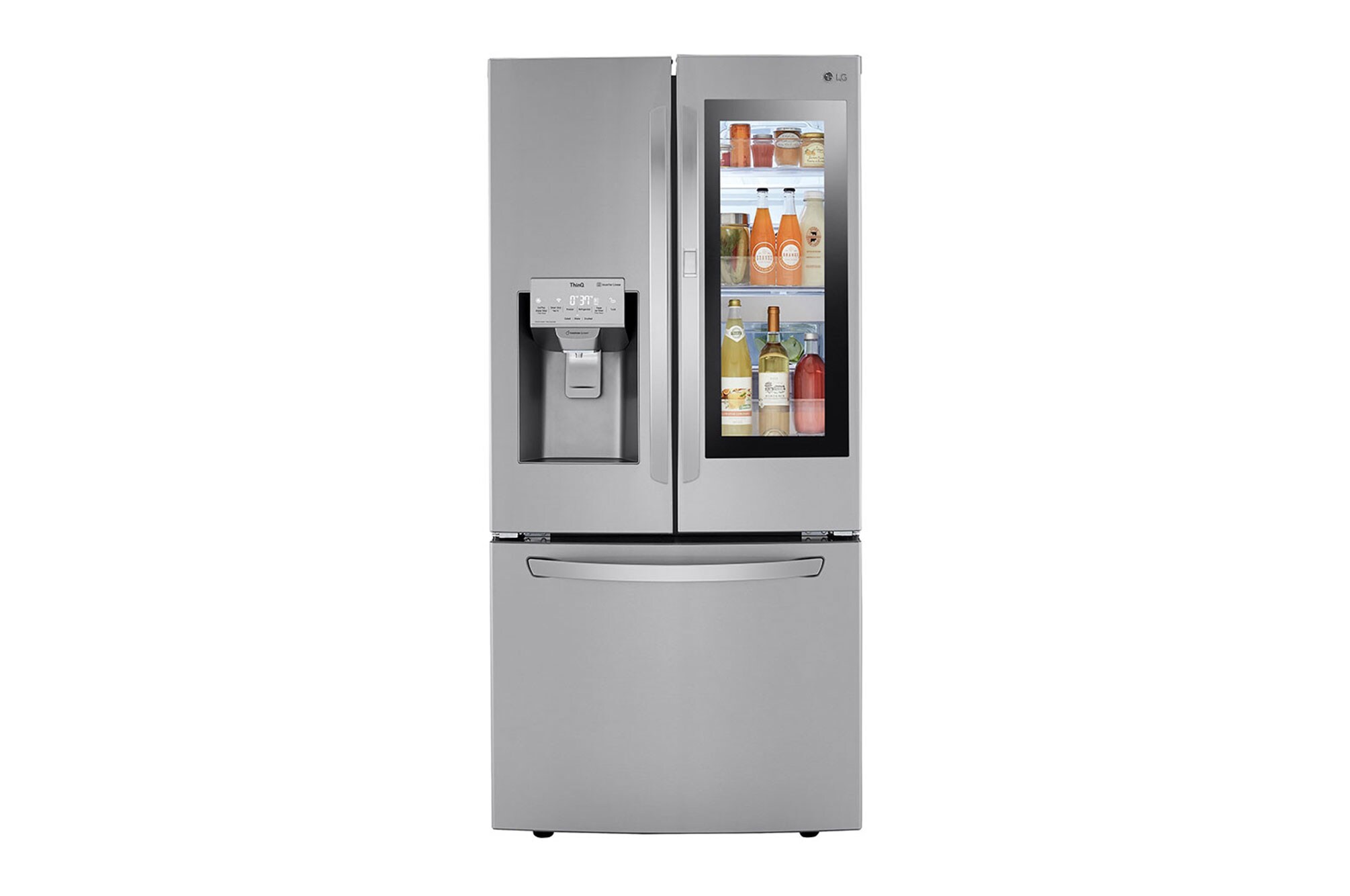

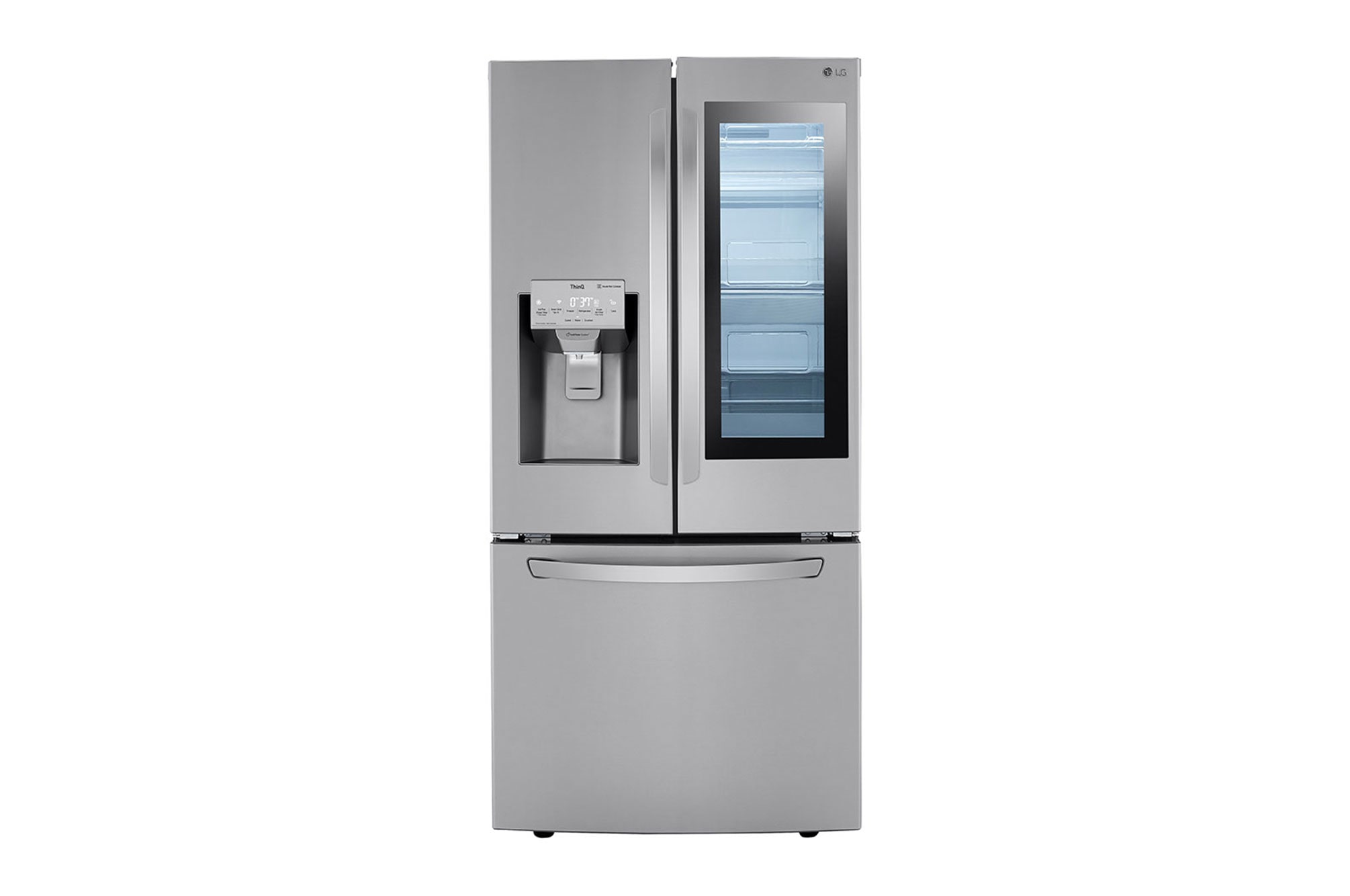

Front view

SUMMARY

Print

DIMENSIONS

LRFVS2503S
CAPACITY
LG
MEASUREMENTS (WxHxD)
32 2/4" x 69 7/8" x 35 3/8"
InstaView®
Yes
ThinQ®
Yes

All Spec

BASIC SPEC

  • Brand

    LG

  • Product Type

    French Door

  • Width

    33"

  • Depth

    Standard Depth

CAPACITY

  • Refrigerator (cu.ft.)

    16.2

  • Freezer (cu. Ft.)

    8.2

  • Total Capacity (cu. ft.)

    24.4

ENERGY

  • ENERGY STAR® Qualified

    Yes

  • Energy Consumption (kWh/year)

    725

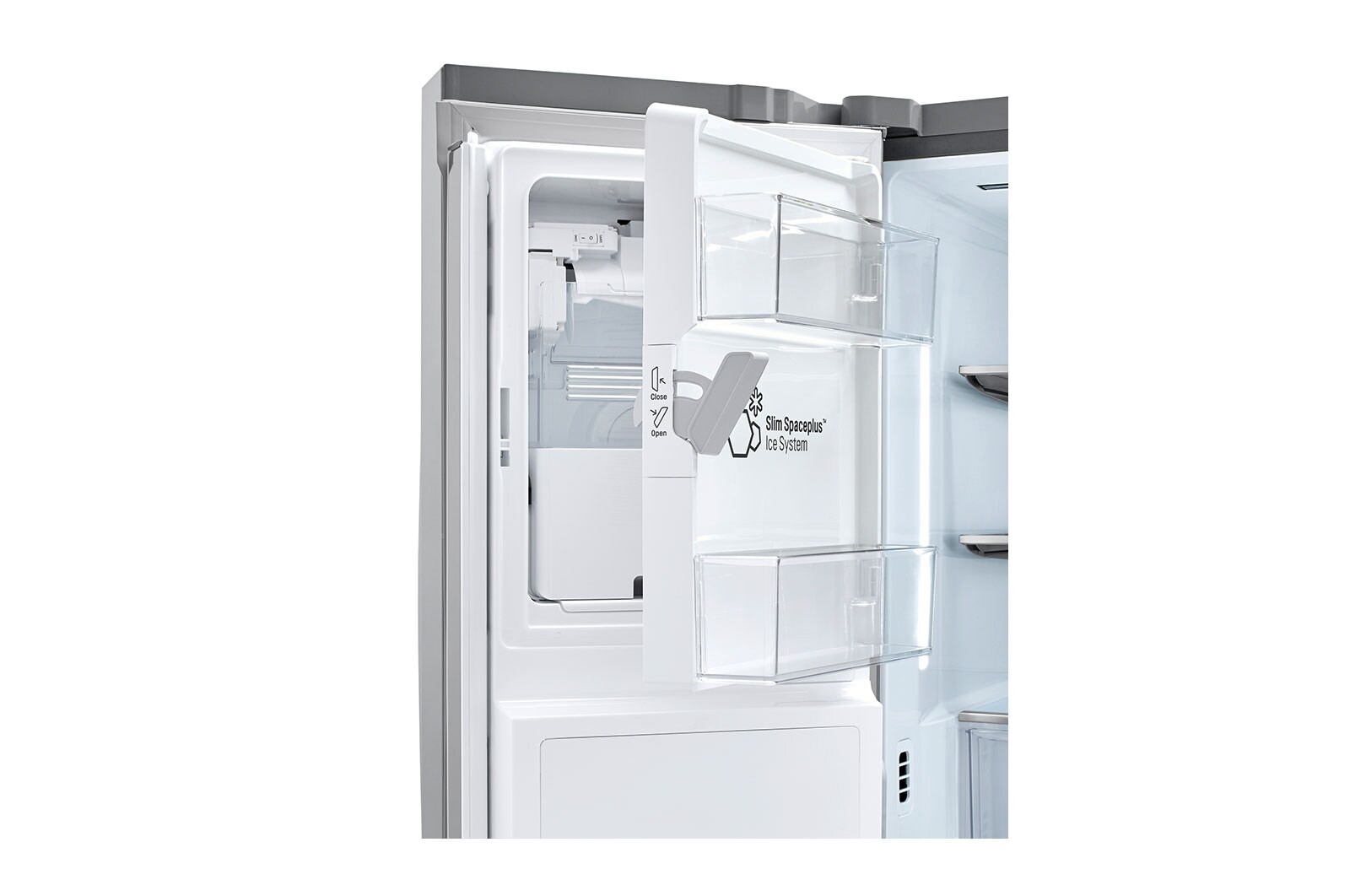

WATER & ICE SYSTEM

  • Craft Ice

    Yes

  • Dual Ice Maker

    Yes

  • Dispenser Ice maker type

    Cube & Crushed Ice

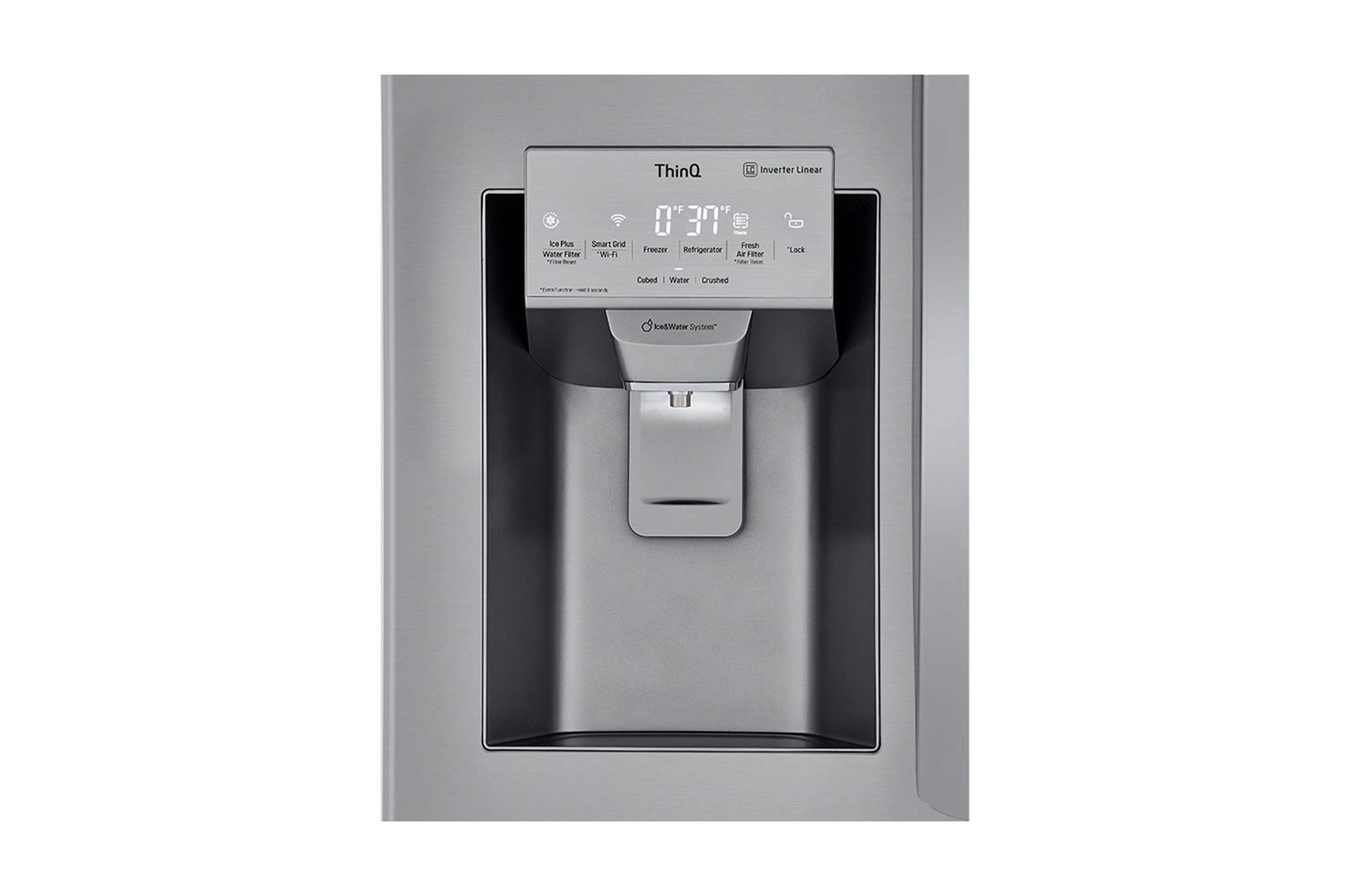

  • Ice & Water Dispenser

    External

  • Ice Plus

    Yes

  • No. Freezer Ice maker

    1

  • Freezer Ice maker

    Yes (Craft Ice)

  • Freezer Ice bin

    Yes

  • Freezer Ice maker Daily production (lbs.)

    2.3 / 3.0 (IcePlus)

  • Freezer Ice maker Ice Type

    Cubed & Craft

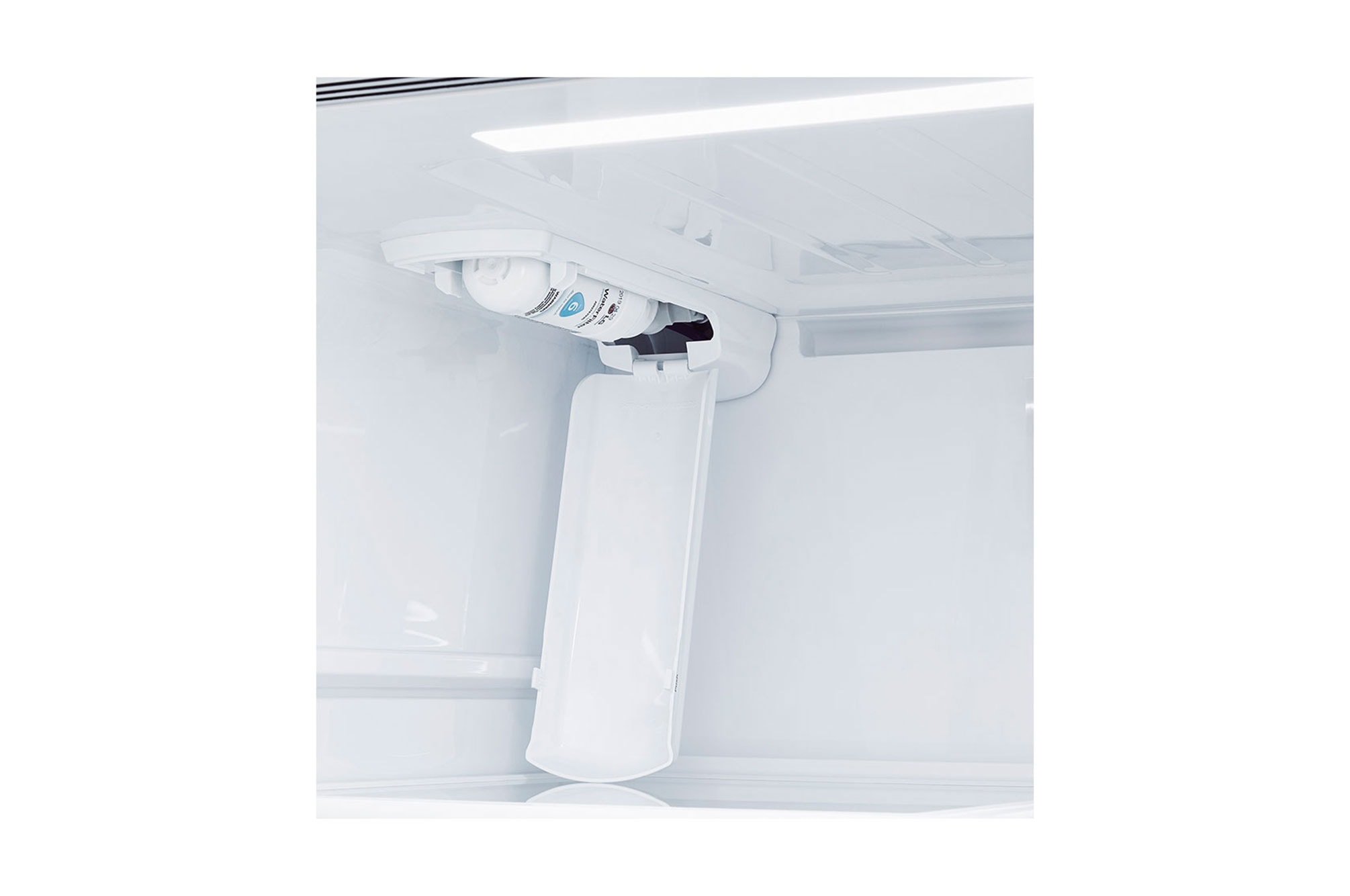

  • Filter

    LT1000P

COOLING

  • Compressor Type

    Smart Inverter

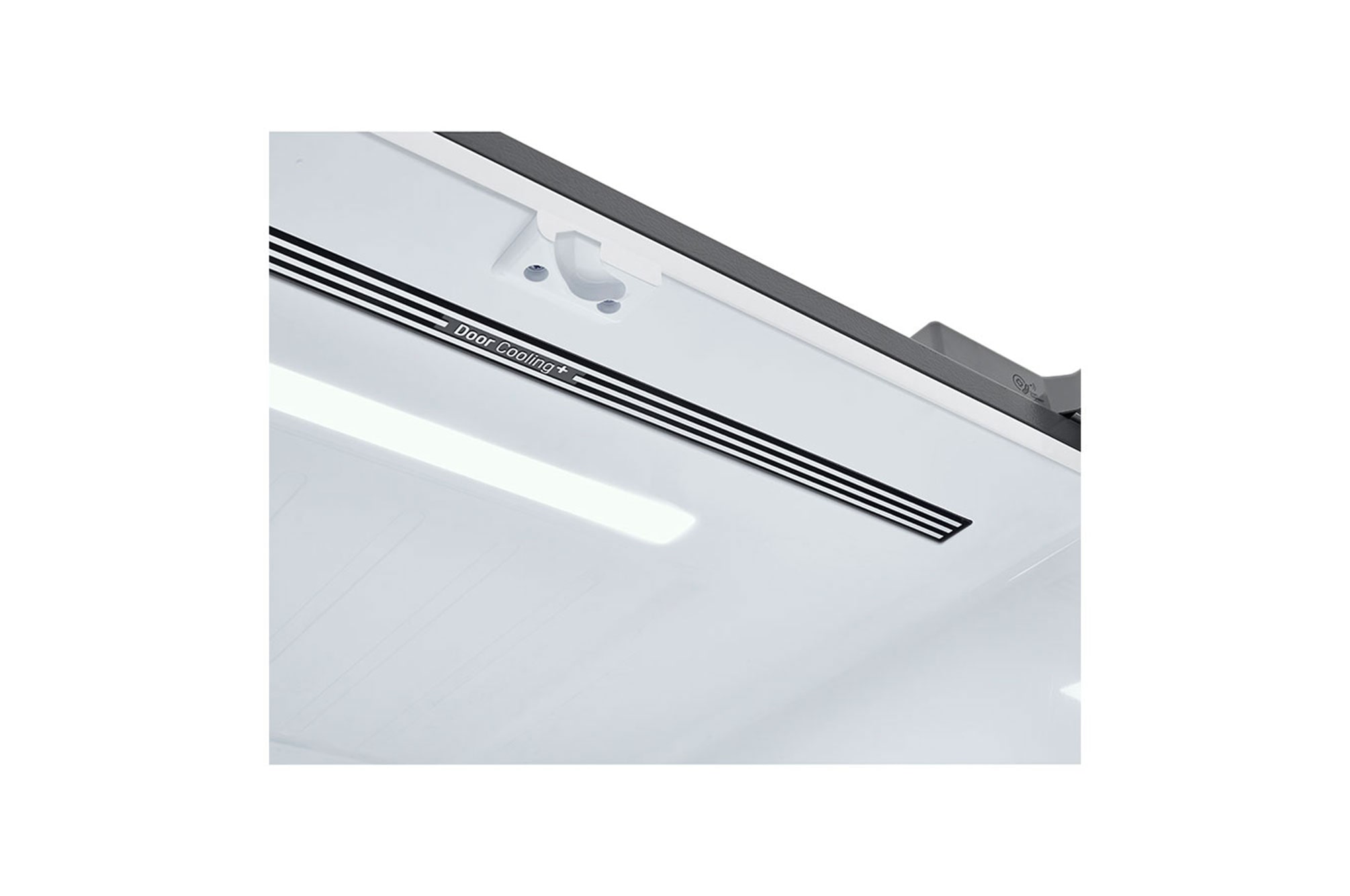

  • Door Cooling+

    Yes

  • Evaporator

    Yes

  • Multi Air Flow Cooling:

    Yes

CONVENIENCE

  • Display Type

    Smooth Touch Control / White LED

  • Temperature Controls

    Electronic/Digital

  • Door Alarm

    Yes

  • Child Lock

    Yes

  • Auto Closing Door Hinge

    Yes

  • ADA Compliant

    Yes

REFRIGERATOR

  • No. of Shelves

    4 Split (3 Fixed + 1 Folding)

  • Folding Shelf

    Yes

  • Shelf Construction

    Spill protector/Tempered glass

  • Shelf Trim

    White decor

  • No. of Crisper Bins

    2

  • Pantry (Glide N’ Serve)

    Yes

  • CoolGuard™

    Yes

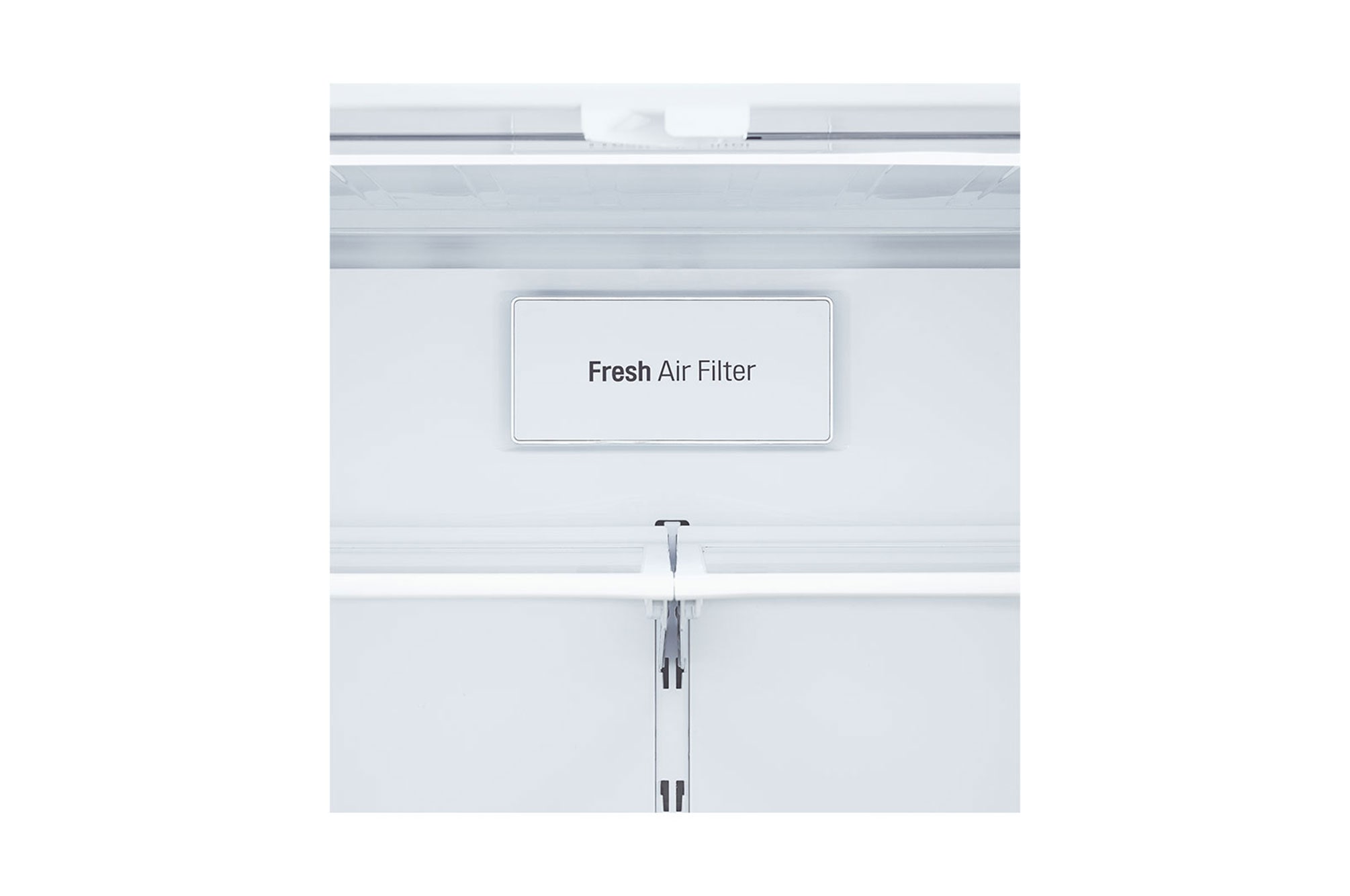

  • Fresh Air Filter

    Yes

  • Dispenser Light

    Yes

REFRIGERATOR DOOR

  • InstaView®

    Yes

  • Door-in-Door®

    Yes

  • No. of Door Bins

    3 (left door)/4 (right door)

  • Door Shape

    Flat

  • Handle Type

    Bar

FREEZER

  • Door Type

    Pull Drawer

  • Handle Type

    SmartPull™ Handle

  • Drawers/Shelves

    2-Tier Organization

  • Divider

    Yes

  • Freezer Light Upper

    Yes

SMART TECHNOLOGY

  • Smart Diagnosis

    Yes

  • Wi-Fi Enabled

    Yes

  • ThinQ®

    Yes

MATERIALS AND FINISHES

  • Hidden Hinges

    Yes

  • All Available Colours

    Smudge Resistant Stainless Steel

  • Smudge Resistant

    Yes

DIMENSIONS/CLEARANCES/WEIGHTS

  • Width

    32 3/4"

  • Product (W x H x D)

    32 2/4" x 69 7/8" x 35 3/8"

  • Height (to Top of Hinge)

    69 7/8"

  • Depth (with Handles)

    35 3/8"

  • Width (Door Open 90 ̊ without Handle)

    38"

  • Width (Door Open 90 ̊ with Handle)

    42"

  • Width (Door Fully Open without Handle)

    54"

  • Height (to Top of Case)

    68 1/2"

  • Depth without Door

    29 1/2"

  • Depth without Handles

    33 1/4"

  • Depth (to Hinge Cover)

    29 1/2"

  • Depth (Total with Door Open)

    46 5/8"

  • Installation Clearance Sides

    Back 2"

  • Carton Dimensions (WxHxD)

    35” x 73” x 38”

  • Weight (Unit/Carton)

    300 lbs. / 318 lbs.

  • Carton Dimensions (WxHxD)

    33 4/5" x 36 2/5" x 70 4/5"

LIMITED WARRANTY

  • Parts & Labour

    1 Year

  • Sealed System (Parts only)

    7 Years

  • Compressor (Parts Only)

    10 Years

UPC CODES

  • LRFVS2503S (Smudge Resistant Stainless Steel)

    195174045480
