31 cu.ft. Smart Mirror InstaView® Door-in-Door® Refrigerator with Four Types of Ice

Features

Gallery

Specs

Reviews

Where to Buy

Support

31 cu.ft. Smart Mirror InstaView® Door-in-Door® Refrigerator with Four Types of Ice

LRYKS3106S

31 cu.ft. Smart Mirror InstaView® Door-in-Door® Refrigerator with Four Types of Ice

(1)

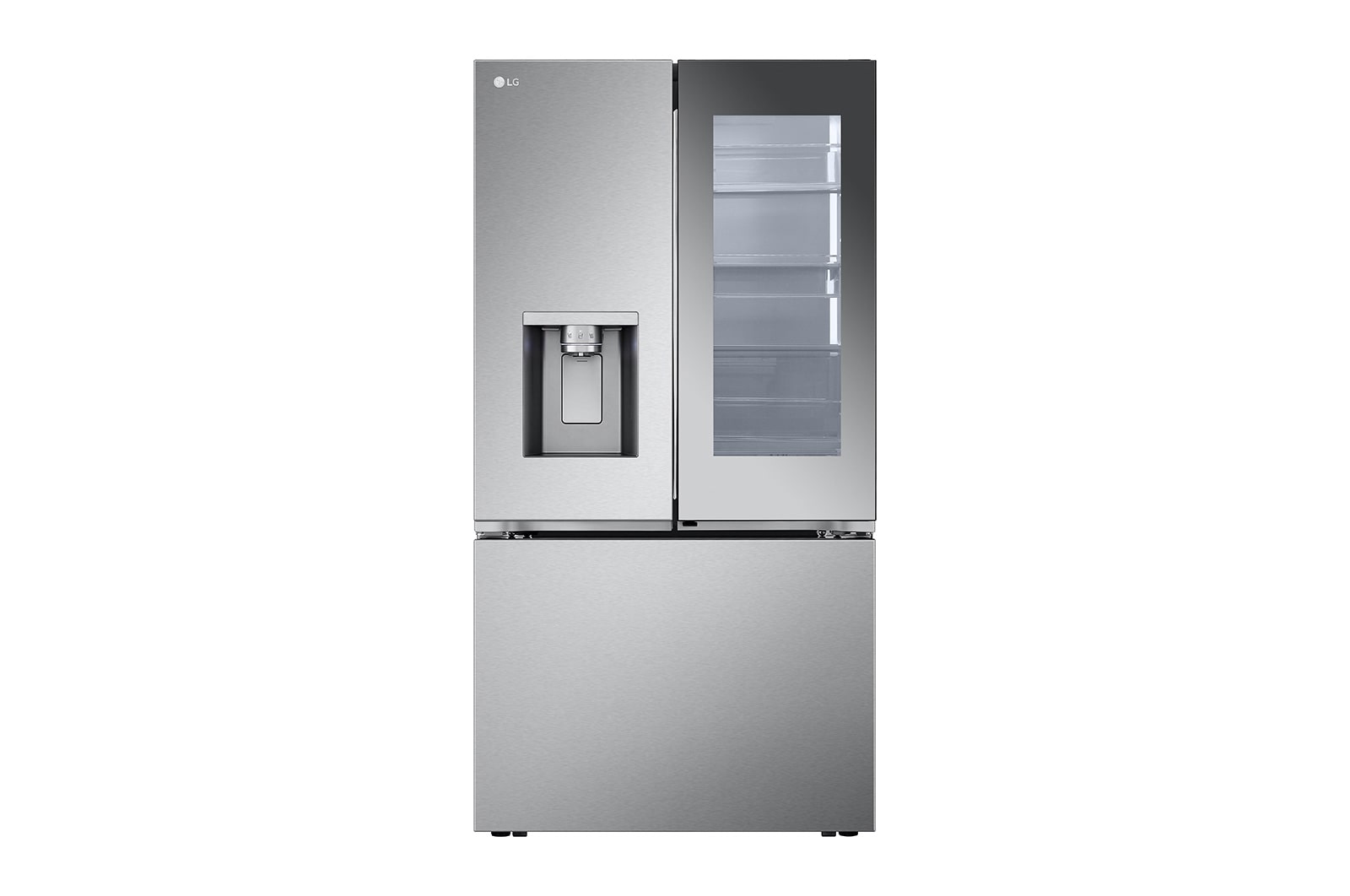

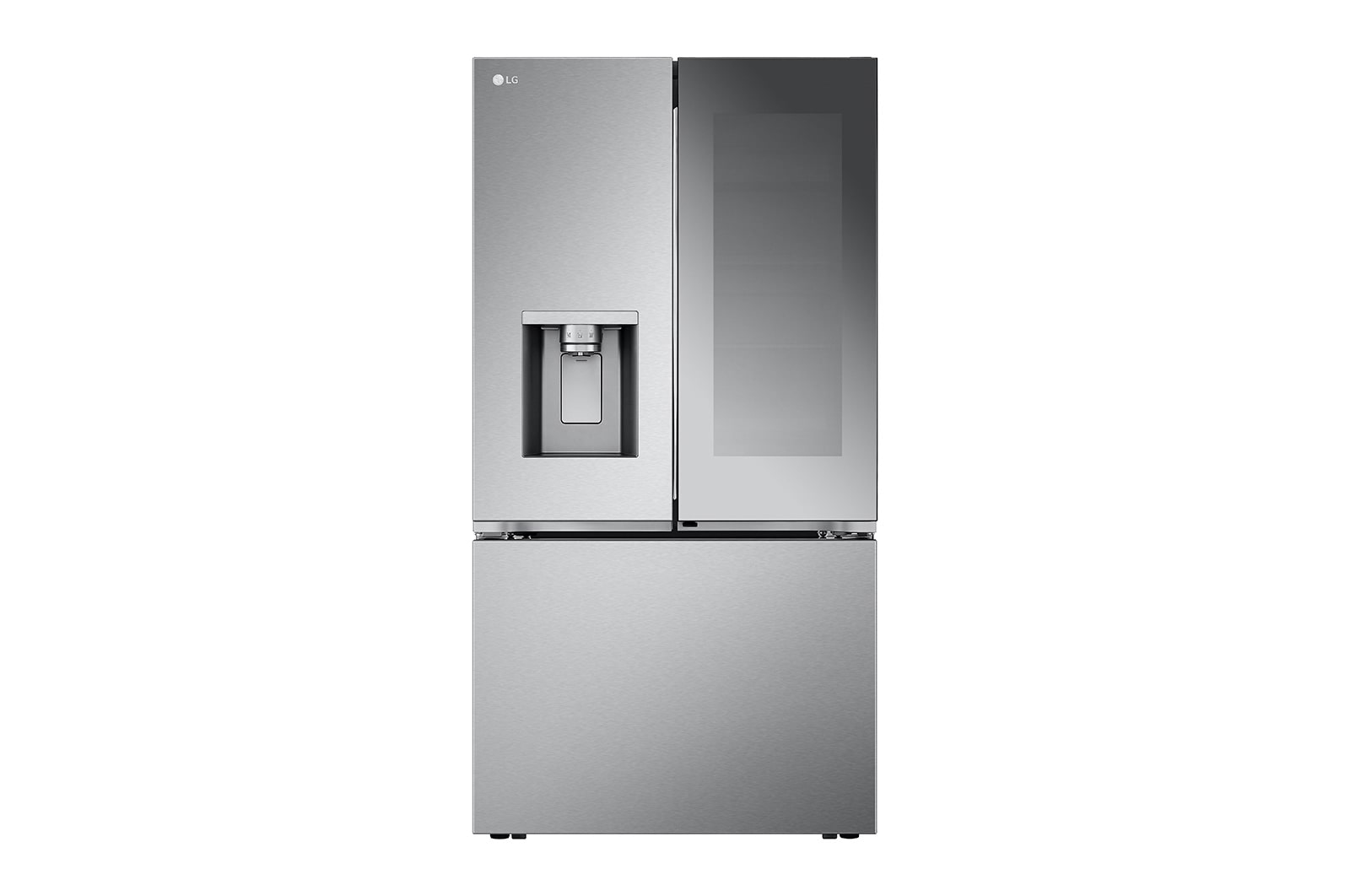

LRYKS3106S-front view

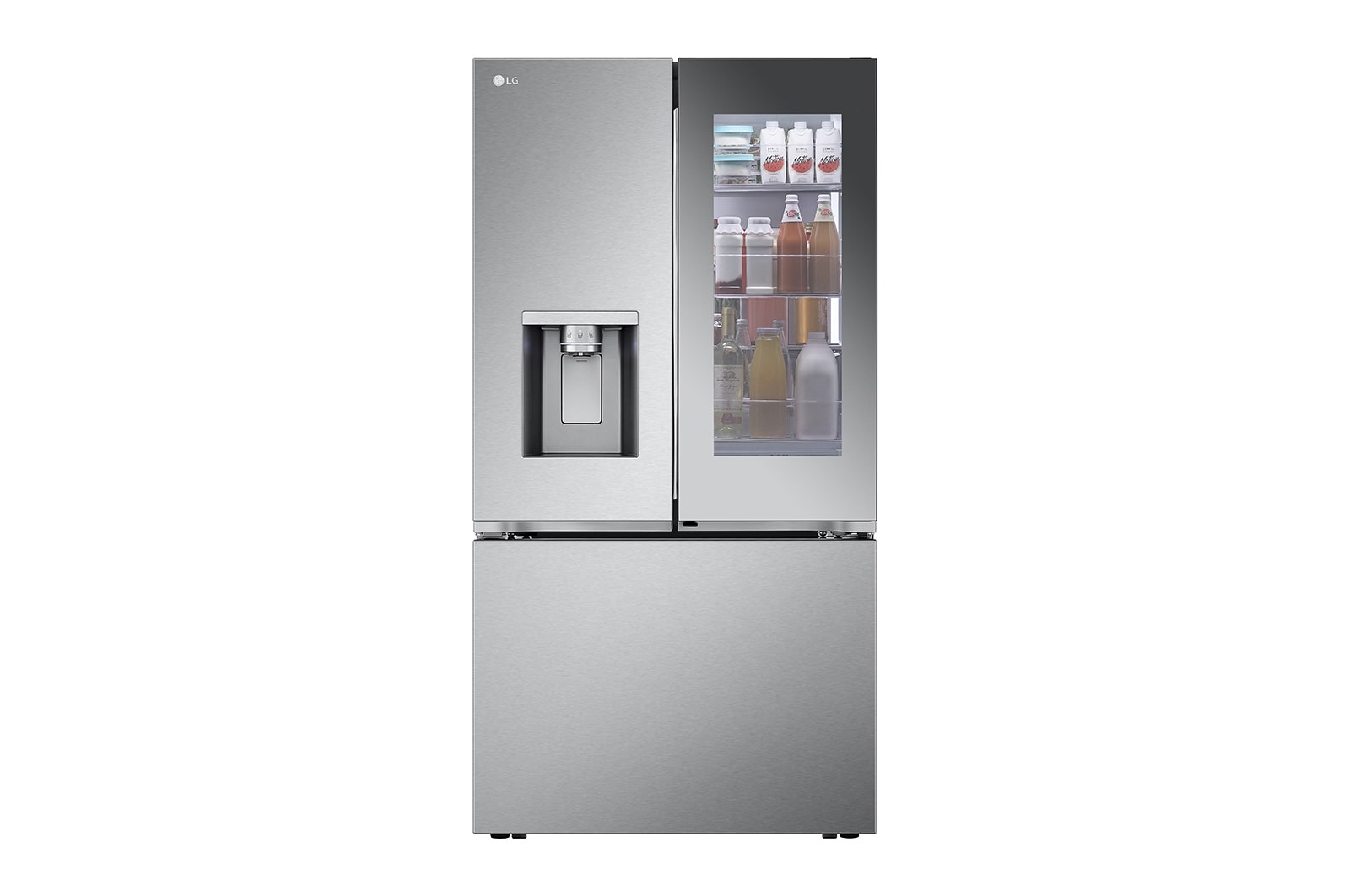

Knock Twice to See Inside

Simply knock twice on the mirror to see inside the refrigerator and illuminate the contents within—with a sleek new frameless mirror design that lets you see more.

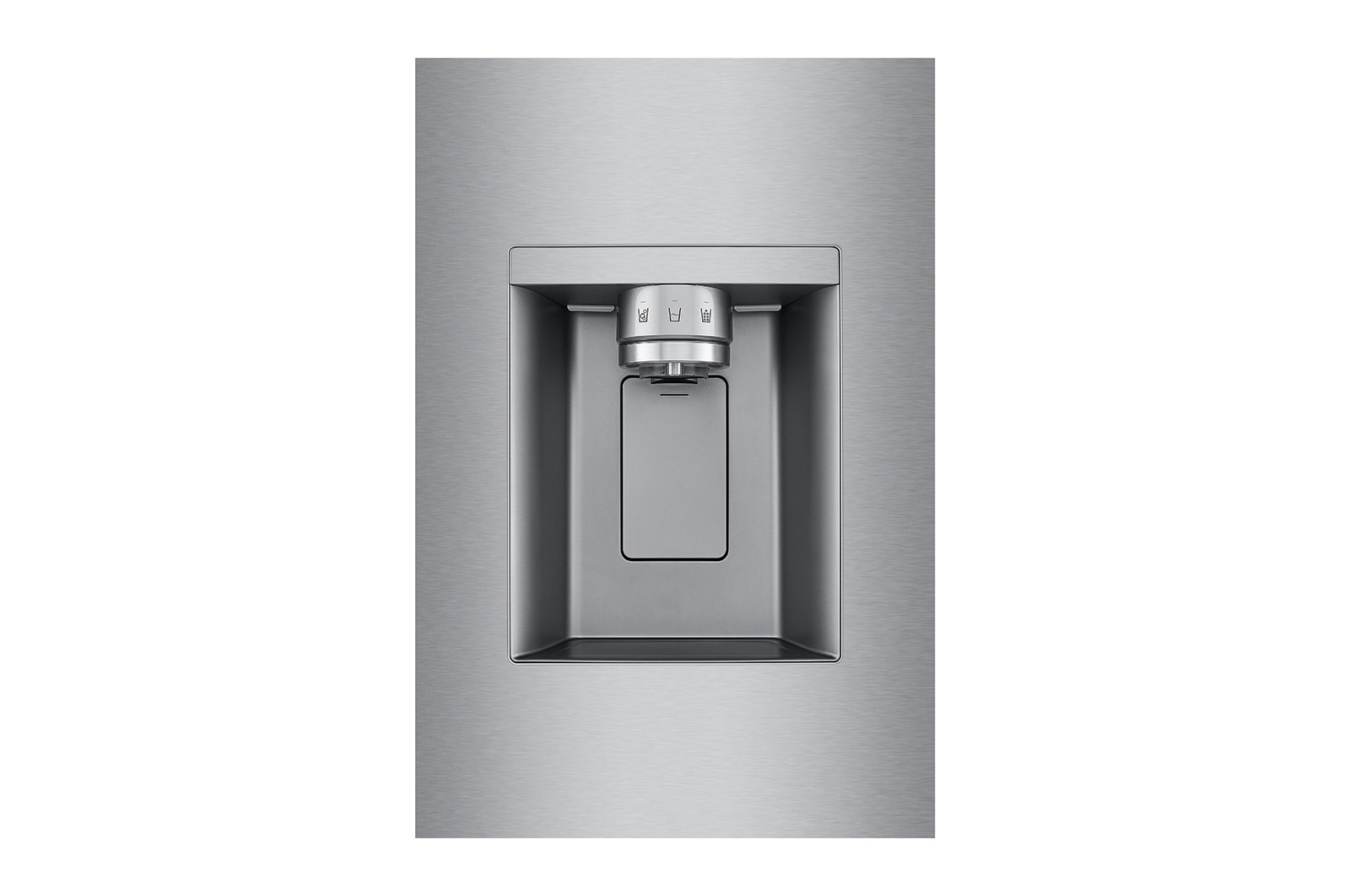

4 Types of Ice

Ice makers automatically create NEW mini cubed ice, standard ice cubes, crushed ice, and slow-melting round Craft Ice™, for all your entertaining needs.
Factory Installed Ice Maker

Factory Installed Ice Maker

Edge-to-Edge InstaView™ Window

Edge-to-Edge InstaView™ Window

Door Cooling+

Door Cooling+

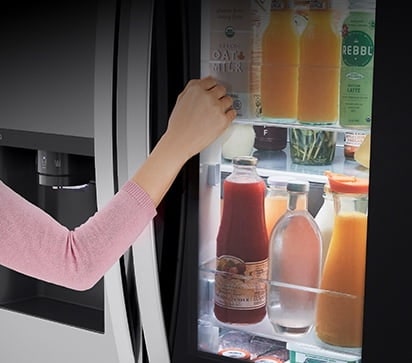

Knock twice to see even more than before

Knock twice to see even more than before

Knock on the InstaView® window to quickly see what's inside—now with a sleek, edge-to-edge design that lets you see your favorites without ever opening the door.

Cooling technologies

Keep your food fresher up to twice as long* with LG's combination of signature cooling technologies.

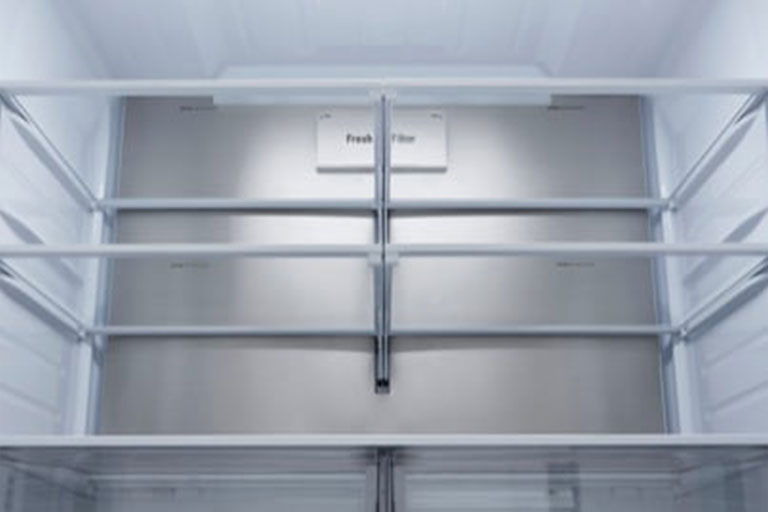

Cool Guard Interior

Wall panels help maintain your chill with premium style

Multi Air Flow Cooling

Senses fluctuations and adjusts temperature within 1°F.

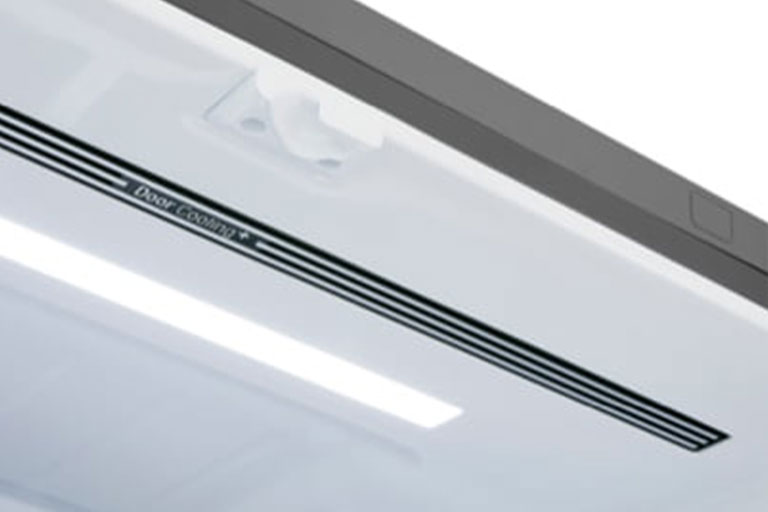

Door Cooling+

Blasts of cool air reaches all areas of the refrigerator.



*Available on select LG smart appliances.
*Than other LG models. Based on LG internal tests between LFXS30796D and LRFDS3006S and in combination with Smart Inverter and Smart Cooling technologies.

Stylish design you can't wait to get your hands on

Stylish design you can't wait to get your hands on

LG’s Smudge Resistant finish resists fingerprints and smudges for a distinctive kitchen that handles real-life in style. It easily wipes clean, so the only lasting impression is your excellent taste.
Peace of mind built-in

Peace of mind built-in

Now select LG appliances activated when you download the ThinQ® app and connect your smart appliance. Get recommended maintenance tips and usage reports to help keep your appliances running at their best. Plus receive alerts for potential problem before they arise.

SUMMARY

Print

DIMENSIONS

LRYKS3106S
CAPACITY
31 cu. ft.
MEASUREMENTS (WxHxD)
35 3/4" x 70 1/4" x 34 1/4"
InstaView®
Yes
ThinQ®
Yes

All Spec

CAPACITY

  • Refrigerator (cu.ft.)

    20.4 cu. ft.

  • Refrigerator (cu.ft.)

    16.9

  • Freezer (cu.ft.)

    10.3 cu. ft.

  • Freezer (cu.ft.)

    8.6

  • Total Capacity (cu.ft.)

    30.7 cu. ft.

  • Total Capacity (cu.ft.)

    31

ENERGY

  • Energy Consumption (kWh/year)

    699

  • ENERGY STAR® Qualified

    Yes

ICE SYSTEM

  • Dispenser Type

    Integrated Tall Ice & Water Dispenser

  • System Type

    Slim SpacePlus®

  • Daily Ice Production

    3.0 lbs / 3.3 (Ice Plus) 0.7 lbs (Clear big ice) 1.5 lbs (Cubed mini ice)

  • Craft Ice™ Daily Ice Production

    6/3

  • Ice Storage Capacity

    3.0 + 3.8 + 4.0 lbs

  • Cube & Crushed Ice

    Yes

  • IcePlus™

    Yes

  • Dual Ice with Craft Ice™

    Yes

  • Water Filter

    LT1000P

  • UVNano™

    Yes

COOLING

  • Multi Air Flow Cooling:

    Yes

  • Temperature Sensors

    3

  • Compressor Type

    Smart Inverter

  • Refrigerant [Name / Amount(g)]

    Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 57g)

  • Refrigerant [Name / Amount(oz)]

    Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 2.01oz)

  • Fresh Air Filter

    Yes

DISPLAY & ETC.

  • Display Type

    Smooth Touch Control / White LED

  • Temperature Controls

    Electronic/Digital

  • Door Alarm

    Yes (Default)

  • Child Lock

    Yes

  • Decibel™ Quiet Operation

    Yes

  • Smart Diagnosis

    Yes

  • Auto Closing Door Hinge

    Yes

  • wi-fi Enabled

    Yes

  • ThinQ®

    Yes

  • Special Features

    Door Cooling+

  • Sabbath

    Yes

REFRIGERATOR

  • Door-in-Door®

    Yes

  • No. of Shelves

    4 Split(3 Fixed+1Folding)

  • Folding Shelf

    1

  • Cantilevered Shelves

    Hybrid Cantilevered

  • Shelf Construction

    SpillProof™ Tempered Glass

  • Crisper Bins

    2 Crispers

  • Glide N’ Serve™ Drawer

    Yes

  • CoolGuard™

    Yes

  • Handle Type

    Bar

  • No. of Door Bins

    8 Total (2 Adjustable Gallon Sized)

  • Door Bin Construction

    1 Piece (Clear)

FREEZER

  • Door Type

    Pull Drawer

  • Drawers/Shelves

    3-Tier Organization

  • DuraBase™ Solid Drawer Base

    Yes

  • Freezer Light Upper

    LED Lighting

  • Freezer Handle

    SmartPull™ Handle

MATERIALS & FINISHES

  • Flat type Door

    Yes

  • Hidden Hinges

    Yes

  • Surface

    Smooth

  • Handles

    Matching Commercial Handles

  • Smudge Resistant Finish

    Yes

  • Insulation

    Low GWP and Zero ODP Blowing Agent

DIMENSIONS

  • Width

    35 3/4"

  • Height to Top of Hinge

    70 1/4"

  • Depth with Handles

    31 5/8"

  • Depth (with handles)

    34 1/4"

  • Width (Door Open 90˚ without Handle)

    40"

  • Width (Door Open 90˚ with Handle)

    44 7/8"

  • Door Edge Clearance with Handle

    4 1/4"

  • Door Edge Clearance without Handle

    2 1/4"

  • Height to Top of Case

    68 7/8"

  • Depth without Door

    29 7/8"

  • Depth without Door

    24 7/8"

  • Depth without Handles

    34 1/4"

  • Depth without Handles

    29 1/4"

  • Depth (Total with Door Open)

    48 3/4"

  • Depth (Total with Door Open)

    43 1/2"

  • Depth (Draw Open Fully without Handle)

    48 7/8"

  • Installation Clearance

    Sides 1/8", Top 1", Back 2"

  • Weight (Unit/Carton)

    317 lbs. / 339 lbs.

  • Weight (Unit/Carton)

    322 lbs / 352 lbs

  • Carton Dimensions (WxHxD)

    38" x 73" x 32"

  • Carton dimensions (W x H x D)

    38" x 72" x 37"

LIMITED WARRANTY

  • Parts & Labour

    1 Year

  • Sealed System (Parts only)

    7 Years

  • Compressor (Parts Only)

    10 Years

UPC

  • UPC

    195174034811
