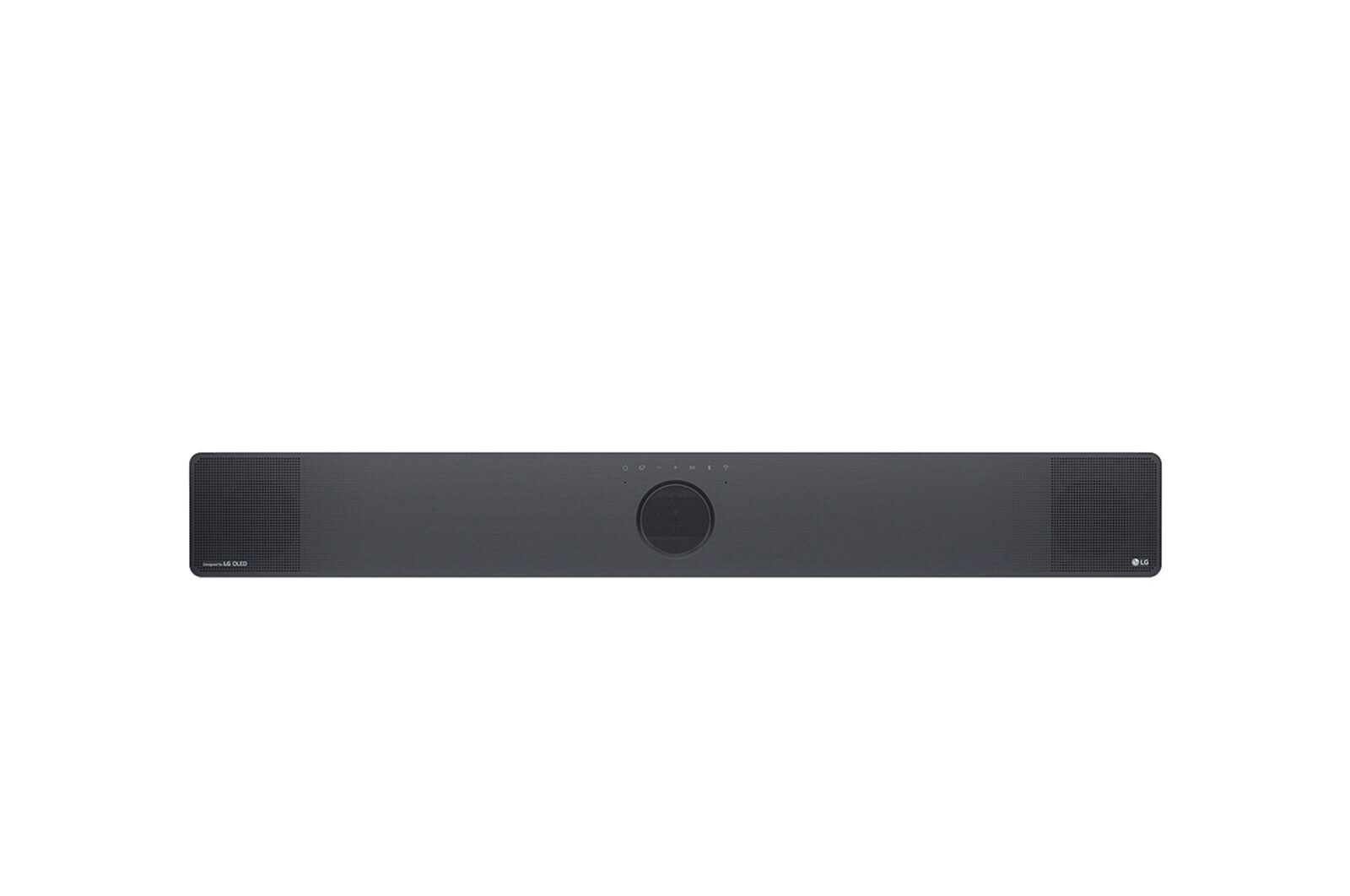

LG Sound bar SC9S 3.1.3ch Perfect Matching for OLED evo C Series TV with IMAX® Enhanced and Dolby Atmos®

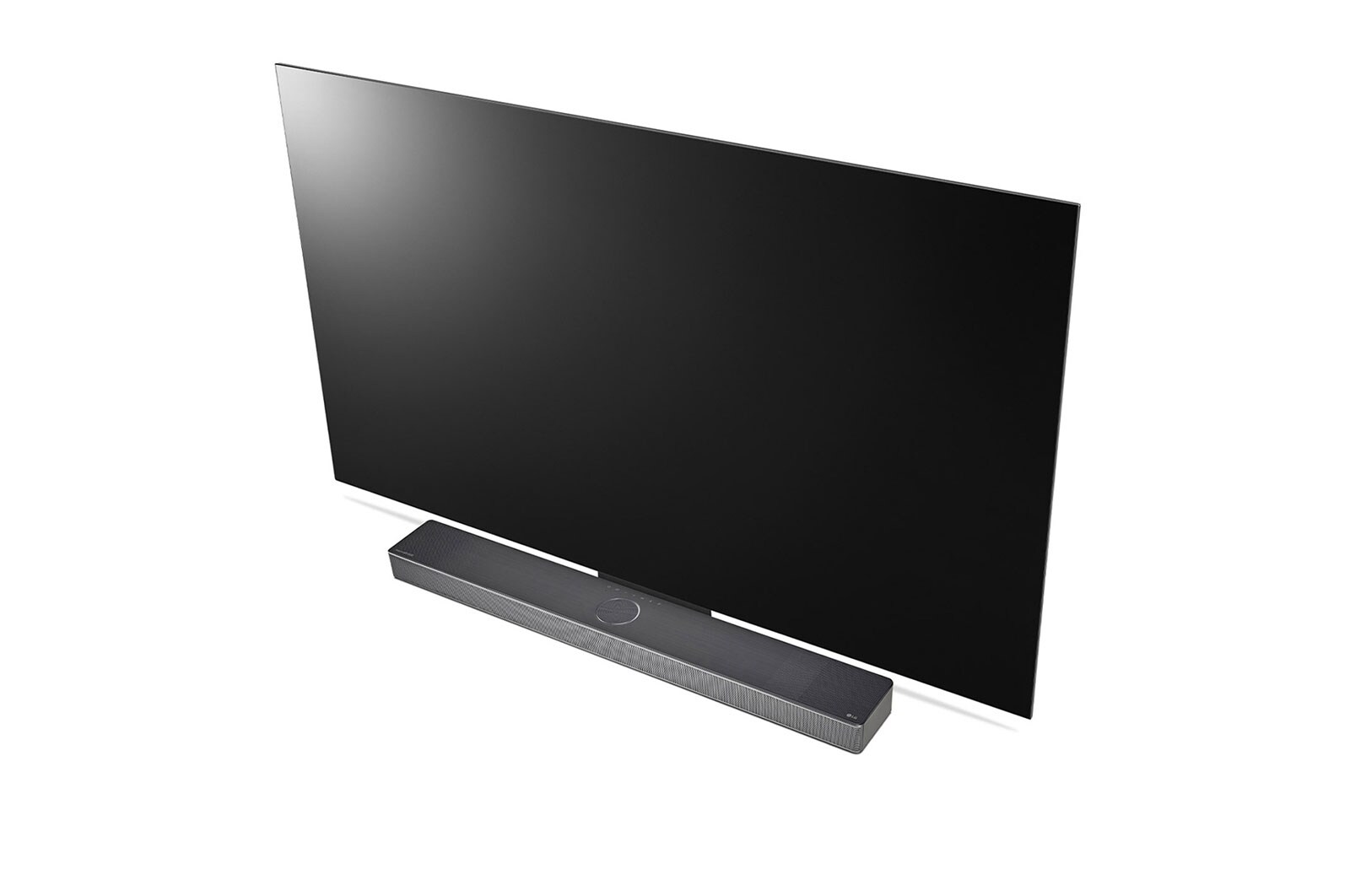

Diagonal view of the LG OLED C Series TV and SC9S Sound Bar. Highlights are shown on the sound bar to highlight the SC9S Sound Bar's WOW Bracket. On the bottom left, the WOW Bracket images is enlarged.
LG Sound bar is perfect for LG TVs. The best TV and sound bar synergy takes your entertainment experience to a whole new level. Enjoy them with a breeze.
*All Pictures shown are for illustaration purpose only.
**It has an exclusive bracket that are compatible with LG OLED evo C2/C3/C4 Series 195cm/77",164cm/65",139cm/55".

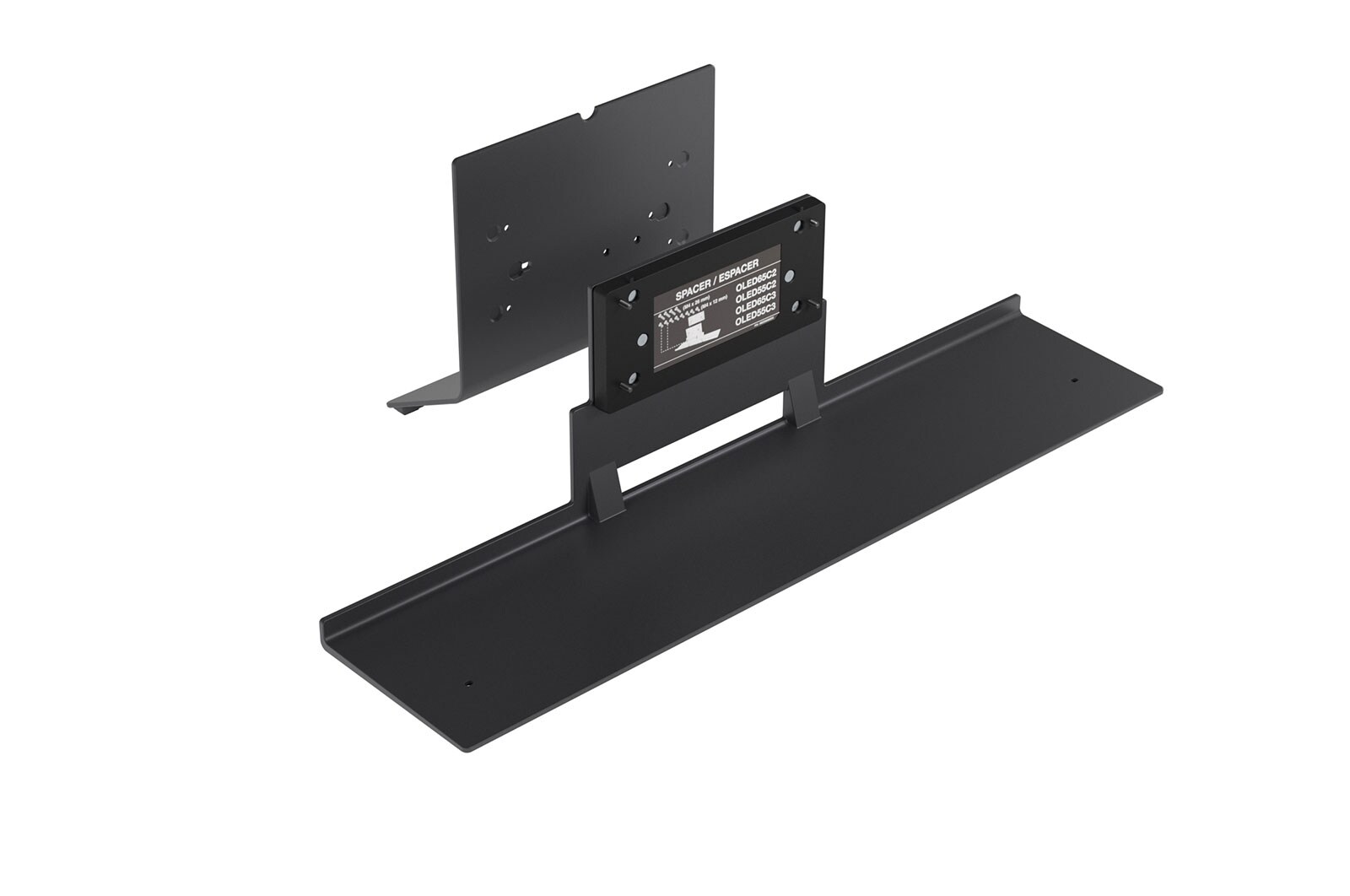

WOW Bracket

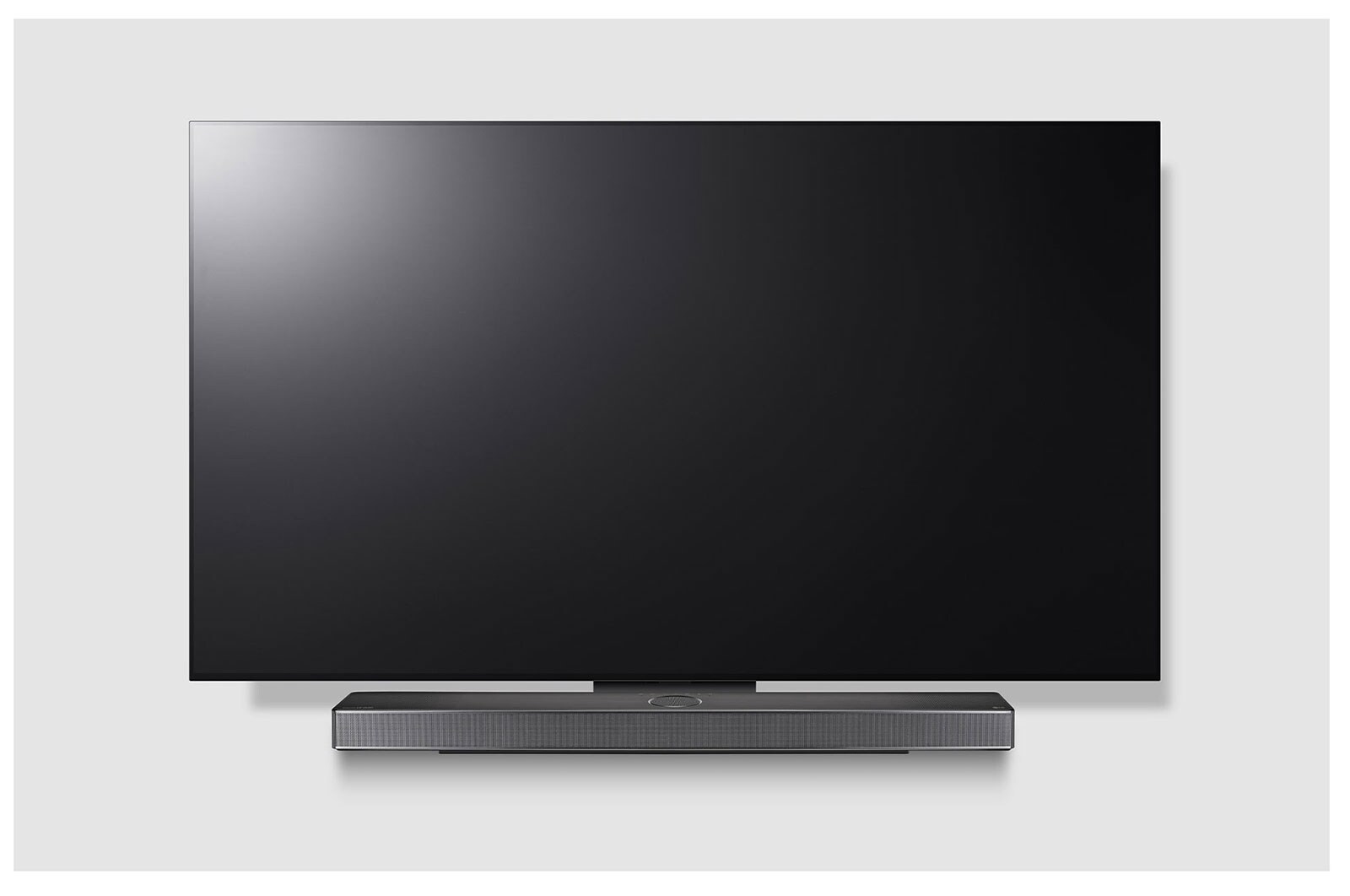

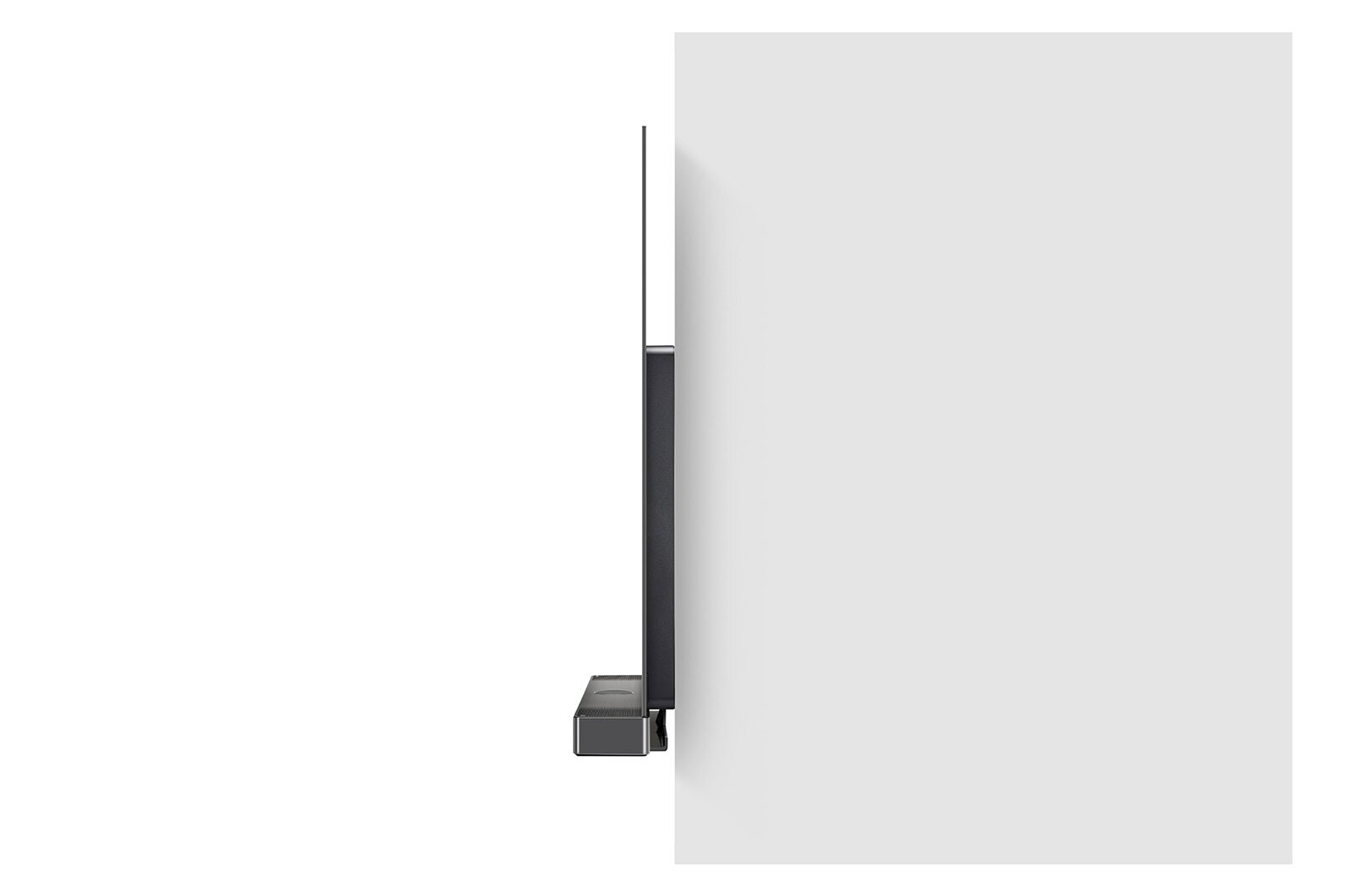

An Exclusive Bracket allows you to place sound bar in the right position so that you can hear the best sound. Both as a stand or wall-mounted, your sound bar creates optimal sound with a sleek design.
A video clip is available on the above. Below 3 gray-filtered images are shown, a bracket, stand and a wall-mount TV from the left.
*Bracket compatible with LG OLED evo C2 / C3 / C4 Series 195cm/77”, 164cm/65”, 139cm/55”
WOW Orchestra
LG Sound bar presents perfect harmonious sound with LG TV. It uses both LG TV sound and LG Sound bar at once for the ultimate listening experience. Feel every detail of sound.
Variously figured blue-colored sound waves are being released from Sound Bar and TV.
*Screen images simulated.
*WOW Orchestra Compatible TVs: OLED M4/G4/C4/B4/Z3/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80. Compatible TVs may vary by year of release. QNED 80 support limited to 2022 and 2023 models.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOW Orchestra may vary depending on sound bar model.
WOW Interface
Control your sound bar through LG TV with one remote. With one click of the remote, you can see the sound bar’s menu and settings on the TV screen. Such as volume control, checking the connection status, and even selecting a sound mode.
*Screen images simulated.
*WOW Orchestra Compatible TVs: OLED M4/G4/C4/B4/Z3/M3/G3/C3/B3/A3/Z2/G2/C2/CS/B2/A2, QNED 99/95/90/85/80. Compatible TVs may vary by year of release. QNED 80 support limited to 2022 and 2023 models.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOW Orchestra may vary depending on sound bar model.
WOWCAST
Enjoy content without any wires or distractions of sound. LG WOWCAST wirelessly connects LG Sound bar* and LG TV to deliver high quality sound in a more convenient way. Experience the power of Dolby Atmos for a more immersive audio experience.
*Screen images simulated.
*WOWCAST Compatible TVs : OLED M4/G4/C4/B4/M3/G3/C3/B3/A3, QNED 99/95/90/85. Compatible TVs may vary by year of release.
*Please note that services may not be available at the time of purchase. A network connection is required for updates.
*WOWCAST Ready may vary depending on sound bar model.
LG Sound bar combines with Dolby Atmos, DTS:X, and IMAX Enhanced to bring theater-like sound to your living room. It surrounds you in clear and realistic sound from all sides, placing you in the center of your favourite movies for powerful, true-to-life sound with every scene.
Variously formed blue sound waves are being released from the Sound Bar and TV to all over the living room.
"*Dolby and Dolby Vision are registered trademarks of Dolby Laboratories Licensing Corporation.
**The double-D symbol is a trademark of Dolby Laboratories Licensing Corporation.
LG Sound bar SC9S pushes the boundary of the entertainment experience. Your sound bar presents Triple Level Spatial Sound— a more immersive and accurate sound experience. By using an HRTF(Head Related Transfer Function) related 3D engine, your sound bar creates a virtual middle layer. It means that the sound layers realize sophisticated surround sound that you would only experience in theater.
Blue dome-shaped, 3 layered sound wavers are covering Sound bar and TV hung on the wall in the living room.
*’Triple Level Spatial Sound’ is available in CINEMA / AI Sound Pro Mode of sound bar.
**The mid-layer is created using sound bar’s speaker channel. The sound of the front and front-top speakers are synthesized to build a sound field.
***If there is no rear speaker, the rear field cannot be created.
Feel stronger, deeper bass in your favourite songs and movies. The wireless subwoofer hit low notes with ease, with increased volume, and bass quality transmitted over a longer distance.

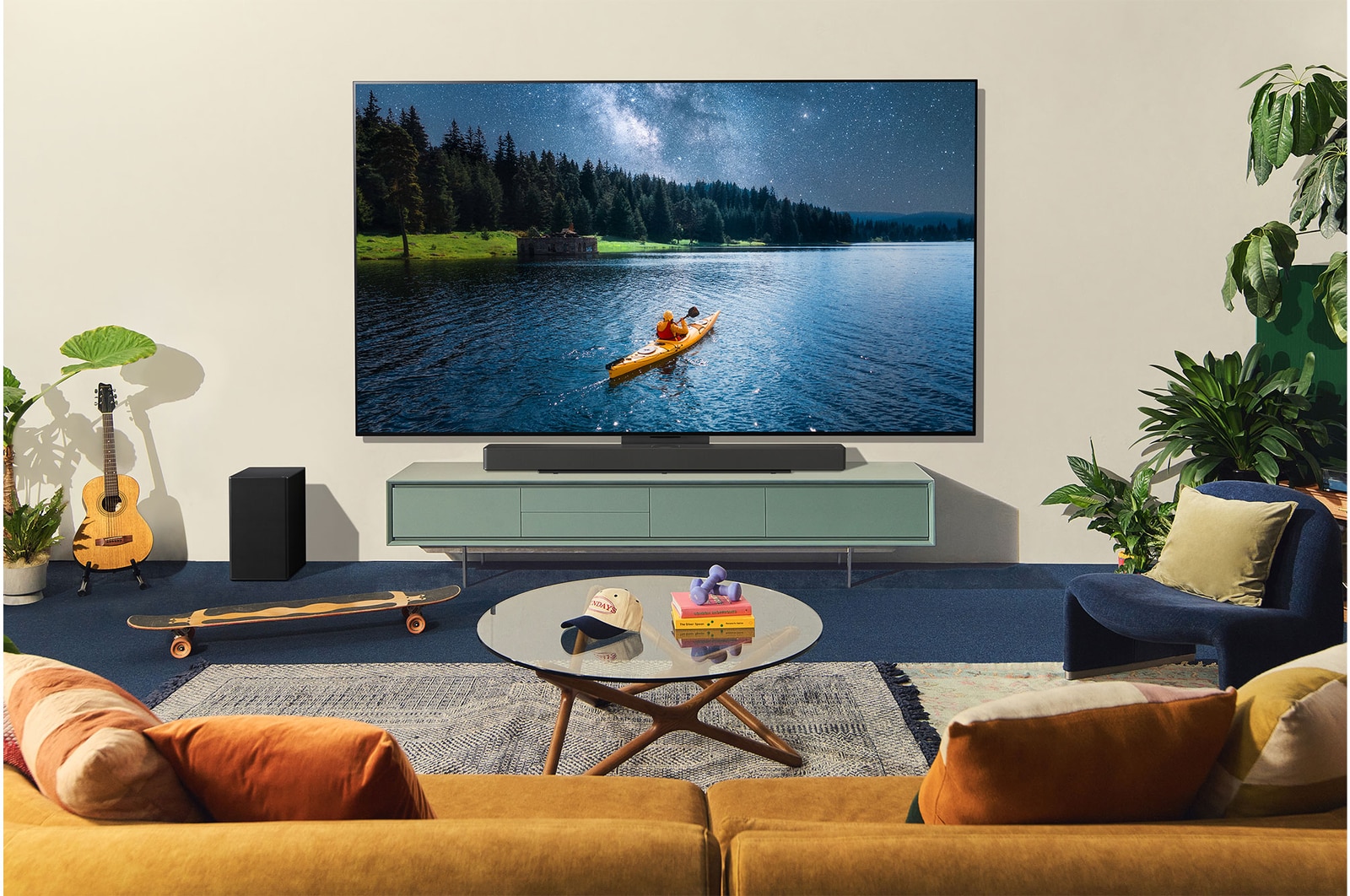

A sound bar is placed on the cabinet. Beside a wireless subwoofer placed on the floor. Blue sound graphics are coming out from the subwoofer.
Connect your LG Sound bar SC9S to a console or Blu-ray player to immerse yourself in your favourite games, TV shows, and movies. Your Sound bar offers a lag-free viewing experience with the best picture and sound.
*Both TV and Sound bar must support VRR/ALLM.
**Console has to support VRR. VRR pass though limited to 60Hz content.
*Official MQA recording required.
*Some features require 3rd party subscription or account.
**Google is a trademark of Google LLC.
*** The Google Assistant is not available in certain languages and countries.
****Amazon, Alexa, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
With LG Sound bar SC9S, your content sounds better than before. It divides two-channel audio into multi-channel audio, optimizing what you hear.
*Available on AI Sound Pro, Cinema, Clear Voice Pro, Sports, Game modes.
LG Sound bar considers the sound where it is in the space. With an upgraded AI Room Calibration, your sound bar delivers the optimal sound. By matching reference frequencies at an extended range of 400Hz, it can analyze the space precisely and correct the distortion of the sound.
*AI Room Calibration Pro is a automatic sound tuning technology that compensates for the environment the sound bar is placed, by using Algorithms that improve the sound bar’s sonic performance.
Enjoy your content with specialized sound modes— AI Sound Pro. It intelligently analyzes your content to deliver optimal sound whether you are watching movies, catching up on the news, or listening to music.
Brand Information
LG Sound Bar
Model Name
SC9S
Subwoofer Model Name
SPS8-W
System (Main Chip)
MT8532
Mainset / Subwoofer Color
Black / Black
Main (w/ Foot )
975 x 63 x 125
Matching TV size
55 ~ 65 inch
Subwoofer
221 x 390 x 313
Main - Front / Top / Bottom
Metal / Mold / Mold
Subwoofer - Front / Body
Jersey / Wood
Main
4.1Kg
Subwoofer
7.8Kg
Gross Weight
22.7Kg
Size (W x H x D) mm
1221 x 477 x 284
Type
Flexo
Color
Yellow
20ft
128
40ft
288
40ft (HC)
340
Number of channels
3.1.3 ch
Total
400W
Front
30W * 2
Center
30W
Top
30W * 2
Top Center
30W
Subwoofer
220W (Wireless)
SPL
83dB
System
Closed
Tweeter Unit
20mm (New)
Woofer Unit
52x93mm
Impedance
6ohm
SPL
83dB
System
Closed
Woofer Unit
2 inch
Impedance
6ohm
SPL
83dB
System
Closed
Woofer Unit
2.3 inch
Impedance
6ohm
SPL
85dB
SPL System
Closed
Tweeter Unit
20mm (New)
Impedance
6ohm
SPL
85dB
System
Bass Reflex
Woofer Unit
7 inch
Impedance
3ohm
Passive Radiator (Size, Q'ty)
127x47mm, 2EA
Number of Speakers
9EA
Optical
Yes(1)
HDMI In / Out
Yes(1) / Yes(1)
USB
Yes
Bluetooth Version
5.0
Bluetooth Codec - SBC / AAC
Yes / Yes
Wi-Fi (2.4G / 5G)
Yes
Wireless Rear Ready
Yes (1:2)
Display Type
Dot LED (3 EA)
LED Indicator Color
Multi color
Sampling - "24bit/192kHz" / "24bit/96kHz"
No / Yes
Upbit/upsampling - "24bit/192kHz" / "24bit/96kHz"
No / Yes
AI Sound Pro
Yes
Standard
Yes
Music
Yes (w/ Meridian)
Cinema
Yes
Clear Voice
Yes
Sports
Yes
Game
Yes
Bass Blast / Bass Blast +
Yes
Dolby Atmos (Codec)
Yes
DTS:X (Codec)
Yes
IMAX Enhanced (Codec)
Yes
User EQ (TRE/BAS, -5 ~ 5dB, 1dB/Step) - RCU / App
Yes / Yes
Night Time On/Off - RCU / App
Yes / Yes
Dynamic Rage On/Off - RCU / App
No / Yes
Auto Volume Leveler On/Off - RCU / App
No / Yes
Surround On/Off - RCU / App
Yes / Yes
AI Room Calibration (2 MIC In) - App
Yes
Soundbar Mode Control (by TV GUI)
Yes
TV Sound Mode Share
Yes
Wow Orchestra
Yes
Pass-through
Yes
Pass-through (4K)
Yes
VRR / ALLM
Yes
120Hz (4:2:0)
Yes
HDR10 / HDR 10+
Yes / No
Dolby Vision
Yes
Audio Return Channel (ARC)
Yes
Audio Return Channel (e-ARC)
Yes
CEC (Simplink)
Yes
Works with Alexa (Controllee)
Yes
Spotify Connect
Yes
Tidal Connect
Yes
AirPlay 2
Yes
Works with the Google Assistant (Controllee)
Yes
Chromecast
Yes
Google Multi Zone (One Source → Multi Speaker)
Yes
Remote App - iOS / Android OS
Yes / Yes
Smart Phone File Playback (Bluetooth)
Yes
EZ Setup (BLE)
Yes
NSU / FOTA
Yes / No
Control with your TV Remote (Vol+/-, Mute)
Yes / Yes
Sound Sync - Bluetooth(LG TV) / Optical
No / Yes
Auto Power On/Off - Bluetooth (LGTV) / Optical
No / Yes
Auto Power On/Off - RCU / APP
Yes / Yes
A/V Sync (0~300ms) - RCU / APP
No / Yes
Woofer Level (-15 ~ 6dB, 1dB/Step)
Yes
Channel Level (-6 ~ 6dB, 1dB/Step)_Soundbar Main - Top / Center (Top) / Surround
Yes / Yes / No
Channel Level (-6 ~ 6dB, 1dB/Step) Soundbar Rear - Rear_Front / Rear Surround / Rear Top
Yes / No / No
Mute
Yes
Auto Dimmer / Off - RCU / App
No / Yes
USB Host / Charge
Yes / No
LPCM
Yes
Dolby Atmos
Yes
Dolby TrueHD
Yes
Dolby Digital Plus
Yes
Dolby Digital
Yes
DTS:X
Yes
DTS-HD Master Audio
Yes
DTS-HD High Resolution
Yes
DTS Digital Surround
Yes
AAC / AAC+
Yes / Yes
MQA (w/ Tidal)
Yes
FLAC - C4A / USB
Yes / Yes
OGG - C4A / USB
Yes / Yes
WAV - C4A / USB
Yes / Yes
MP3 - C4A / USB
Yes / Yes
AAC - C4A / USB
Yes / Yes
Type
Adapter (23V, 2.61A)
Power Off Consumption
0.5W ↓
Power Consumption
37W
Type
SMPS
Power Off Consumption
0.5W ↓
Power Consumption
38W
Wireless Frequency
5GHz
Web Manual (File)
Yes (Full)
Built-in Manual (Book) (Simple or Full)
Yes (Simple)
Wall Mount Guide
Yes
Open Source - Yes (Full or Simple) / No
Yes (Full)
Warranty Card
Yes
Model Name
RAV21
Battery(Size)
AA x 2
Battery Built-in
Yes
TV Synergy Bracket (Wallmount & Stand)
Yes
HDMI Cable
Yes
